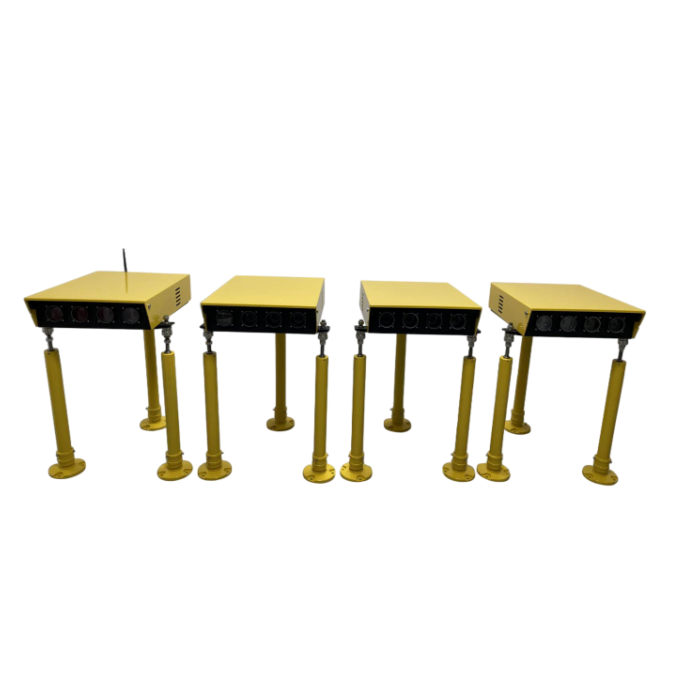

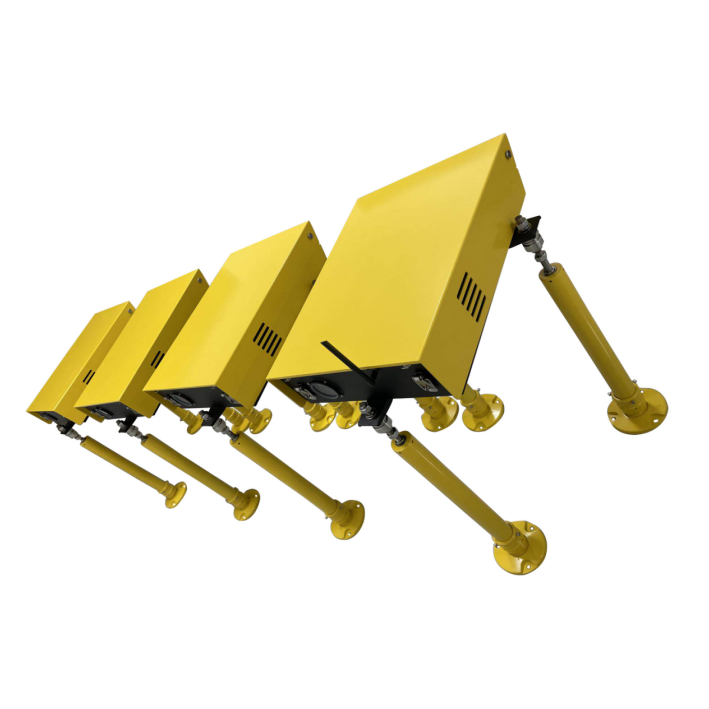

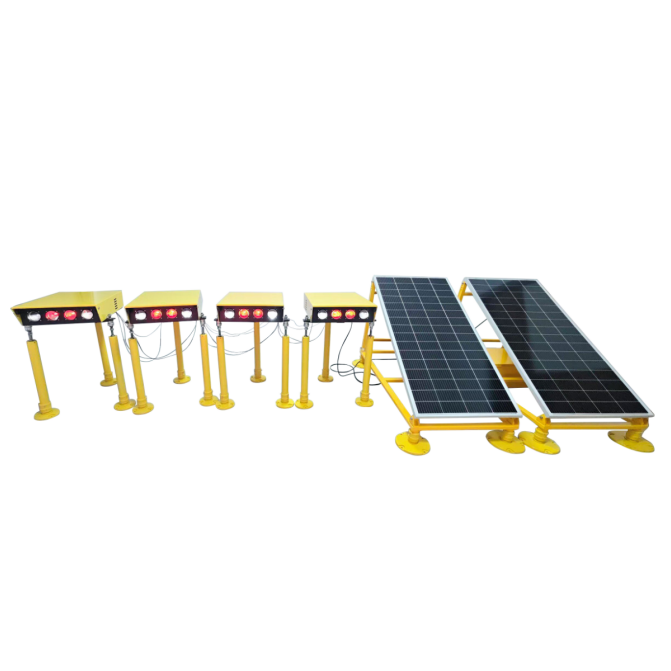

OS-JCL990 Solar Powered Radio Controlled LED Precision Approach Path Indicator (PAPI)
Short Description:
Battery parameters: 12V/200AH
LED Life Time:100,000Hours
Color: Red/White
IP grade: IP65
Item: OS-JCL990
Environmental Property - Operating Temperature: -40℃~+55℃
Downloads
- SKU
OS-JCL990
- Item: OS-JCL990
- Environmental Property - Operating Temperature: -40℃~+55℃
- Storage Temperature: -40℃~+55℃
- Precipitation: IP65
- Working environment humidity: ≤95%（No condensation）
- PAPI System: Composed of 4 lamps
- Electrical Property - Voltage: DC12V
- Rated power: 54W
| Item | OS-JCL990 |
|---|---|
| Environmental Property - Operating Temperature | -40℃~+55℃ |
| Storage Temperature | -40℃~+55℃ |
| Precipitation | IP65 |
| Working environment humidity | ≤95%（No condensation） |
| PAPI System | Composed of 4 lamps |
| Electrical Property - Voltage | DC12V |
| Rated power | 54W |
| Battery parameters | 12V/200AH |

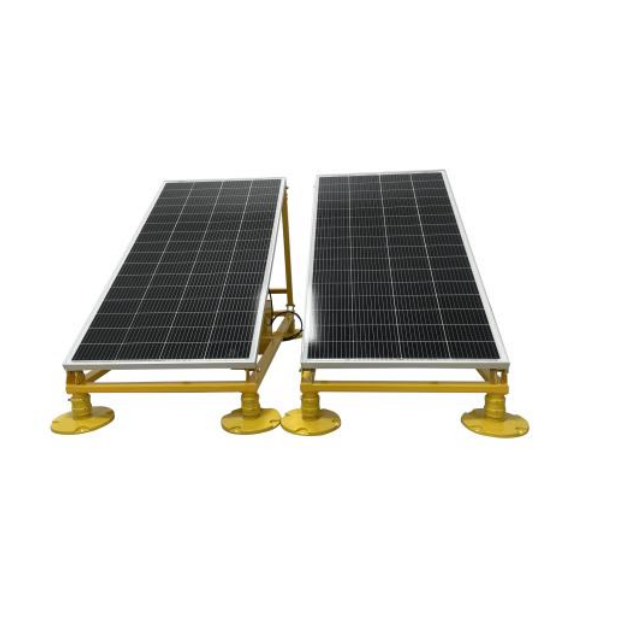

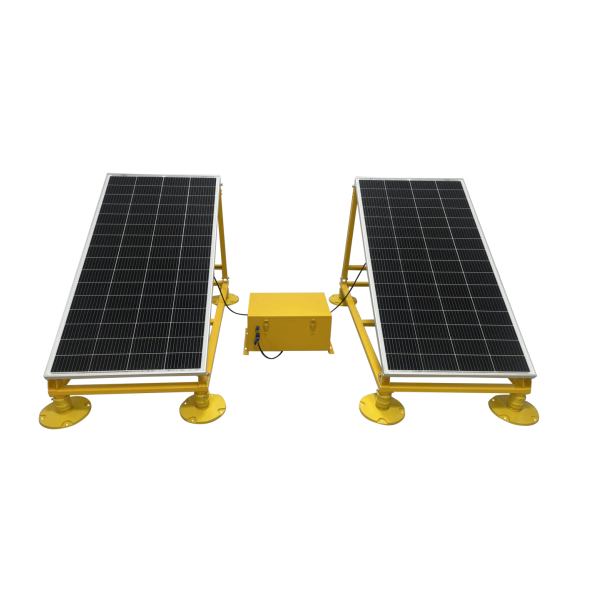

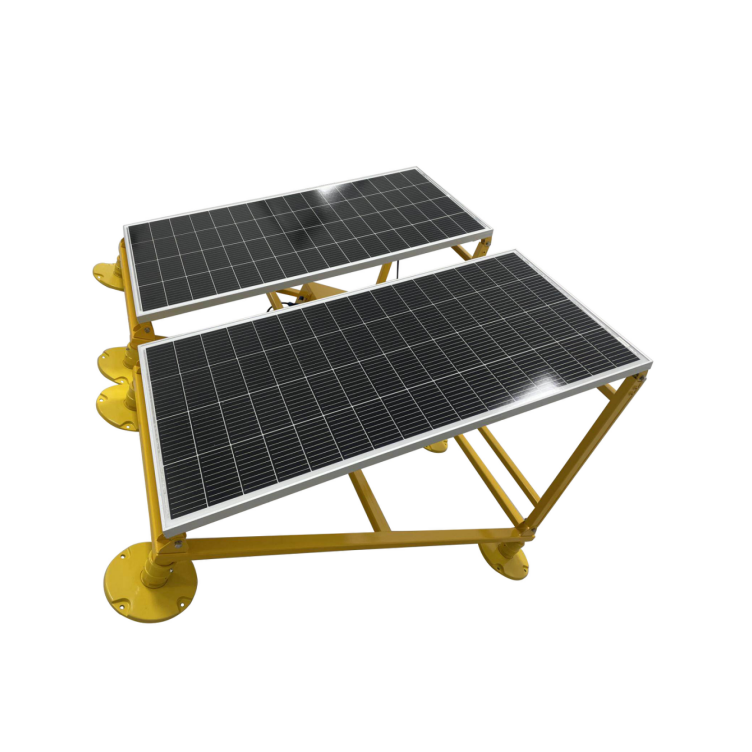

| Solar panel parameters | 12V/320W |
| Lamp | LED Lamp |
| Lamp Life | 100, 000Hours |
| Photometric Property - Light color | Red, White |
| Main beam angle | Vertical:±2°; Horizontal:±2° |
| M in intensity | 30, 000cd(White), 15, 000cd(Red) |
| Maximum Installation height | ≤1000mm |
| Surface Treatment - Treatment | Powder coating |
| Color | Yellow |
| Composition - Upper body Cover | Aluminum |
| Light body | Aluminum |
| Support legs | Aluminum |
| Dome lens | Glass(clear) |
| Solar panel bracket | 304 stainless steel |
Common use cases include aeronautical ground lighting system, airfield lighting, airfield lighting system, airport airfield lighting system, airport lighting, airport lighting system.
