OS-RBH-L L802A(S) High Intensity LED Airport Rotating Beacon

OS-RBH-L L802A(S) High Intensity LED Airport Rotating Beacon - Image 3

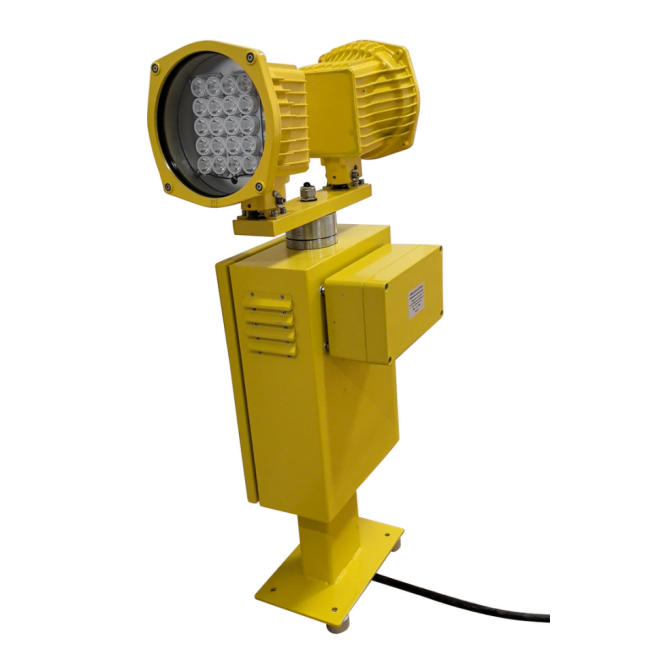

OS-RBH-L L802A(S) High Intensity LED Airport Rotating Beacon - Image 4

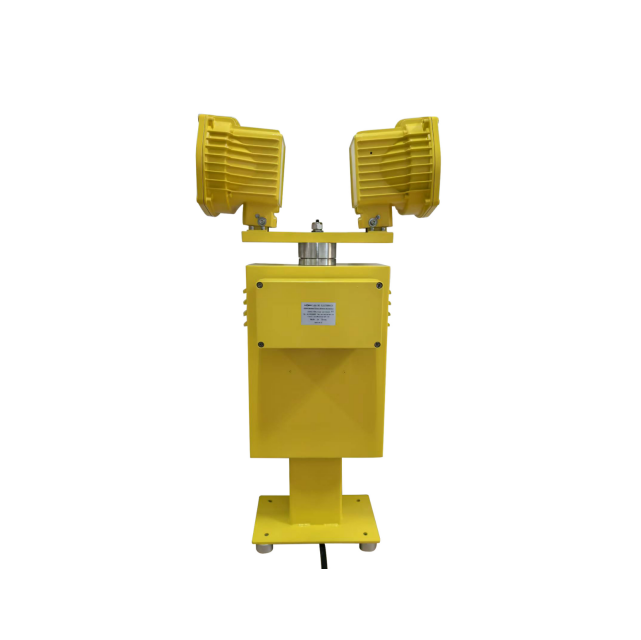

OS-RBH-L L802A(S) High Intensity LED Airport Rotating Beacon - Image 5

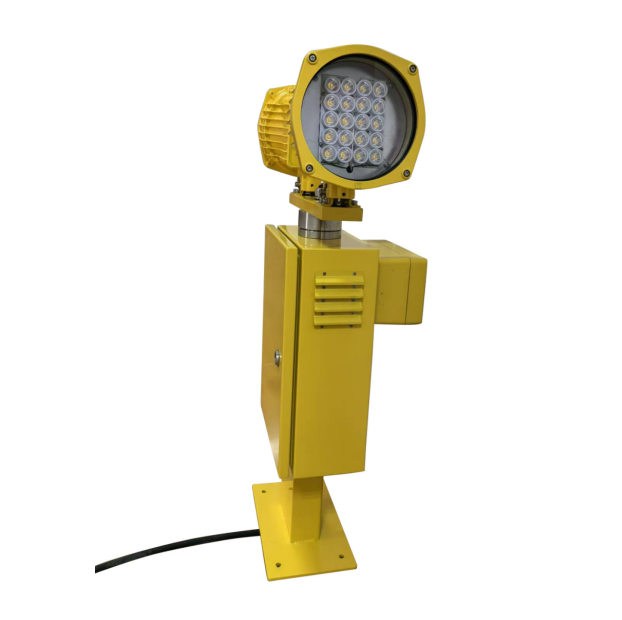

OS-RBH-L L802A(S) High Intensity LED Airport Rotating Beacon - Image 6

Short Description:

Altiglo Electronics are committed to delivering cutting-edge aviation solutions, and our LED Airport Rotating Beacon exemplifies our dedication to innovation, safety, and reliability. With its superior performance and robust design, our OS-RBH-L rotating beacon sets a new standard for airport lighting, ensuring that air traffic management remains efficient and secure.

Choose our LED Airport Rotating Beacon to elevate the safety and visibility of your airport operations, and experience the difference that advanced LED technology can make in enhancing aviation infrastructure.

Power supply:200VAC to 240VAC 50/60Hz

Power consumption:165W LED

Life Time:100,000Hours

Color:CY= Clear and Yellow,CG= Clear and Green

IP grade:IP65

Item: OS-RBH-L

Environmental Property - Environmenta l Temperature: - 40 ℃~+55℃

Downloads

Send Enquiry

SKU: OS-RBH-L
Category: Approach Lighting, Elevated Approach Lighting

Item	OS-RBH-L
Environmental Property - Environmenta l Temperature	– 40 ℃~+55℃
Precipitation	IP6 5
Salt fog	Exposure to a corrosive atmosphere
Temperature shock	Exposure of the hot light fixture to cold water spray
Electrical Property - Power supply	200VAC to 240VAC 50/60Hz
Power consumption	LED 220 W
Lamp	LED
Lamp Life	100, 000Hours
Photometric Property - Light color	CY = Clear and Yellow CG = Clear and Green
Flashing rate	25 or 37.5 Times/min
Torque of drive motor	40N.m
Packing Size	550x550x940mm³
Net Weight	25.5kg
Gross Weight	46 Kg
Surface Treatment - Treatment	Anodizing coating
Color	Yellow
Composition - Upper body	Aluminum forging
Lower cover	Aluminum die-casting
Dome lens cover	Aluminum forging
Dome lens	Glass(clear)
Beacon Type (Note 1) - Elevation Angle in degrees	Minimum Effective Intensity of Flash in candelas
L-802A& L-802S - 1 and 2	37, 500(Note 2)
3 to 7	75, 000(Note 2)
8 to 10	37, 500(Note 2)
