Inset Type, Runway Lighting Series
Short Description:

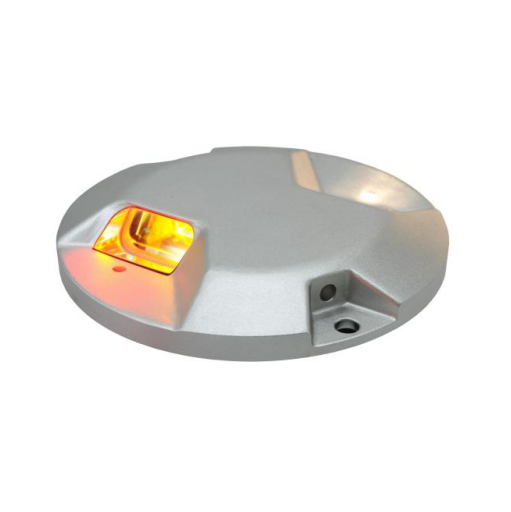

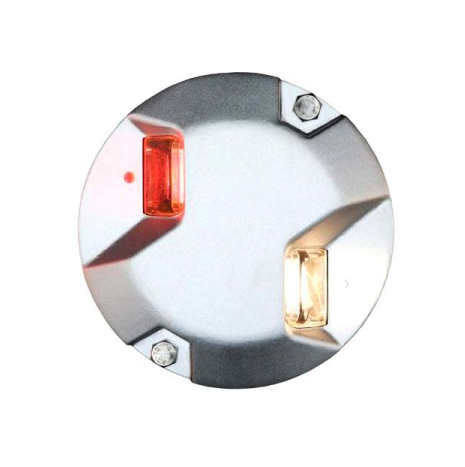

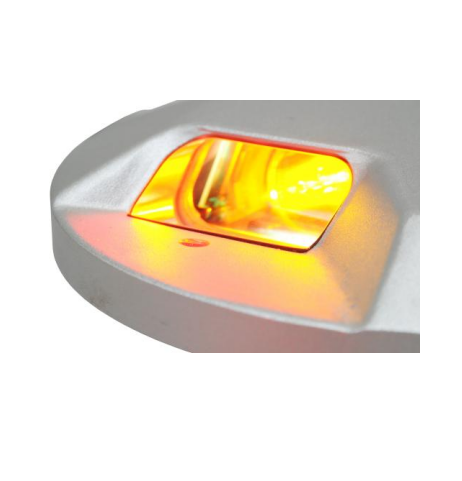

Altiglo OS-RCL-02-XX(H) Inset Runway Centerline Light is a compact and durable lighting fixture that is installed flush with the surface of the runway.This low-profile design
minimizes the risk of damage from aircraft and ensures a seamless and unobstructed runway surface.
Power supply: 2.8A~6.6A
Rated power: 2X48W
Halogen Life Time:1000 Hours
Minimum Average Intensity:750cd(red); 5000cd(white)
Color: White and Red
IP grade: IP68
Item: OS-RCL-02-XX(H)
Environmental Property - Operating Temperature: -55℃~+55℃
Downloads
OS-RCL-02-XX(H)| Item | OS-RCL-02-XX(H) |
|---|---|
| Environmental Property - Operating Temperature | -55℃~+55℃ |
| Storage Temperature | -40℃~+60℃ |
| Precipitation | IP68 |
| Salt fog | Exposure to a corrosive atmosphere |
| Temperature shock | Exposure of the hot light fixture to cold water spray |
| Electrical Property - Power supply | 2.8A~ 6.6A |
| Rated power | 2X48W |
| Lamp | Halogen Lamp |
| Lamp Life | 1000 Hours |
| Photometric Property - Light color | White and Red |
| Main beam angle | Vertical:0°-9° or 0.2°-9° or 1°-10°or 0.2°-4.7° ; Horizontal:± 5° |
| Min intensity | 750cd(red); 5000cd(white) |
| Light Size | 203*203*150mm(without shallow base) 220*220*150mm(with shallow base) |
| Weight | 3.5Kg(without shallow base) 6.1Kg(with shallow base) |
| Surface Treatment - Treatment | Anodizing coating |
| Color | White |
| Composition - Upper body | Aluminum forging |
| Lower cover | Aluminum die-casting |
| Dome lens cover | Aluminum forging |
| Dome lens | Glass(clear) |
| Application - M ain beam | Actual avg. cd |
| H | V |
| OS-RCL-02-XX(H) - ICAO Figure A2-7/ FAAL-850A | 6562 |
| Red - 750 | 1560 |
| ICAO Figure A2-6 - ±5° | 6501 |
| 0.2° to 4.7° - Red | 1572 |
| 1 - Shallow base | Waterproof connector |
| 2 - O Sealing ring | Support plate |
| 3 - Shallow base cover | Screws |
Typically specified for Inset Type, Runway Lighting Series projects.
Common use cases include airport center line inset light, frc - runway centerline inset 8 halogen, halogen inset runway center-line light, inset runway centerline light, inset type, ircl - runway centerline inset 12 halogen l-850a.
