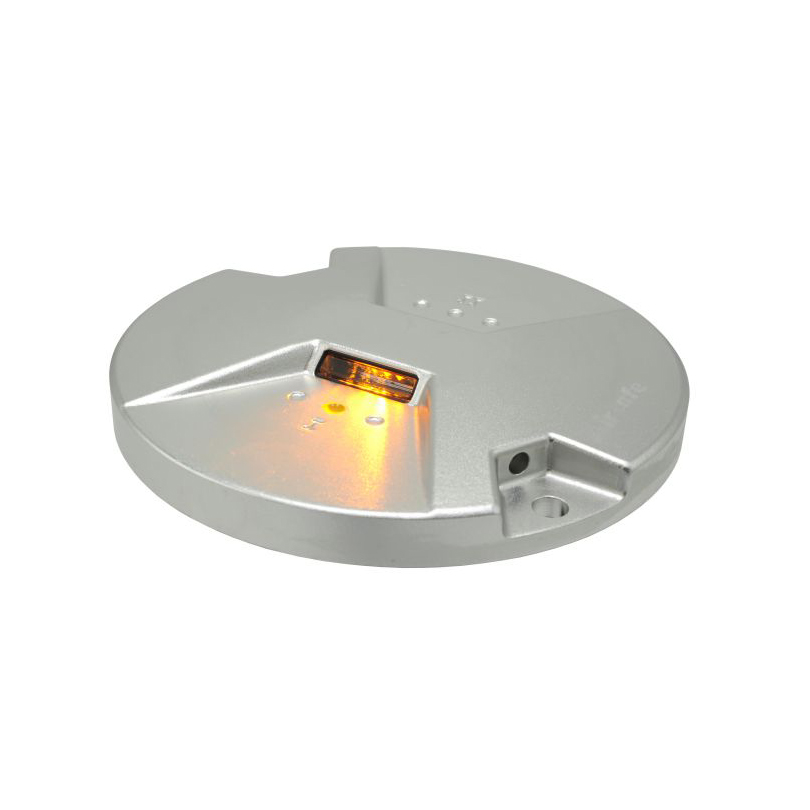

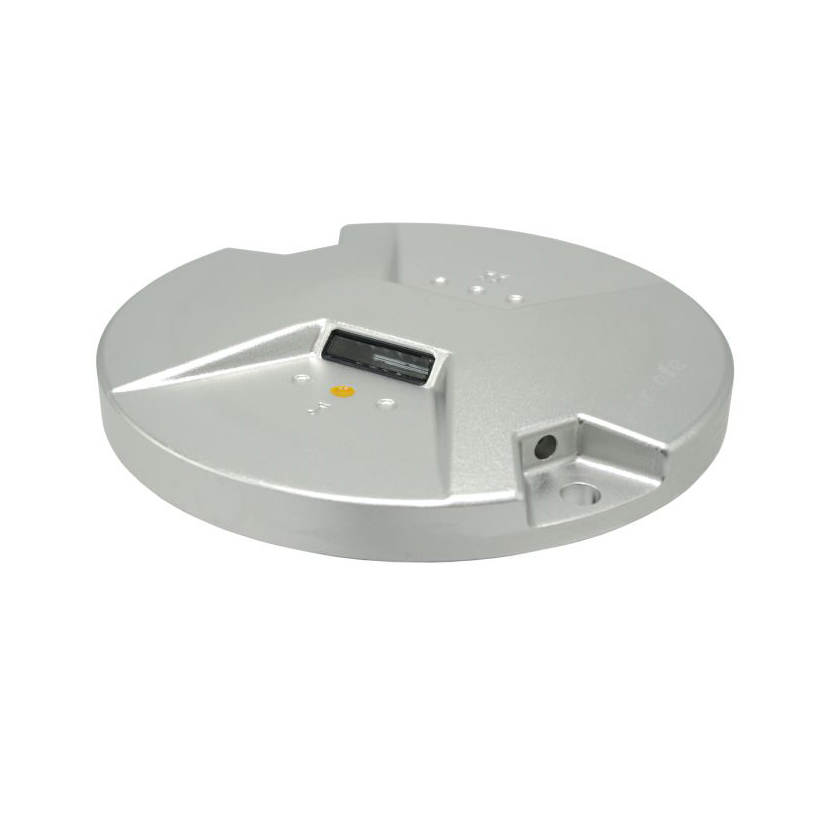

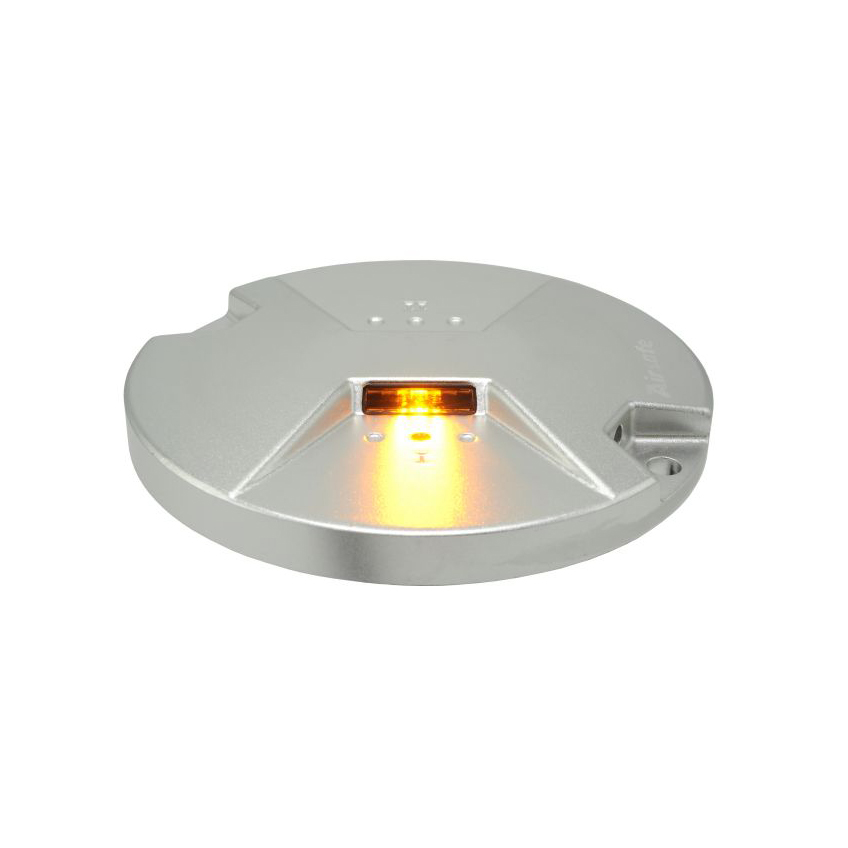

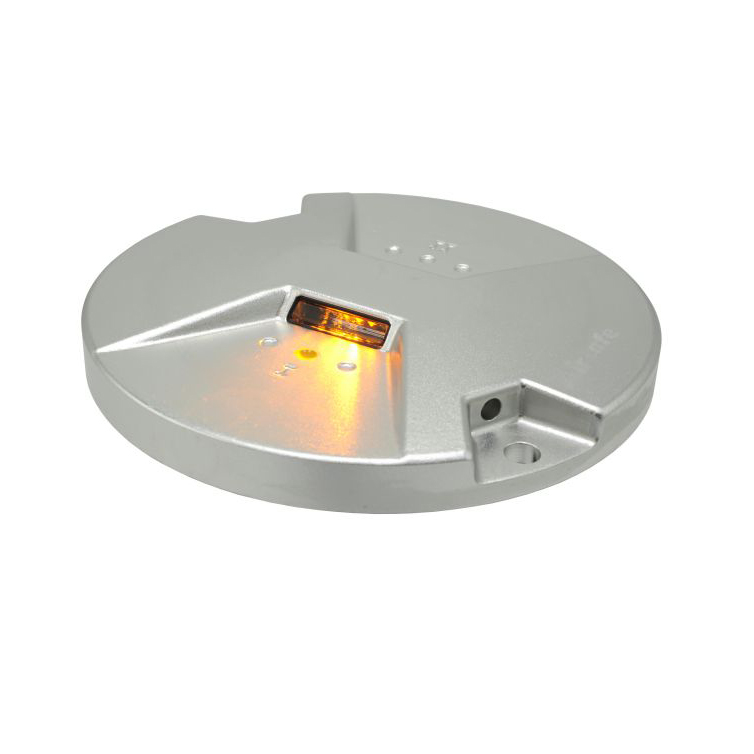

OS-RGL-02-YB(L) LED Inset Runway Guard Light
Short Description:
Altiglo OS-RGL-02-YB(L) airport LED inset runway guard light – a revolutionary advancement in aviation safety and efficiency. Designed to enhance visibility and guide aircraft safely during critical operations, this state-of-the-art lighting solution is essential for modern airports striving to maintain the highest safety standards. By investing in this innovative lighting solution, airports can enhance operational efficiency, improve safety for aircraft and personnel, and ultimately contribute to a more secure aviation environment. Elevate your airport’s safety standards with our QCL730 airport LED inset runway guard light – where visibility meets reliability.
Power supply: 2.8A~6.6A
Power consumption:7W
LED Life Time:100,000 Hours
Minimum Average Intensity:200cd
Color: Yellow
IP grade: IP68
Item: OS-RGL-02-YB(L)
Environmental Property - Operating Temperature: -55℃~+55℃
Downloads
- SKU
OS-RGL-02-YB(L)- Category
- Inset Taxiway Lighting, Taxiway Lighting Series
- Item: OS-RGL-02-YB(L)
- Environmental Property - Operating Temperature: -55℃~+55℃
- Storage Temperature: -40℃~+60℃
- Precipitation: IP68
- Salt fog: Exposure to a corrosive atmosphere
- Temperature shock: Exposure of the hot light fixture to cold water spray
- Electrical Property - Power supply: 2.8A-6.6A
- Power consumption: 7W
| Item | OS-RGL-02-YB(L) |
|---|---|
| Environmental Property - Operating Temperature | -55℃~+55℃ |
| Storage Temperature | -40℃~+60℃ |
| Precipitation | IP68 |
| Salt fog | Exposure to a corrosive atmosphere |
| Temperature shock | Exposure of the hot light fixture to cold water spray |
| Electrical Property - Power supply | 2.8A-6.6A |
| Power consumption | 7W |
| Power Factor | ≥ 0.9 |
| Lamp | LED Lamp |
| Lamp Life | 50, 000Hours |
| Photometric Property - Light color | Yellow |
| Main beam angle | Vertical:1°- 8°; Horizontal:±3.5°or ±10° |
| Min intensity | 200cd |
| Light Size | 203*203*150mm(without shallow base） 220*220*150mm(with shallow base） |
| Gross Weight | 3.5Kg(without shallow base） 6.1Kg(with shallow base） |
| Surface Treatment - Treatment | Anodizing coating |
| Color | White |
| Composition - Upper body | Aluminum forging |
| Lower cover | Aluminum die-casting |
| Dome lens cover | Aluminum forging |
| Dome lens | Glass(clear) |
| Application - Angle of Main Light Beam | Average Intensity Actual |
| OS-RGL-02-YB(L) - Horizontal | Vertical |
| ±10° - 1~8° | 236 |
| ±3.5° - 1~8° | 338 |
| 1 - Shallow base | Driver assembly |
| 2 - O Sealing ring | Waterproof connector |
| 3 - Shallow base cover | O Sealing ring |
| 4 - Joggle | Screws |
Typically specified for Inset Taxiway Lighting, Taxiway Lighting Series projects.
Common use cases include inset led runway guard light, inset runway guard led, inset runway guard light, inset runway guard light (led), inset type, products.
