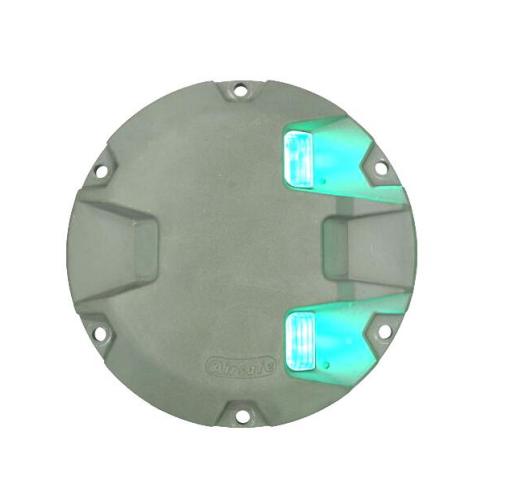

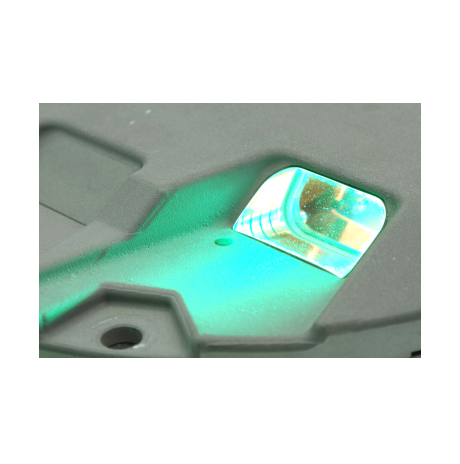

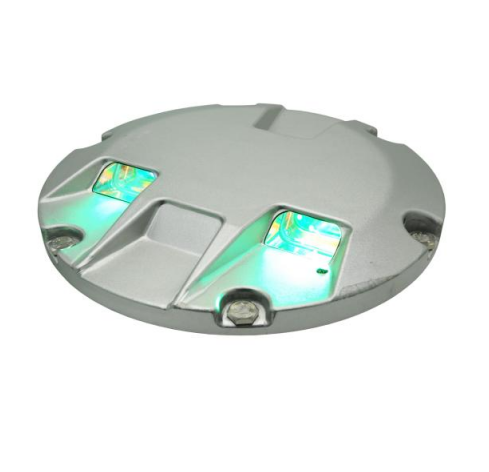

OS-RTL-98-X-G(H) Halogen Inset Runway Threshold Light
Short Description:
Product name:Halogen Inset Runway Threshold Light
Power supply: 2.8A-6.6A
Rated power: 2X105W
Halogen Life Time:1000 Hours
Protrusion Height: <12mm
Minimum Average Intensity:5000cd
Color: Green
IP grade: IP68
Item: OS-RTL-98-X-G(H)
Environmental Property - Operating Temperature: -55℃~+55℃
Downloads
- SKU
OS-RTL-98-X-G(H)
- Item: OS-RTL-98-X-G(H)
- Environmental Property - Operating Temperature: -55℃~+55℃
- Storage Temperature: -40℃~+60℃
- Precipitation: IP68
- Salt fog: Exposure to a corrosive atmosphere
- Temperature shock: Exposure of the hot light fixture to cold water spray
- Electrical Property - Power supply: 2.8A-6.6A
- Rated power: 2X105W
| Item | OS-RTL-98-X-G(H) |
|---|---|
| Environmental Property - Operating Temperature | -55℃~+55℃ |
| Storage Temperature | -40℃~+60℃ |
| Precipitation | IP68 |
| Salt fog | Exposure to a corrosive atmosphere |
| Temperature shock | Exposure of the hot light fixture to cold water spray |
| Electrical Property - Power supply | 2.8A-6.6A |
| Rated power | 2X105W |
| Lamp | Halogen Lamp |
| Lamp Life | 1000Hours |
| Photometric Property - Light color | Green |
| Main beam angle | Vertical:1°- 10° or 1°- 9°; Horizontal:±5.5°-3.5° or ±6° |
| Min intensity | 5000cd |
| Light Size | 322.5X322.5X162mm³ |
| Weight | 7Kg(without shallow base） 12Kg(with shallow base) |
| Surface Treatment - Treatment | Anodizing coating |
| Color | White |
| Composition - Upper body | Aluminum forging |
| Lower cover | Aluminum die-casting |
| Dome lens cover | Aluminum forging |
| Dome lens | Glass(clear) |
| Application - Main beam | Actual avg.cd |
| H | V |
| OS-RTL-98-X-G(H) - ICAO Figure A2-3 | 12750 |
| FAA L-850E - ±6° | 11078 |
| 1 - Shallow base | Lower cover |
| 2 - O-ring | Bulb holder plate |
| 3 - M16 waterproof connector | Light bulb card |
| 4 - Bolt | Color filter |
| 5 - Upper cover | Led Bulb |
Common use cases include inset type, products, runway lighting series.
