Elevated Type, Runway Lighting Series

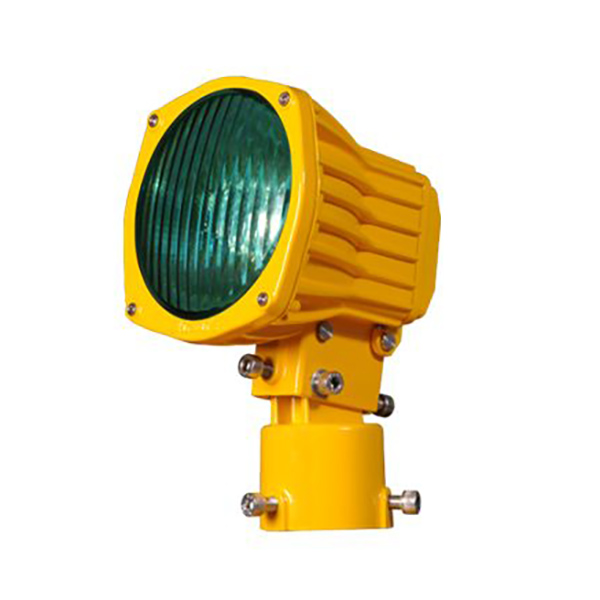

OS-RTL(L) LED Elevated Runway Threshold Light
Short Description:

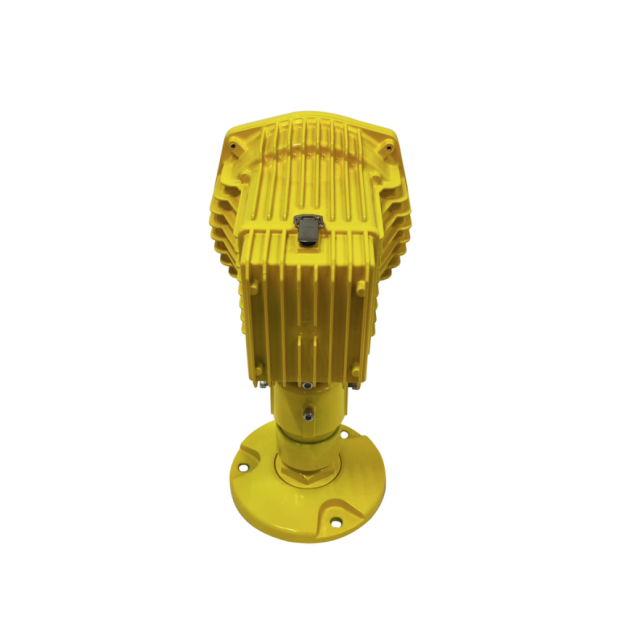

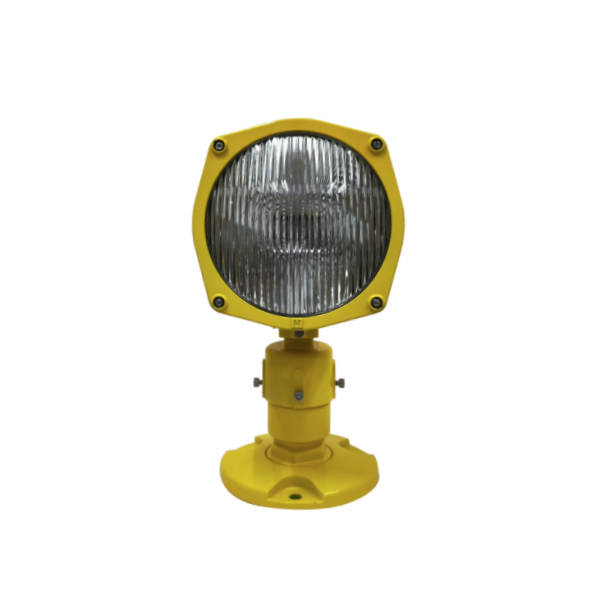

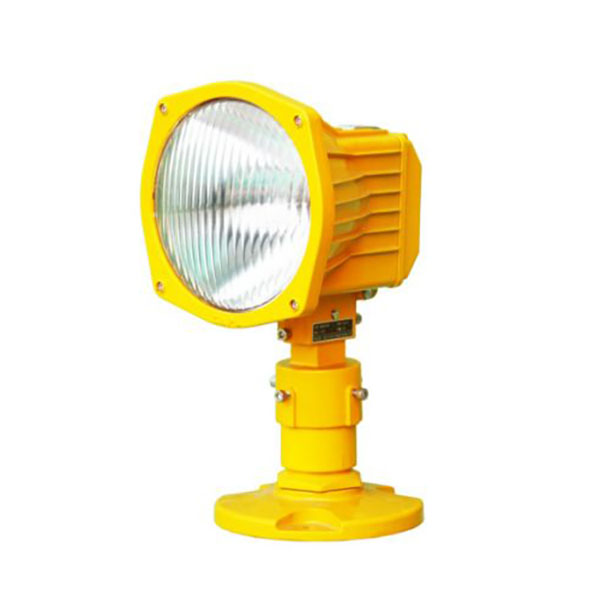

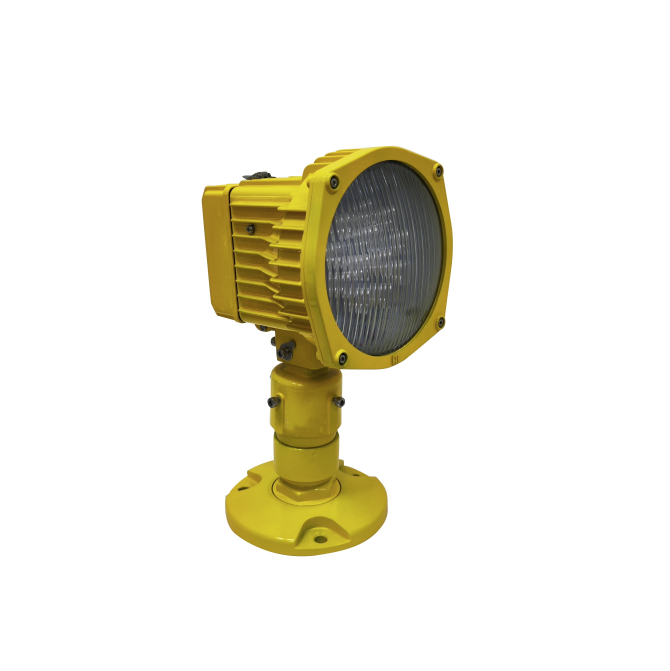

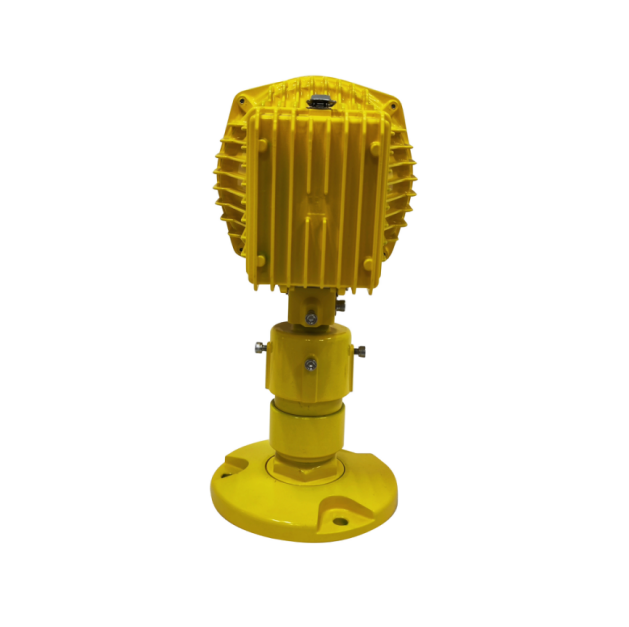

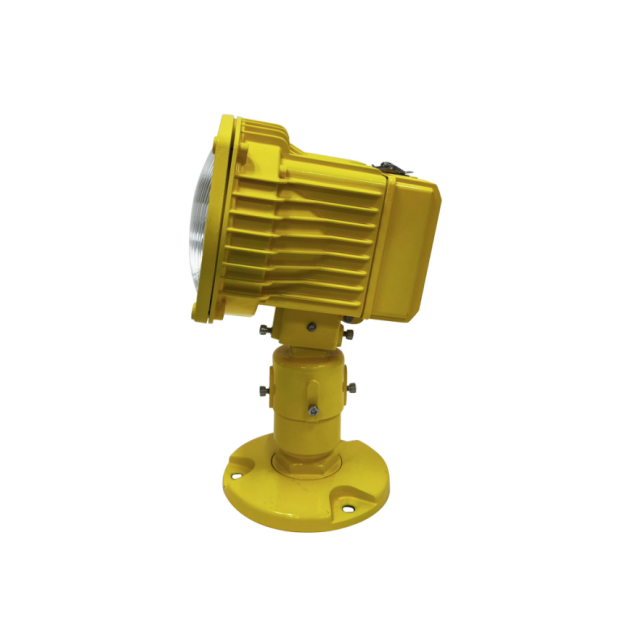

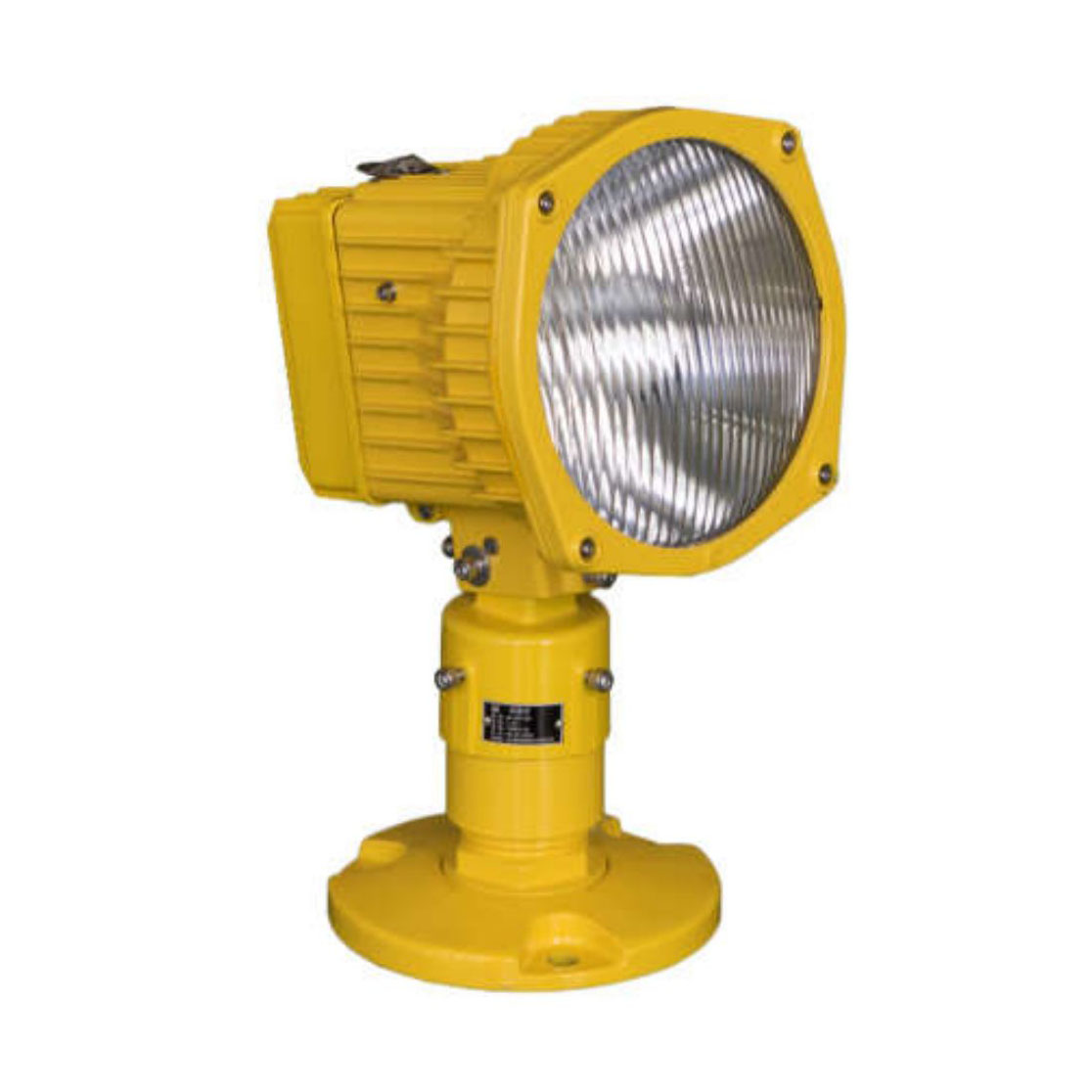

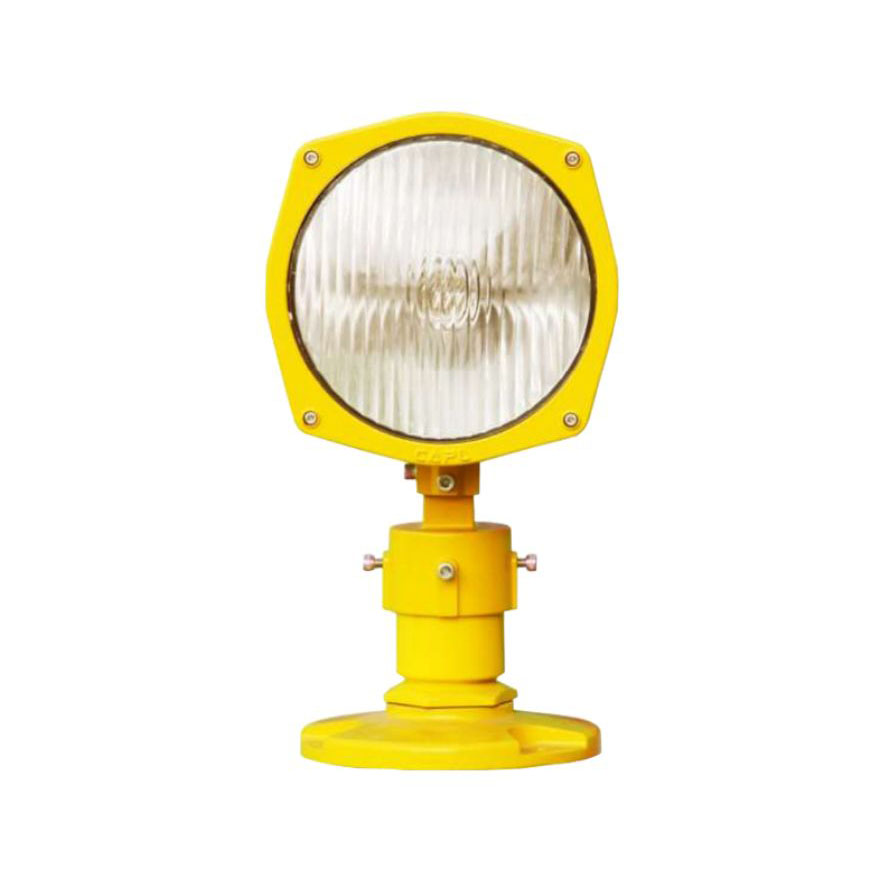

Product name: LED Elevated Runway Threshold Light
Power supply: 2.8A-6.6A
Rated power: 25W
LED Life Time:100,000 Hours
Minimum Average Intensity:10,000cd
Color: Green
IP grade: IP65
Item: OS-RTL(L)
Environmental Property - Environmental Temperature: -40℃~+55℃
Downloads
- SKU
OS-RTL(L)- Category
- Elevated Type, Runway Lighting Series
- Item: OS-RTL(L)
- Environmental Property - Environmental Temperature: -40℃~+55℃
- IP ingress: IP65
- Salt fog: Exposure to a corrosive atmosphere
- Temperature shock: Exposure of the hot light fixture to cold water spray
- Electrical Property - Power supply: 2.8A-6.6A
- Rated power: LED 25W
- Lamp: LED
| Item | OS-RTL(L) |
|---|---|
| Environmental Property - Environmental Temperature | -40℃~+55℃ |
| IP ingress | IP65 |
| Salt fog | Exposure to a corrosive atmosphere |
| Temperature shock | Exposure of the hot light fixture to cold water spray |
| Electrical Property - Power supply | 2.8A-6.6A |
| Rated power | LED 25W |
| Lamp | LED |
| Lamp Life | 100, 000Hours |
| Photometric Property - Light color | Green |
| Main beam angle | Vertical:0.5°—10.5°; Horizontal:± 7° |
| Min intensity | 10000cd |
| Lamp Size | 188x215x350mm³ |
| Weight | 4.1Kg |
| Surface Treatment - Treatment | Anodizing coating |
| Color | Yellow |
| Composition - Upper body | Aluminum forging |
| Lower cover | Aluminum die-casting |
| Dome lens cover | Aluminum forging |
| Dome lens | Glass(clear) |
| Application - Main beam | Actual avg.cd |
| OS-RTL(L) - ICAO Figure A2-3 | V |
| ±5.5° (Toe-in 3.5°) - 1°—10° | 13520 |
| 1 - Lampshade | Rear cover |
| 2 - Lamp body front cover | Waterproof connector |
| 3 - Lampshade sealing ring | Plug |
| 4 - LED lamp | Hinge pin |
| 5 - Lamp body | Label |
| 6 - Bulb body sealing ring | Lamp support |
| 7 - Buckle | Support leg |
Typically specified for Elevated Type, Runway Lighting Series projects.
Common use cases include elevated runway threshold light, elevated type, high intensity runway threshold light, led elevated medium intensity runway lights, led elevated medium intensity runway threshold light, led elevated runway threshold light.
