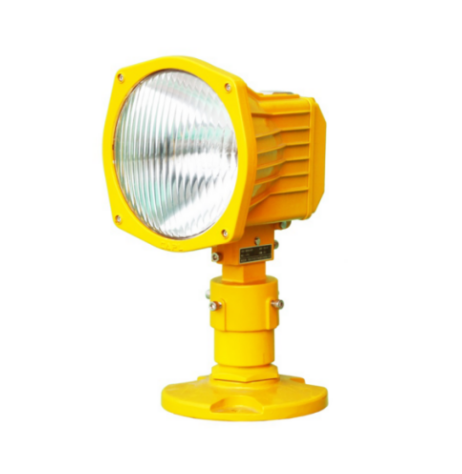

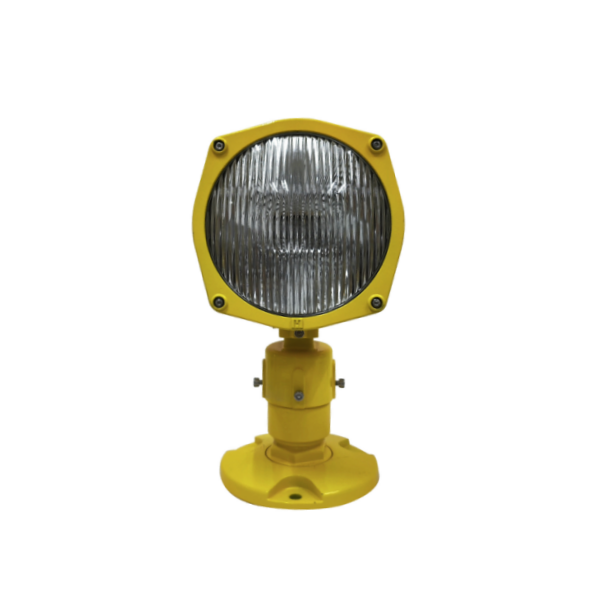

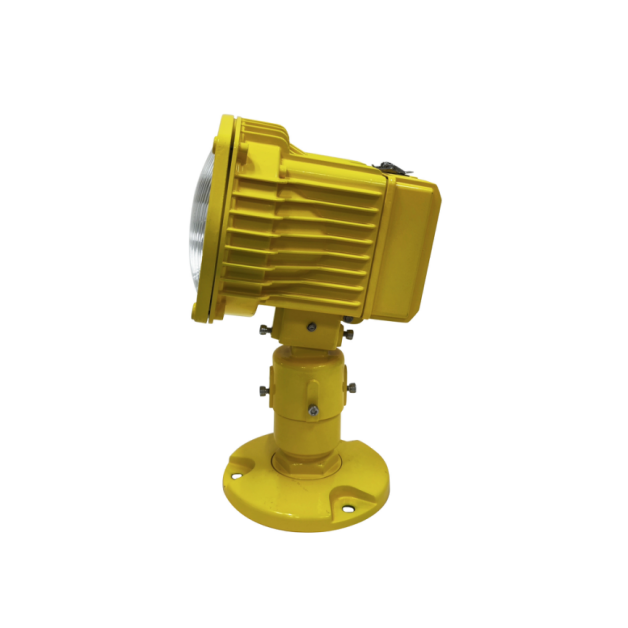

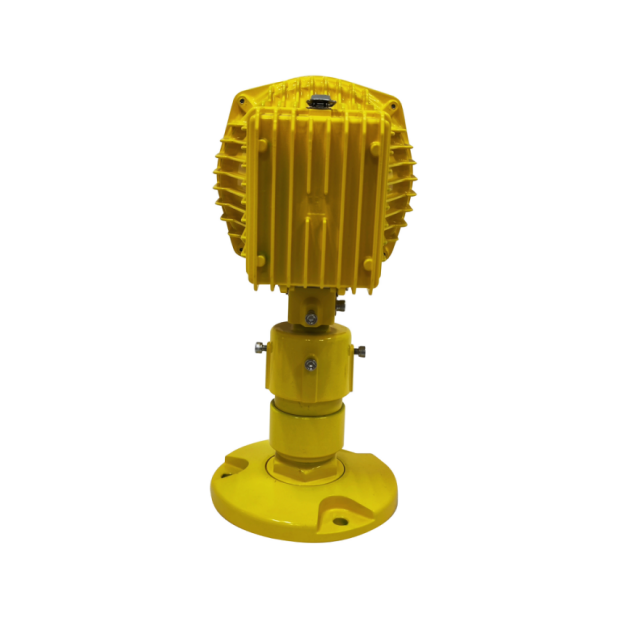

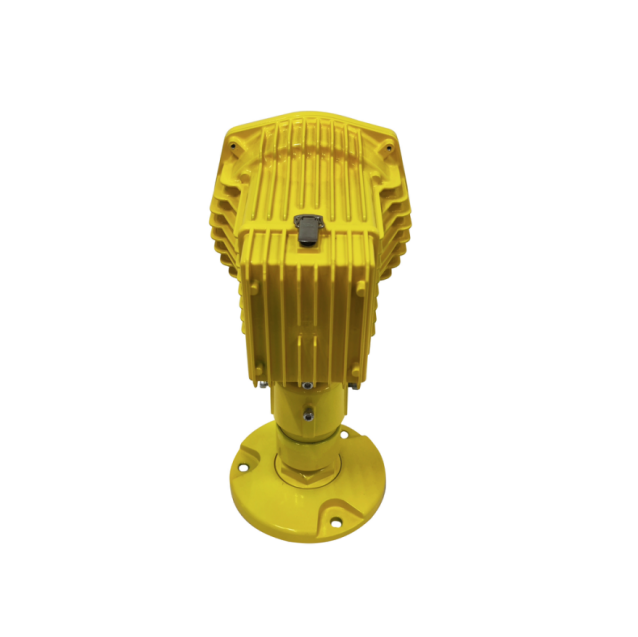

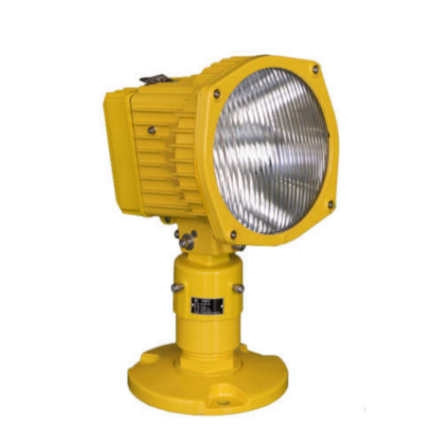

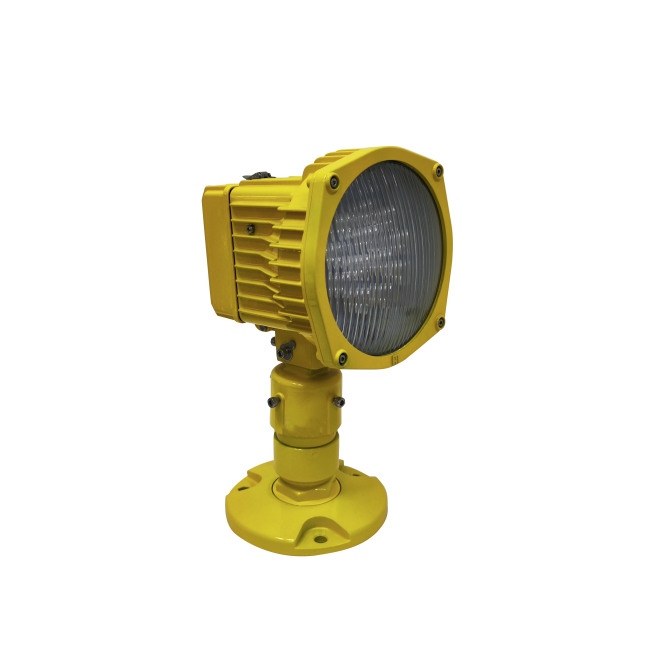

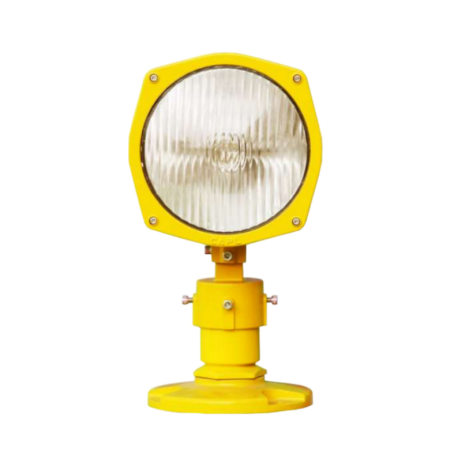

OS-RTW(L) LED Elevated Runway Threshold Wingbar Light
Short Description:
Constructed with high-quality materials, our LED Elevated Runway Threshold Wingbar
Light is built to withstand the demanding environments of airport runways.This
innovative lighting solution is engineered to meet the highest industry standards
and offers reliable performance in all weather conditions.
Power supply: 2.8A-6.6A
Rated power: 25W
LED Life Time:100,000 Hours
Minimum Average Intensity:10,000cd
Color: Green
IP grade: IP65
Item: OS-RTW(L)
Environmental Property - Environmental Temperature: -40℃~+55℃
Downloads
- SKU
OS-RTW(L)- Category
- Elevated Type, Runway Lighting Series
- Item: OS-RTW(L)
- Environmental Property - Environmental Temperature: -40℃~+55℃
- IP ingress: IP65
- Salt fog: Exposure to a corrosive atmosphere
- Temperature shock: Exposure of the hot light fixture to cold water spray
- Electrical Property - Power supply: 2.8A-6.6A
- Rated power: LED 25W
- Lamp: LED
| Item | OS-RTW(L) |
|---|---|
| Environmental Property - Environmental Temperature | -40℃~+55℃ |
| IP ingress | IP65 |
| Salt fog | Exposure to a corrosive atmosphere |
| Temperature shock | Exposure of the hot light fixture to cold water spray |
| Electrical Property - Power supply | 2.8A-6.6A |
| Rated power | LED 25W |
| Lamp | LED |
| Lamp Life | 100, 000Hours |
| Photometric Property - Light color | Green |
| Main beam angle | Vertical:0.5°—10.5°; Horizontal:± 7° |
| Min intensity | 10000cd |
| Packing Size | 188x215x350mm³ |
| Weight | 4.1Kg |
| Surface Treatment - Treatment | Anodizing coating |
| Color | Yellow |
| Composition - Upper body | Aluminum forging |
| Lower cover | Aluminum die-casting |
| Dome lens cover | Aluminum forging |
| Dome lens | Glass(clear) |
| Application - Main beam | Actual avg.cd |
| OS-RTW(L) - ICAO Figure A2-4 | V |
| ±7° (Toe-in 2°) - 0.5°—10.5° | 12265 |
| 1 - front cover | front adjusting screw |
| 2 - optical cover | washer |
| 3 - optical cover gasket | hinge pin |
| 4 - LED lamp assy | rear adjusting screw |
| 5 - light body | side locking screw |
| 6 - transformer | set screw |
| 7 - driver assy | body base |
Typically specified for Elevated Type, Runway Lighting Series projects.
Common use cases include airport runway threshold wing-bar, elevated led light fixture for runway threshold wing bar, elevated runway threshold wing-bar light, elevated threshold wing bar light, elevated type, led elevated runway threshold wingbar light.
