Portable Solar Airfield Lighting, Standard Solar Lighting

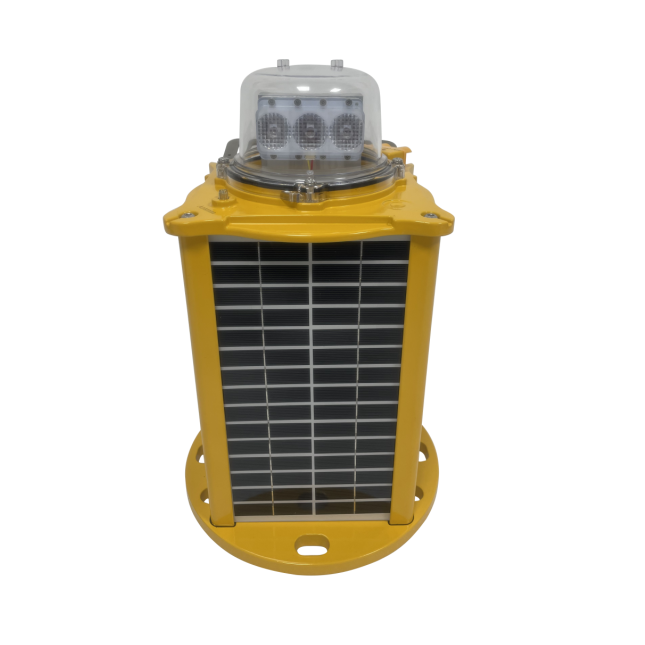

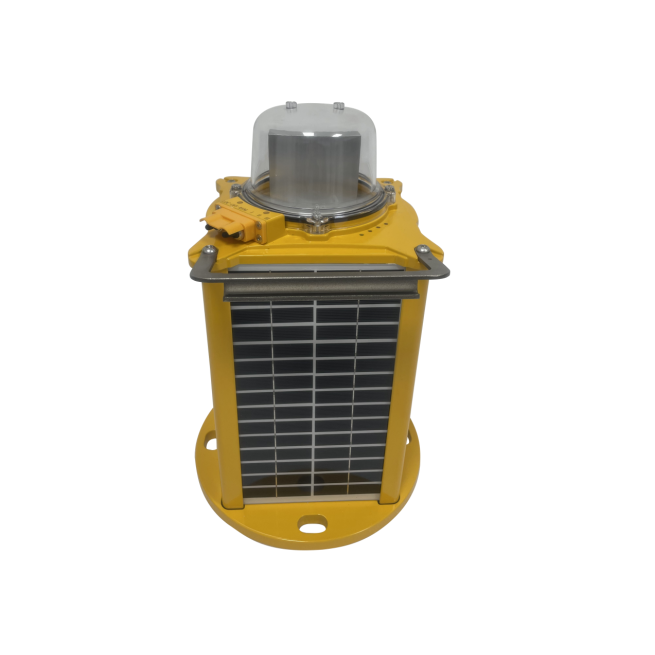

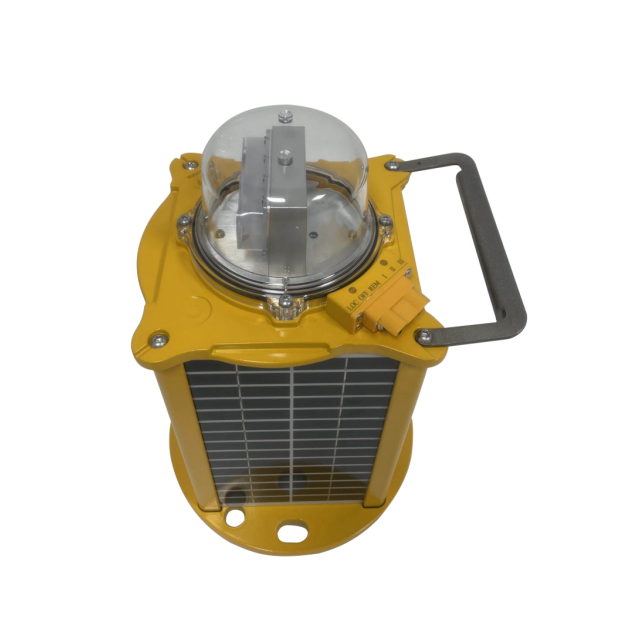

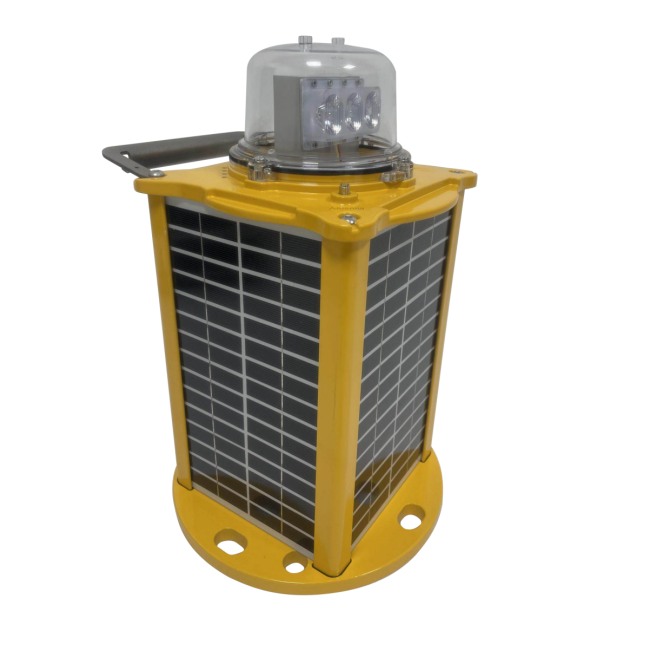

QCL400-S-RTL LED Portable Solar Runway Threshold Light
Short Description:
Solar panel: Solar module, mono-crystalline silicon 12V/4*5W
LED Life Time:100,000Hours
Color: Green
IP grade: IP68
Item: QCL400-S-RTL
E LECTRICAL CHARACTERISTIC - Illumination: Ultra-bright LEDs and NVG-compatible infrared (IR) LEDs(optional)
Downloads
- SKU
QCL400-S-RTL- Category
- Portable Solar Airfield Lighting, Standard Solar Lighting
- Item: QCL400-S-RTL
- E LECTRICAL CHARACTERISTIC - Illumination: Ultra-bright LEDs and NVG-compatible infrared (IR) LEDs(optional)
- Light intensity: 200cd
- Beam angle: Uni-directional
- LED Color: Green
- LED Lifespan: 100, 000 Hours
- OPERATION - Woke mode: Fixed mode
- Autonomy: 30 hrs (at max intensity ， authomony can be changed accroding to the light intensity)
| Item | QCL400-S-RTL |
|---|---|
| E LECTRICAL CHARACTERISTIC - Illumination | Ultra-bright LEDs and NVG-compatible infrared (IR) LEDs(optional) |
| Light intensity | 200cd |
| Beam angle | Uni-directional |
| LED Color | Green |
| LED Lifespan | 100, 000 Hours |
| OPERATION - Woke mode | Fixed mode |
| Autonomy | 30 hrs (at max intensity ， authomony can be changed accroding to the light intensity) |
| POWER SUPPLY - Solar panel | Solar module, mono-crystalline silicon 12V/4*5W |
| Solar Efficiency | 21% |
| Battery capacity | High-efficiency 12V20Ah Lithium battery |
| Frequency | Lora 433MHZ |
| B attery replacement | Replaceable |
| MECHANICAL STRUCTURE - Lens | Polycarbonate, UV Stabilize |
| Body | Aviation yellow powder-coated extruding aluminum |
| IP Ingress | IP6 8 |
| Weight | 6 KG |
| Operating Temperature | -40℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ + 55 ℃ |
| Relative humidity | 0-95% RH non-condensing |
| Wind speed | Up to 150mph (240kph) |
| Dimensions | 354mm H, 234mm Diameter |
| Reserved bolt mounting dimensions | Φ200*M14(4 mounting holes) |
| OTHERS - Warranty | 2 years for light 1 year for battery |
| Optional | GPS Synchronization function |
Typically specified for Portable Solar Airfield Lighting, Standard Solar Lighting projects.
Common use cases include airport lighting, portable solar airfield lighting, products, standard solar lighting.
