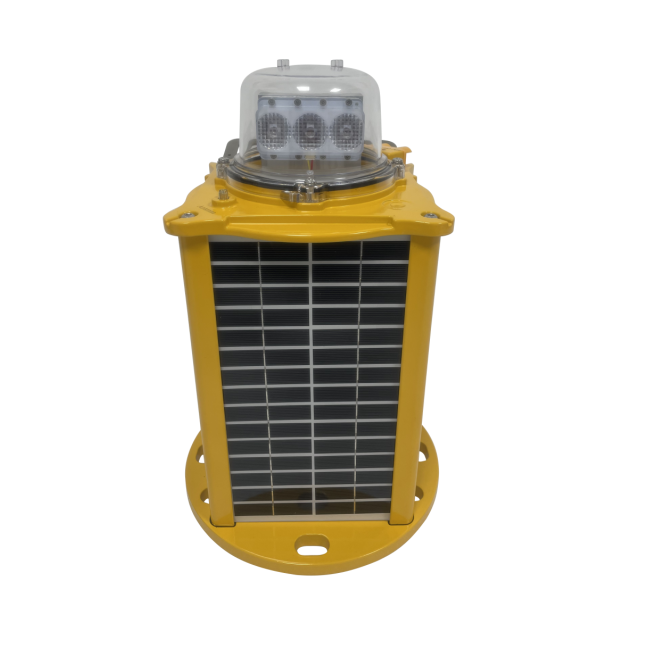

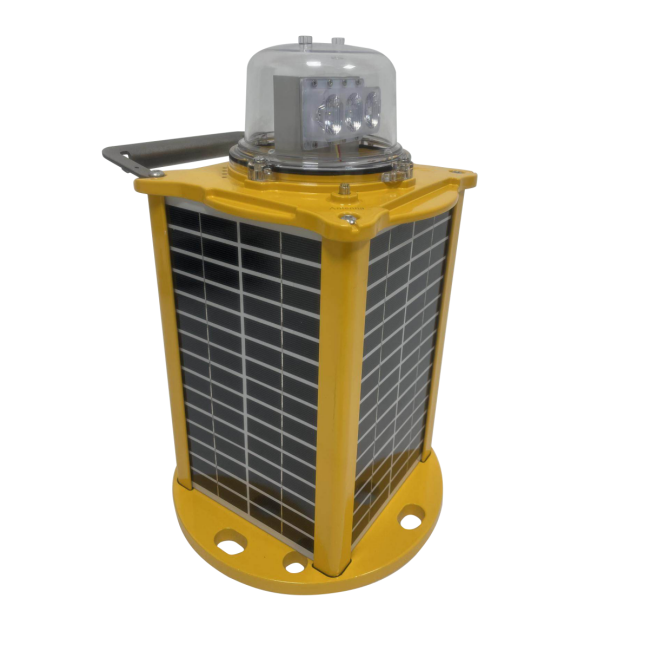

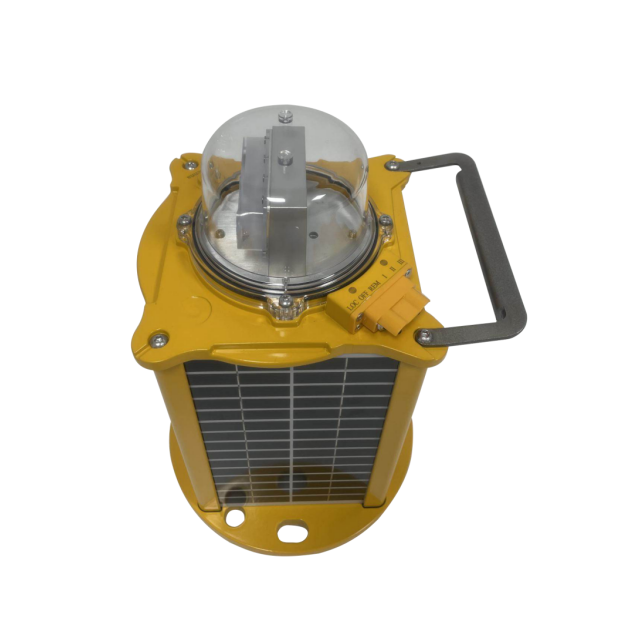

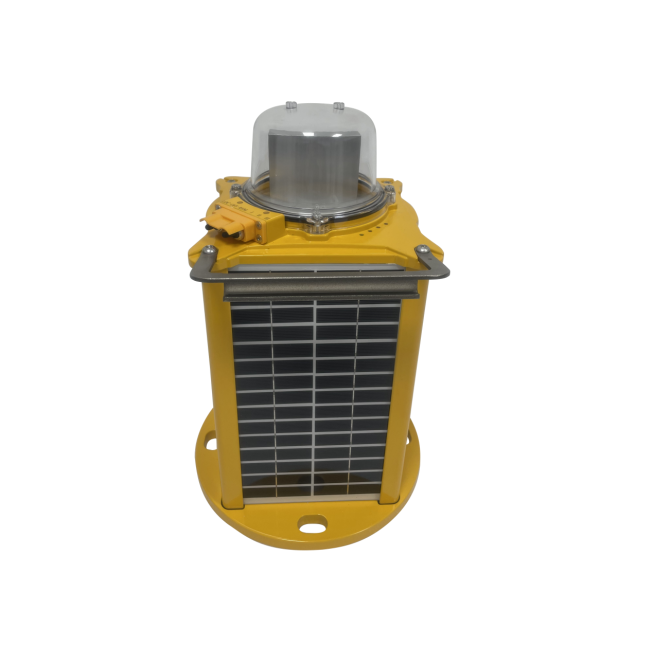

QCL520-S-APP LED Portable Solar Approach Centre Line Light

QCL520-S-APP LED Portable Solar Approach Centre Line Light - Image 3

QCL520-S-APP LED Portable Solar Approach Centre Line Light - Image 4

Short Description:

Altiglo QCL520-S-APP LED portable solar approach centre line light is a revolutionary product that combines safety, sustainability, and convenience. With its high-intensity LED output, solar-powered efficiency, and durable design, it is the perfect solution for enhancing visibility in aviation and beyond. Whether you are an airport manager, a construction site supervisor, or an event organizer, this portable lighting solution will meet your needs while contributing to a greener future. Illuminate your approach paths with confidence and embrace the future of lighting technology with our QCL520-S-APP LED portable solar approach centre line light.

Solar panel: Solar module, mono-crystalline silicon 12V/4*5W

LED Life Time:100,000Hours

Color: White

IP grade: IP68

Item: QCL520-S/C-APP

E LECTRICAL CHARACTERISTIC - Illumination: Ultra-bright LEDs and NVG-compatible infrared (IR) LEDs(optional)

Downloads

Send Enquiry

SKU: QCL520-S/C-APP

Item	QCL520-S/C-APP
E LECTRICAL CHARACTERISTIC - Illumination	Ultra-bright LEDs and NVG-compatible infrared (IR) LEDs(optional)
Light intensity	≥ 1 0, 000cd
Beam angle	Uni-directional
LED Color	White
LED Lifespan	100, 000 Hours
OPERATION - Woke mode	Fixed mode
Autonomy	30 – 120hrs(Autonomy can be changed according to the light intensity)
POWER SUPPLY - Solar panel	Solar module, mono-crystalline silicon 12V/4*5W
Solar Efficiency	21%
Battery capacity	High-efficiency 12V20Ah Lithium battery
Frequency	Lora 433MHZ
B attery replacement	Replaceable
MECHANICAL STRUCTURE - Lens	Polycarbonate, UV Stabilize
Body	Aviation yellow powder-coated extruding aluminum
IP Ingress	IP6 8
Weight	6 KG
Operating Temperature	-40℃ ~ +55℃
Storage Temperature	-40℃ ~ + 55 ℃
Relative humidity	0-95% RH non-condensing
Wind speed	Up to 150mph (240kph)
Dimensions	354mm H, 234mm Diameter
Reserved bolt mounting dimensions	Φ200*M14(4 mounting holes)
OTHERS - Warranty	2 years for light 1 year for battery
Optional	GPS Synchronization function
