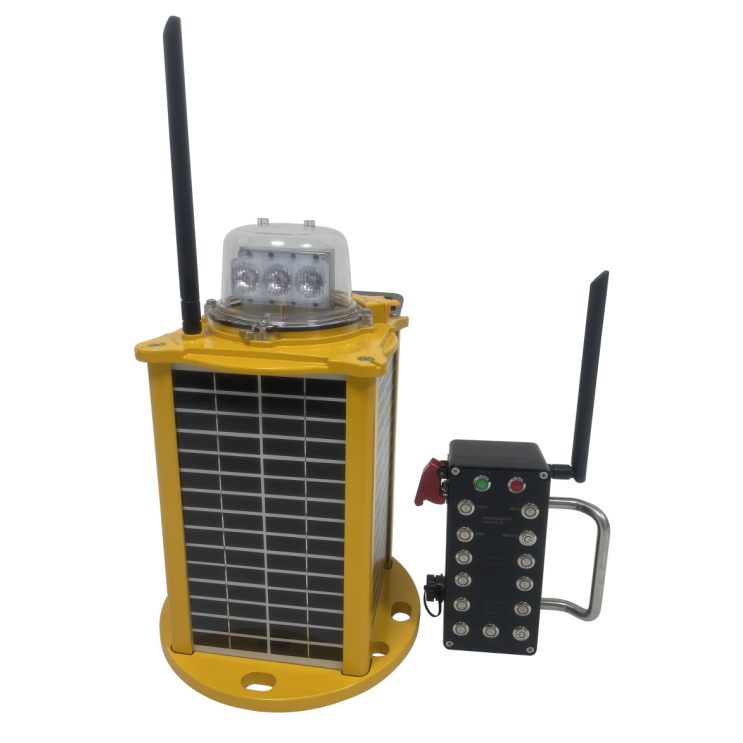

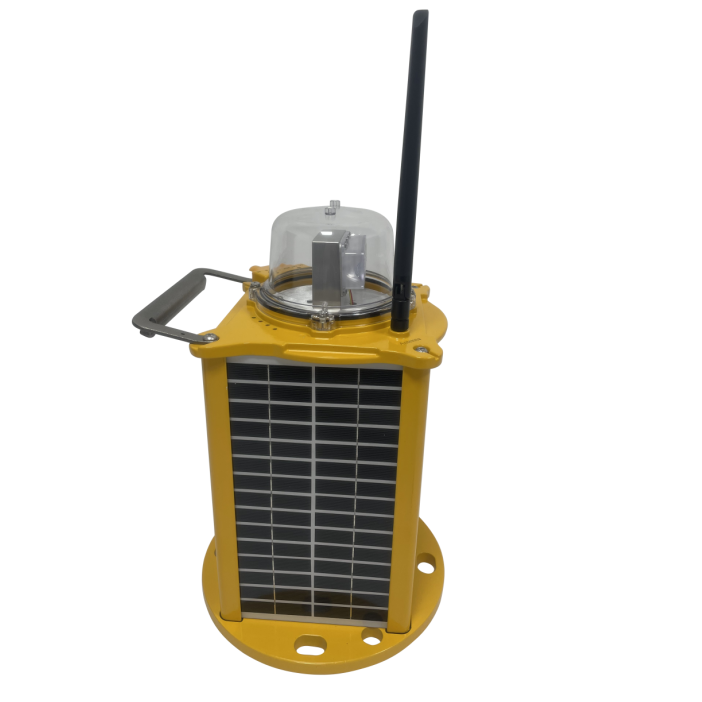

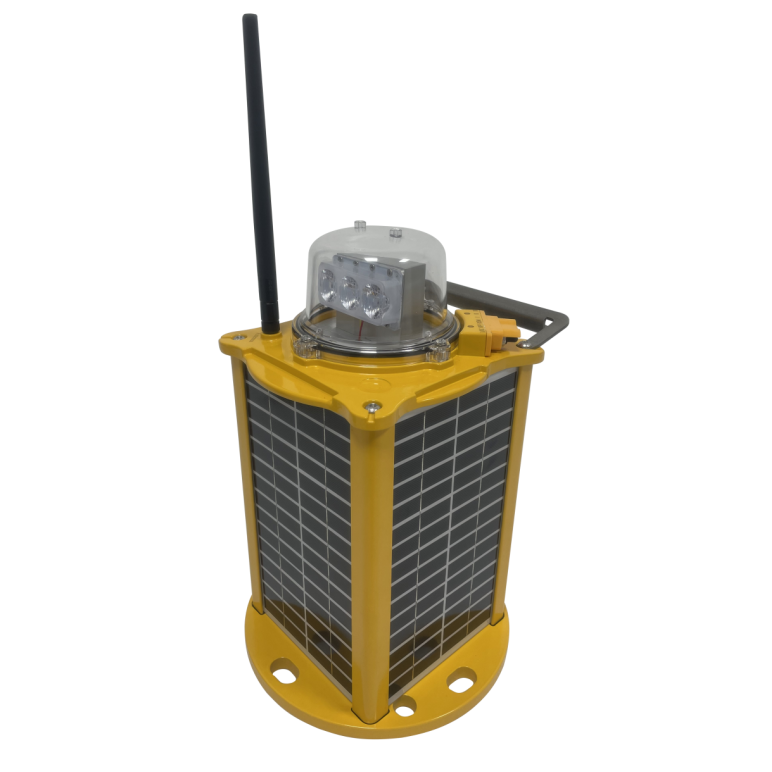

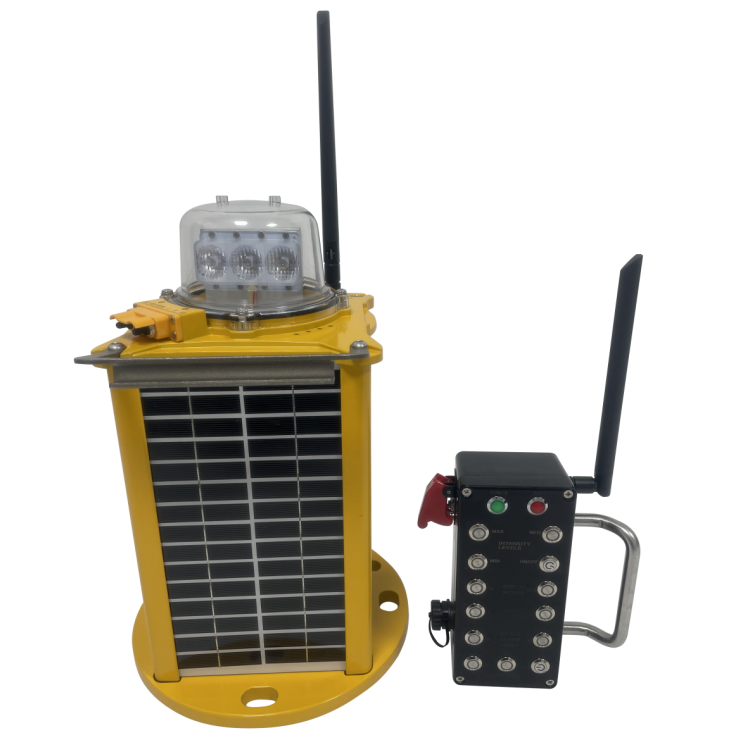

QCL520-S-APP-XX led portable solar radio controlled approach centre line light

QCL520-S-APP-XX led portable solar radio controlled approach centre line light - Image 3

QCL520-S-APP-XX led portable solar radio controlled approach centre line light - Image 4

QCL520-S-APP-XX led portable solar radio controlled approach centre line light - Image 5

Short Description:

With its advanced features and practical benefits, our QCL520-S-APP-XX LED Portable Solar Powered Radio Controlled Approach Centerline Light is a valuable addition to any airport’s infrastructure. Whether for permanent installation or temporary use, this innovative product is designed to meet the evolving needs of modern aviation operations, providing a reliable and efficient solution for enhancing runway visibility and safety.

Solar panel: Solar module, mono-crystalline silicon 12V/4*5W

LED Life Time:100,000Hours

Color: White

IP grade: IP68

Item: QCL520-S-APP-XX

ELECTRICAL CHARACTERISTIC - Illumination: Ultra-bright LEDs and NVG-compatible infrared (IR) LEDs(optional)

Downloads

Send Enquiry

SKU: QCL520-S-APP-XX
Category: Portable Solar Airfield Lighting, Standard Solar Lighting With Radio Controller

Item	QCL520-S-APP-XX
ELECTRICAL CHARACTERISTIC - Illumination	Ultra-bright LEDs and NVG-compatible infrared (IR) LEDs(optional)
Light intensity	≥ 1 0, 000cd
Beam angle	Uni-directional
LED Color	White
LED Lifespan	100, 000 Hours
OPERATION - Woke mode	Fixed mode
Autonomy	30hrs(at max intensity，authomony can be changed accroding to the light intensity)
POWER SUPPLY - Solar panel	Solar module, mono-crystalline silicon 12V/4*5W
Solar Efficiency	21%
Battery capacity	High-efficiency 12V20Ah Lithium battery
Frequency	Lora 433MHZ
Battery replacement	Replaceable
MECHANICAL STRUCTURE - Lens	Polycarbonate, UV Stabilize
Body	Aviation yellow powder-coated extruding aluminum
IP Ingress	IP68
Weight	6KG
Operating Temperature	-40℃ ~ +55℃
Storage Temperature	-40℃ ~ +55℃
Relative humidity	0-95% RH non-condensing
Wind speed	Up to 150mph (240kph)
Dimensions	354mm H, 234mm Diameter
Reserved bolt mounting dimensions	Φ200*M14(4 mounting holes)
OTHERS - Warranty	2 years for light 1 year for battery
Optional	GPS Synchronization function
