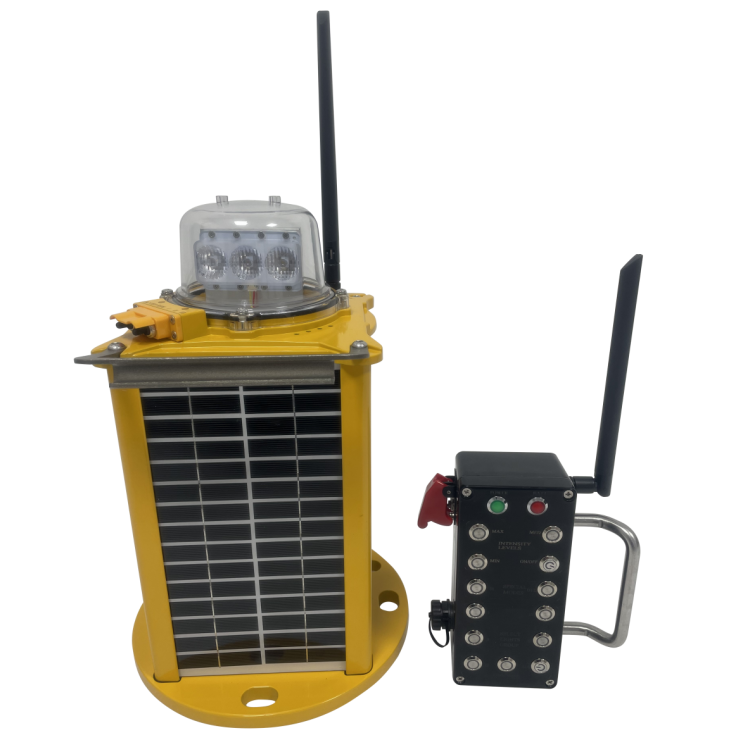

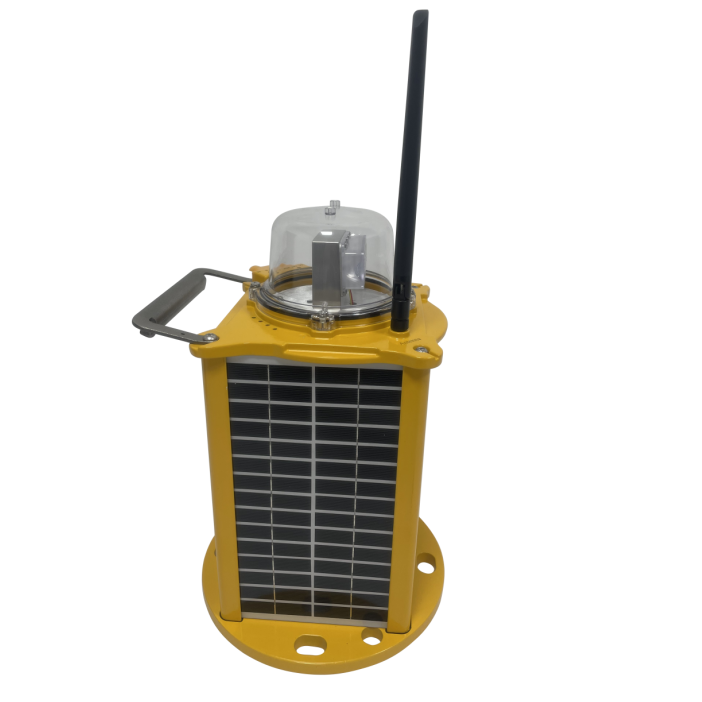

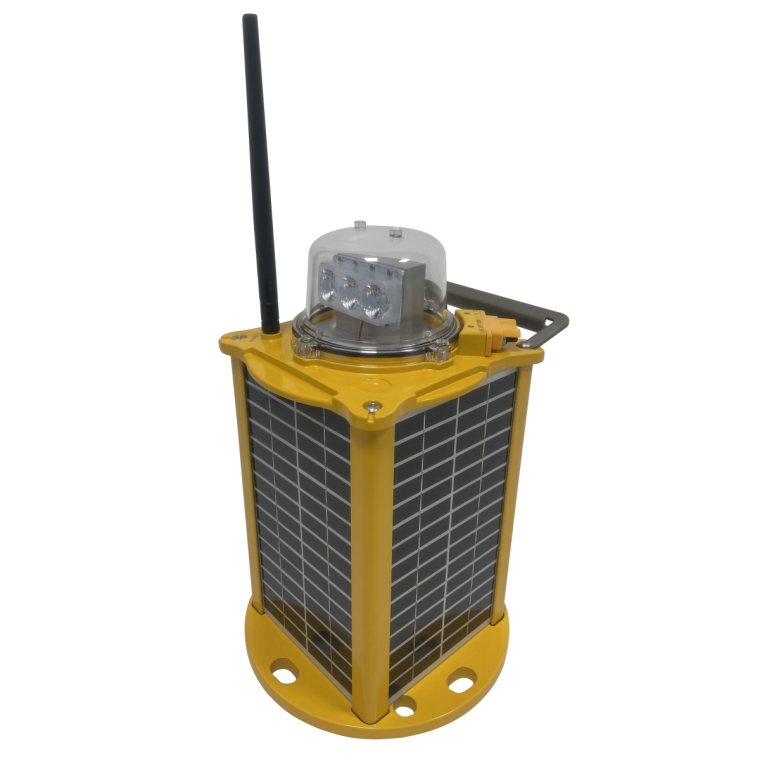

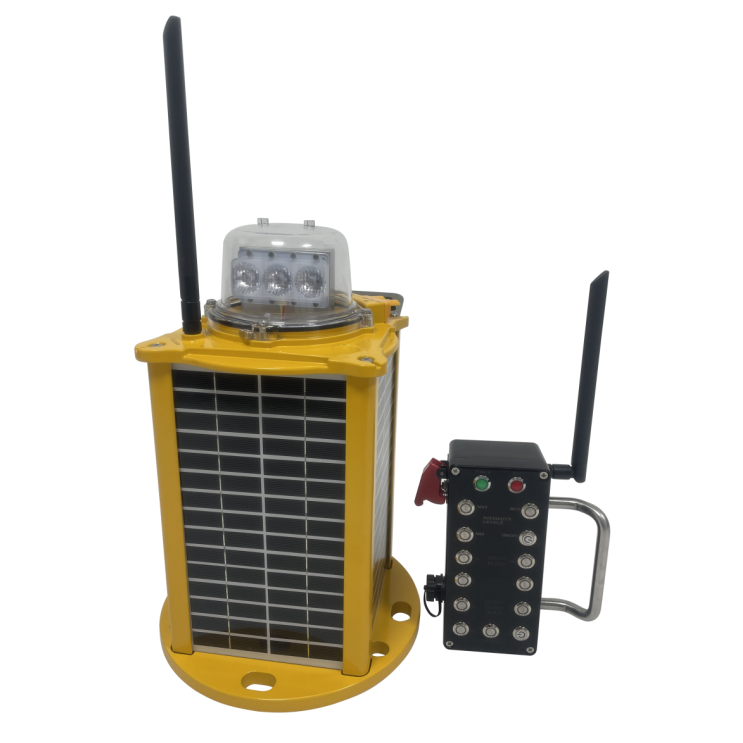

QCL540-L-S-END-XX LED Portable Radio Controlled Solar Powered Runway End Light
Short Description:
Solar panel: Solar module, mono-crystalline silicon 12V/4*5W LED Life Time:100,000Hours Color: Red IP grade: IP68
Item: QCL540-L-S-END-XX
ELECTRICAL CHARACTERISTIC - Illumination: Ultra-bright LEDs and NVG-compatible infrared (IR) LEDs(optional)
Downloads
- SKU
QCL540-L-S-END-XX
- Item: QCL540-L-S-END-XX
- ELECTRICAL CHARACTERISTIC - Illumination: Ultra-bright LEDs and NVG-compatible infrared (IR) LEDs(optional)
- Light intensity: ≥20cd
- Beam angle: Uni-directional
- LED Color: Red
- LED Lifespan: 100, 000 Hours
- OPERATION - Woke mode: Fixed mode
- Autonomy: 100 hrs (at max intensity ， authomony can be changed accroding to the light intensity)
| Item | QCL540-L-S-END-XX |
|---|---|
| ELECTRICAL CHARACTERISTIC - Illumination | Ultra-bright LEDs and NVG-compatible infrared (IR) LEDs(optional) |
| Light intensity | ≥20cd |
| Beam angle | Uni-directional |
| LED Color | Red |
| LED Lifespan | 100, 000 Hours |
| OPERATION - Woke mode | Fixed mode |
| Autonomy | 100 hrs (at max intensity ， authomony can be changed accroding to the light intensity) |
| POWER SUPPLY - Solar panel | Solar module, mono-crystalline silicon 12V/4*5W |
| Solar Efficiency | 21% |
| Battery capacity | High-efficiency 12V20Ah Lithium battery |
| Frequency | Lora 433MHZ |
| Battery replacement | Replaceable |
| MECHANICAL STRUCTURE - Lens | Polycarbonate, UV Stabilize |
| Body | Aviation yellow powder-coated extruding aluminum |
| IP Ingress | IP68 |
| Weight | 6KG |
| Operating Temperature | -40℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ +55℃ |
| Relative humidity | 0-95% RH non-condensing |
| Wind speed | Up to 150mph (240kph) |
| Dimensions | 354mm H, 234mm Diameter |
| Reserved bolt mounting dimensions | Φ200*M14(4 mounting holes) |
| OTHERS - Warranty | 2years for light 1 year for battery |
| Optional | GPS Synchronization function |
Common use cases include airfield beacon light, airport beacon light, airport lighting, faa rotating beacon, identification beacon, identification beacon aerodrome.
