Low Intensity Series
WL90S Low Intensity Single Obstruction Light(Type A)
Product name:Low Intensity LED Steady Type or Flashing Type(Type A) Input voltage: 85-265VAC, 50/60 Hz;12VDC; 24VDC;30-60VDC; Effective Intensity: 10 Candela…
SKU WL90S
Short Description:

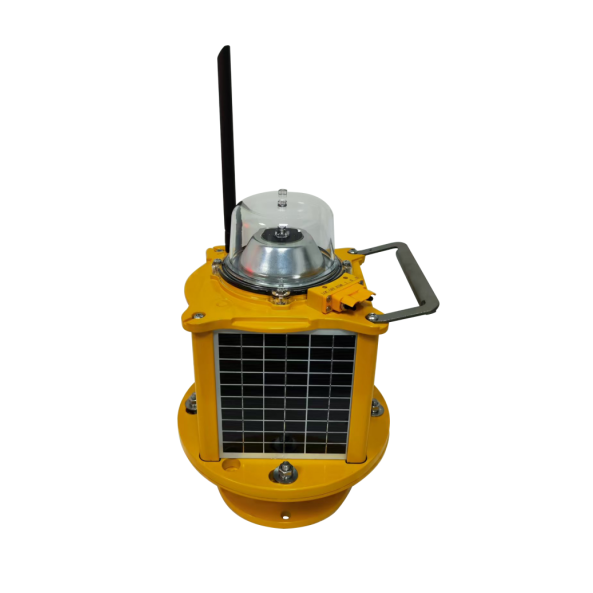

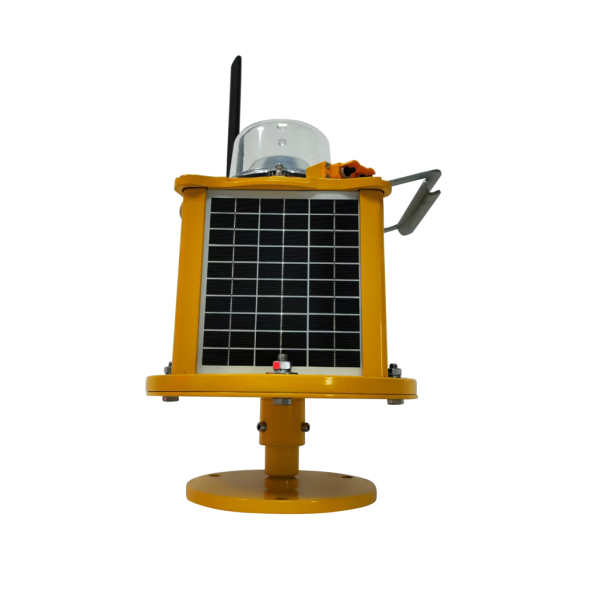

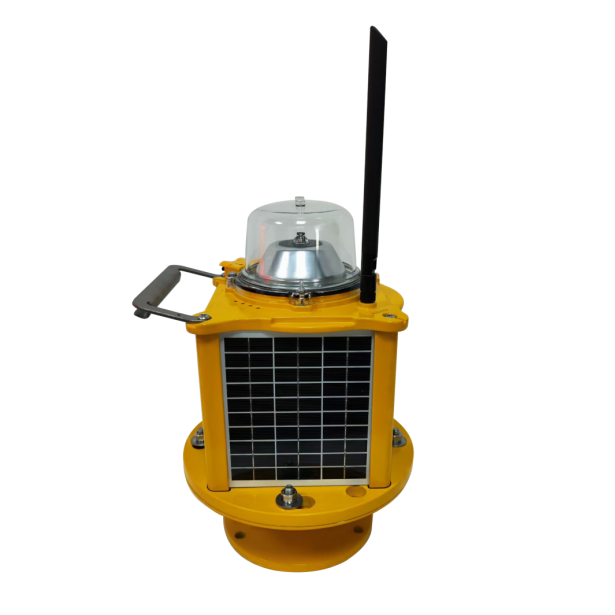

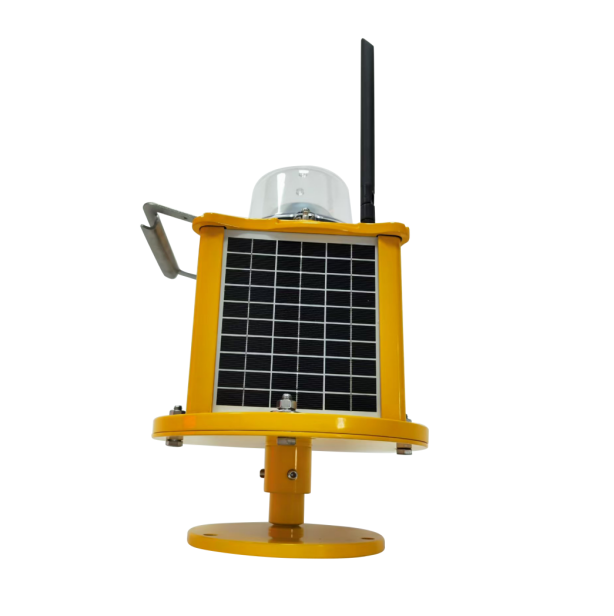

QCL590-L-S-RE-XX LED portable radio controlled solar runway edge light is designed specifically for airfield operations, this innovative lighting system combines cutting-edge solar technology with user-friendly features to ensure optimal visibility and control.It is a game-changer for airport operations. With its solar efficiency, robust design, and advanced control features, it is the ideal choice for ensuring safety and visibility in any airfield environment. Upgrade your airport lighting system today and experience the difference!
Solar panel: 12V/2.5W(Single side)
LED Life Time:100,000Hours
Color: White
IP grade: IP68
Item: QCL590-L-S-RE-XX
E LECTRICAL CHARACTERISTIC - Illumination: Ultra-bright LEDs and NVG-compatible infrared (IR) LEDs(optional)
Downloads
QCL590-L-S-RE-XX| Item | QCL590-L-S-RE-XX |
|---|---|
| E LECTRICAL CHARACTERISTIC - Illumination | Ultra-bright LEDs and NVG-compatible infrared (IR) LEDs(optional) |
| Light intensity | ≥ 125 cd |
| Beam angle | Omni-directional |
| LED Color | White |
| LED Lifespan | 100, 000 Hours |
| OPERATION - Woke mode | Adjustable flashing and fixed mode |
| Autonomy | 60 hrs(at max intensity , authomony can be changed accroding to the light intensity |
| POWER SUPPLY - Solar panel | 12V/2.5W(Single side) |
| Solar Efficiency | 21% |
| Battery parameters | High-efficiency 12V24Ah Lithium |
| Frequency | Lora 433MHZ |
| B attery replacement | Replaceable |
| MECHANICAL STRUCTURE - Lens | Polycarbonate, UV Stabilize |
| Body | Aviation yellow powder-coated extruding aluminum |
| IP Ingress | IP6 8 |
| Weight | 4.8 KG |
| Operating Temperature | -40℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ + 55 ℃ |
| Relative humidity | 0-95% RH non-condensing |
| Wind speed | Up to 150mph (240kph) |
| Dimensions | 254mm H, 234mm Diameter |
| OTHERS - Warranty | 2 years for light 1 year for battery |
| Optional | GPS Synchronization function |
Common use cases include airport lighting, portable solar airfield lighting, products.
