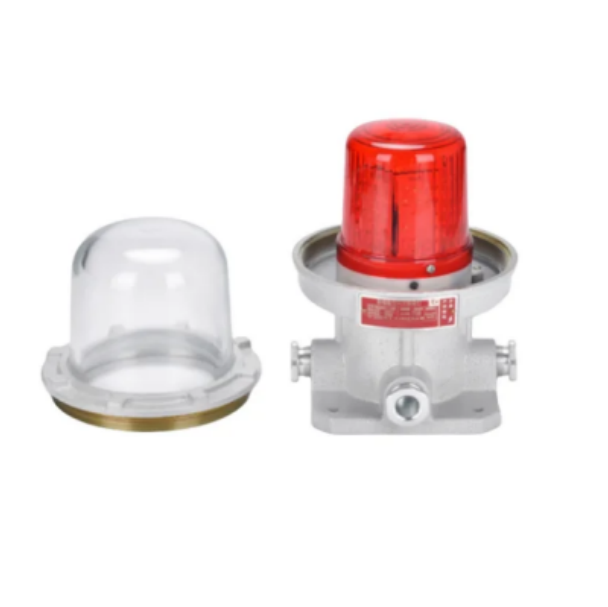

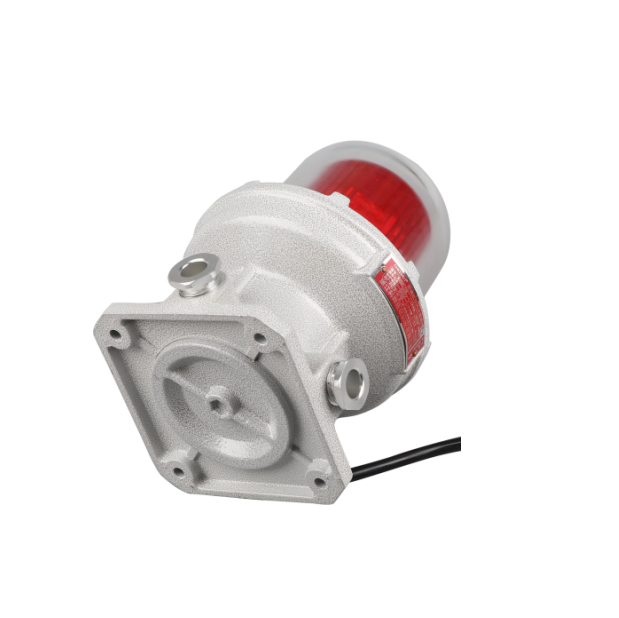

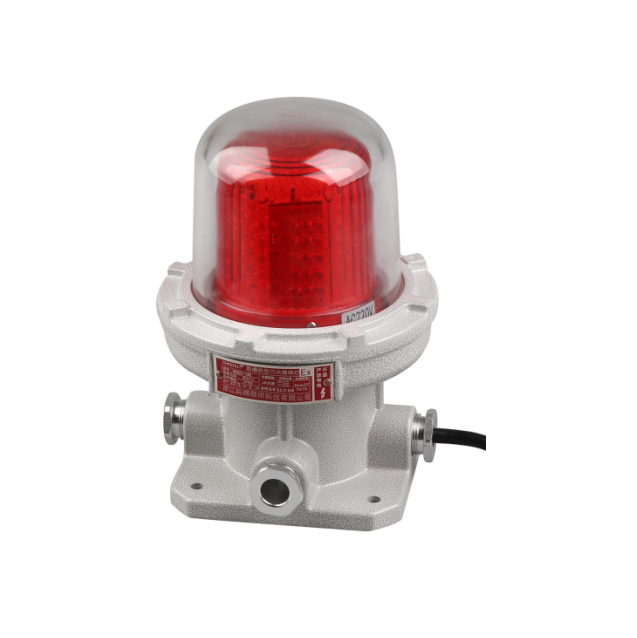

UB80 Explosion proof LED Obstruction Light(Type B)

Short Description:

Light intensity:>32.5cd

LED Lifespan:100,000 Hours

Woke mode:Flashing or steady burning

Power consumption:20W

Item: UB80

E LECTRICAL CHARACTERISTIC - Light intensity: > 32.5cd

Downloads

Send Enquiry

SKU: UB80
Category: Explosion-Proof Obstruction Lighting, Obstruction Lighting, Products

Item	UB80
E LECTRICAL CHARACTERISTIC - Light intensity	> 32.5cd
Vertical Divergence	10 Degree
Horizontal Divergence	360 Degree
LED Color	R ed (w hite, yellow, green and blue also available)
LED Lifespan	100, 000 Hours
OPERATION - Woke mode	Flashing or steady burning
Flash Pattern (optional)	Flashing: 20/30/40/60FPM; Default: 40FPM;
Photocell sensitivity	7 0 -100 Lux
POWER SUPPLY - Working voltage	85-265VAC, 12VDC, 48 VDC; 24VDC
Power consumption	20W
MECHANICAL STRUCTURE - Lens	Tempered glass
Body	Grey powder-coated extruding aluminum
IP Ingress	IP6 6
Light Weight	4.4KG
Operating Temperature	– 4 0℃ ~ + 70 ℃
Storage Temperature	– 4 0℃ ~ + 55 ℃
Suitable areas:	ExdbC T6 Gb; Ex tb III T80 ℃ Db
Corrosion grade	WF1*WF2
Wind speed	Up to 150mph(240kph)
Wiring Cable gland	G3/4″ entry cable gland, suitable for 10mm-14mm cable
Light Dimension(mm）	30 0x 235 x 170
Mounting hole(mm)	135X135
Packing dimension(mm）	360 × 250 × 200
OTHERS - Warranty	1 year
