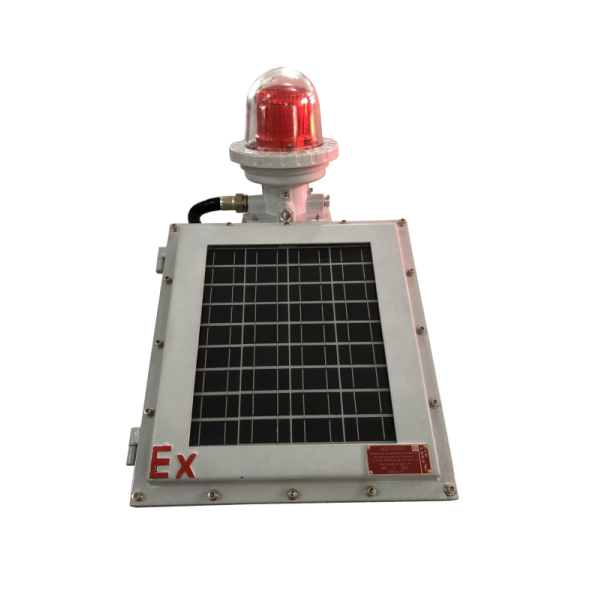

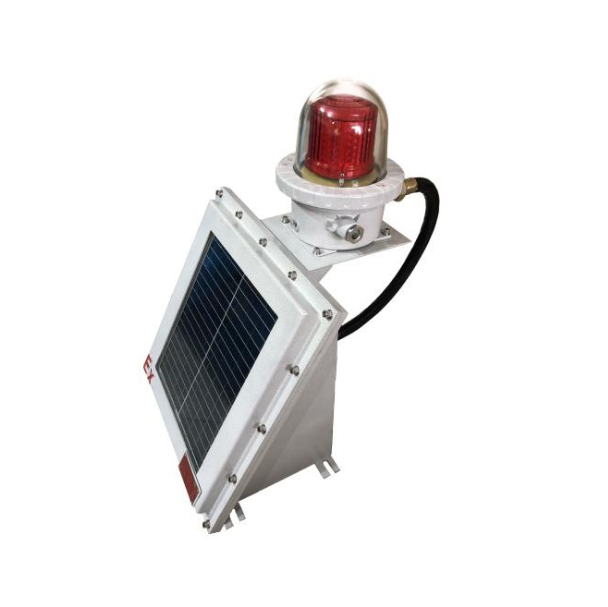

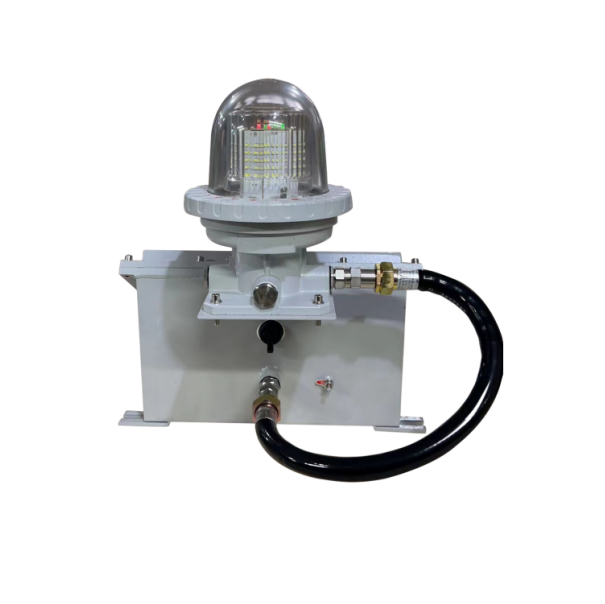

UB8KS Explosion proof Solar Medium Intensity Obstruction Light

Short Description:

Light intensity:>2000cd

LED Lifespan:100,000 Hours

Woke mode:Flashing or steady burning

Power consumption:40W

Item: UB8KS

E LECTRICAL CHARACTERISTIC - Effective Intensity: > 200 0 Candela

Downloads

Send Enquiry

SKU: UB8KS
Category: Explosion-Proof Obstruction Lighting, Obstruction Lighting, Products

Item	UB8KS
E LECTRICAL CHARACTERISTIC - Effective Intensity	> 200 0 Candela
Vertical Divergence	3 Degree
Horizontal Divergence	360 Degree
LED Color	Optional r ed, w hite, yellow, green and blue
LED Lifespan	100, 000 Hours
OPERATION - Woke mode	Flashing or steady burning
Flash Pattern (optional)	Flashing: 20/30/40/60FPM; Default: 40FPM;
Power consumption	40W
Photocell sensitivity	7 0 -100 Lux
Autonomy	7 days(flashing), 3-4 days(steady burning)
POWER SUPPLY - Solar panel	Solar module, mono-crystalline silicon 18 V 25 W
Solar Efficiency	14%
Battery capacity	VRLA, 12 V/ 7.5 Ah
B attery replacement	R eplaceable
MECHANICAL STRUCTURE - Lens	Tempered glass
Body	Grey powder-coated extruding aluminum
IP Ingress	IP6 6
Weight	50KG
Operating Temperature	-30℃ ~ + 70 ℃
Storage Temperature	– 3 0℃ ~ + 55 ℃
Suitable areas:	ExdbC T6 Gb; Ex tb III T80 ℃ Db
Corrosion grade	WF1*WF2
Wind speed	Up to 150mph(240kph)
OTHERS - Warranty	1 year
