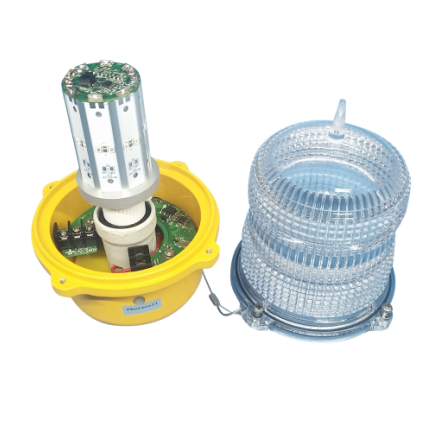

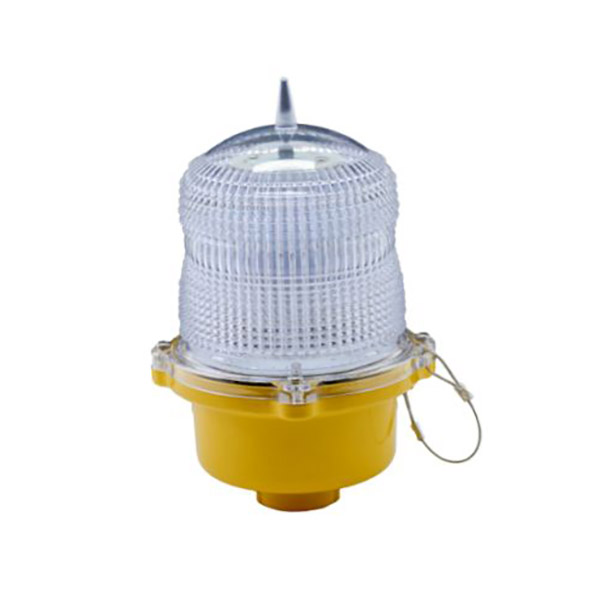

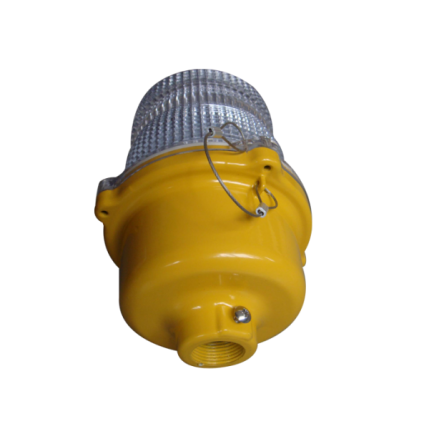

WL78SE E27 Type L-810 Low Intensity Single Obstruction Light (Type B)
Short Description:
Product name:Low Intensity LED Steady Type or Flashing Type(E27 type)
Input voltage:85-265VAC, 50/60 Hz;12VDC; 24VDC;30-60VDC;
Effective Intensity:>32.5 Candela
LED Lifespan:100,000 Hours
Materials:Lens-PC; Body- Aluminum
Item: WL78SE
ELECTRICAL CHARACTERISTIC - Effective Intensity: >32.5Candela
Downloads
- SKU
WL78SE- Category
- Low Intensity Series, Type B Series
- Item: WL78SE
- ELECTRICAL CHARACTERISTIC - Effective Intensity: >32.5Candela
- Vertical Divergence: 10 Degree
- Horizontal out-put: 360 Degree
- LED Color: Red, yellow, white, green or blue
- LED Lifespan: 100, 000 Hours
- OPERATION - Woke mode: Flashing
- Flash Pattern: Flashing: 20/30/40/60FPM; Default: 40FPM; Steady burning
| Item | WL78SE |
|---|---|
| ELECTRICAL CHARACTERISTIC - Effective Intensity | >32.5Candela |
| Vertical Divergence | 10 Degree |
| Horizontal out-put | 360 Degree |
| LED Color | Red, yellow, white, green or blue |
| LED Lifespan | 100, 000 Hours |
| OPERATION - Woke mode | Flashing |
| Flash Pattern | Flashing: 20/30/40/60FPM; Default: 40FPM; Steady burning |
| Flash duration | 670ms |
| Photocell sensitivity | 70-100 Lux |
| Alarm type | NO & NC, dry contact relay |
| POWER SUPPLY - Input voltage | 85-265VAC, 50/60 Hz;12VDC; 24VDC;30-60VDC; |
| Power consumption | 5W (Steady burning) |
| MECHANICAL STRUCTURE - Lens | Polycarbonate, UV Stabilize |
| Body | Die-casting Aluminum |
| IP Ingress | IP65 |
| Weight | 0.7KG |
| Operating Temperature | -40℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Wire Connection mode | Threaded 3/4” bottom entry |
| Relative humidity | 0-95% RH non-condensing |
| Wind speed | Up to 150mph(240kph) |
| OTHERS - Warranty | 2 years |
| Optional | Flashing pattern(20–60FPM) Built-in photocell NO & NC, dry contact relay |
Typically specified for Low Intensity Series, Type B Series projects.
Common use cases include aircraft warning light, aircraft warning lights, aviation light, aviation light fitting, aviation light for tower, aviation lights.
