Short Description:

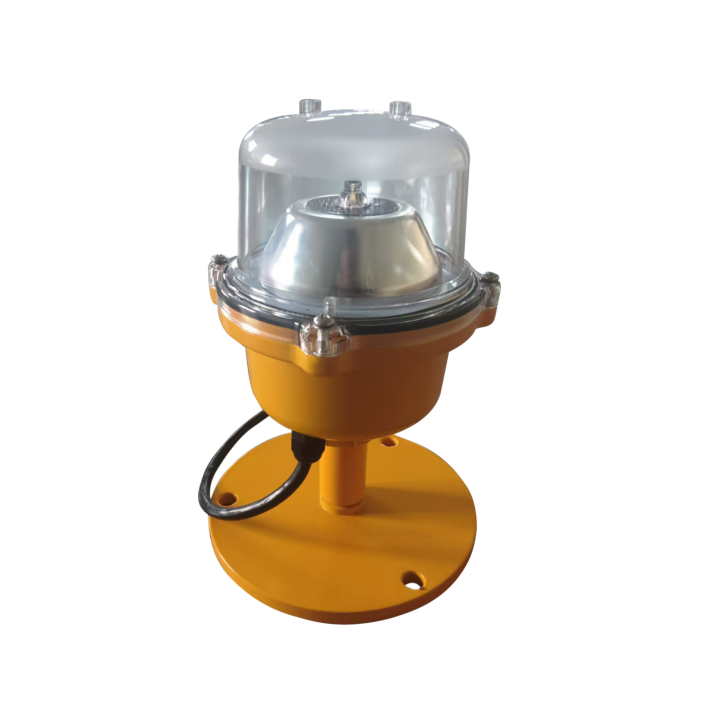

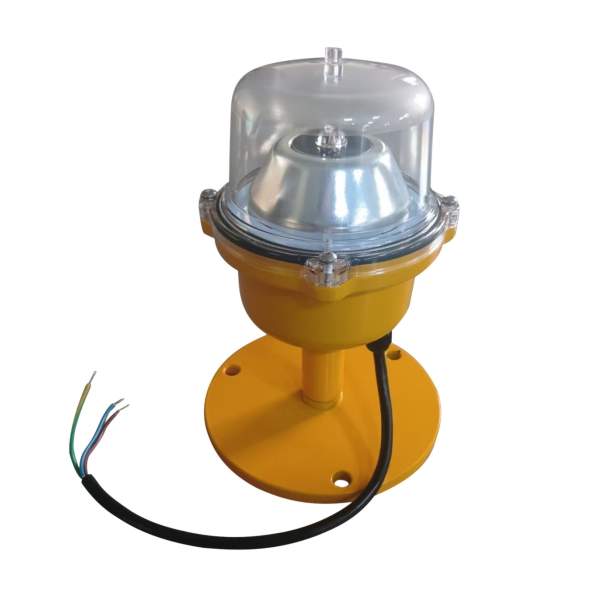

Altiglo AS590 LED Elevated Approach Centre Line Light is a cutting-edge solution designed specifically for heliports.Incorporating our elevated approach centre line light into your heliport operations demonstrates a commitment to safety and efficiency. Whether you are managing a commercial heliport or a private landing zone, this advanced lighting system is an essential addition to your safety protocols. Elevate your heliport’s operational standards and ensure a secure landing experience for all pilots with our state-of-the-art LED Elevated Approach Centre Line Light.
Power supply: AC85-265V
Power consumption: 10W (Steady burning)
LED Life Time:100,000 Hours
Effective Intensity:＞100cd
Item: AS590
ELECTRICAL CHARACTERISTIC - Effective Intensity: >100Candela
Downloads
AS590| Item | AS590 |
|---|---|
| ELECTRICAL CHARACTERISTIC - Effective Intensity | >100Candela |
| Vertical Divergence | 10 Degree |
| Horizontal out-put | 360 Degree |
| LED Color | White |
| LED Lifespan | 100, 000 Hours |
| OPERATION - Woke mode | Steady burning |
| POWER SUPPLY - Input voltage | 220AC, 50/60 Hz;12-48VDC; |
| Power consumption | 10W (Steady burning) |
| MECHANICAL STRUCTURE - Lens | Polycarbonate, UV Stabilize |
| Body | Die-casting Aluminum |
| Dimensions | Φ160*215mm |
| Bolt mounting dimensions | Φ140*M10(3 mounting holes) |
| IP Ingress | IP66 |
| Weight | 2.4KG |
| Operating Temperature | -40℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Wire Connection mode | Prewired |
| Relative humidity | 0-95% RH non-condensing |
| Wind speed | Up to 150mph(240kph) |
| OTHERS - Warranty | 2 years |
Typically specified for Elevated Heliport Lighting projects.
Common use cases include elevated heliport perimeter light, elevated type, helipad landing lights, helipad lighting, helipad lighting system, helipad lights.
