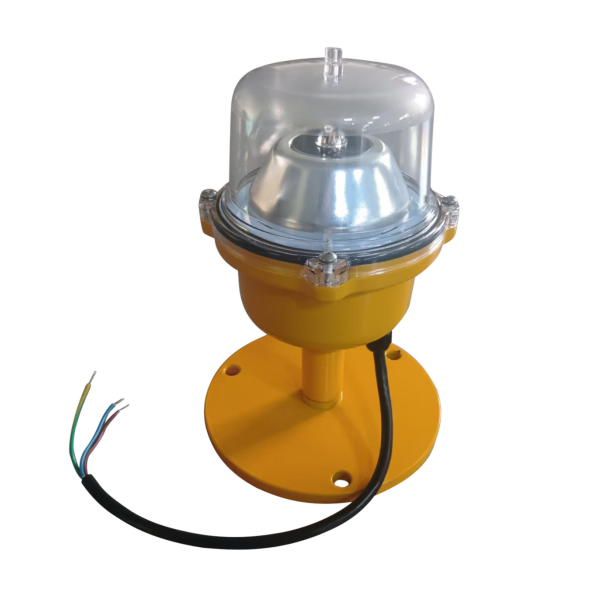

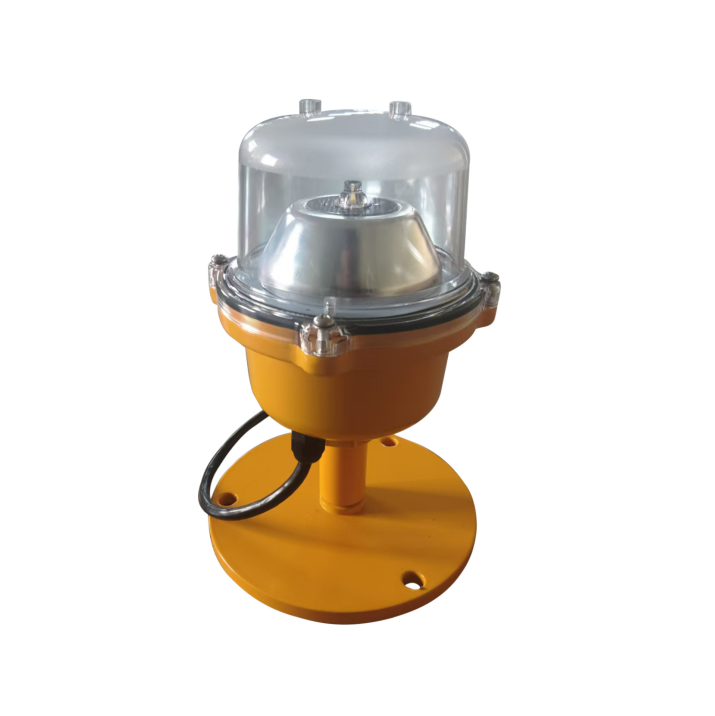

AS70 Elevated Final Approach and Take-off Light

Short Description:

Altiglo AS70 LED Elevated Final Approach and Take-off Area Light is a

gamechanging solution for Heliport lighting, offering exceptional brightness,visibility,

and reliability for pilots during critical phases of flight. Its innovative design,energy

efficiency, and low maintenance requirements make it a cost-effective and

sustainable choice for heliport operators.With this product, heliports can enhance

safety and operational efficiency, while also reducing their environmental impact.

Power supply: AC85-265V

Rated power: ≤5W

LED Life Time:100,000 Hours

Effective Intensity:＞30cd

Materials:Die-casting Aluminum

Item: AS70

ELECTRICAL CHARACTERISTIC - Effective Intensity: >100Candela

Downloads

Send Enquiry

Item	AS70
ELECTRICAL CHARACTERISTIC - Effective Intensity	>100Candela
Vertical Divergence	10 Degree
Horizontal out-put	360 Degree
LED Color	White
LED Lifespan	100, 000 Hours
OPERATION - Woke mode	Steady burning
POWER SUPPLY - Input voltage	AC85-265AC, 50/60 Hz;12-48VDC;
Power consumption	5W (Steady burning)
MECHANICAL STRUCTURE - Lens	Polycarbonate, UV Stabilize
Body	Die-casting Aluminum
Dimensions	Φ160*215mm
Bolt mounting dimensions	Φ140*M10(3 mounting holes)
IP Ingress	IP66
Weight	2.4KG
Operating Temperature	-40℃ ~ +55℃
Storage Temperature	-40℃ ~ +70℃
Wire Connection mode	Prewired
Relative humidity	0-95% RH non-condensing
Wind speed	Up to 150mph(240kph)
OTHERS - Warranty	2 years
