Portable Battery Heliport, Portable Battery Powered

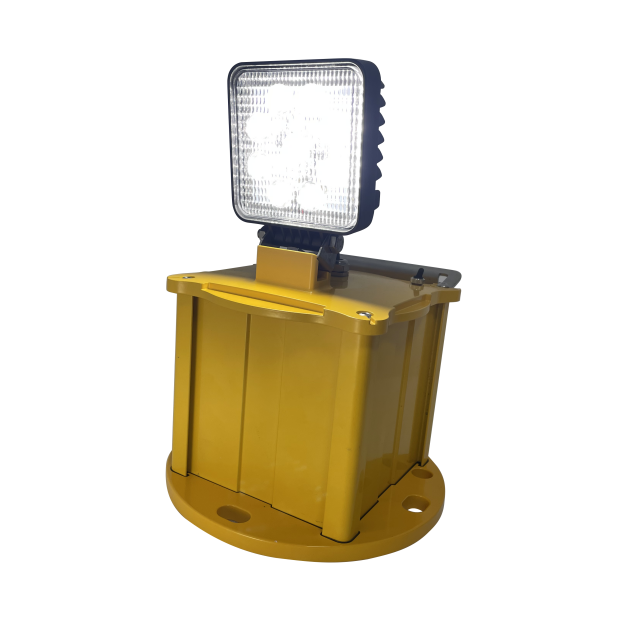

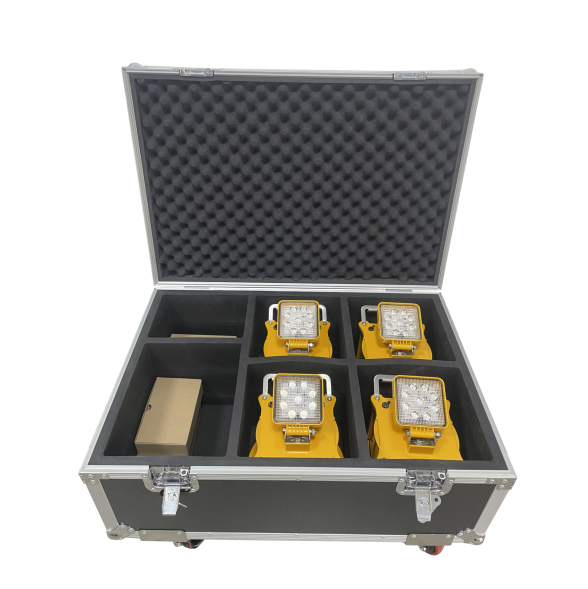

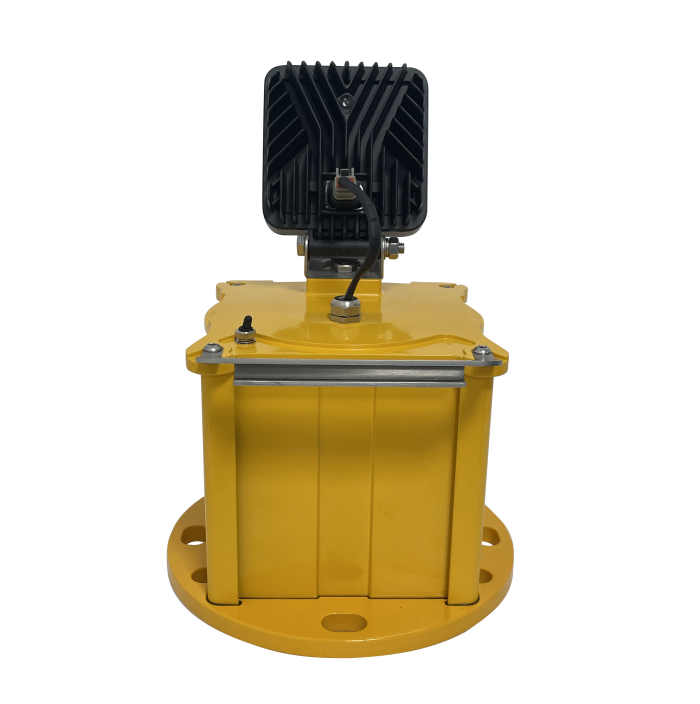

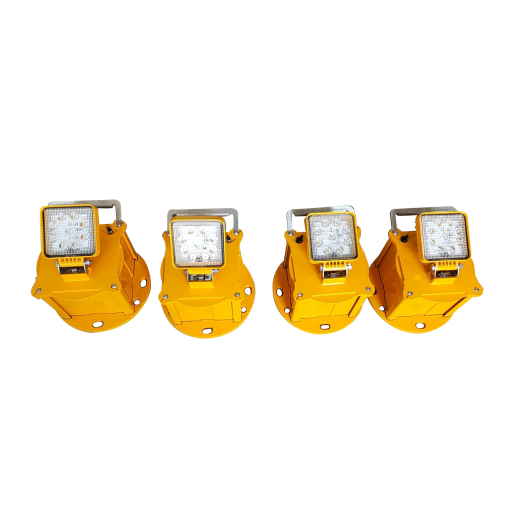

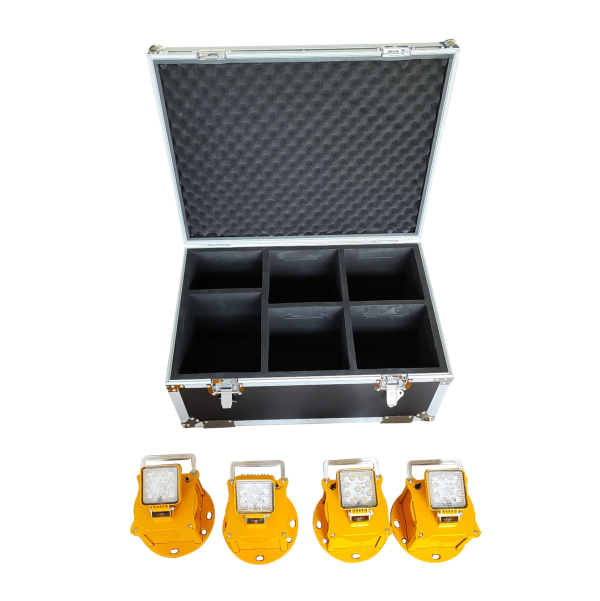

AS710 Portable Battery Powered Heliport Flood Light Kits
Short Description:
Altiglo are committed to delivering innovative and reliable lighting solutions for helipads, and our AS710 LED portable battery powered helipad flood light kits are a testament to that commitment. With their exceptional performance, portability, and ease of use, our flood light kits are the ideal choice for ensuring safe and efficient helicopter operations in any setting.
Average horizontal illuminance:≥10lux
Power consumption:27W (Steady burning)
Battery parameters:12V10AH
LED Lifespan:100,000 Hours
E LECTRICAL CHARACTERISTIC - Average horizontal illuminance: ≥10lux
Horizontal out-put: 180 Degree
Downloads
- SKU
AS710-PORTABLE-BATTERY-POWERED-HELIPORT-FLOOD-LIGHT-KITS- Category
- Portable Battery Heliport, Portable Battery Powered
- E LECTRICAL CHARACTERISTIC - Average horizontal illuminance: ≥10lux
- Horizontal out-put: 180 Degree
- LED Color: White
- LED Lifespan: 100, 000 Hours
- OPERATION - Woke mode: Steady burning
- POWER SUPPLY - Battery parameters: 12V10AH
- Power consumption: 27W (Steady burning)

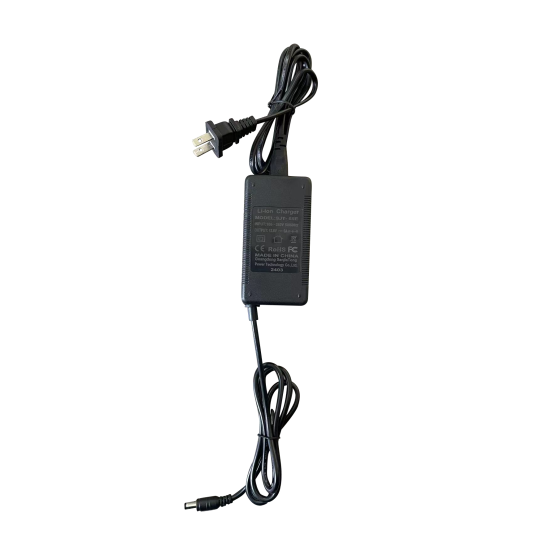

- Charging power supply: AC220V, 50Hz
| Item | |
|---|---|
| E LECTRICAL CHARACTERISTIC - Average horizontal illuminance | ≥10lux |
| Horizontal out-put | 180 Degree |
| LED Color | White |
| LED Lifespan | 100, 000 Hours |
| OPERATION - Woke mode | Steady burning |
| POWER SUPPLY - Battery parameters | 12V10AH |
| Power consumption | 27W (Steady burning) |
| Charging power supply | AC220V, 50Hz |
| MECHANICAL STRUCTURE - Lens | Polycarbonate, UV Stabilize |
| Body | Die-casting Aluminum |
| Dimensions | Φ234*324mm |
| Bolt mounting dimensions | Φ200*M14(4 mounting holes) |
| IP Ingress | IP66 |
| Weight | 4.75KG |
| Operating Temperature | -40℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Relative humidity | 0-95% RH non-condensing |
| Wind speed | Up to 150mph(240kph) |
| OTHERS - Warranty | 2 years |

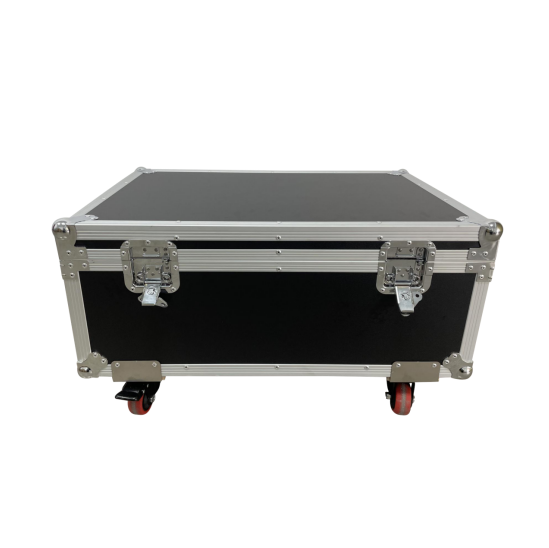

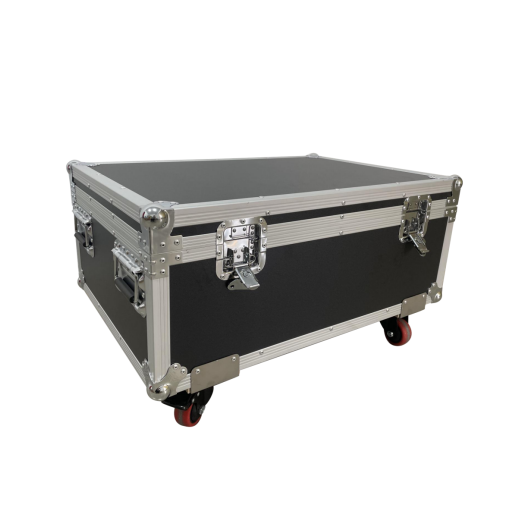

| MECHANICAL STRUCTURE - Enclosure Material | PBS Fire proof plate+aluminum edging |
| Inner material | EVA Cotton |
| Dimension(mm): | 830X600X360 |
| Net Weight: | 20.8kg |
Typically specified for Portable Battery Heliport, Portable Battery Powered projects.
Common use cases include battery powered lighting, heliport lighting, portable battery powered, products.
