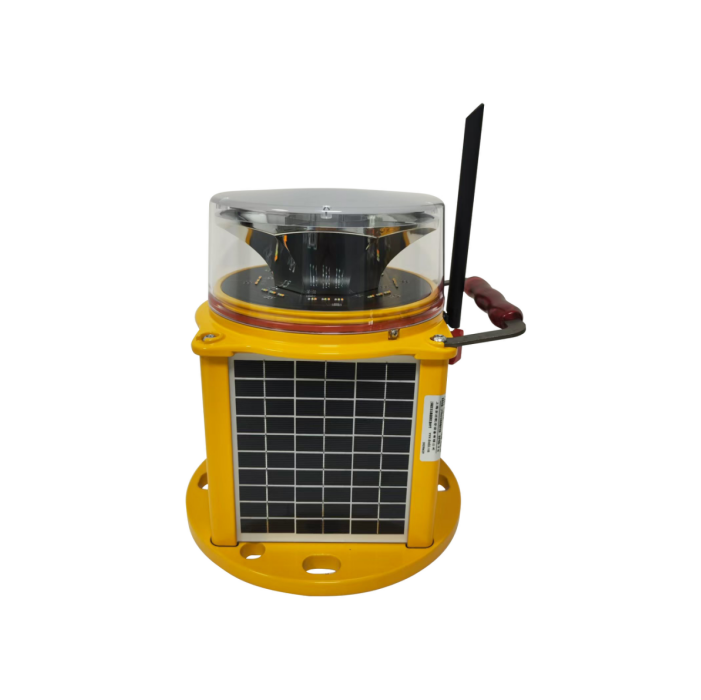

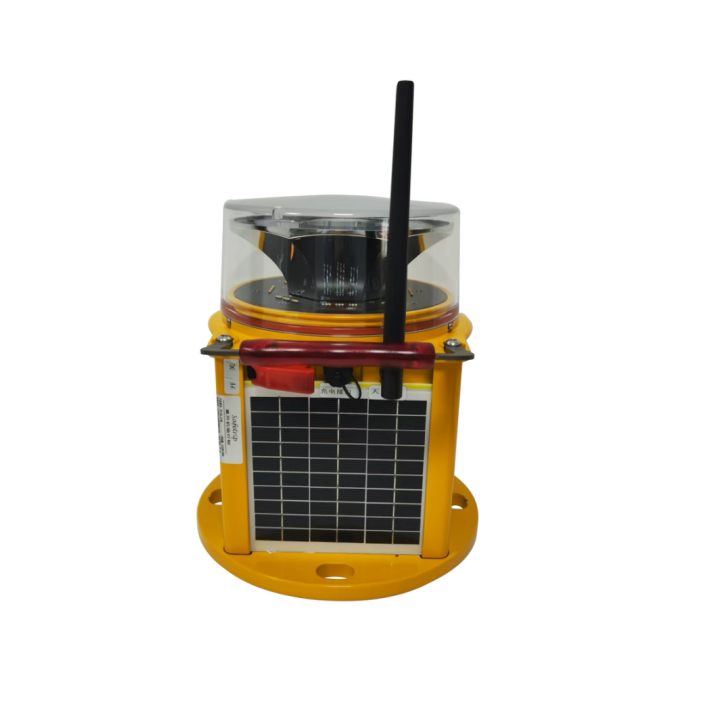

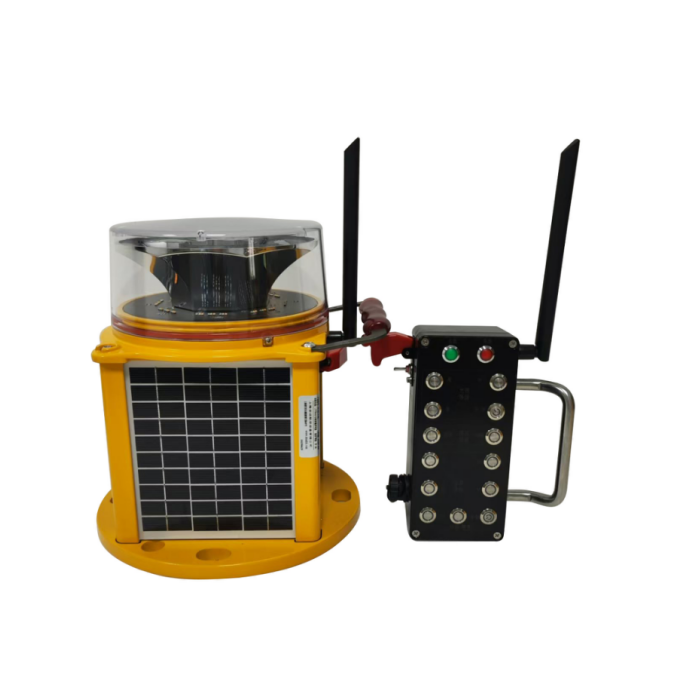

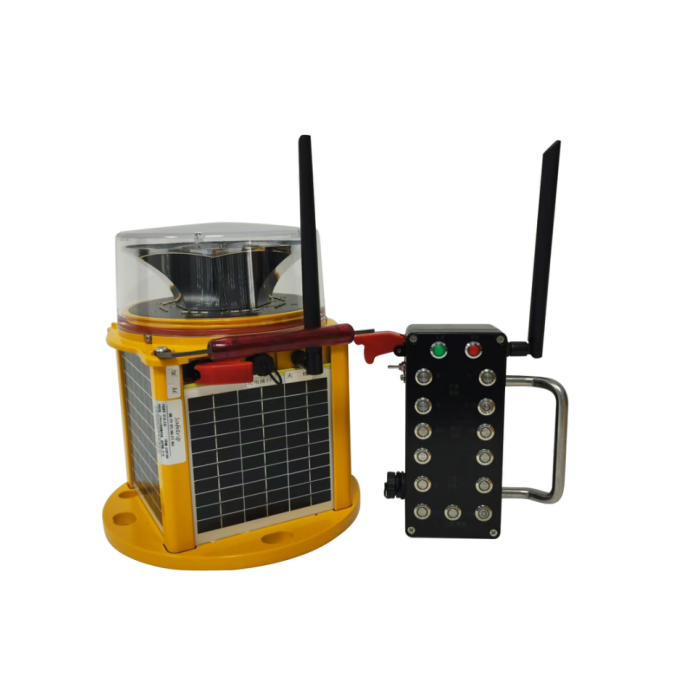

AS730-F Portable Radio Controlled Solar LED Heliport Beacon
Short Description:
Altiglo AS730-F Portable Radio Controlled Solar LED Heliport Beacon – the ultimate solution for ensuring safe and efficient helicopter landings at heliports. Designed with cutting-edge technology and user-friendly features, this beacon is an essential tool for any heliport operator looking to enhance visibility and safety.Invest in the future of heliport safety with our innovative beacon – where technology meets reliability, ensuring every landing is a safe landing.
Solar panel:18V/10W
Autonomy:100000hrs
Color: White
IP grade: IP66
Item: Z S370-F
E LECTRICAL CHARACTERISTIC - Effective Intensity: >2500 Candela
Downloads
- SKU
A- Category
- Solar Lighting, Solar Powered Helipad Lights For Heliport Use
- Item: Z S370-F
- E LECTRICAL CHARACTERISTIC - Effective Intensity: >2500 Candela
- Intensity adjustable: Light intensity adjustable from10%, 30% and 100%
- Vertical Divergence: 3 Degree
- Horizontal out-put: 360 Degree
- LED Color: White
- LED Lifespan: 100, 000 Hours
- OPERATION - Autonomy: 8 hrs (flashing)
| Item | Z S370-F |
|---|---|
| E LECTRICAL CHARACTERISTIC - Effective Intensity | >2500 Candela |
| Intensity adjustable | Light intensity adjustable from10%, 30% and 100% |
| Vertical Divergence | 3 Degree |
| Horizontal out-put | 360 Degree |
| LED Color | White |
| LED Lifespan | 100, 000 Hours |
| OPERATION - Autonomy | 8 hrs (flashing) |
| Control | Wireless and manual |
| Flash Pattern | Morse Flashing, 30 times/min |
| Photocell sensitivity | 70-100 Lux |
| Solar panel | Solar module, mono-crystalline silicon 18V/ 10 W |
| POWER SUPPLY - Solar Efficiency | 14% |
| Power consumption | 30W |
| MECHANICAL STRUCTURE - B attery capacity | 12V20AH lithium rechargeable |
| Lens | Polycarbonate, UV Stabilize |
| Body | Yellow powder coated Aluminum |
| IP Ingress | IP66 |
| Weight | 4.55KG |
| Operating Temperature | -30℃ ~ +55℃ |
| Storage Temperature | -30℃ ~ +55℃ |
| Relative humidity | 0-95% RH non-condensing |
| Wind speed | Up to 150mph(240kph) |
| Light Dimensions | 234mm H, 360mm Diameter |
| Mounting hole d imensions | Φ200*M14(4 mounting holes) |
| OTHERS - Warranty | 2 years |
Typically specified for Solar Lighting, Solar Powered Helipad Lights For Heliport Use projects.
Common use cases include heliport lighting, products, solar lighting, solar powered helipad lights for heliport use.
