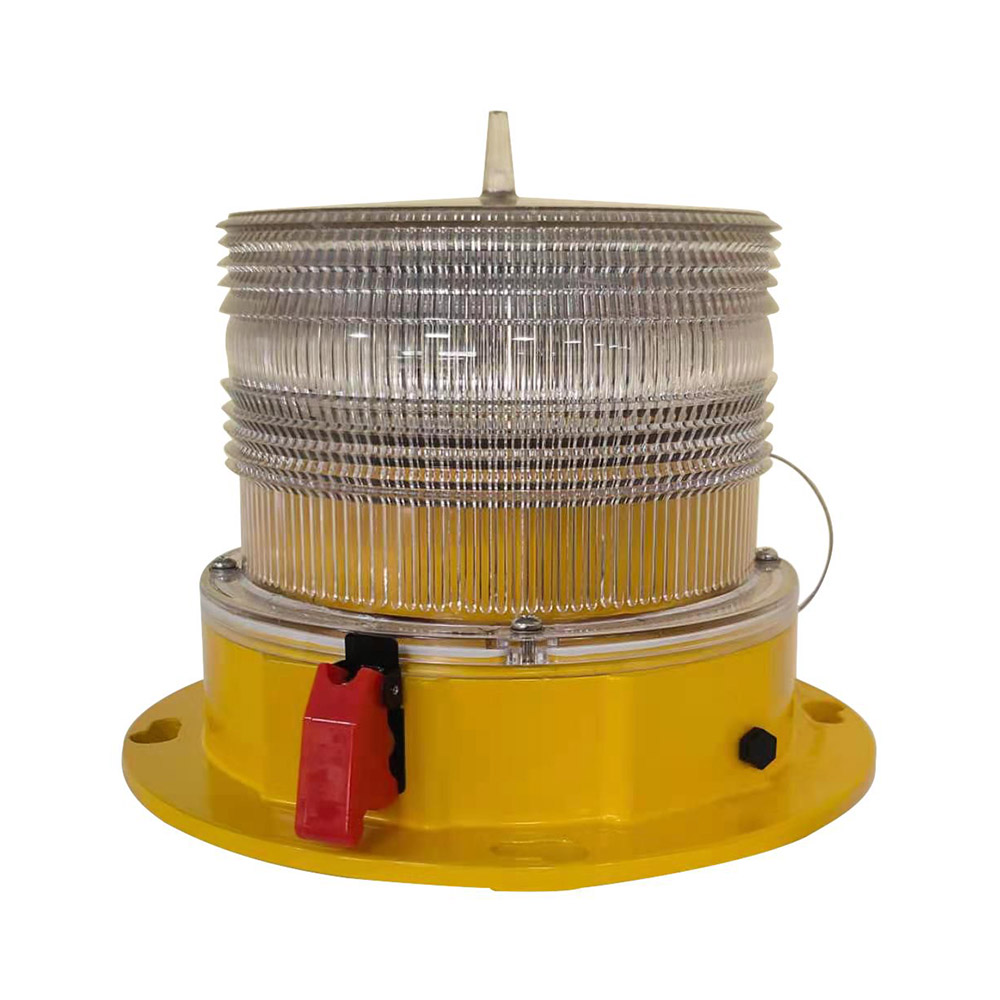

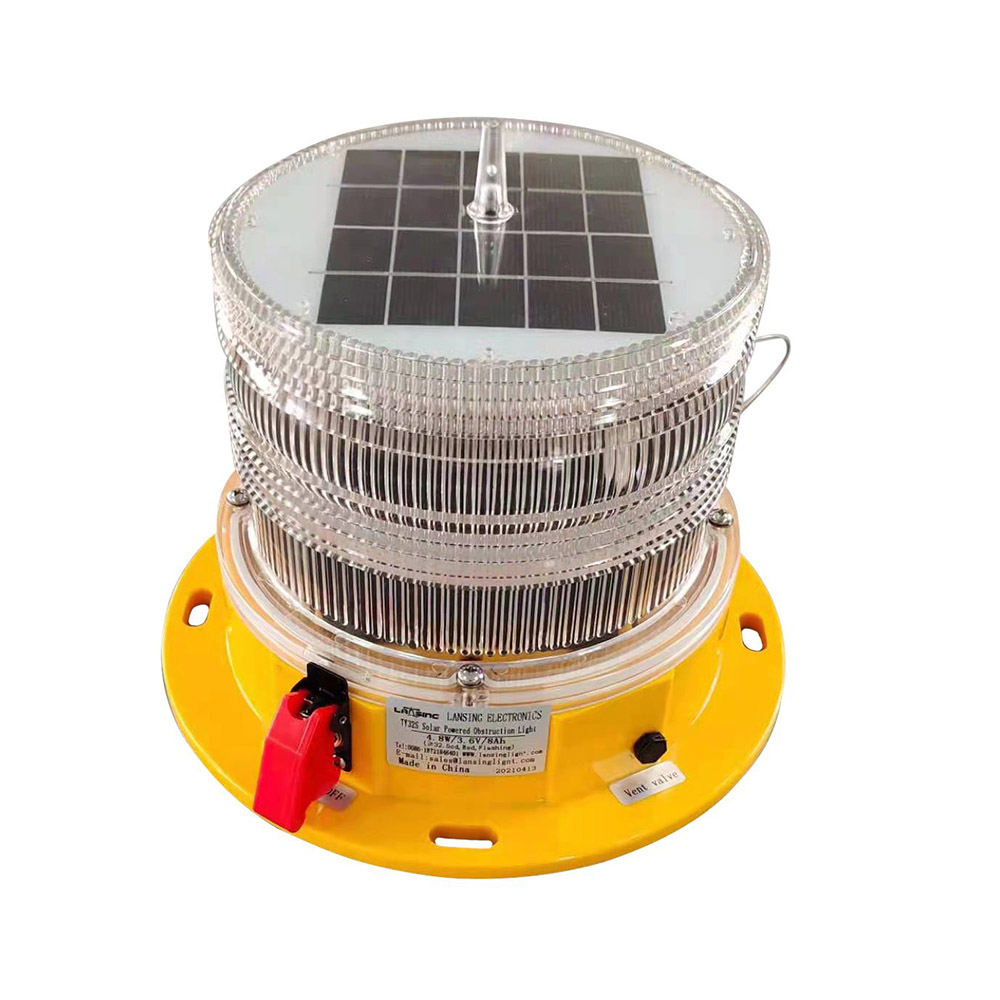

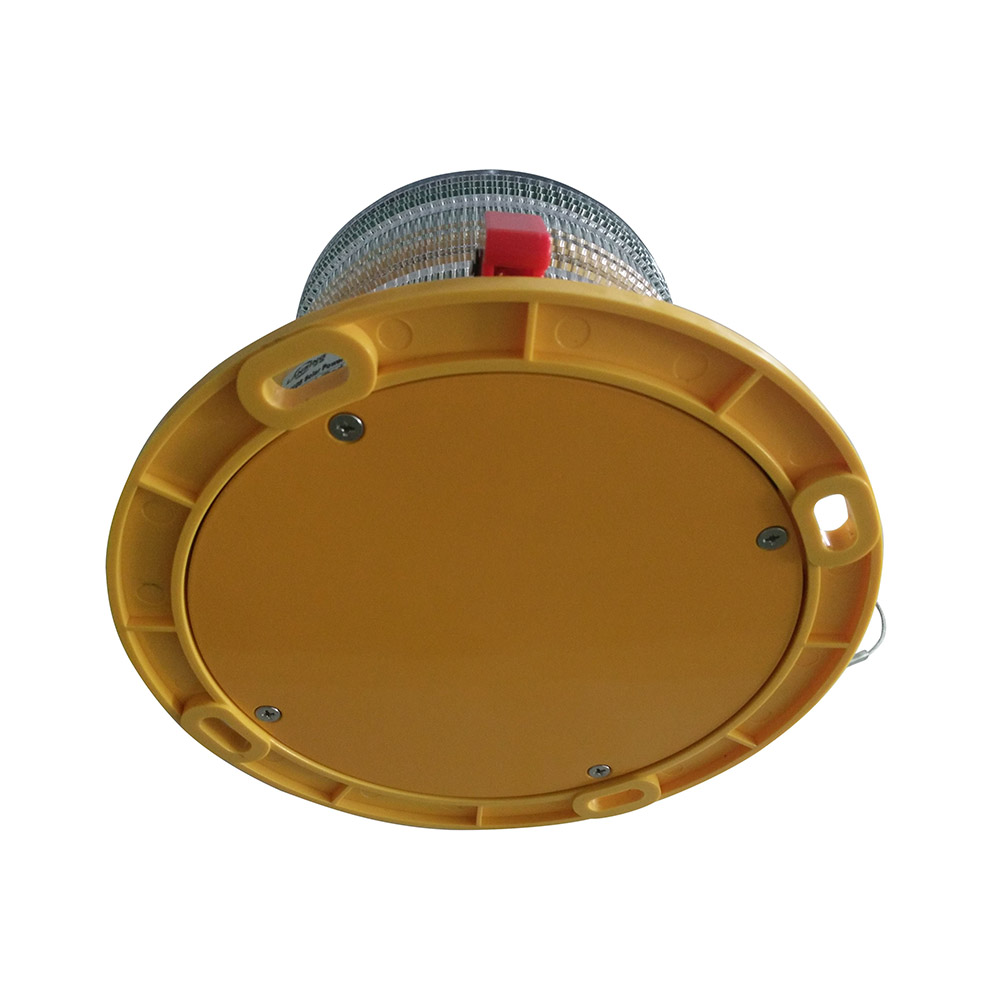

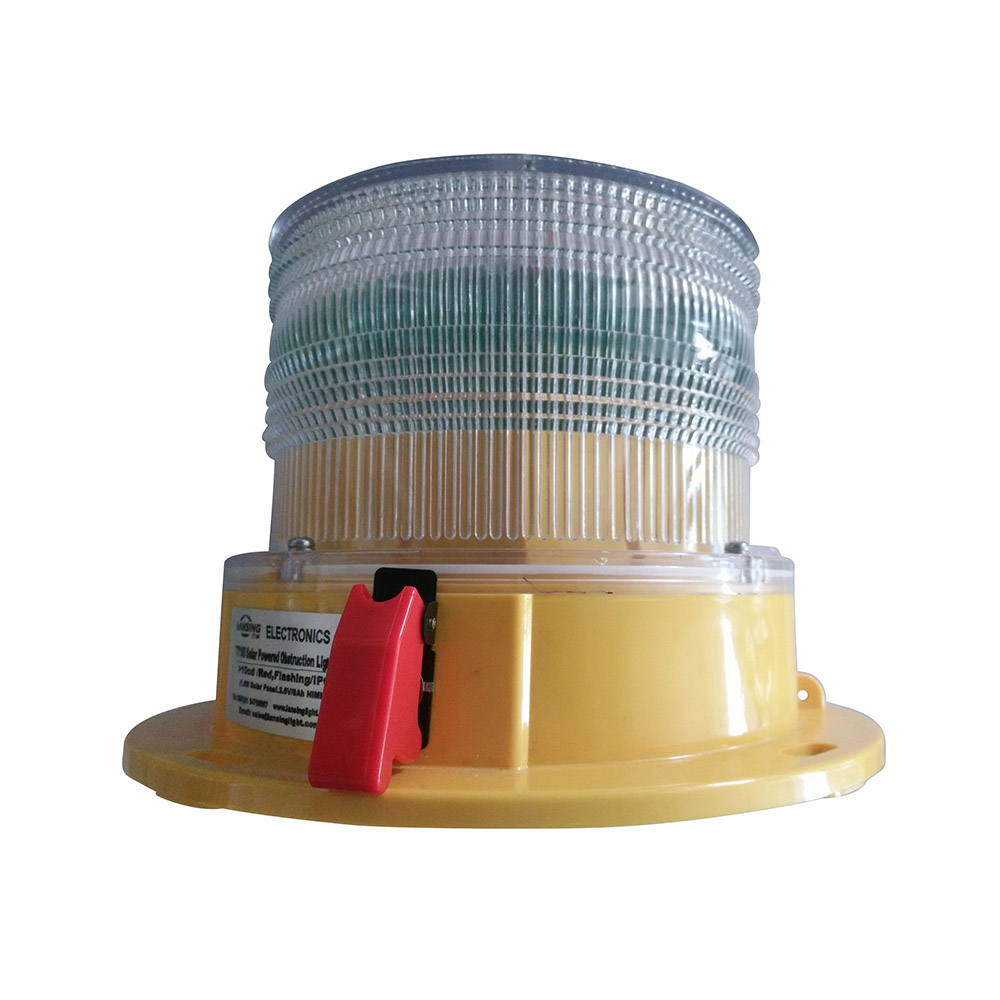

GY78S L-810 LED Single Low intrnsity Solar Powered Obstruction Light(Type B)

Short Description:

Product name: L-810 Low Intensity Solar LED Obstruction Light(Type B)

Solar panel: High efficient mono-crystalline silicon5V 4.8 Watts

Battery capacity: 3.6V8AH rechargeable NiMH battery

Intensity: >32.5cd(flashing); >10cd(fixed)

Autonomy: 10 days (flashing)； 4days(fixed)

Suitable areas: PSH=4

Materials: Lens-PC Body-Aluminum

Item: GY50S

ELECTRICAL CHARACTERISTIC - Effective Intensity: >50 Candela

Downloads

Send Enquiry

Item	GY50S
ELECTRICAL CHARACTERISTIC - Effective Intensity	>50 Candela
Vertical Divergence	10 Degree
Horizontal out-put	360 Degree
LED Color	Red (for obstruction). White, yellow, green and blue are available for other applications
LED Lifespan	100, 000 Hours
OPERATION - Woke mode	Flashing or steady burning
Flash Pattern(optional)	Flashing: 20/30/40/60FPM; Default: 40FPM;
Flash duration	670ms
Photocell sensitivity	70-100 Lux
Autonomy	10 days(flashing), 3-4 days(steady burning)
Alarm type	NO & NC, dry contact relay(optional)
POWER SUPPLY - Solar panel	Solar module, mono-crystalline silicon 5V 4.8W
Solar Efficiency	21%
Battery capacity	NIMH, 3.6V/8Ah
Battery replacement	Replaceable
MECHANICAL STRUCTURE - Lens	Polycarbonate, UV Stabilize
Body	Aviation yellow powder-coated extruding aluminum
IP Ingress	IP67
Weight	2KG(Polycarbonate base) 3KG(Aluminum base)
Operating Temperature	-30℃ ~ +55℃
Storage Temperature	-40℃ ~ +55℃
Suitable areas:	PSH≥3
Relative humidity	0-95% RH non-condensing
Wind speed	Up to 150mph(240kph)
OTHERS - Warranty	2 years
Optional	Flashing pattern(20–60FPM) Built-in photocell NO & NC, dry contact relay GPS Synchronization function
