Low Intensity Series Solar Powered Series, Obstruction Lighting, Products, Solar-Powered Series
Short Description:

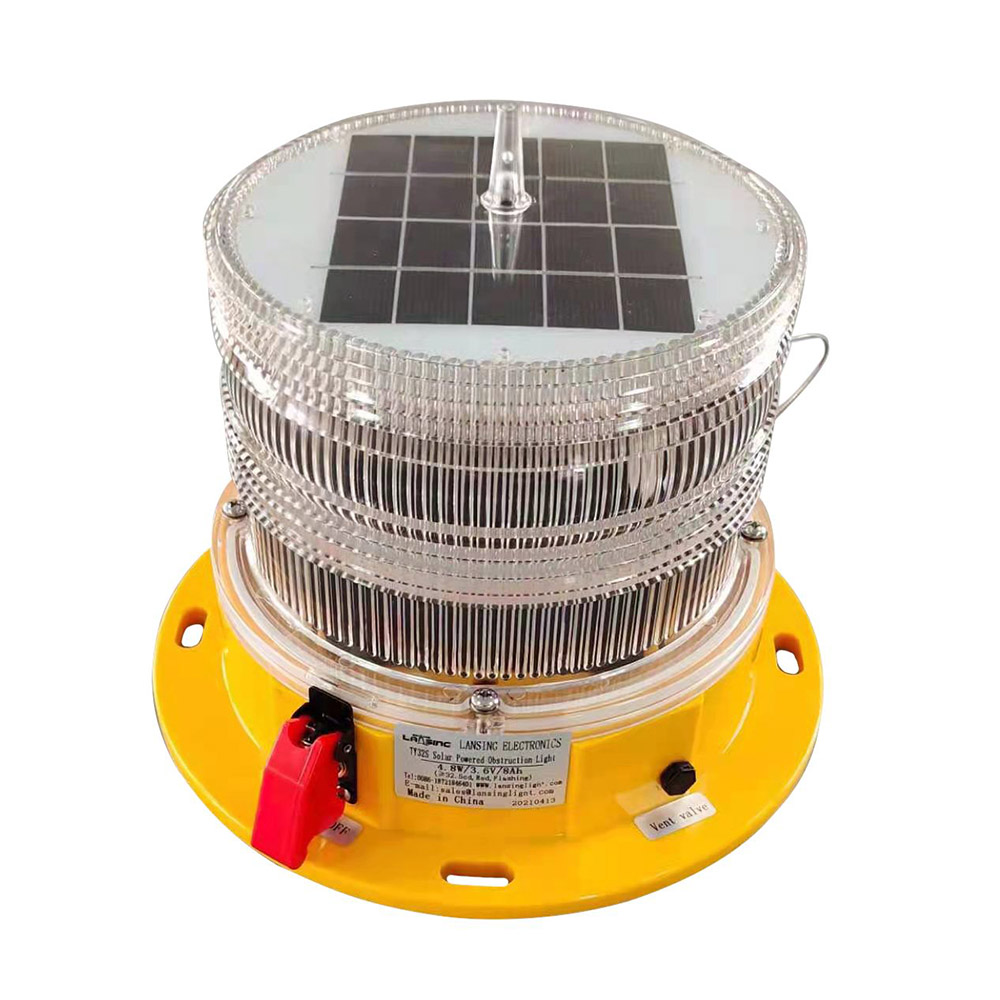

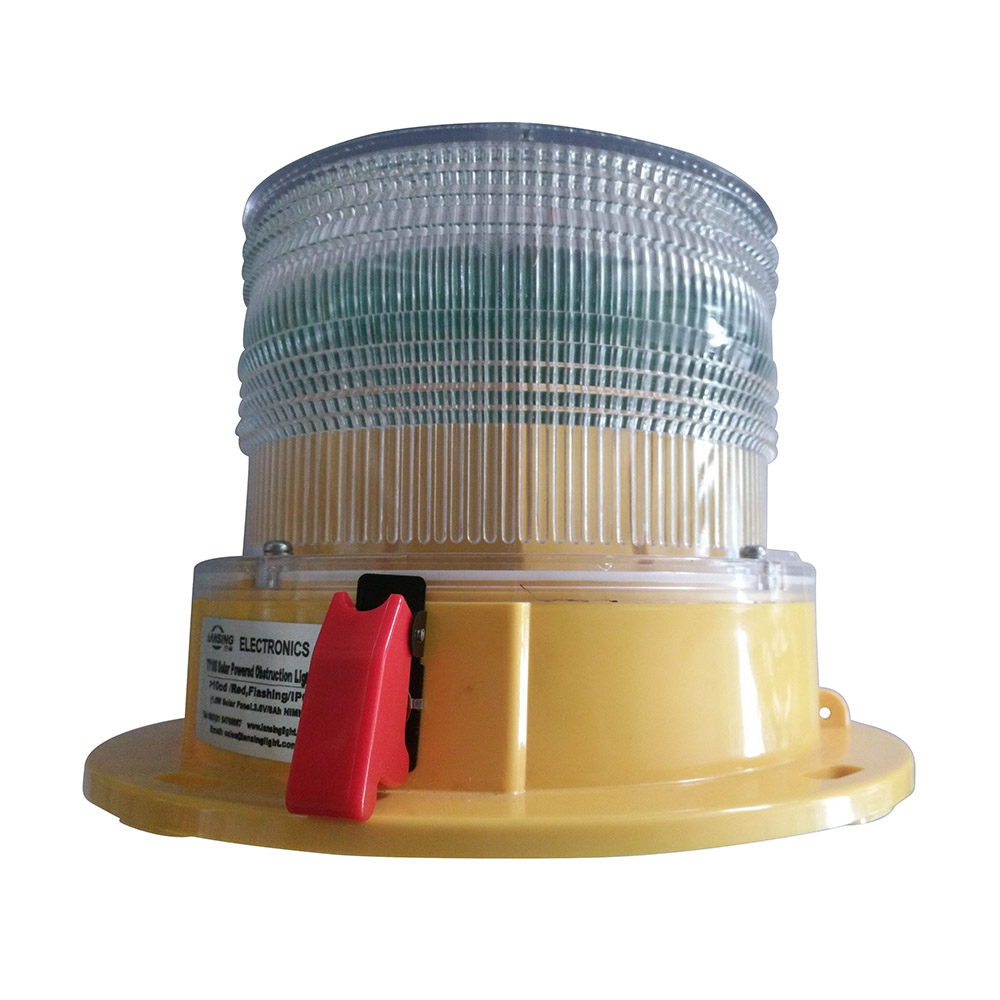

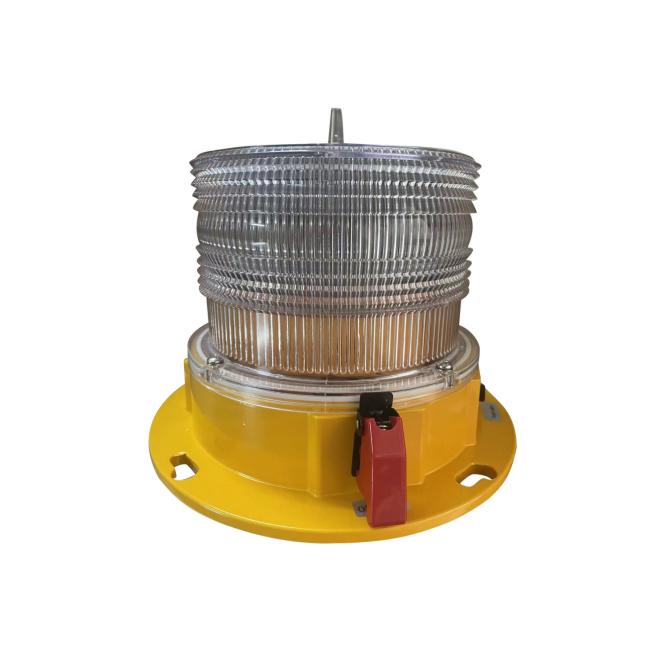

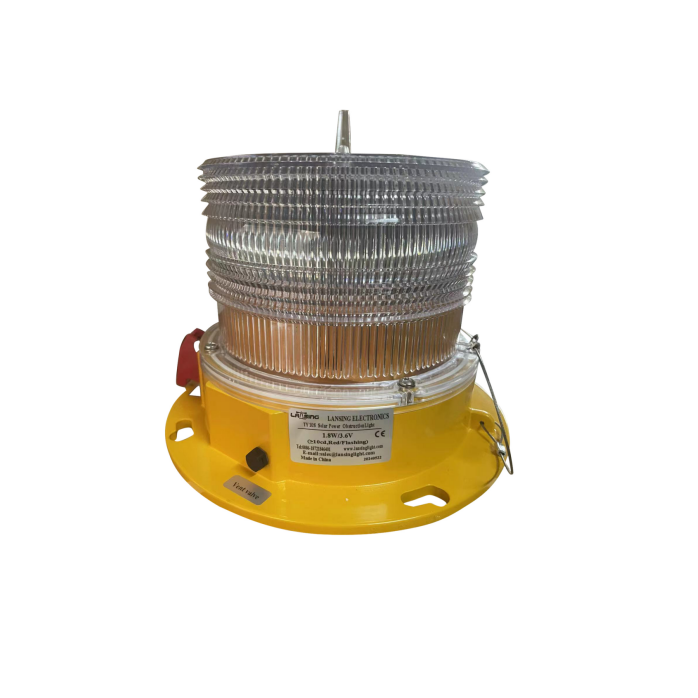

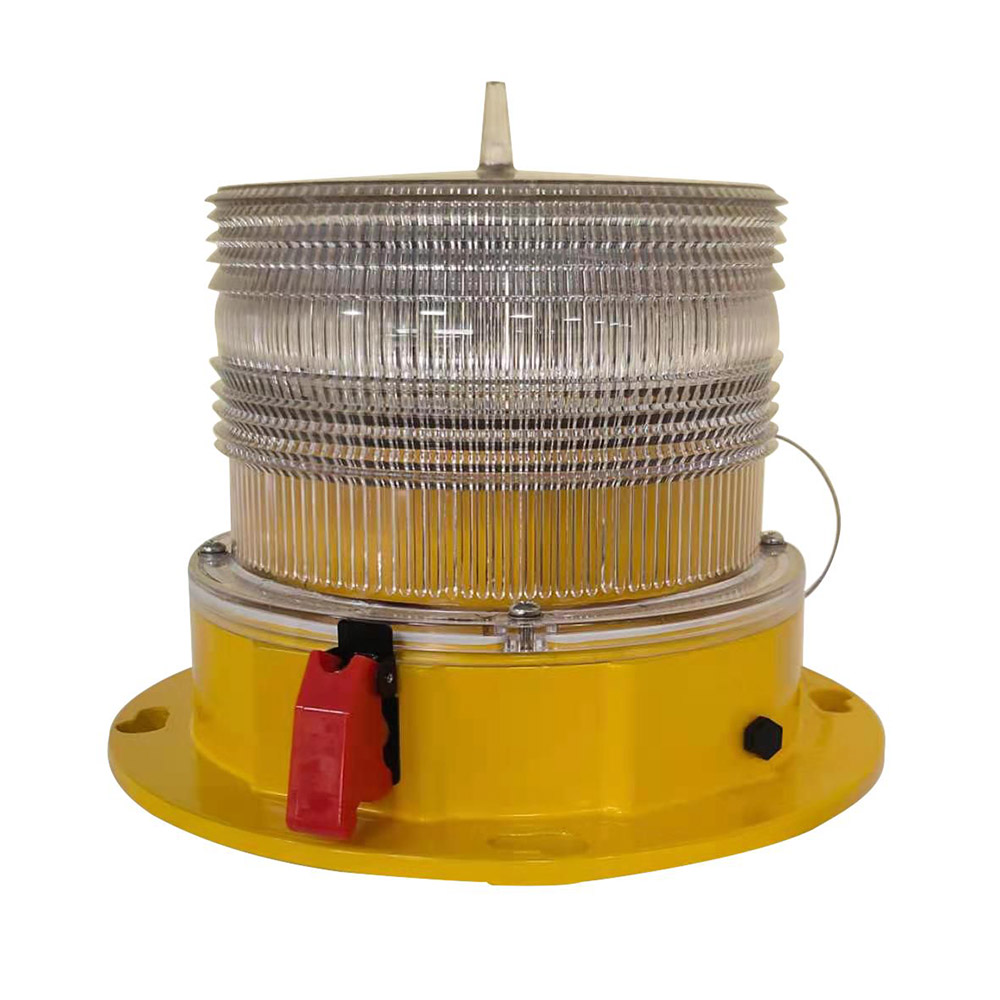

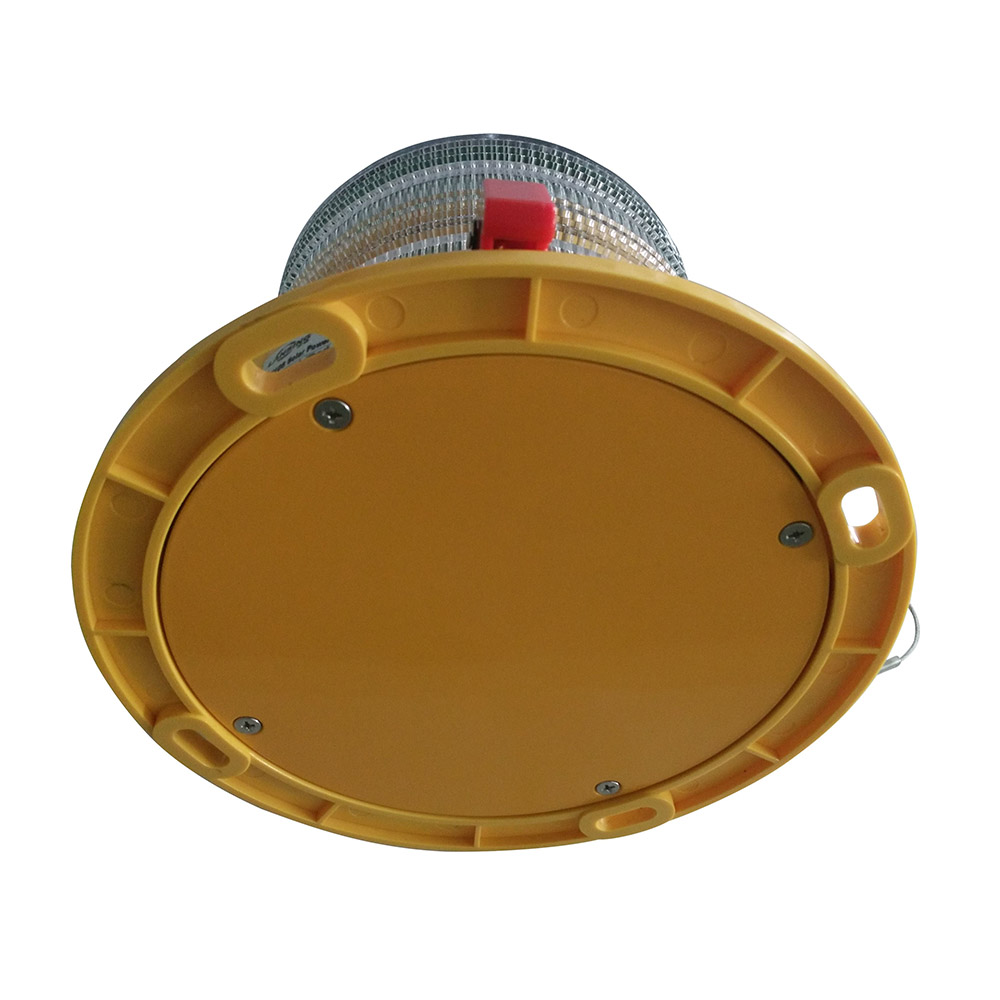

Altiglo cutting-edge Solar powered obstruction Light GY90S is designed to optimize safety and visibility for aircraft and helicopters, especially during night operations and low-visibility conditions. It is the perfect solution for airports, helipads, wind turbines, communication towers, and other structures that require reliable air navigation.
Solar panel: High efficient mono-crystalline silicon 5V1.8 Watts
Battery capacity: 3.6V8AH rechargeable NiMH battery
Intensity: >10cd(flashing); >6cd(fixed)
Autonomy: 20 days (flashing); 10 days(fixed)
Suitable areas: PSH=4
Materials: Lens-PC Body-Aluminum
Item: GY90S
ELECTRICAL CHARACTERISTIC - Effective Intensity: >10 Candela
Downloads
GY90S| Item | GY90S |
|---|---|
| ELECTRICAL CHARACTERISTIC - Effective Intensity | >10 Candela |
| Vertical Divergence | 10 Degree |
| Horizontal out-put | 360 Degree |
| LED Color | Red (for obstruction). White, yellow, green and blue are available for other applications |
| LED Lifespan | 100, 000 Hours |
| OPERATION - Woke mode | Flashing or steady burning |
| Flash Pattern(optional) | Flashing: 20/30/40/60FPM; Default: 40FPM; |
| Flash duration | 670ms |
| Photocell sensitivity | 70-100 Lux |
| Autonomy | 20 days(flashing), 7 days(steady burning) |
| Alarm type | NO & NC, dry contact relay(optional) |
| POWER SUPPLY - Solar panel | Solar module, mono-crystalline silicon 5V 1.8W |
| Solar Efficiency | 21% |
| Battery capacity | NIMH, 3.6V/8Ah |
| Battery replacement | Replaceable |
| MECHANICAL STRUCTURE - Lens | Polycarbonate, UV Stabilize |
| Body | Aviation yellow powder-coated extruding aluminum |
| IP Ingress | IP67 |
| Weight | 2KG(Polycarbonate base) 3KG(Aluminum base) |
| Operating Temperature | -30℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ +55℃ |
| Suitable areas | PSH≥3 |
| Relative humidity | 0-95% RH non-condensing |
| Wind speed | Up to 150mph(240kph) |
| OTHERS - Warranty | 2 years |
| Optional | Flashing pattern(20–60FPM) Built-in photocell NO & NC, dry contact relay |
Typically specified for Low Intensity Series Solar Powered Series, Obstruction Lighting, Products, Solar-Powered Series projects.
Common use cases include aircraft warning light, aircraft warning lights, aviation light, aviation light fitting, aviation light for tower, aviation warning light.
Need Product Guidance?
Request pricing, lead times, technical compatibility guidance, and project support for this model.
