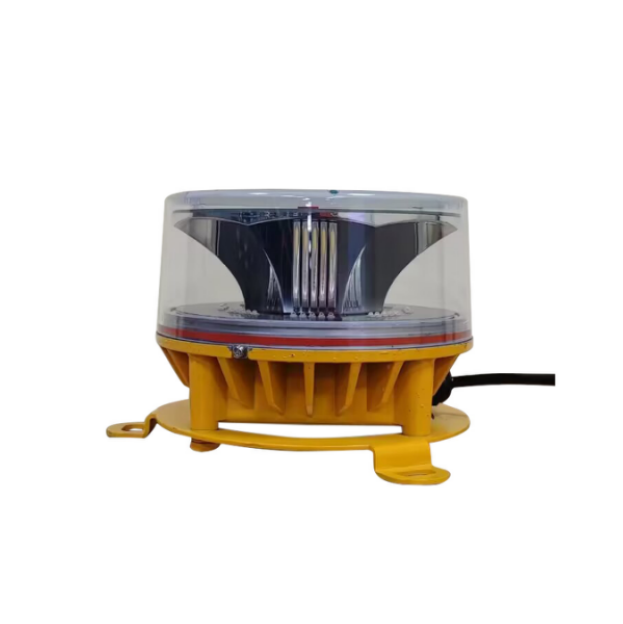

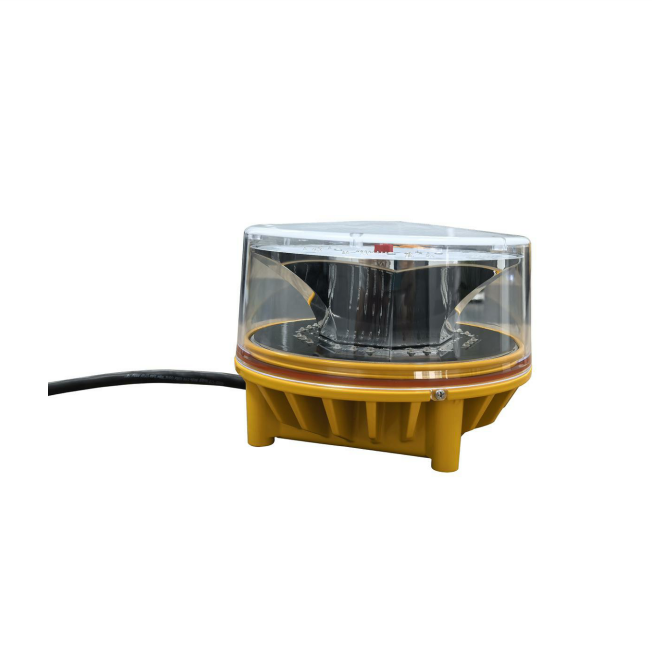

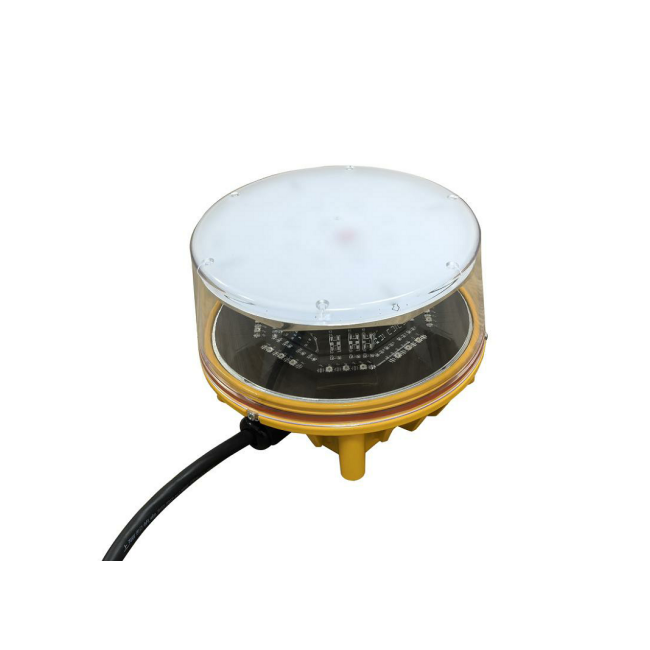

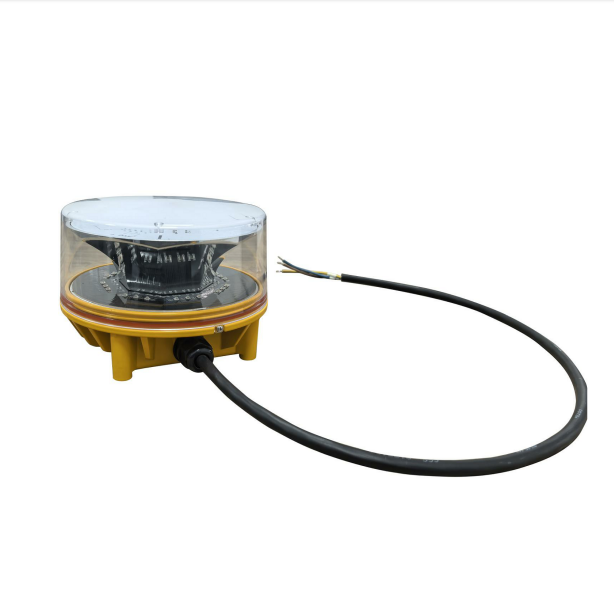

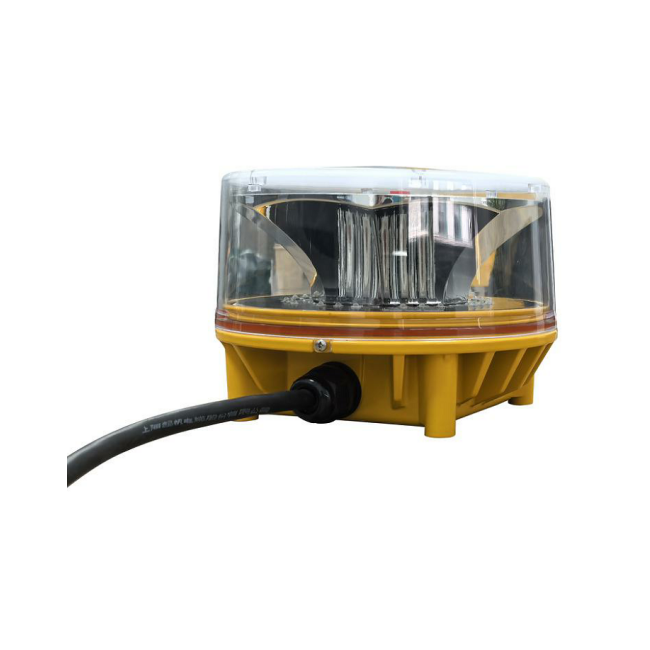

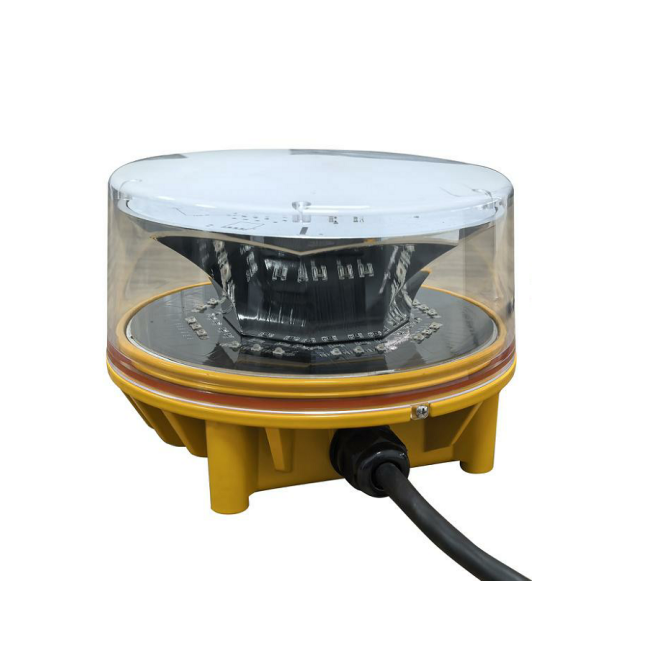

JT8000 L864 Singe Medium Intensity Obstruction Light
Short Description:
Altiglo medium intensity aviation light, designed to provide exceptional visibility and safety for aircraft operations. This high-quality aviation light is the perfect solution for marking structures, such as towers, cranes, and other obstacles that pose a risk to aircraft navigation.
Input voltage:85-265VAC, 50/60 Hz;12VDC; 24VDC;30-60VDC;
Effective Intensity:>2000+25% Candela
LED Lifespan:100,000 Hours
Materials:Lens-PC; Body- Aluminum
Item: JT8000
ELECTRICAL CHARACTERISTIC - Effective Intensity: >2000+25% Candela
Downloads
- SKU
JT8000- Category
- Medium Intensity Series, Type Bc Series
- Item: JT8000
- ELECTRICAL CHARACTERISTIC - Effective Intensity: >2000+25% Candela
- Vertical Divergence: 3 Degree
- Horizontal out-put: 360 Degree
- LED Color: Red (for obstruction). White, yellow, green and blue are available for other applications
- LED Lifespan: 100, 000 Hours
- OPERATION - Woke mode: Flashing
- Flash Pattern: Flashing: 20/30/40/60FPM; Default: 40FPM; Steady burning
| Item | JT8000 |
|---|---|
| ELECTRICAL CHARACTERISTIC - Effective Intensity | >2000+25% Candela |
| Vertical Divergence | 3 Degree |
| Horizontal out-put | 360 Degree |
| LED Color | Red (for obstruction). White, yellow, green and blue are available for other applications |
| LED Lifespan | 100, 000 Hours |
| OPERATION - Woke mode | Flashing |
| Flash Pattern | Flashing: 20/30/40/60FPM; Default: 40FPM; Steady burning |
| Flash duration | 670ms |
| Photocell sensitivity | 70-100 Lux |
| Alarm type | NO & NC, dry contact relay |
| POWER SUPPLY - Input voltage | 85-265VAC, 50/60 Hz;12VDC; 24VDC;30-60VDC; |
| Power consumption | <10W(flashing); 30W(Steady burning) |
| MECHANICAL STRUCTURE - Lens | Polycarbonate, UV Stabilize |
| Body | Die-casting Aluminum |
| IP Ingress | IP67 |
| Weight | 1.2KG |
| Operating Temperature | -40℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Wire Connection mode | With 1 m lead wire |
| Relative humidity | 0-95% RH non-condensing |
| Wind speed | Up to 150mph(240kph) |
| OTHERS - Warranty | 2 years |
| Optional | Flashing pattern(20–60FPM) Built-in photocell NO & NC, dry contact relay GPS Synchronization function |
Typically specified for Medium Intensity Series, Type Bc Series projects.
Common use cases include aircraft warning lights, aviation light for tower, aviation lights, aviation warning light, aviation warning lights, led aviation light.
