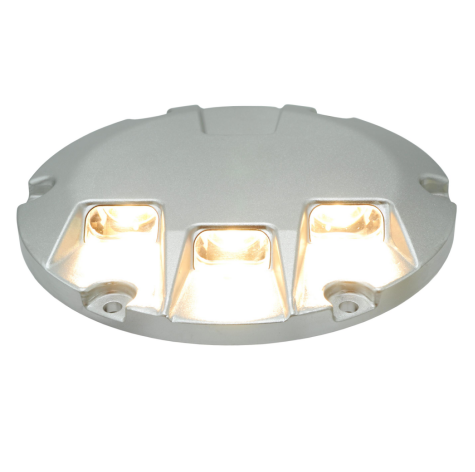

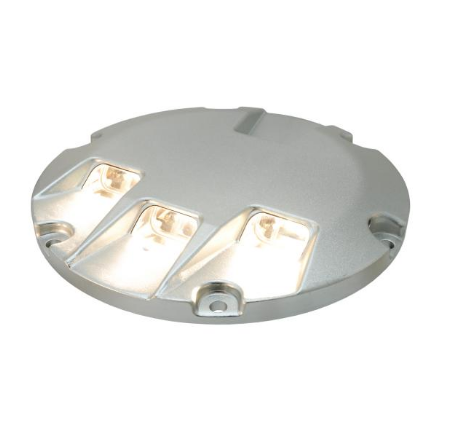

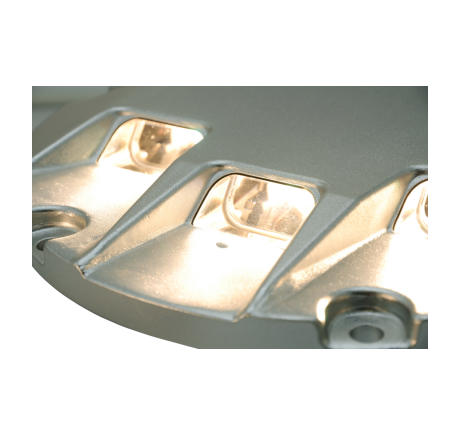

OS-APP-98-X-W(H) Halogen Inset Approach Cross Bar Light

OS-APP-98-X-W(H) Halogen Inset Approach Cross Bar Light - Image 3

Short Description:

Altiglo OS-APP-98-X-W(H) Halogen Inset Airport Approach Cross Bar Light is a dependable and high-performance lighting solution for airport approach and runway applications. Its advanced technology, durable construction, and energy-efficient design make it a valuable asset for airport operators seeking to enhance safety and efficiency. Choose our Halogen Inset Airport Approach Cross Bar Light and illuminate the way for safe and smooth landings.

Power supply: 2.8A-6.6A

Rated power: 3X105W

Halogen Life Time:1,000 Hours

Minimum Average Intensity:20000cd

Color: White

IP grade: IP68

Item: OS-APP-98-X-W(H)

Environmental Property - Operating Temperature: -55℃~+55℃

Downloads

Send Enquiry

SKU: OS-APP-98-X-W(H)
Category: Approach Lighting, Inset Approach Lighting

Item	OS-APP-98-X-W(H)
Environmental Property - Operating Temperature	-55℃~+55℃
Storage Temperature	-40℃~+55℃
Precipitation	IP68
Salt fog	Exposure to a corrosive atmosphere
Temperature shock	Exposure of the hot light fixture to cold water spray
Electrical Property - Power supply	2.8A-6.6A
Rated power	3X105W
Lamp	Halogen Lamp
Lamp Life	1, 000Hours
Photometric Property - Light color	White
Main beam angle	Vertical:0°- 13.5°; Horizontal:± 10°
Min intensity	20, 000cd
Light Size	322.5X322.5X162mm
Packing Size	330×330×150mm³
Weight	7Kg(without shallow base) 12kg(with shallow base)
Surface Treatment - Treatment	Anodizing coating
Color	White
Composition - Upper body	Aluminum forging
Lower cover	Aluminum die-casting
Dome lens cover	Aluminum forging
Dome lens	Glass(clear)
Application - Main beam	Actual avg. cd
H	V
OS-APP-98-X-W(H) - ICAO Figure A2- 1 (H 2° Toe-in	21959
±10° - 0.5° to 11.5°	21160
±10° - 1.5° to 12.5°	23579
±10° - 2.5° to 13.5°	21087
1 - Upper cover	Lamp
2 - Prism Gasket Sleeve	Mounting Plate
