Approach Lighting, Inset Approach Lighting
Short Description:

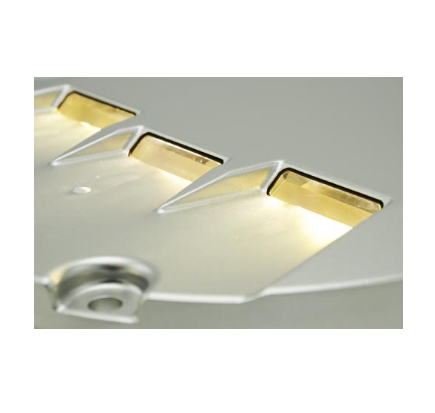

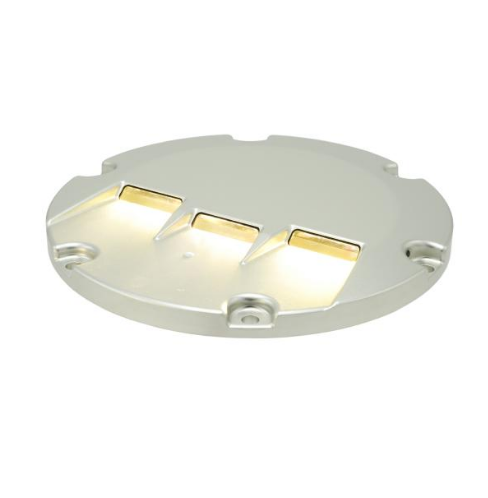

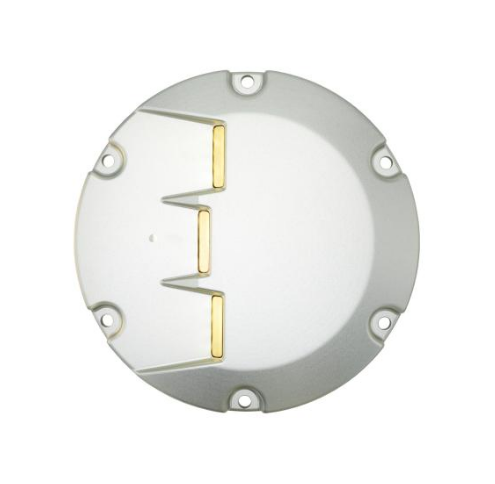

Altiglo OS-APP-98-X-W(L) LED inset approach crossbar light is designed to enhance safety and visibility for both pilots and ground crews. As airports continue to evolve, the need for reliable and efficient lighting solutions has never been more critical. Our LED inset crossbar light is engineered to meet the rigorous demands of modern aviation while providing exceptional performance and durability.Upgrade your airport’s lighting with our OS-APP-98-X-W(L) LED inset approach crossbar light and experience the perfect blend of innovation, efficiency, and safety. Illuminate the skies with confidence and ensure a smooth operation for all aircraft and personnel.
Product name:LED Inset Approach crossbar light
Power supply: 2.8~6.6A
Power consumption:56W
LED Life Time:100,000 Hours
Minimum Average Intensity:20000cd
Color: White
IP grade: IP68
Item: OS-APP-98-X-W(L)
Environmental Property - Operating Temperature: -55℃~+55℃
Downloads
OS-APP-98-X-W(L)| Item | OS-APP-98-X-W(L) |
|---|---|
| Environmental Property - Operating Temperature | -55℃~+55℃ |
| Storage Temperature | -40℃~+55℃ |
| Precipitation | IP68 |
| Salt fog | Exposure to a corrosive atmosphere |
| Temperature shock | Exposure of the hot light fixture to cold water spray |
| Electrical Property - Power supply | 2.8~6.6A |
| Power consumption | 45W |
| Power Factor | ≥ 0.9 |
| Lamp | LED Lamp |
| Lamp Life | 75, 000Hours |
| Photometric Property - Light color | White |
| Main beam angle | Vertical:0°-13.5°; Horizontal:± 10° |
| Min intensity | 20, 000cd |
| Light Size | 322.5X322.5X162mm |
| Weight | 7Kg(without shallow base) 12kg(with shallow base) |
| Surface Treatment - Treatment | Anodizing coating |
| Color | White |
| Composition - Upper body | Aluminum forging |
| Lower cover | Aluminum die-casting |
| Dome lens cover | Aluminum forging |
| Dome lens | Glass(clear) |
| Application - Main beam | Actual avg. cd |
| H | V |
| OS-APP-98-X-W(L) - ICAO Figure A2-1 | 23561 |
| ± 10° - 0.5° -11.5° | 23687 |
| ± 10° - 1.5° -12.5° | 23538 |
| ± 10° - 2.5° -13.5° | 23569 |
| 1 - Upper cover | Secondary connector |
| 2 - Pressing plate | Control components |
Typically specified for Approach Lighting, Inset Approach Lighting projects.
Common use cases include airfield approach lighting, airport approach lights, approach light system, approach lighting series, approach lights, approach lights runway approach lights aviation.
