OS-APP(L) LED Elevated Approach Centre Line Light
Short Description:

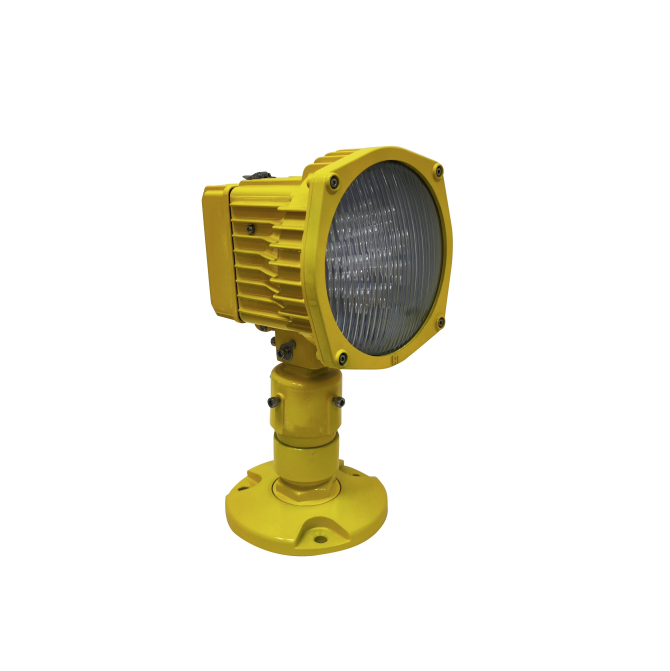

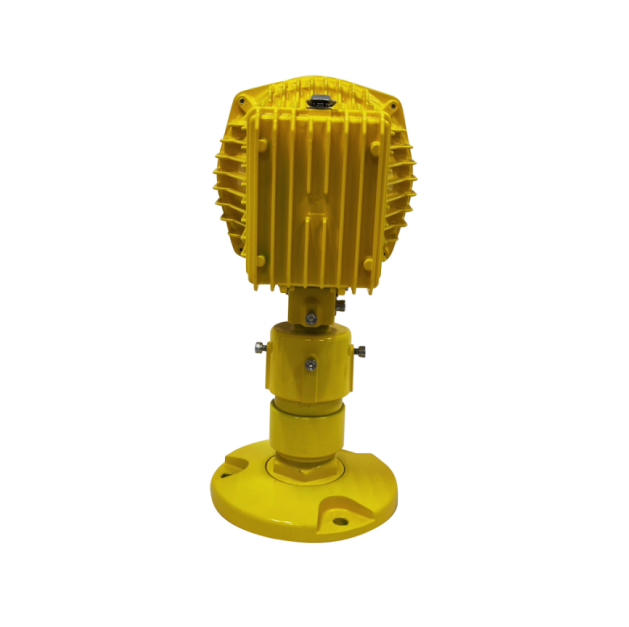

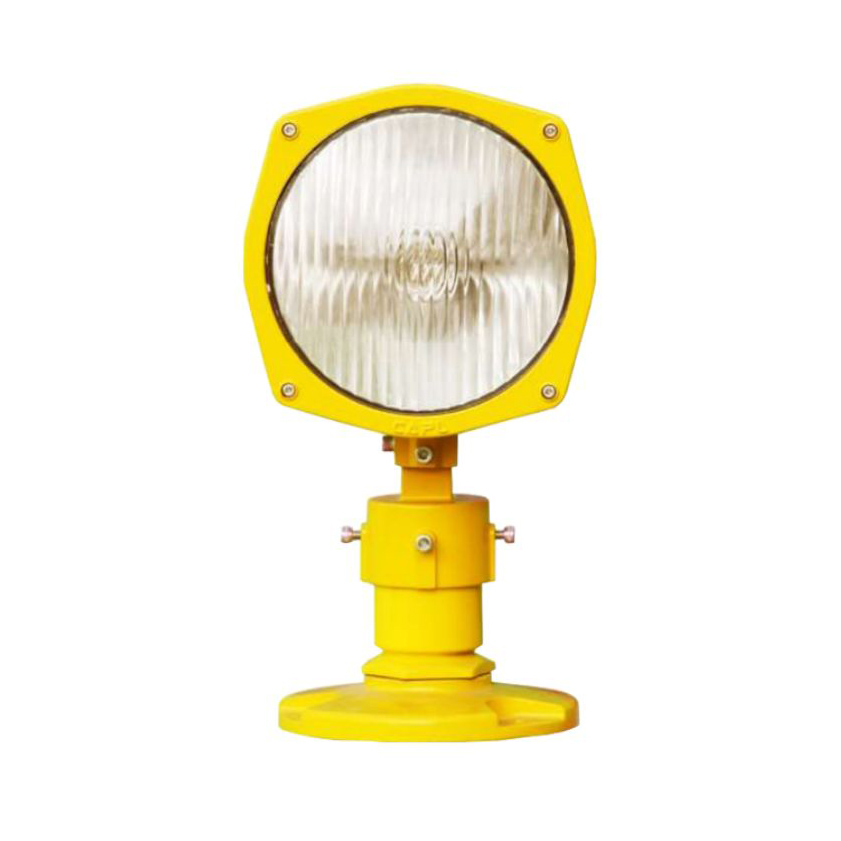

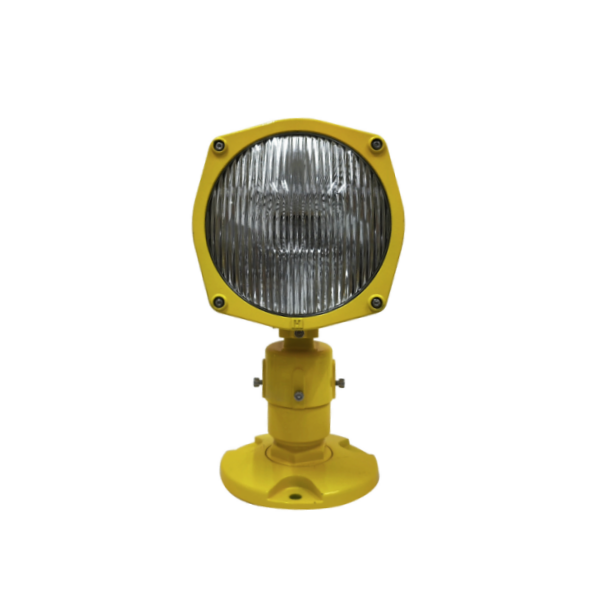

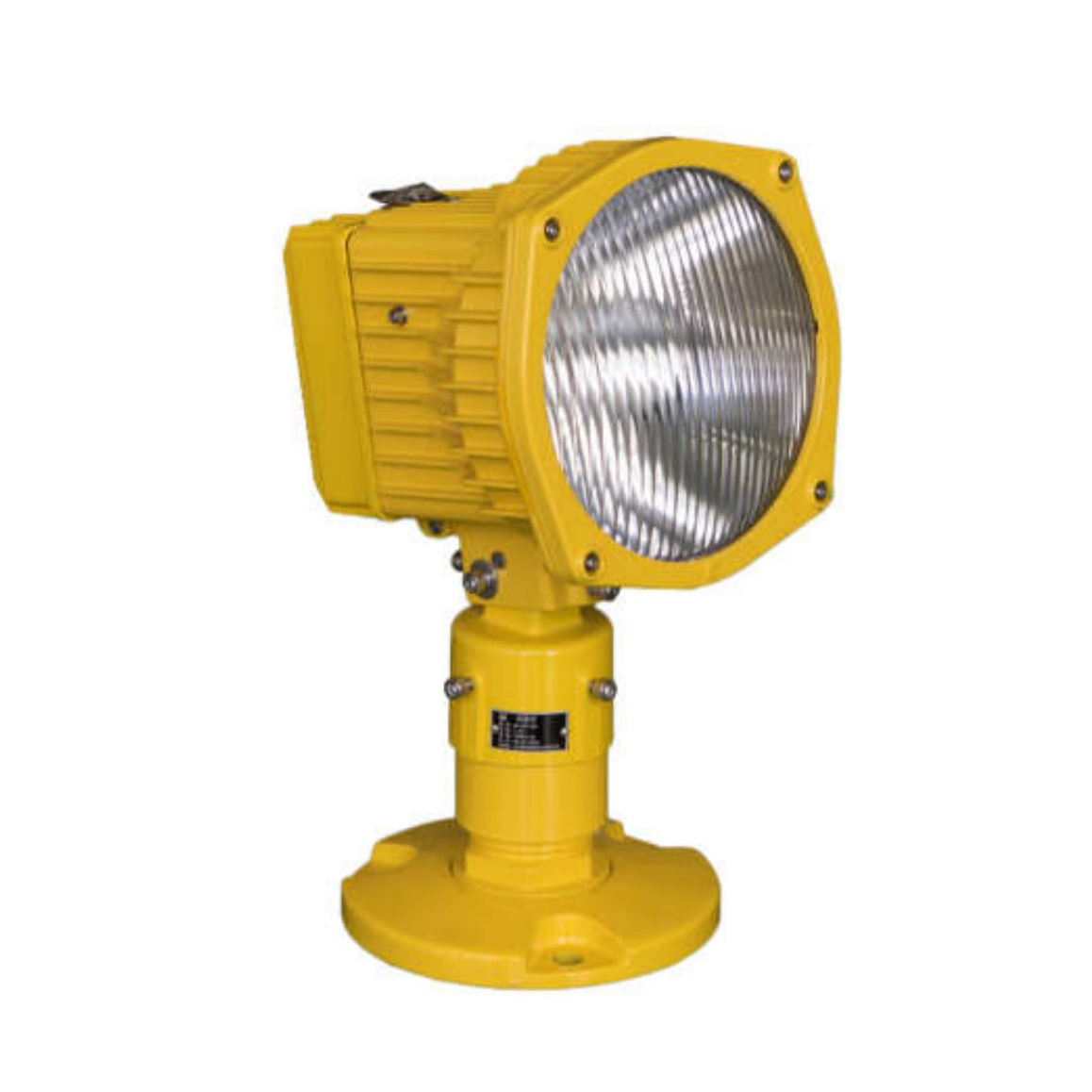

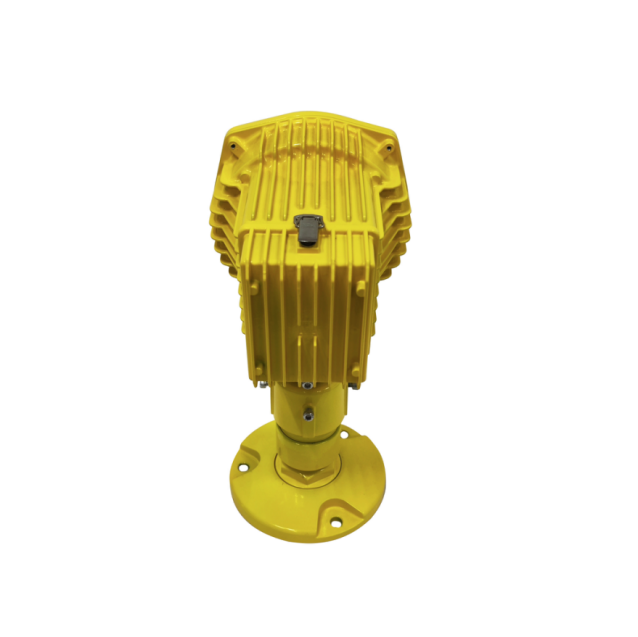

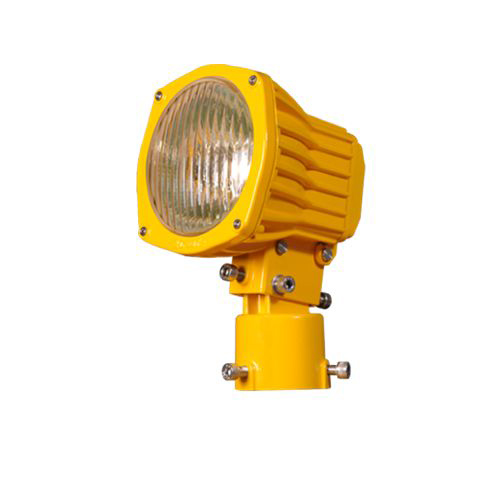

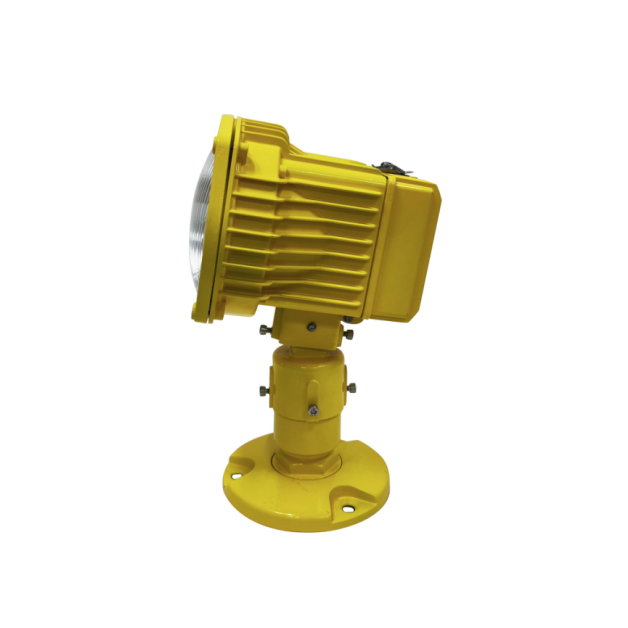

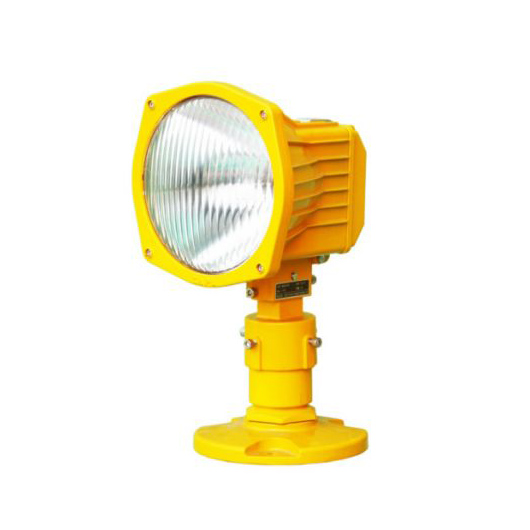

Product name:OS-APP(L) LED Elevated Approach Centre Line Light
Power supply: 2.8A-6.6A
Rated power: 43W
LED Life Time:100,000 Hours
Minimum Average Intensity:20,000cd
Color: Uni-direction, White
IP grade: IP65
Item: OS-APP(L)
Environmental Property - Environmental Temperature: -40℃~+55℃
Downloads
- SKU
OS-APP(L)- Category
- Approach Lighting, Elevated Approach Lighting
- Item: OS-APP(L)
- Environmental Property - Environmental Temperature: -40℃~+55℃
- IP ingress: IP65
- Salt fog: Exposure to a corrosive atmosphere
- Temperature shock: Exposure of the hot light fixture to cold water spray
- Electrical Property - Power supply: 2.8A-6.6A
- Rated power: LED 43W
- Lamp: LED
| Item | OS-APP(L) |
|---|---|
| Environmental Property - Environmental Temperature | -40℃~+55℃ |
| IP ingress | IP65 |
| Salt fog | Exposure to a corrosive atmosphere |
| Temperature shock | Exposure of the hot light fixture to cold water spray |
| Electrical Property - Power supply | 2.8A-6.6A |
| Rated power | LED 43W |
| Lamp | LED |
| Lamp Life | 100, 000Hours |
| Photometric Property - Light color | White |
| Main beam angle | Vertical:0°- 13.5°; Horizontal:± 10° |
| Min intensity | 20000cd |
| Packing Size | 188x215x350mm³ |
| Weight | 4.1Kg |
| Surface Treatment - Treatment | Anodizing coating |
| Color | Yellow |
| Composition - Upper body | Aluminum forging |
| Lower cover | Aluminum die-casting |
| Dome lens cover | Aluminum forging |
| Dome lens | Glass(clear) |
| Application - Main beam | Actual avg(cd) |
| OS-APP(L) - ICAO Figure A2-1 | V |
| ±10̊ - 0~11̊ | 23445 |
| ±10̊ - 0.5~11 .5 ̊ | 21152 |
| ±10̊ - 1.5~12.5̊ | 23579 |
| ±10̊ - 2.5~13.5̊ | 21853 |
| 1 - Lampshade | Rear cover |
| 2 - Lamp body front cover | Waterproof connector |
| 3 - Lampshade sealing ring | Plug |
| 4 - LED lamp | Hinge pin |
Typically specified for Approach Lighting, Elevated Approach Lighting projects.
Common use cases include approach lighting series, centerline lights, centerline lights runway, elevated approach light, elevated approach lights, elevated type.
