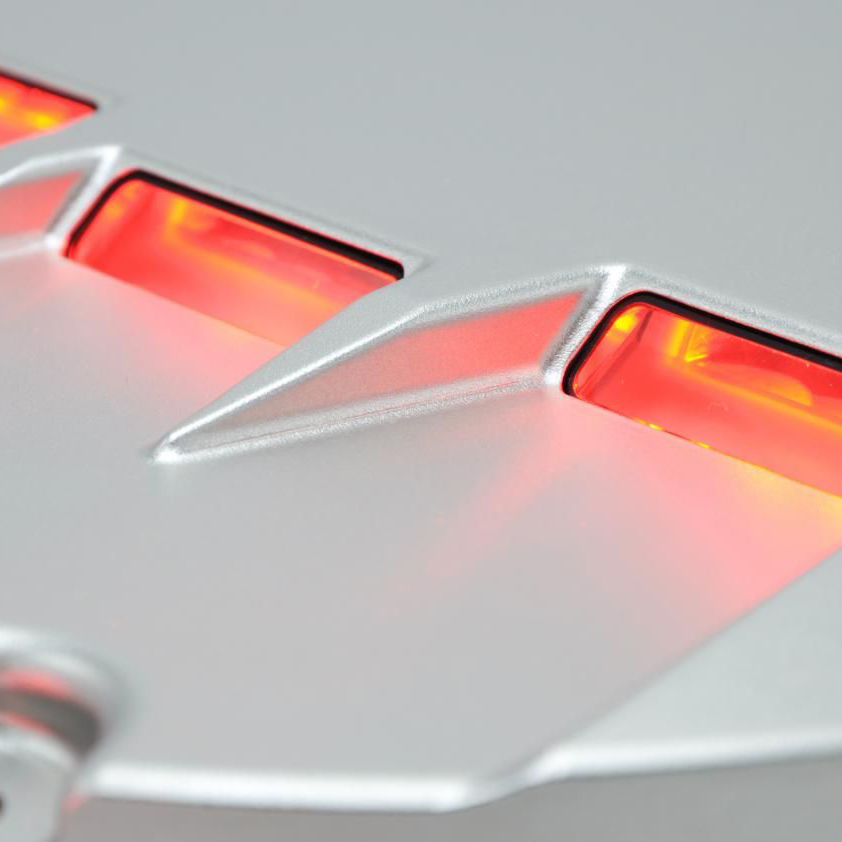

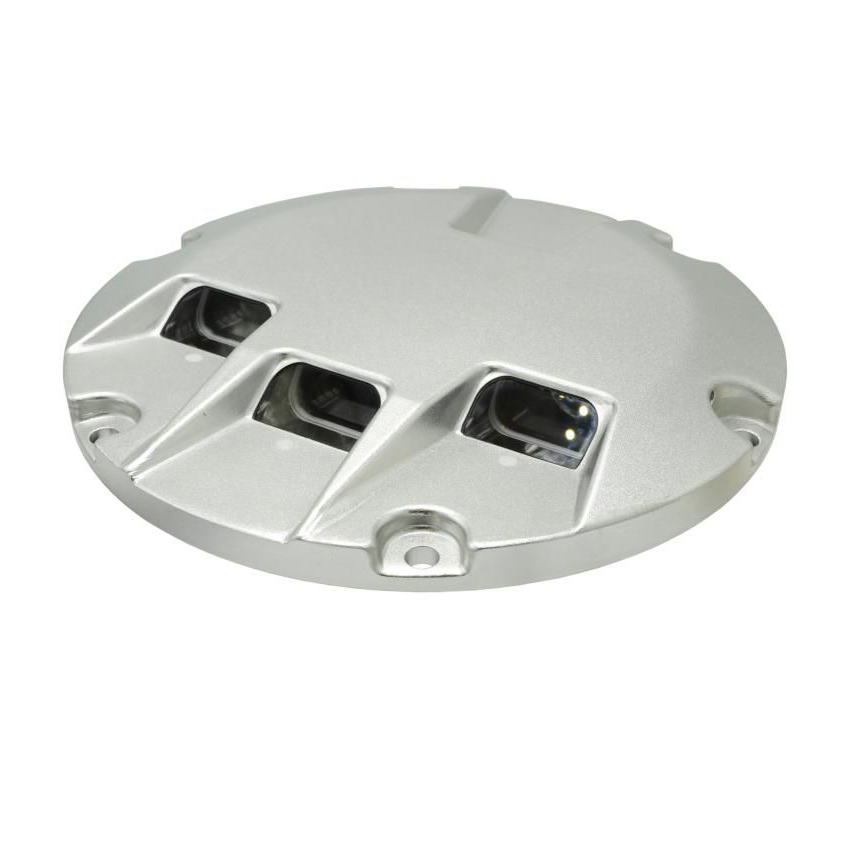

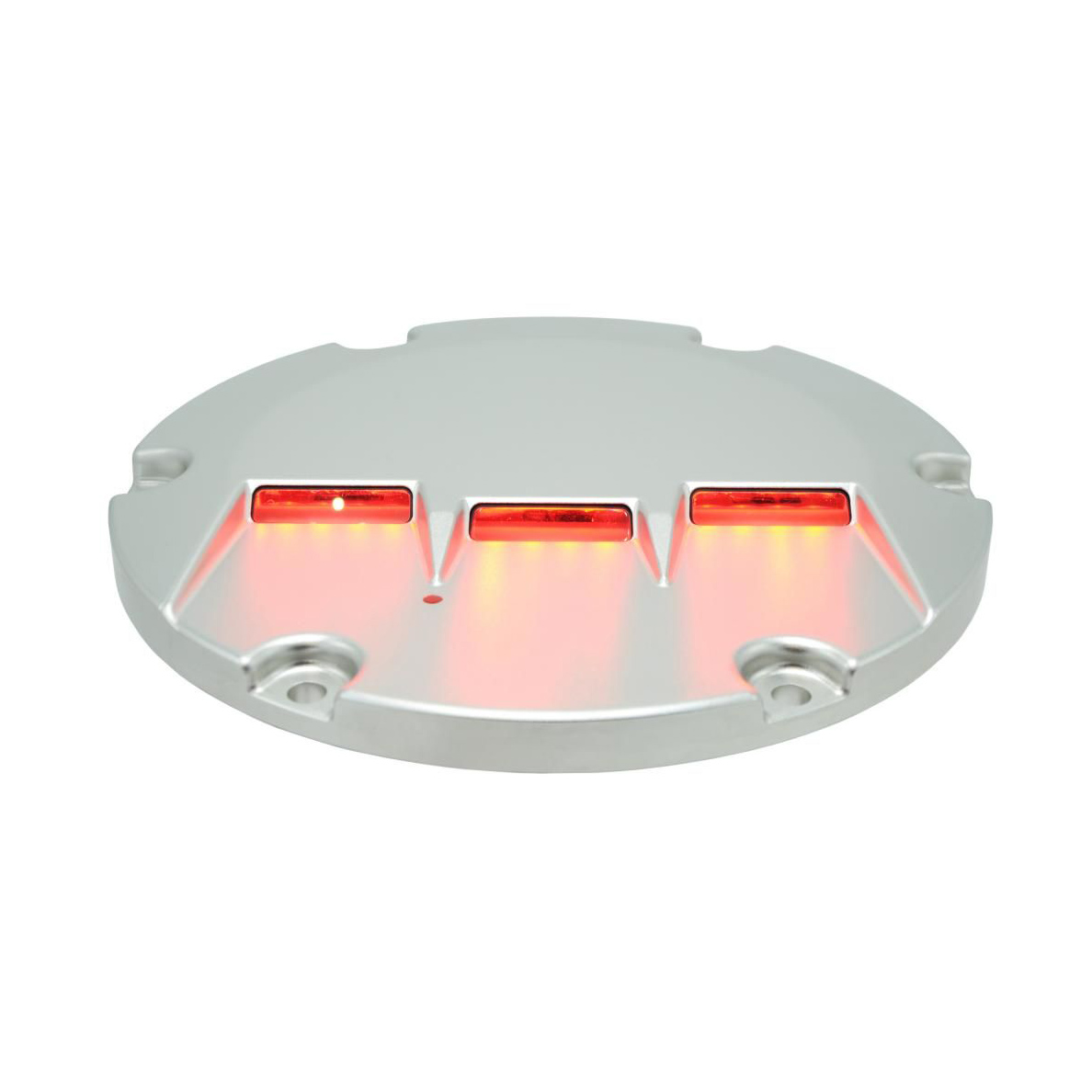

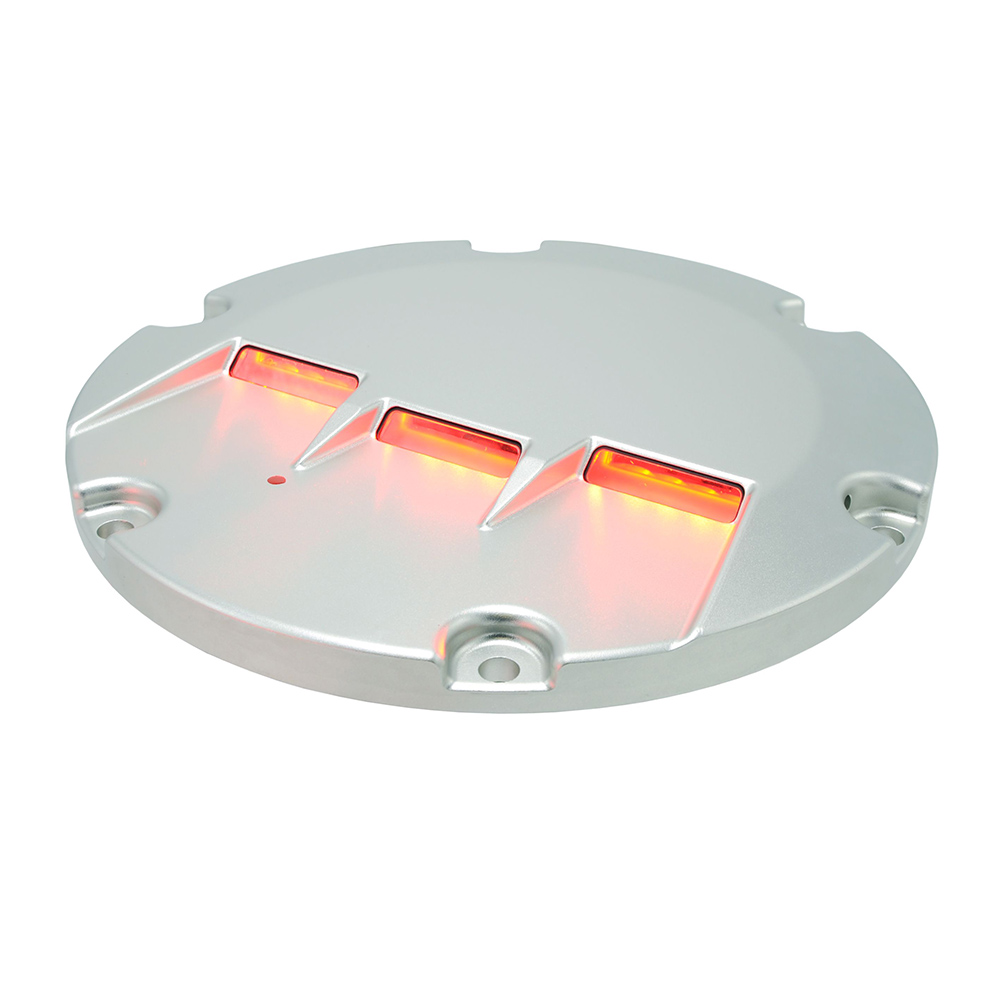

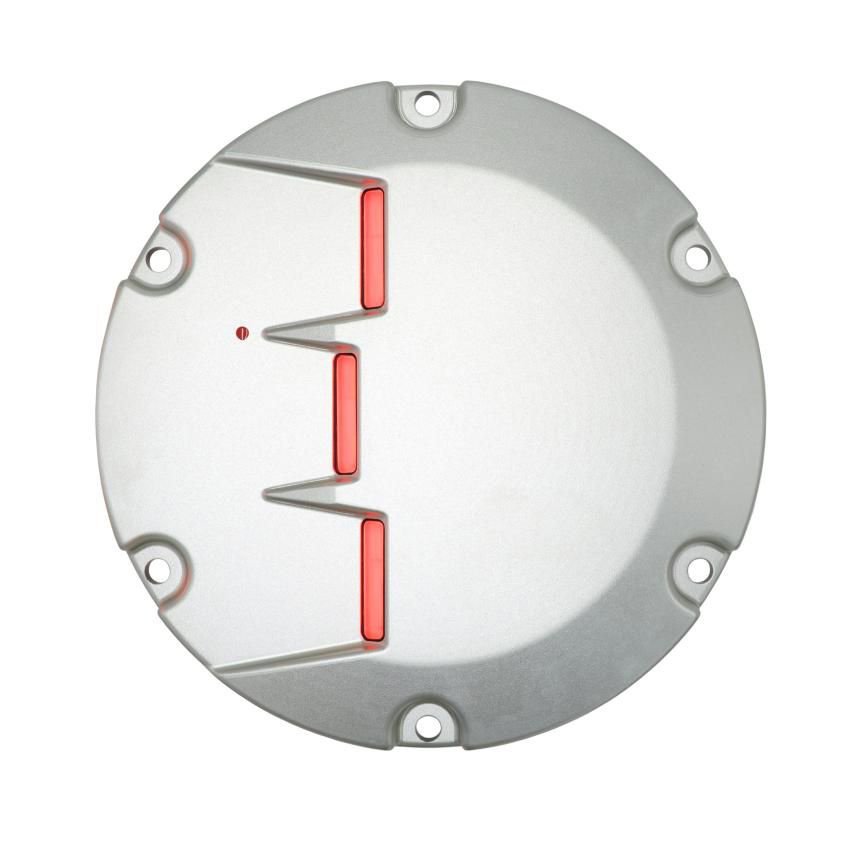

OS-ASL-98-X-R(H) Halogen Inset Approach Side-row Light (12-inch)
Short Description:
When it comes to enhancing safety and visibility, Altiglo OS-ASL-98-X-R(H) Halogen inset approach side row light is the ultimate solution. With its durable construction, powerful illumination, and sleek design, this product is a must-have for any airport operators looking to upgrade their lighting system. Experience the difference for yourself and invest in our halogen insert approach side row light today.
Power supply: 2.8~6.6A
Rated power: 315W
LED Life Time:1,000 Hours
Minimum Average Intensity:5000cd
Color: Red
IP grade: IP68
Item: OS-ASL-98-X-R(H)
Environmental Property - Operating Temperature: -55℃~+55℃
Downloads
- SKU
OS-ASL-98-X-R(H)- Category
- Approach Lighting, Inset Approach Lighting
- Item: OS-ASL-98-X-R(H)
- Environmental Property - Operating Temperature: -55℃~+55℃
- Storage Temperature: -40℃~+55℃
- Precipitation: IP68
- Salt fog: Exposure to a corrosive atmosphere
- Temperature shock: Exposure of the hot light fixture to cold water spray
- Electrical Property - Power supply: 2.8~ 6.6A
- Rated power: 315W
| Item | OS-ASL-98-X-R(H) |
|---|---|
| Environmental Property - Operating Temperature | -55℃~+55℃ |
| Storage Temperature | -40℃~+55℃ |
| Precipitation | IP68 |
| Salt fog | Exposure to a corrosive atmosphere |
| Temperature shock | Exposure of the hot light fixture to cold water spray |
| Electrical Property - Power supply | 2.8~ 6.6A |
| Rated power | 315W |
| Lamp | Halogen Lamp |
| Lamp Life | 1, 000Hours |
| Photometric Property - Light color | Red |
| Main beam angle | Vertical:0.5°-12.5°; Horizontal:±7°-2° |
| Min intensity | 5000cd |
| Light Size | 322.5X322.5X162mm |
| Weight | 7Kg(without shallow base) 12kg(with shallow base) |
| Surface Treatment - Treatment | Anodizing coating |
| Color | Red |
| Composition - Upper body | Aluminum forging |
| Lower cover | Aluminum die-casting |
| Dome lens cover | Aluminum forging |
| Dome lens | Glass(clear) |
| Application - Main beam | Actual avg. cd |
| H | V |
| OS-ASL-98-X-R(H) - ICAO Figure A2-2 | 6262 |
| ±7° 2° toe-in - 1° to 11° | 6156 |
| ±7° 2° toe-in - 1.5° to 12.5° | 6089 |
| 1 - Shallow base | Lower cover |
| 2 - O-ring | Bulb holder plate |
| 3 - M16 waterproof connector | Light bulb card |
| 4 - Bolt | Color filter |
Typically specified for Approach Lighting, Inset Approach Lighting projects.
Common use cases include accessed airport lights, airfield lighting, airplane lights, airport approach lights, airport lighting, approach lighting.
