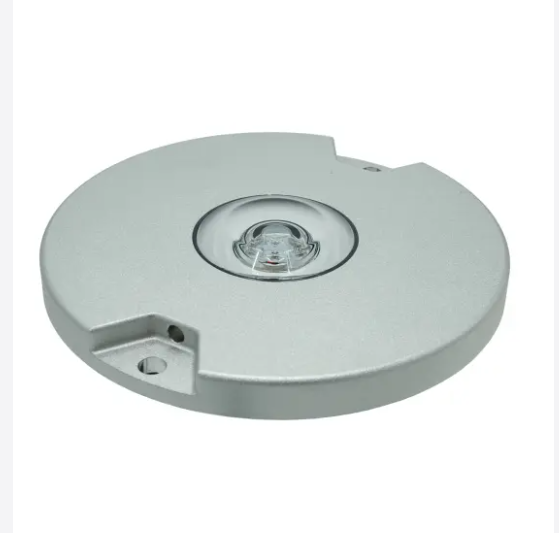

OS-ASMG-02-L-Y LED Inset Aircraft Stand Manoeuvring Guidance Light (8”6mm)
Short Description:
Power consumption: 20W
LED Life Time: 100,000 Hours
Minimum Average Intensity: 60cd
Color: Yellow
IP grade: IP68
Item: OS-ASMG-02-L-Y
Environmental Property - Operating Temperature: -55℃~+55℃
Downloads
- SKU
OS-ASMG-02-L-Y
- Item: OS-ASMG-02-L-Y
- Environmental Property - Operating Temperature: -55℃~+55℃
- Storage Temperature: -40℃~+60℃
- IP grade: IP68
- Salt fog: Exposure to a corrosive atmosphere
- Temperature shock: Exposure of the hot light fixture to cold water spray
- Electrical Property - Power supply: 2.8A~6.6A
- Power consumption: 20W
| Item | OS-ASMG-02-L-Y |
|---|---|
| Environmental Property - Operating Temperature | -55℃~+55℃ |
| Storage Temperature | -40℃~+60℃ |
| IP grade | IP68 |
| Salt fog | Exposure to a corrosive atmosphere |
| Temperature shock | Exposure of the hot light fixture to cold water spray |
| Electrical Property - Power supply | 2.8A~6.6A |
| Power consumption | 20W |
| Power Factor | ≥ 0.9 |
| Lamp | LED Lamp |
| Lamp Life | 100, 000Hours |
| Photometric Property - Light color | Yellow |
| Main beam angle | Vertical:1°- 8°; Horizontal:360° |
| Min intensity | 60cd |
| Light Size | 203*203*150mm(without shallow base） 220*220*150mm(with shallow base） |
| Weight | 3.5Kg(without shallow base） 6.1Kg(with shallow base） |
| Surface Treatment - Treatment | Anodizing coating |
| Color | Yellow |
| Composition - Upper body | Aluminum forging |
| Lower cover | Aluminum die-casting |
| Dome lens cover | Aluminum forging |
| Dome lens | Glass(clear) |
| Application - Main Beam | Actual avg.cd |
| H | V |
| OS-ASMG-02-L-Y - ICAO | 61 |
| 1 - Shallow base | Driver assembly |
| 2 - O Sealing ring | Waterproof connector |
| 3 - Shallow base cover | O Sealing ring |
| 4 - Joggle | Screws |
| 5 - Waterproof connector | Lower cover |
Common use cases include aircraft stand manoeuving guidance light, aircraft stand manoeuvring guidance lights, inset type, led aircraft stand manoeuvering guidance lights, led apron manoeuvring light, led inset apron light.
