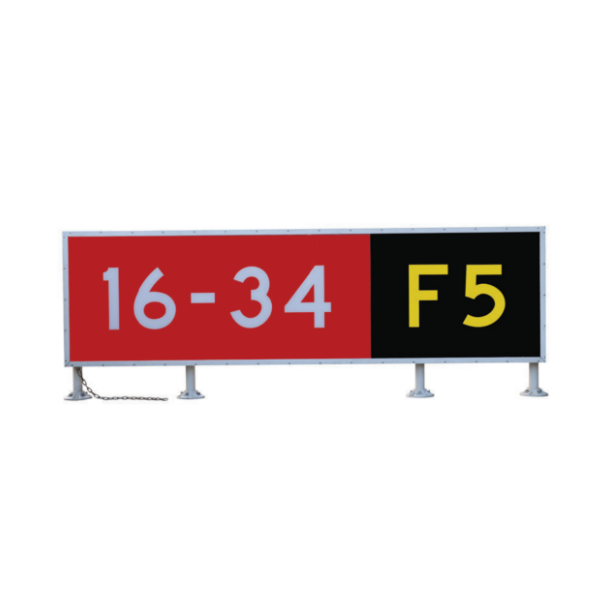

OS-BP(L)R3SHDIII LED Taxiway Guidance Signs
Short Description:
With a commitment to quality, reliability, and innovation, our OS-BP(L)R3SHDIII LED Taxiway Guidance Signs are the ideal choice for airports seeking a dependable and efficient solution for airfield guidance. Trust in our expertise and experience to elevate the safety and efficiency of your airport operations with our cutting-edge LED Taxiway Guidance Signs.
Item: OS-BP(L)R3SHDIII
Environmental Property - Operating Temperature: -40℃~+55℃
Downloads
- SKU
OS-BP(L)R7SHDIII- Category
- Led Guidance Sign
- Item: OS-BP(L)R3SHDIII
- Environmental Property - Operating Temperature: -40℃~+55℃
- Storage Temperature: -40℃~+60℃
- IP grade: IP54
- Salt fog: Exposure to a corrosive atmosphere
- Temperature shock: Exposure of the hot light fixture to cold water spray
- Electrical Property - Power supply: Series: 2.8A-6.6A Parallel: AC220V
- Power factor: ≥0.9
| Item | OS-BP(L)R3SHDIII |
|---|---|
| Environmental Property - Operating Temperature | -40℃~+55℃ |
| Storage Temperature | -40℃~+60℃ |
| IP grade | IP54 |
| Salt fog | Exposure to a corrosive atmosphere |
| Temperature shock | Exposure of the hot light fixture to cold water spray |
| Electrical Property - Power supply | Series: 2.8A-6.6A Parallel: AC220V |
| Power factor | ≥0.9 |
| Lamp | LED Lamp |
| Lamp Life | 100, 000Hours |
| Surface Treatment - Treatment | Anodizing coating |
| Color | Yellow |
| Composition - Frame | Aluminum forging |
| Front cover | PC |
| Frangible pole | Aluminum forging |
| Base plate | Die casting aluminum |
Typically specified for Led Guidance Sign projects.
Common use cases include aeronautical lighting, airfield lighting system, airport lighting, airport runway lights manufacturers, led guidance sign, portable landing lights.
Need Product Guidance?
Request pricing, lead times, technical compatibility guidance, and project support for this model.
