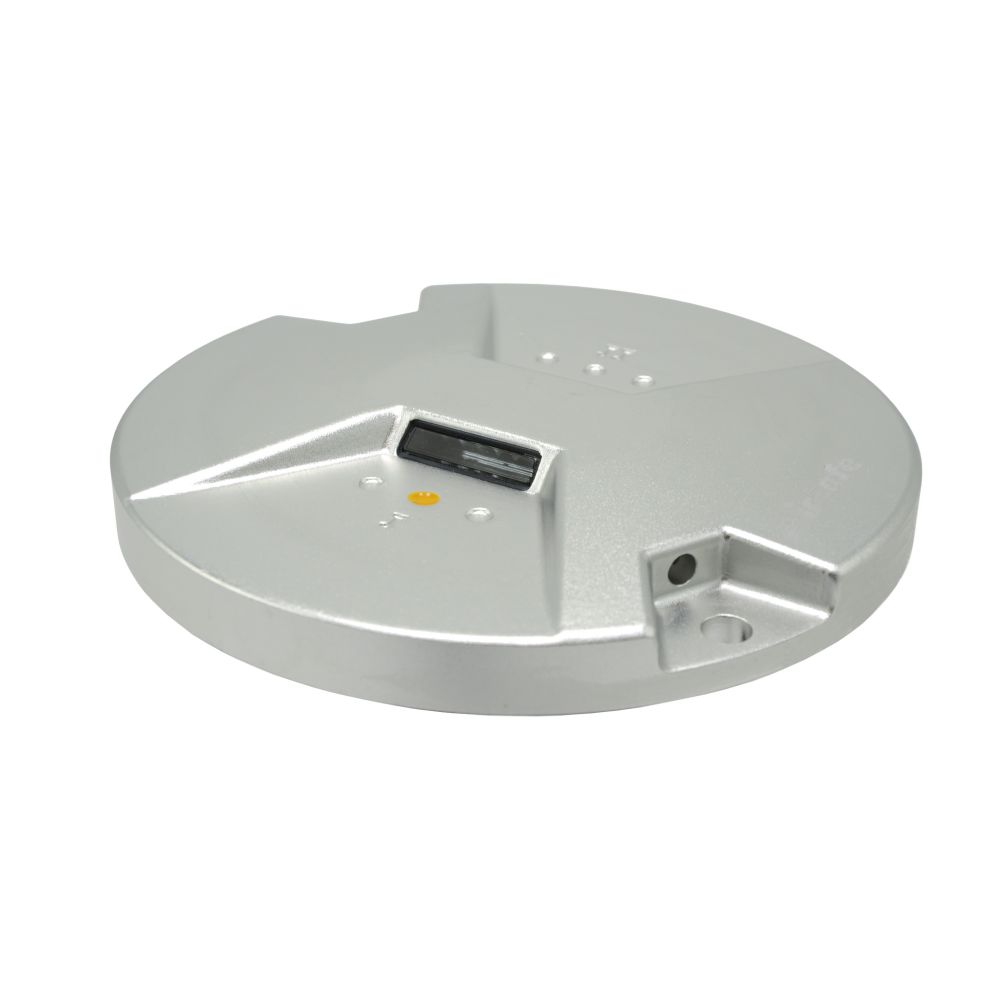

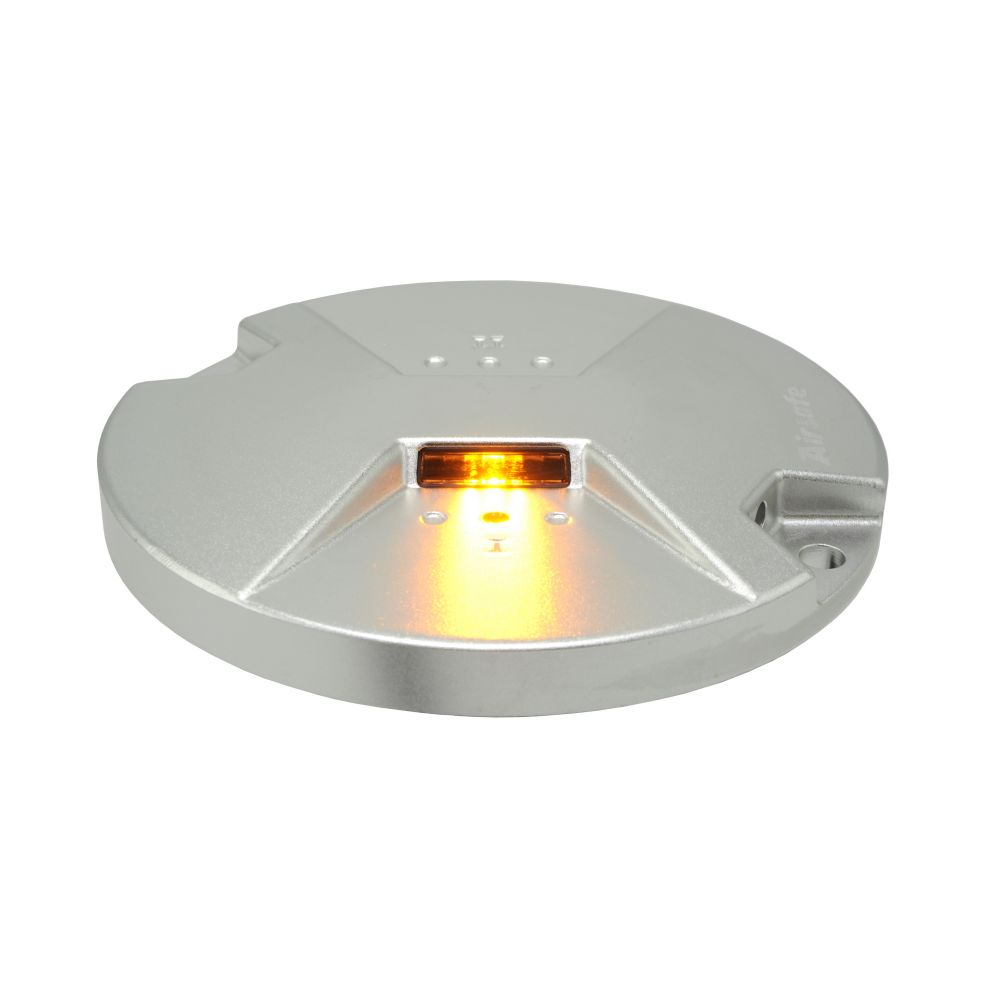

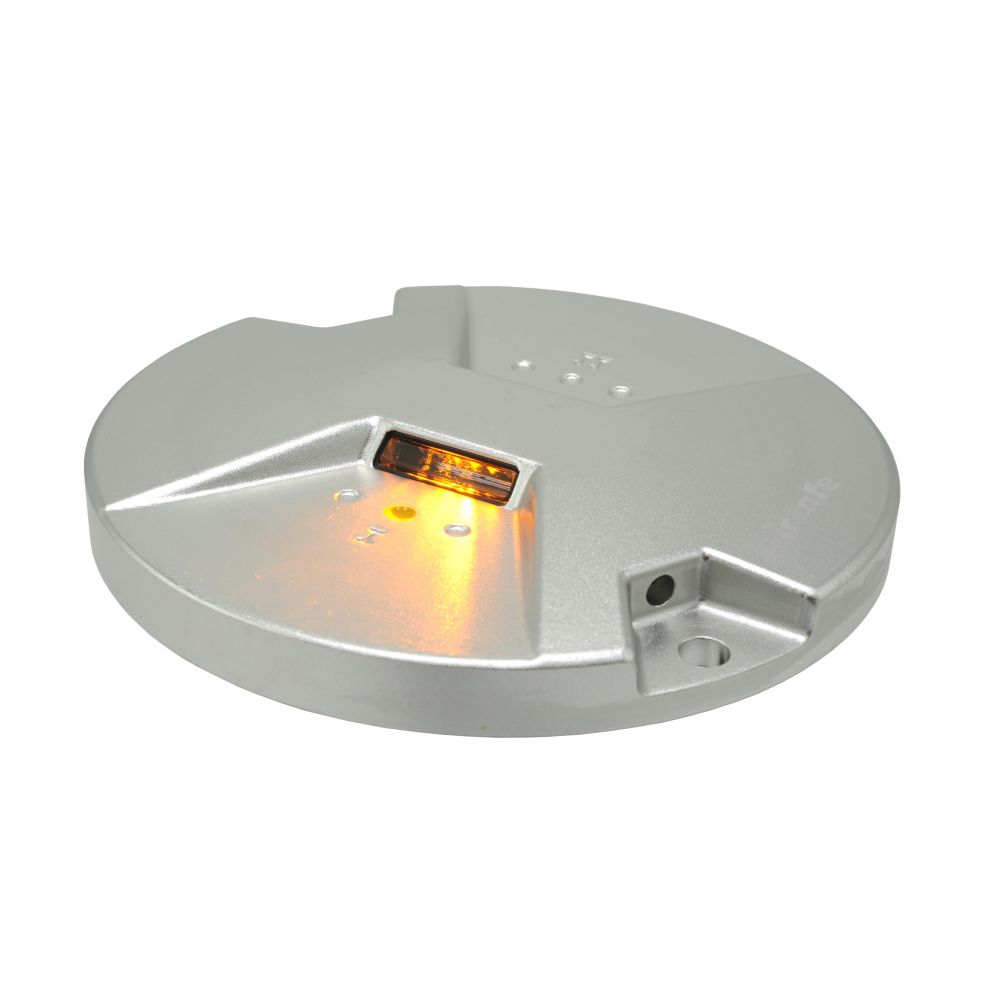

OS-IHP-02-YB(L) led inset intermediate taxiway holding position light

Short Description:

With its cutting-edge technology, reliable performance, and ease of

installation,Altiglo OS-IHP-02-YB(L) LED Inset Intermediate Taxiway Holding

Position Light is the ideal choice for enhancing the safety and efficiency

of taxiway operations at airports around the world. Experience the

difference that this innovative lighting solution can make in improving

airfield operations and ensuring the smooth and secure movement of aircraft.

QCL600 led inset intermediate taxiway holding position light

Power supply: 28A~6.6A

Rated power:6W

LED Life Time:100,000 Hours

Minimum Average Intensity:200cd

Color: Yellow

IP grade: IP68

Item: OS-IHP-02-YB(L)

Environmental Property - Operating Temperature: -55℃~+55℃

Downloads

Send Enquiry

Item	OS-IHP-02-YB(L)
Environmental Property - Operating Temperature	-55℃~+55℃
Storage Temperature	-40℃~+60℃
IP grade	IP68
Salt fog	Exposure to a corrosive atmosphere
Temperature shock	Exposure of the hot light fixture to cold water spray
Electrical Property - Power supply	2.8A~6.6A
Rated power	6W
Power Factor	≥ 0.9
Lamp	LED Lamp
Lamp Life	100, 000Hours
Photometric Property - Light color	Yellow
Main beam angle	Vertical:1°- 8°; Horizontal:±3.5° or ±10°
Min intensity	200cd
Light Size	203203150mm(without shallow base） 220220150mm(with shallow base）
Weight	3.5Kg(without shallow base） 6.1Kg(with shallow base）
Surface Treatment - Treatment	Anodizing coating
Color	White
Composition - Upper body	Aluminum forging
Lower cover	Aluminum die-casting
Dome lens cover	Aluminum forging
Dome lens	Glass(clear)
Application - Main Beam	Actual avg. cd
H	V
OS-IHP-02-YB(L) - ICAO Figure A2-12	236
ICAO Figure A2-13 - ±3.5°	338
1 - Shallow base	Driver assembly
2 - O Sealing ring	Waterproof connector
3 - Shallow base cover	O Sealing ring
4 - Joggle	Screws
