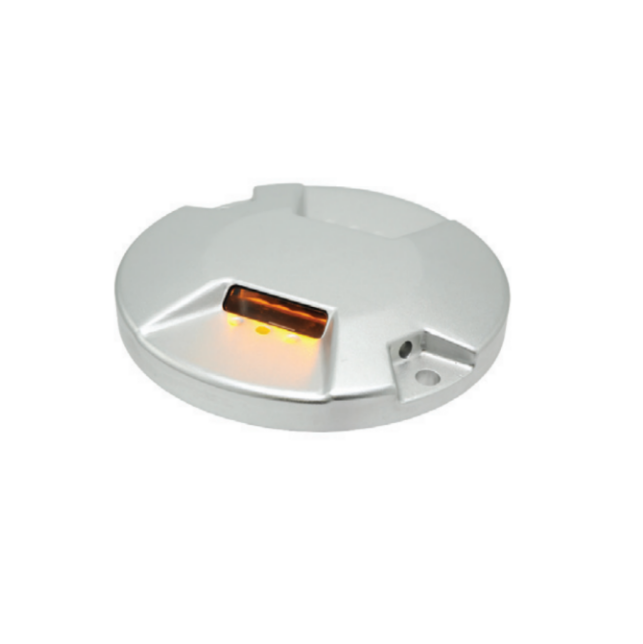

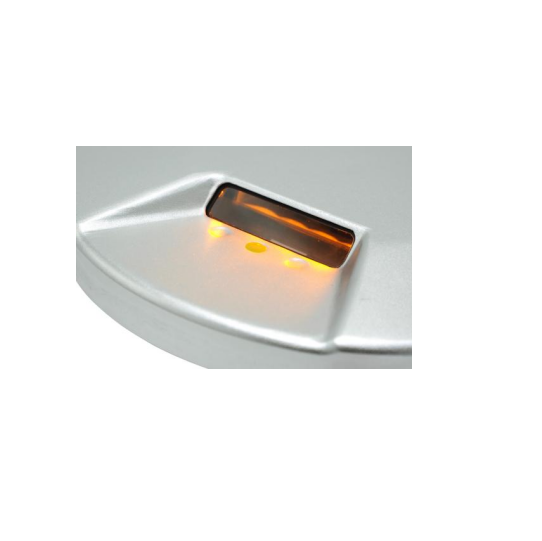

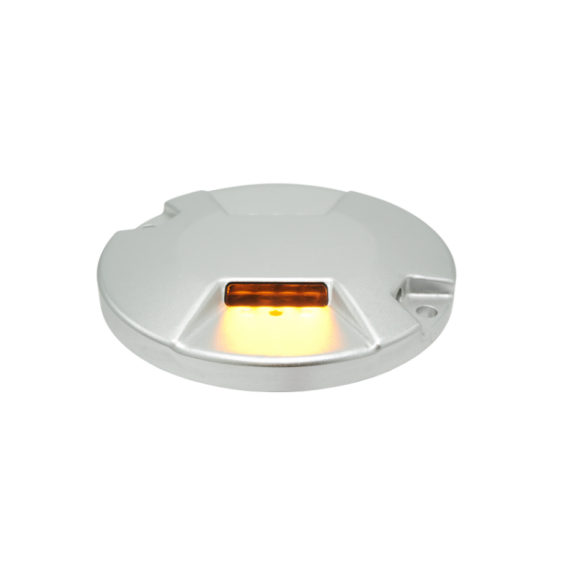

OS-RAP-02-Y(L) LED Inset Rapid Exit Taxiway Indicator Light
Short Description:
Power supply: 2.8A~6.6A
Rated power: 13W
Halogen Life Time:1000 Hours
Color: Yellow
IP grade: IP68
Item: OS-RAP-02-Y(L)
Environmental Property - Operating Temperature: -55℃~+55℃
Downloads
- SKU
OS-RAP-02-Y(L)
- Item: OS-RAP-02-Y(L)
- Environmental Property - Operating Temperature: -55℃~+55℃
- Storage Temperature: -40℃~+60℃
- Precipitation: IP68
- Salt fog: Exposure to a corrosive atmosphere
- Temperature shock: Exposure of the hot light fixture to cold water spray
- Electrical Property - Power supply: 2.8A~6.6A
- Power consumption: 13W
| Item | OS-RAP-02-Y(L) |
|---|---|
| Environmental Property - Operating Temperature | -55℃~+55℃ |
| Storage Temperature | -40℃~+60℃ |
| Precipitation | IP68 |
| Salt fog | Exposure to a corrosive atmosphere |
| Temperature shock | Exposure of the hot light fixture to cold water spray |
| Electrical Property - Power supply | 2.8A~6.6A |
| Power consumption | 13W |
| Power Factor | ≥ 0.9 |
| Lamp | LED Lamp |
| Lamp Life | 75, 000 Hours |
| Photometric Property - Light color | Yellow |
| Main beam angle | Vertical:0°- 9° or 0 ° – 7 °; Horizontal:±5.5° |
| Min intensity | 2000cd |
| Light Size | 203*203*150mm(without shallow base） 220*220*150mm(with shallow base） |
| Weight | 3.5Kg(without shallow base） 6.1Kg(with shallow base） |
| Surface Treatment - Treatment | Anodizing coating |
| Color | White |
| Composition - Upper body | Aluminum forging |
| Lower cover | Aluminum die-casting |
| Dome lens cover | Aluminum forging |
| Dome lens | Glass(clear) |
| Application - Main Beam | Actual avg.cd |
| H | V |
| OS-RAP-02-Y(L) - ICAO Figure A2-7 | 3136 |
| ICAO Figure A2-6 - ±5° | 2058 |
| 1 - Shallow base | Driver assembly |
| 2 - O Sealing ring | Waterproof connector |
| 3 - Shallow base cover | O Sealing ring |
| 4 - Joggle | Screws |
Common use cases include halogen inset rapid exit taxiway indicator light, inl-rti - rapid exit taxiway indicator halogen, inset rapid exit taxiway light, inset runway centreline and rapid exit taxiway indicator light, inset type, products.
