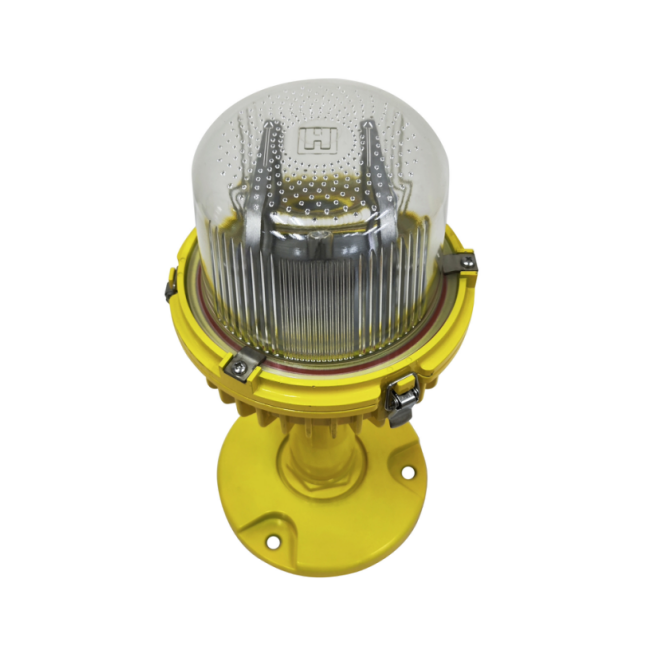

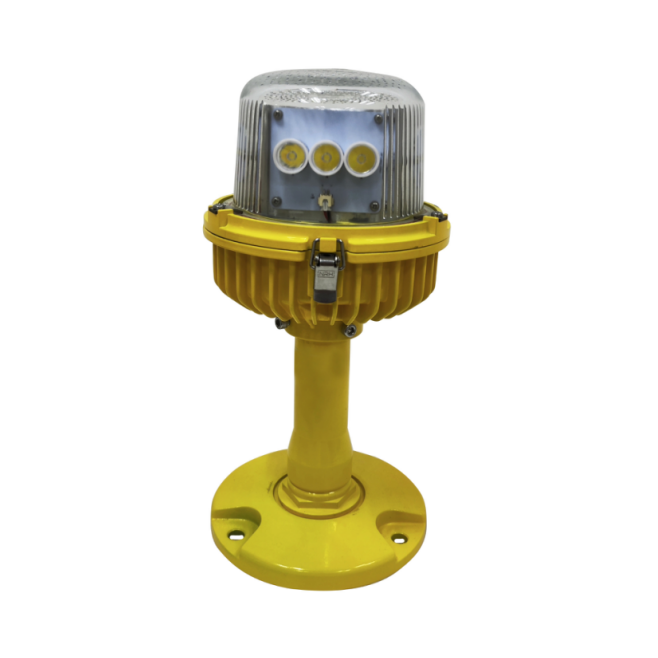

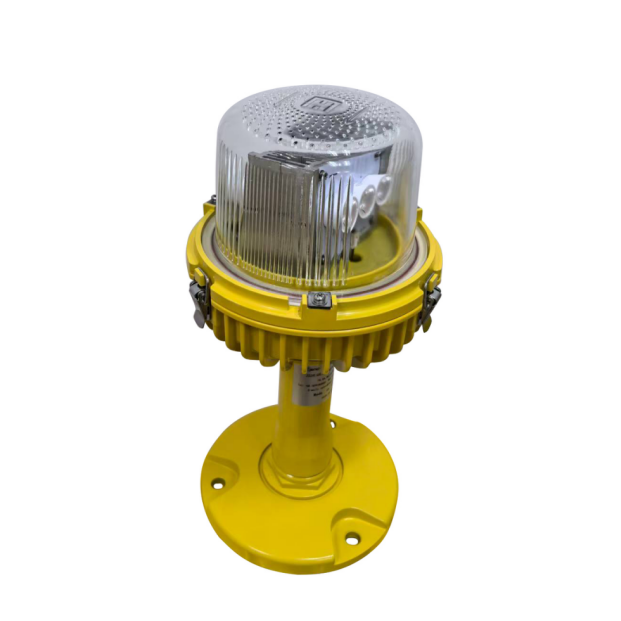

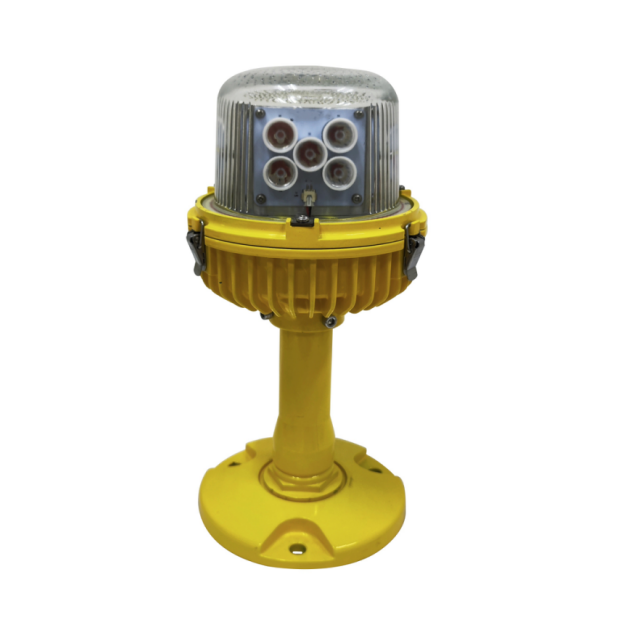

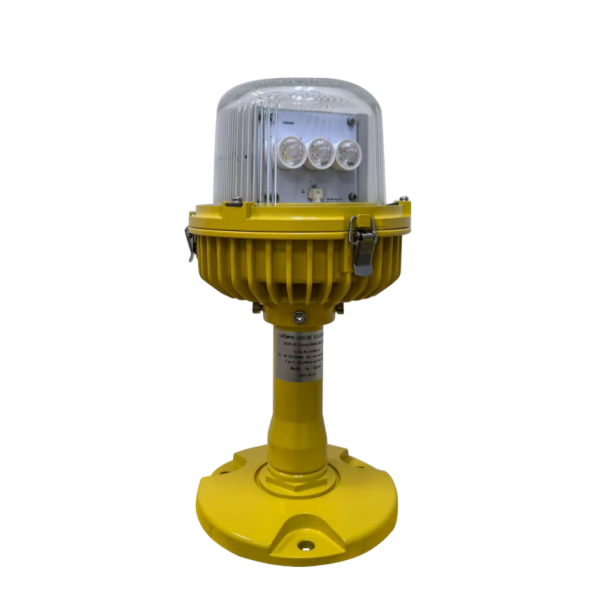

OS-REL-XX(L) LED Elevated Runway Edge Light

Short Description:

Introducing our new and improved Elevated Runway Edge Light! This cutting-edge

aviation lighting fixture is designed to provide optimal visibility and safety for

aircraft during takeoff, landing,and taxiing operations. With its sleek and modern

design, this innovative runway edge light is a must-have for any airport looking to

enhance its infrastructure and ensure the smooth and efficient flow of air traffic.

Power supply: 2.8A~6.6A

Rated power: 37W(white&white);30W(white&yellow);26W(red&white);

23W(red&yellow)

Halogen Life Time:100,000 Hours

Minimum Average Intensity:1500cd

Beam Color:

YC=Window 1: yellow window 2: white

CY=Window 1: white window 2: yellow

CC=Both windows: white

CR=Window 1: white window 2: red

RC=Window 1: red window 2: white

IP grade: IP65

Item: OS-REL-XX(L)

Environmental Property - Environmental Temperature: -40℃~+55℃

Downloads

Send Enquiry

Item	OS-REL-XX(L)
Environmental Property - Environmental Temperature	-40℃~+55℃
IP ingress	IP65
Salt fog	Exposure to a corrosive atmosphere
Temperature shock	Exposure of the hot light fixture to cold water spray
Electrical Property - Power supply	2.8A~6.6A
Rated power	37W(white&white);30W(white&yellow);26W(red&white); 23W(red&yellow)
Lamp	LED
Lamp Life	100, 000Hours
Photometric Property - Light color	White, Yellow or Red(Optional)
Main beam angle	Vertical:0°- 7°; Horizontal:±5.5° or ±6.5°
Min intensity	1500cd
Lamp Size	350x285x365mm³
Weight	3.2Kg
Surface Treatment - Treatment	Anodizing coating
Color	Yellow
Composition - Upper body	Aluminum forging
Lower cover	Aluminum die-casting
Dome lens cover	Aluminum forging
Dome lens	Glass(clear)
Application - Main Beam	Actual avg.cd
H	V
OS-REL-XX(L ) - ICAO Figure A2-9/ FAA L-862	11982
Yellow - 4000/5000	9273
Red - 1500/2000	2523
ICAO Figure A2-10 - ±6.5° (Toe-in 4.5°)	10392
Yellow - 4000	8928
Red - 1500	2411
1 - Lamp cover	Threaded flange
2 - LED bulb support	Plug
