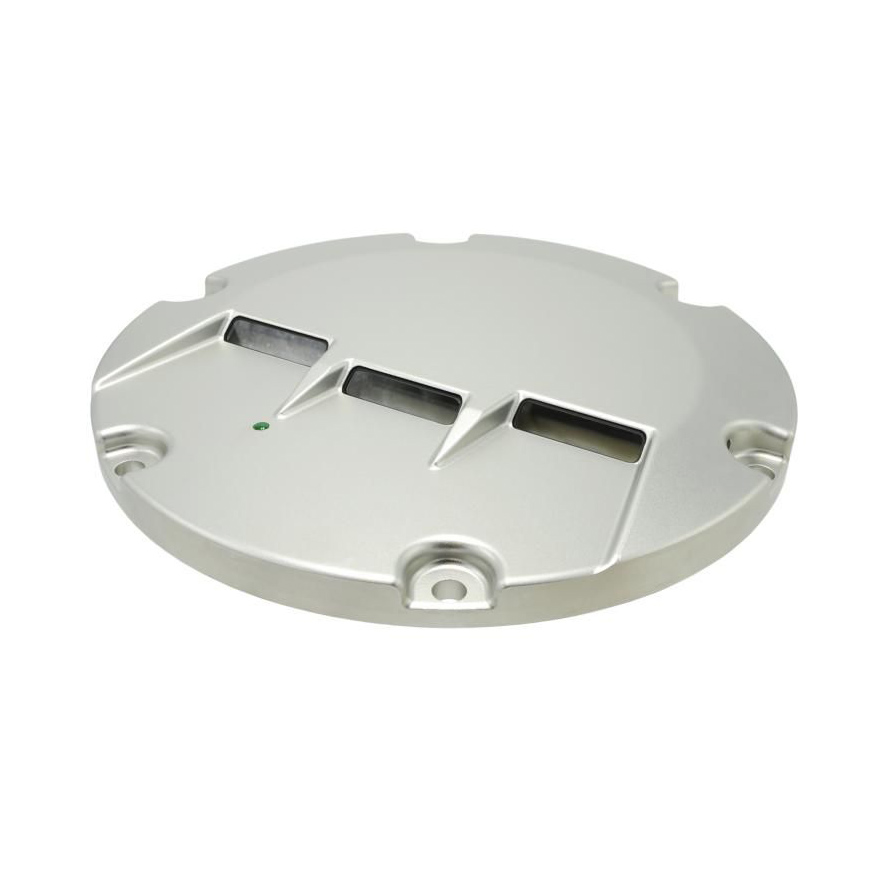

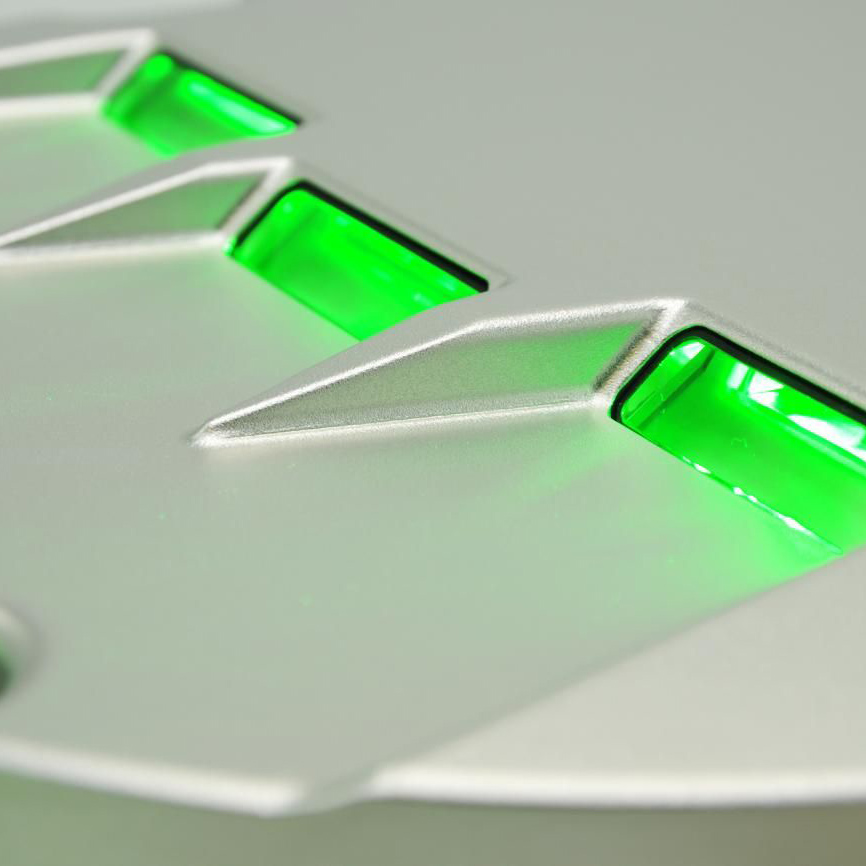

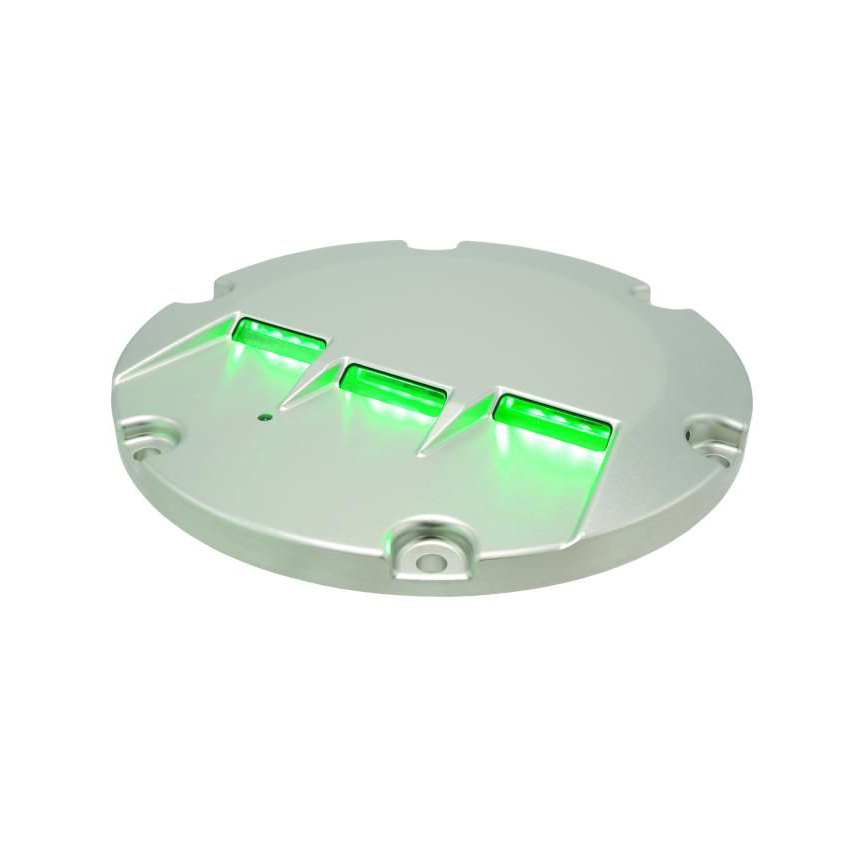

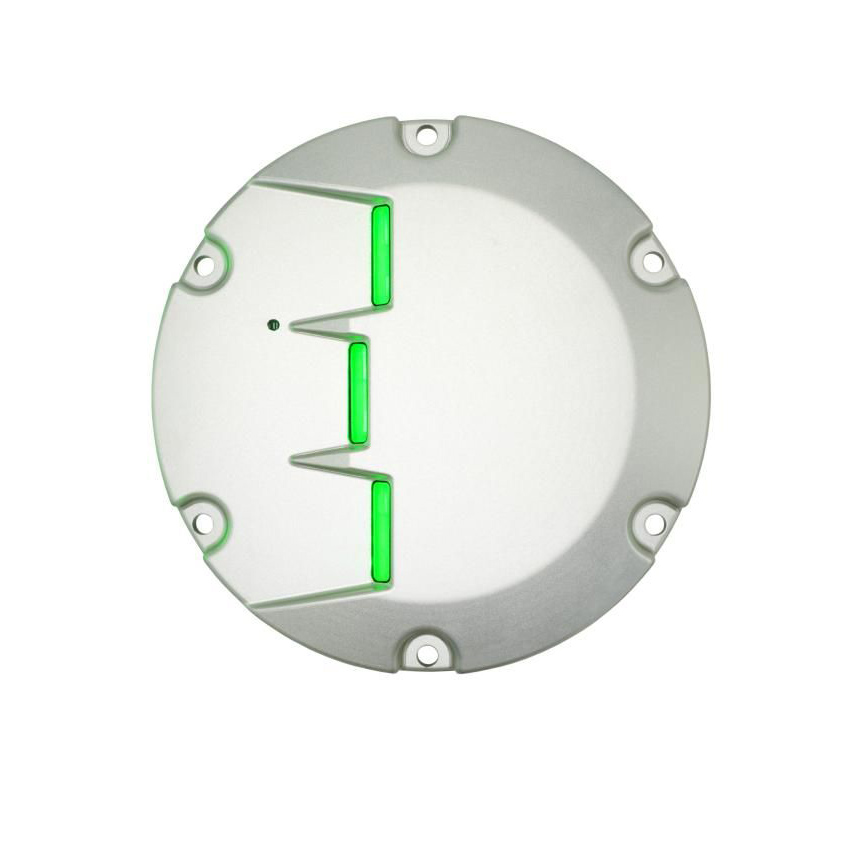

OS-RTW-98-X-G(L) LED Inset Runway Threshold Wing-bar Light

Short Description:

Altiglo inset runway threshold wingbar light is built to withstand the harsh

environmental conditions of an airport setting.Its robust design ensures durability

and longevity,making it a reliable choice for airport operators and aviation authorities

Power supply: 2.8A~6.6A

Power consumption: 45W

LED Life Time:100,000 Hours

Protrusion Height:12.6mm

Minimum Average Intensity:10000cd

Color: Green

IP grade: IP68

Item: OS-RTW-98-X-G(L)

Environmental Property - Operating Temperature: -55℃~+55℃

Downloads

Send Enquiry

Item	OS-RTW-98-X-G(L)
Environmental Property - Operating Temperature	-55℃~+55℃
Storage Temperature	-40℃~+60℃
Precipitation	IP68
Salt fog	Exposure to a corrosive atmosphere
Temperature shock	Exposure of the hot light fixture to cold water spray
Electrical Property - Power supply	2.8A~6.6A
Power consumption	45W
Power Factor	≥ 0.9
Lamp	LED Lamp
Lamp Life	100, 000Hours
Photometric Property - Light color	Green
Main beam angle	Vertical:0.5°- 10.5°; Horizontal:±7°
Min intensity	10000cd
Lamp Size	322.5×322.5×156mm³
Weight	7Kg(without shallow base) 12kg(with shallow base)
Surface Treatment - Treatment	Anodizing coating
Color	White
Composition - Upper body	Aluminum forging
Lower cover	Aluminum die-casting
Dome lens cover	Aluminum forging
Dome lens	Glass(clear)
Application - Main Beam	Actual avg.cd
H	V
OS-RTW-98-X-G(L) - ICAO Figure A2-4	11123
1 - Upper cover	Secondary connector
2 - Pressing plate	Control components
3 - Aluminum board	Connection cover
4 - LED lens	Sealing ring
5 - Pressing plate	M16 waterproof connector
