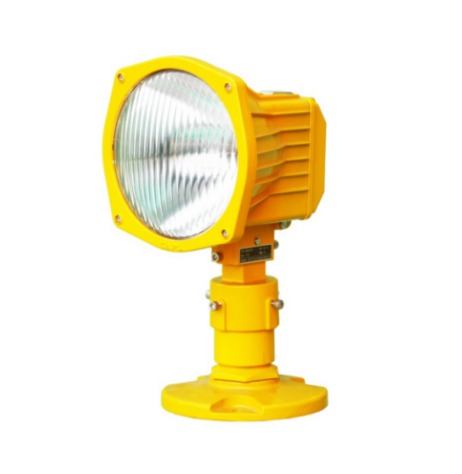

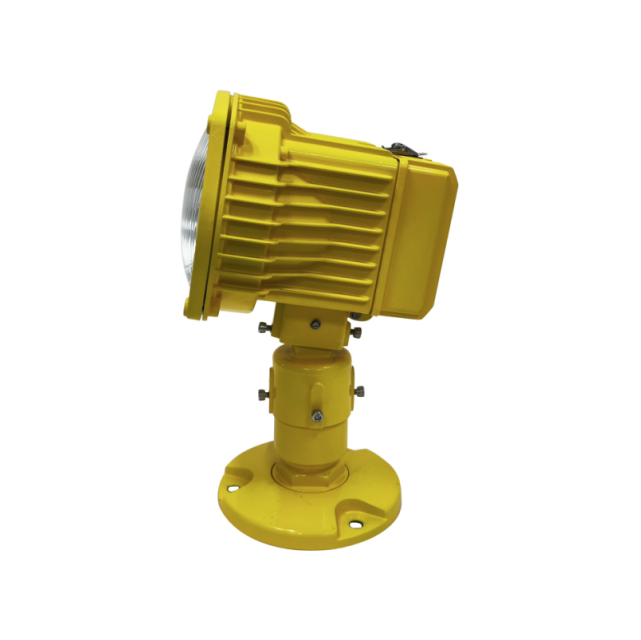

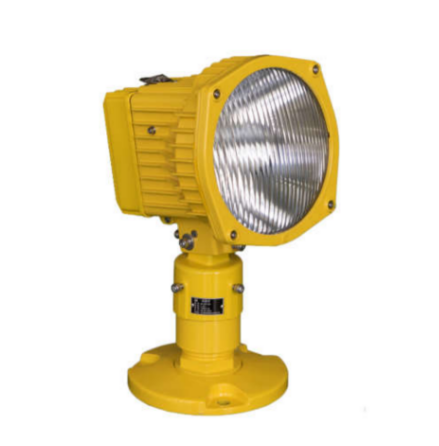

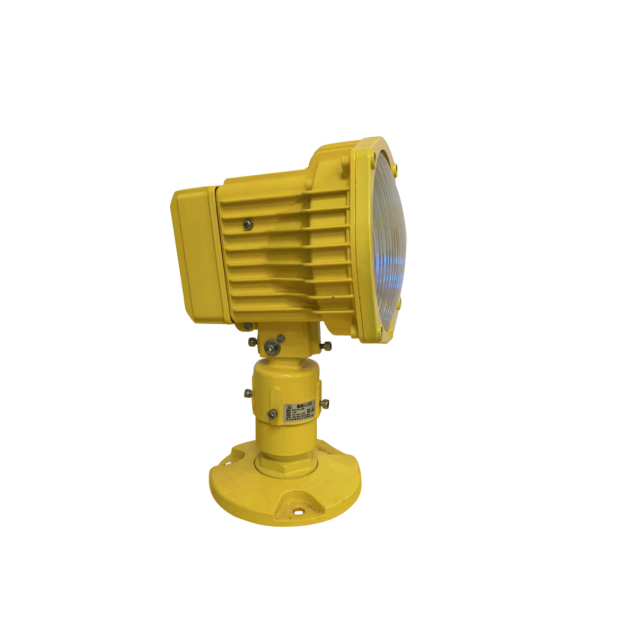

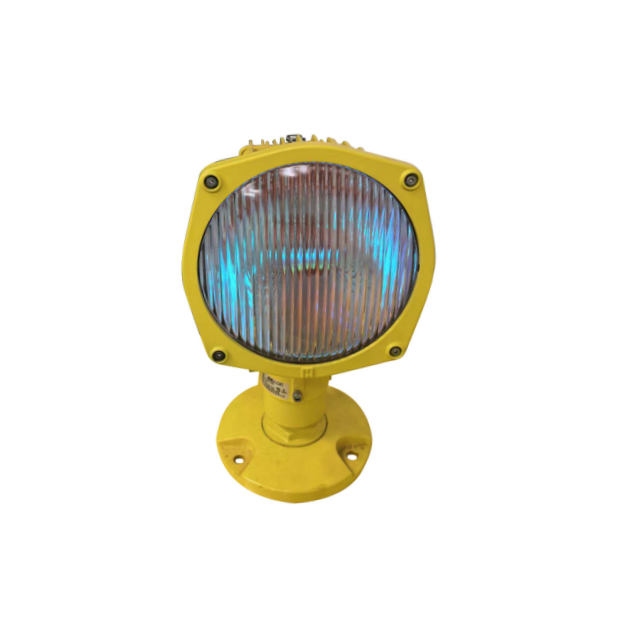

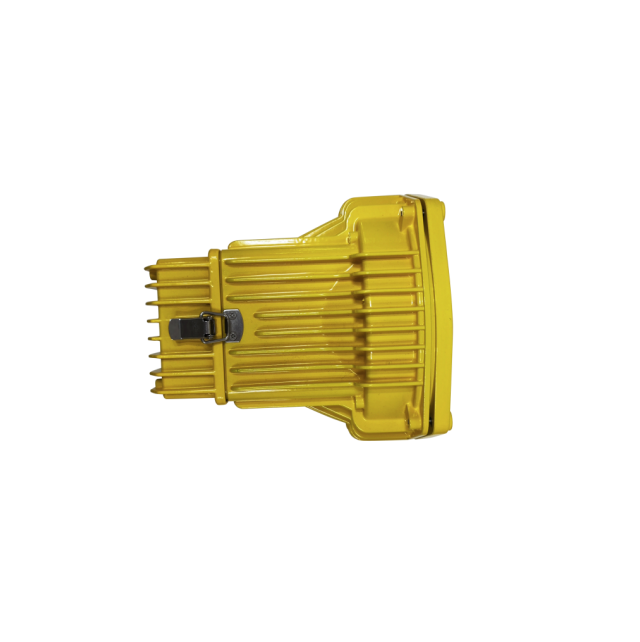

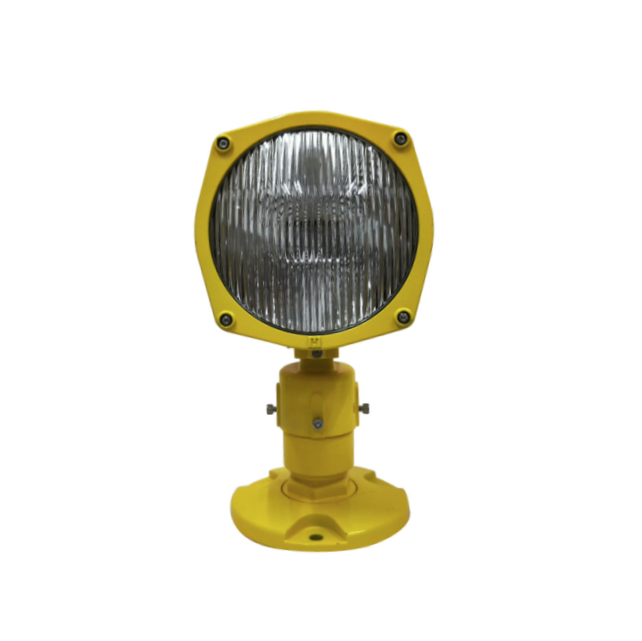

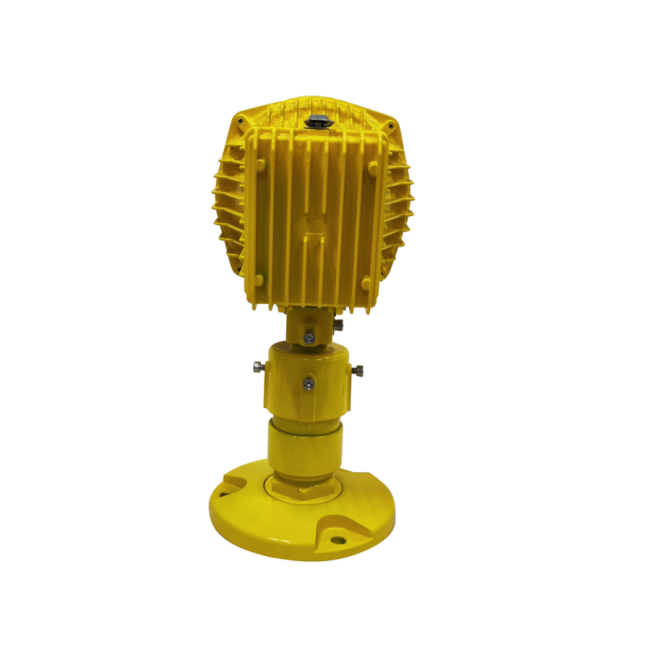

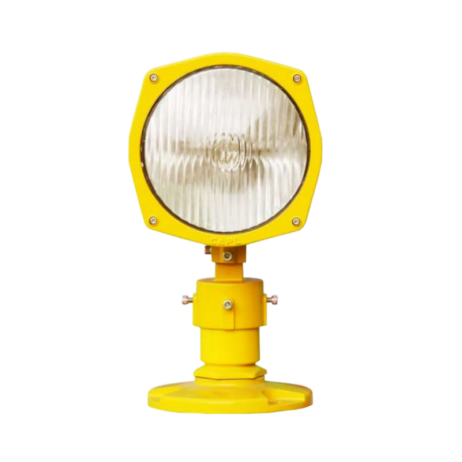

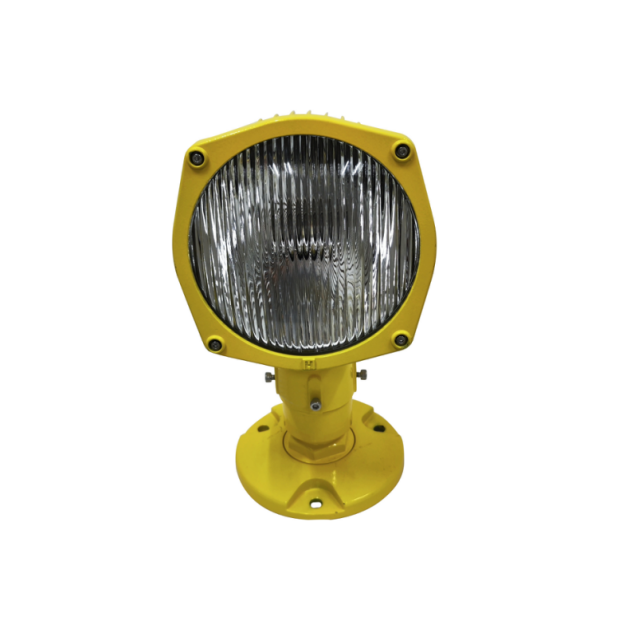

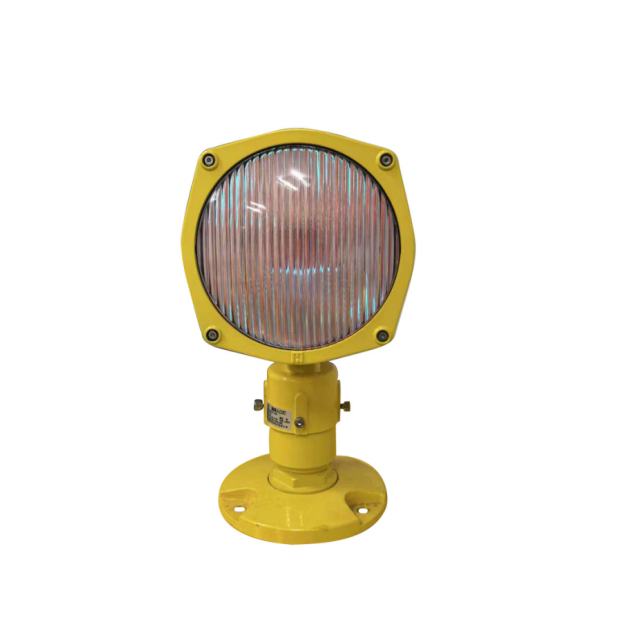

OS-RTW(H) Halogen Elevated Runway Threshold Wingbar Light
Short Description:
Product name:Halogen Elevated Runway Threshold Wingbar Light
Power supply: 2.8A-6.6A
Rated power: 200W
LED Life Time:100,000 Hours
Minimum Average Intensity:10,000cd
Color: Green
IP grade: IP65
Item: OS-RTW(H)
Environmental Property - Environmental Temperature: -40℃~+55℃
Downloads
- SKU
OS-RTW(H)- Category
- Elevated Type, Runway Lighting Series
- Item: OS-RTW(H)
- Environmental Property - Environmental Temperature: -40℃~+55℃
- IP ingress: IP65
- Salt fog: Exposure to a corrosive atmosphere
- Temperature shock: Exposure of the hot light fixture to cold water spray
- Electrical Property - Power supply: 2.8A-6.6A
- Rated power: Halogen 200W
- Lamp: LED
| Item | OS-RTW(H) |
|---|---|
| Environmental Property - Environmental Temperature | -40℃~+55℃ |
| IP ingress | IP65 |
| Salt fog | Exposure to a corrosive atmosphere |
| Temperature shock | Exposure of the hot light fixture to cold water spray |
| Electrical Property - Power supply | 2.8A-6.6A |
| Rated power | Halogen 200W |
| Lamp | LED |
| Lamp Life | 100, 000Hours |
| Photometric Property - Light color | Green |
| Main beam angle | Vertical:0.5°—10.5°; Horizontal± 7° |
| Min intensity | 10000cd |
| Lamp Size | 188x215x350mm³ |
| Weight | 4.1Kg |
| Surface Treatment - Treatment | Anodizing coating |
| Color | Yellow |
| Composition - Upper body | Aluminum forging |
| Lower cover | Aluminum die-casting |
| Dome lens cover | Aluminum forging |
| Dome lens | Glass(clear) |
| Application - Main beam | Actual avg.cd |
| OS-RTW(H) - ICAO Figure A2-4 | V |
| ±7° (Toe-in 2°) - 0.5°—10.5° | 11709 |
| 1 - Lamp body front cover | Sealing ring |
| 2 - Lampshade | Rear cover |
| 3 - Lampshade sealing ring | Waterproof connector |
| 4 - Reflector | Plug |
| 5 - Lamp body | Hinge pin |
| 6 - Bulb support | Label |
| 7 - Halogen bulb | Lamp support |
Typically specified for Elevated Type, Runway Lighting Series projects.
Common use cases include airport runway threshold wing-bar, elevated led light fixture for runway threshold wing bar, elevated runway threshold wing-bar light, elevated threshold wing bar light, elevated type, halogen elevated runway threshold wing bar light.
