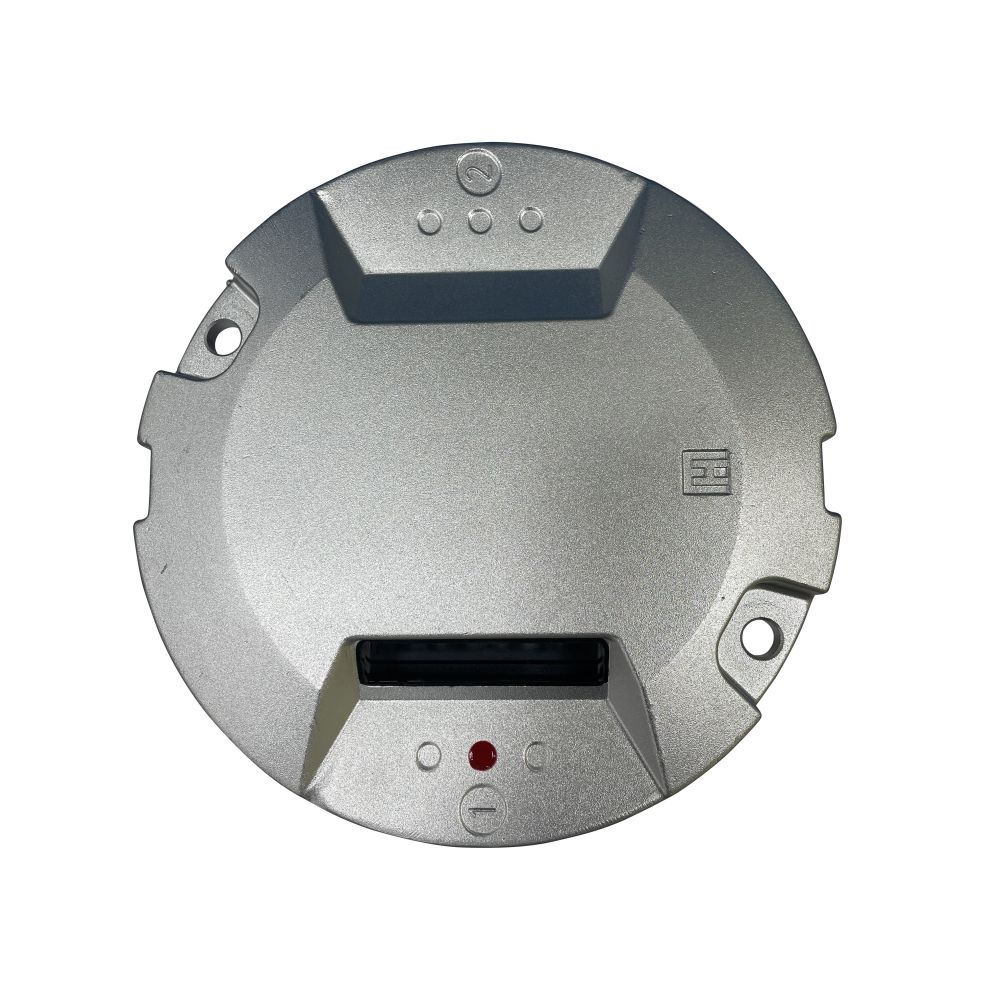

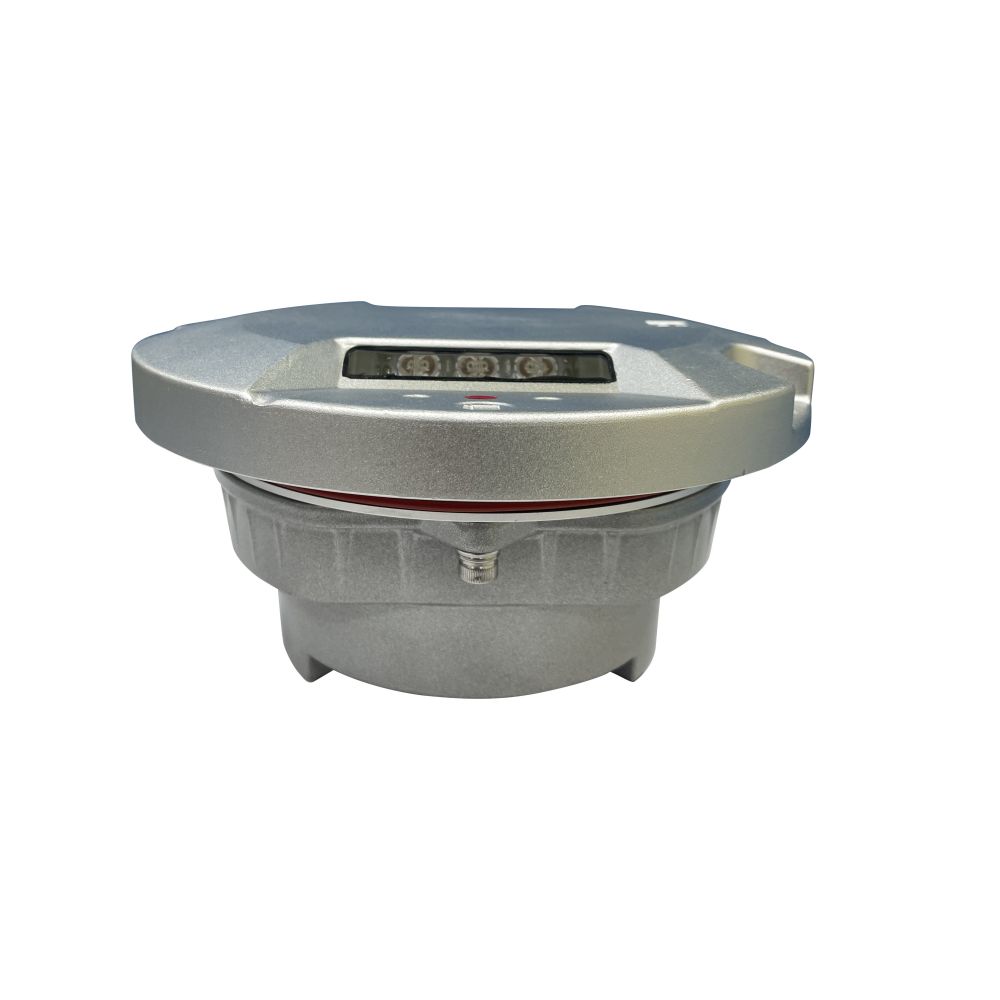

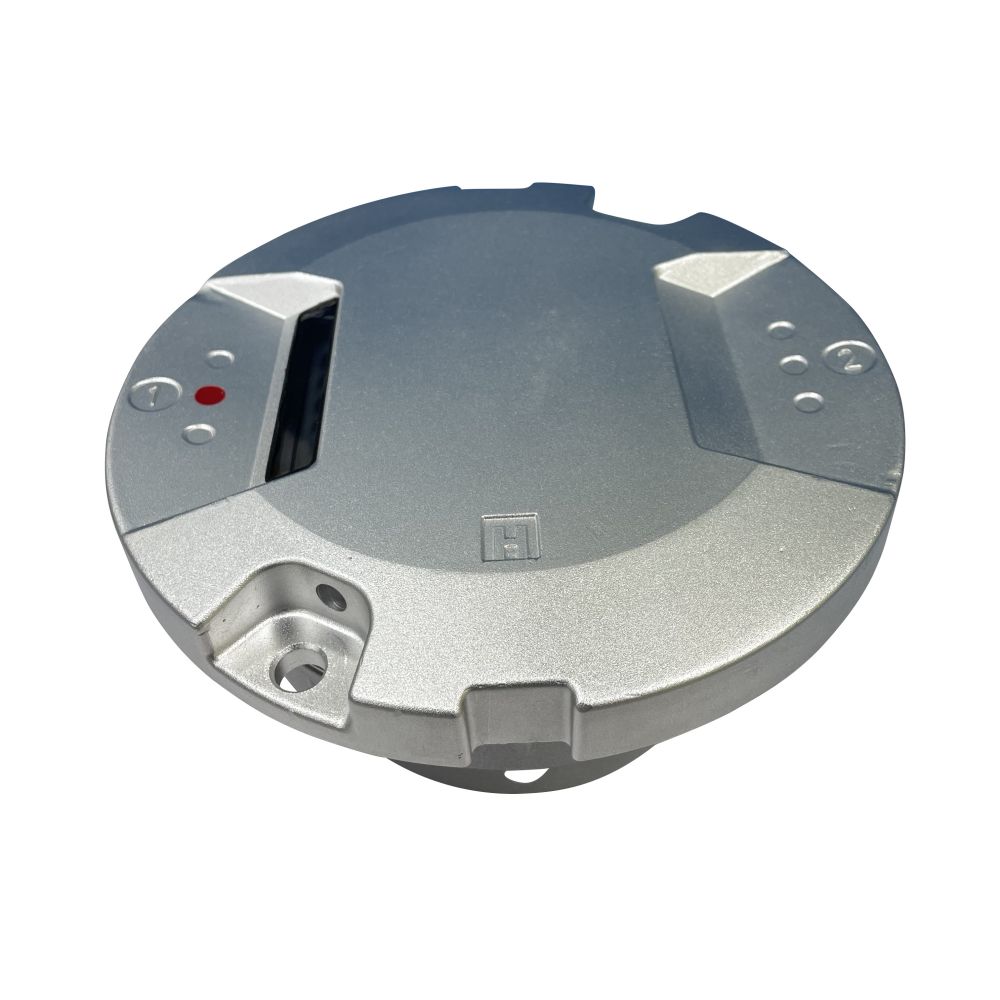

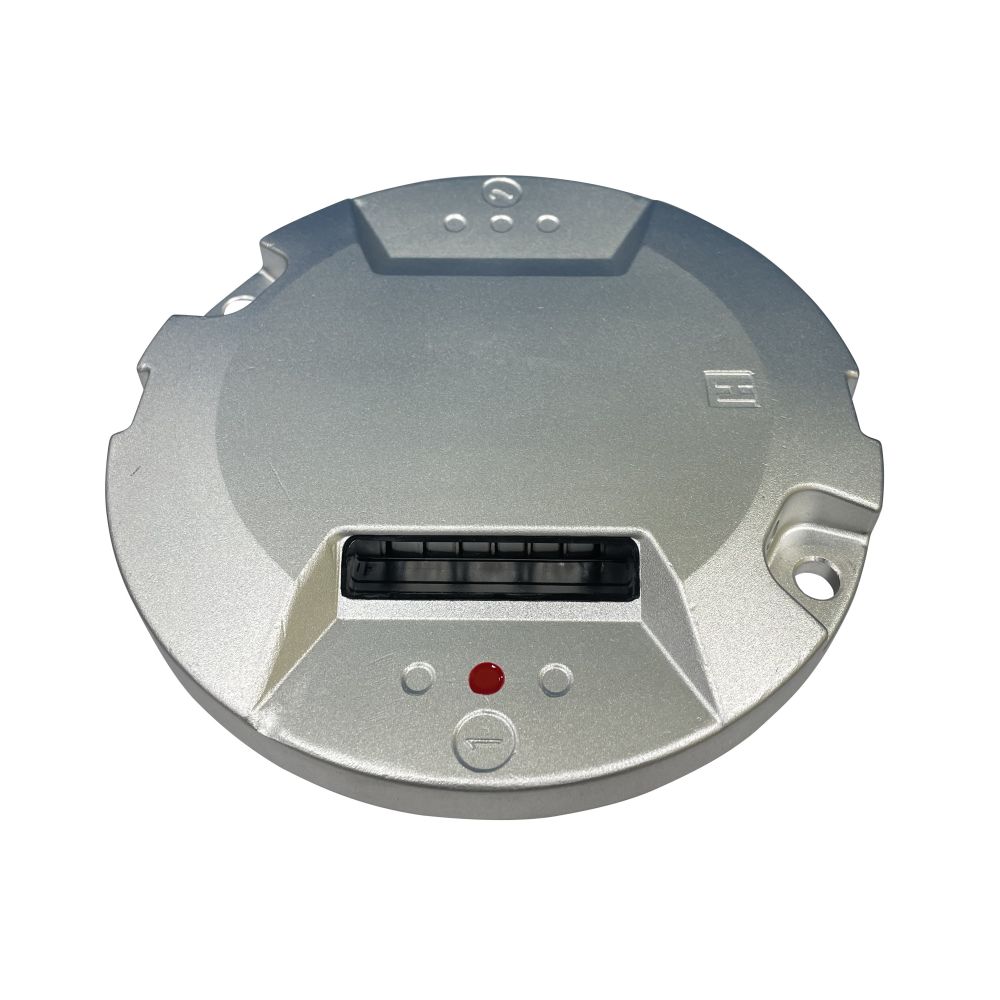

OS-SBL-02-R(H) Halogen Inset Taxiway Stop bar light
Short Description:
Altiglo OS-SBL-02-R(H) halogen inset taxiway stopbar light is a high-quality,cost-effective
solution for enhancing the safety and efficiency of airport operations.With its durable
construction, powerful light output,and easy installation, this light is a valuable addition to any airport’s lighting infrastructure.Trust in our product to provide reliable performance and contribute to the smooth and safe operation of your airport.
Power supply: 2.8A~6.6A
Rated power: 1X48W
Halogen Life Time:1000 Hours
Minimum Average Intensity:200cd
Color: Red
IP grade: IP68
Item: OS-SBL-02-R(H)
Environmental Property - Operating Temperature: -55℃~+55℃
Downloads
- SKU
OS-SBL-02-R(H)- Category
- Inset Taxiway Lighting, Taxiway Lighting Series
- Item: OS-SBL-02-R(H)
- Environmental Property - Operating Temperature: -55℃~+55℃
- Storage Temperature: -40℃~+60℃
- IP grade: IP68
- Salt fog: Exposure to a corrosive atmosphere
- Temperature shock: Exposure of the hot light fixture to cold water spray
- Electrical Property - Power supply: 6.6A
- Rated power: 1X148W
| Item | OS-SBL-02-R(H) |
|---|---|
| Environmental Property - Operating Temperature | -55℃~+55℃ |
| Storage Temperature | -40℃~+60℃ |
| IP grade | IP68 |
| Salt fog | Exposure to a corrosive atmosphere |
| Temperature shock | Exposure of the hot light fixture to cold water spray |
| Electrical Property - Power supply | 6.6A |
| Rated power | 1X148W |
| Lamp | Halogen Lamp |
| Lamp Life | 1500Hours |
| Photometric Property - Light color | Red |
| Main beam angle | Vertical:1°- 8°; Horizontal:±10° |
| Min intensity | 200cd |
| Light Size | 203*203*150mm(without shallow base） 220*220*150mm(with shallow base） |
| Weight | 3.5Kg(without shallow base） 6.1Kg(with shallow base） |
| Surface Treatment - Treatment | Anodizing coating |
| Color | White |
| Composition - Upper body | Aluminum forging |
| Lower cover | Aluminum die-casting |
| Dome lens cover | Aluminum forging |
| Dome lens | Glass(clear) |
| Application - Angle of Main Light Beam | Average Intensity Actual |
| Horizontal | Vertical |
| OS-SBL-02-R(H) - ICAO Figure A2-12 | 283 |

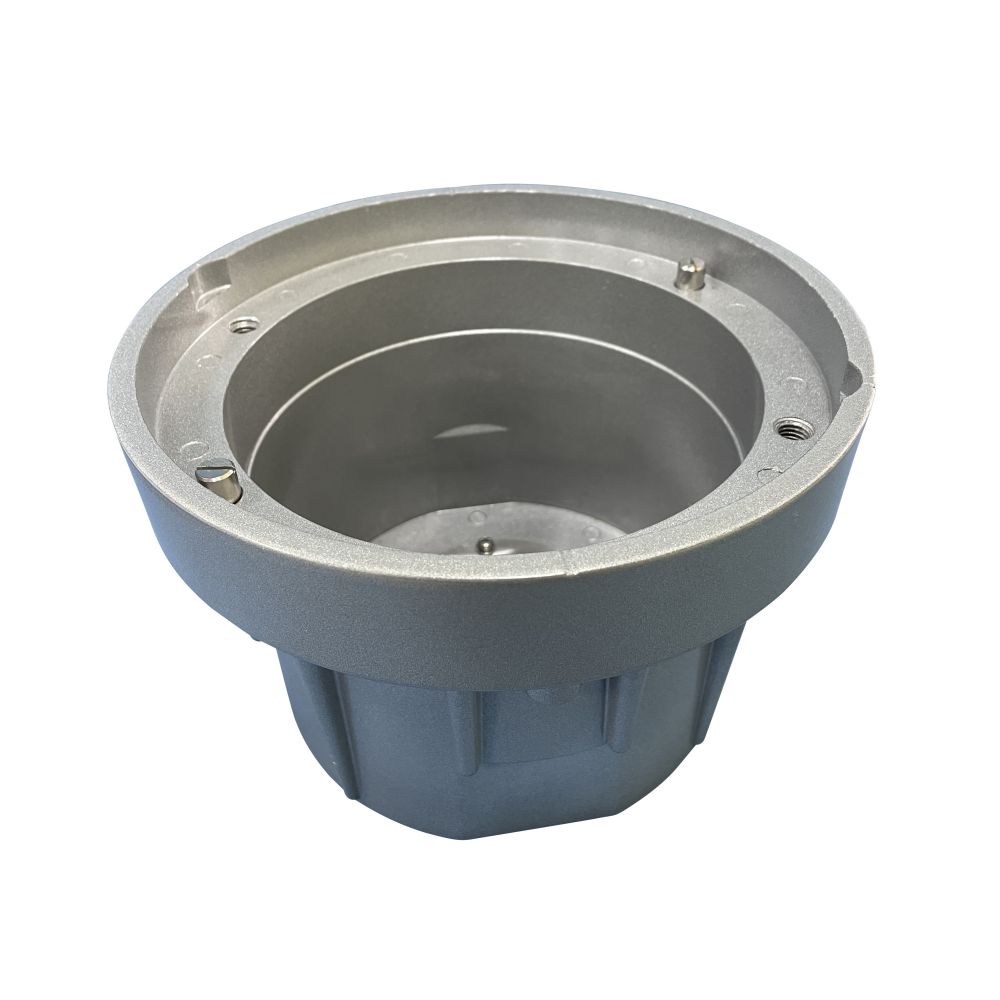

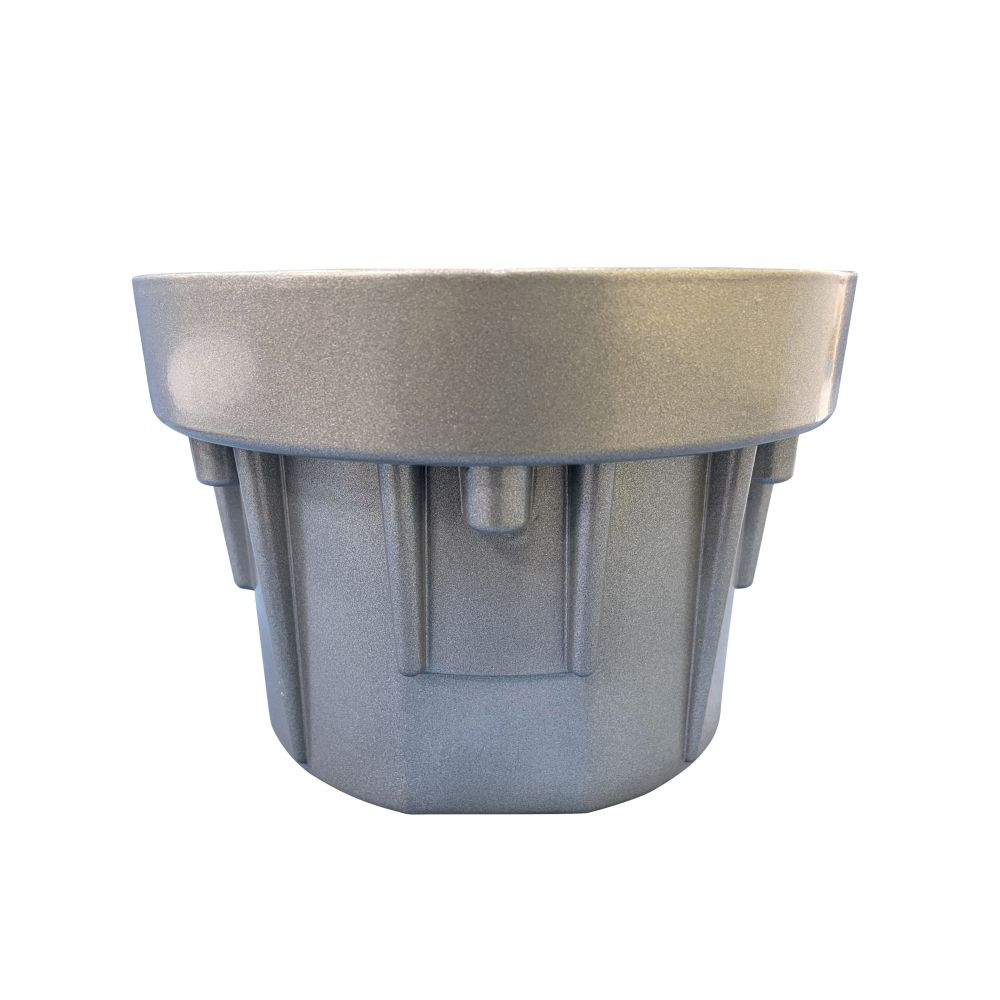

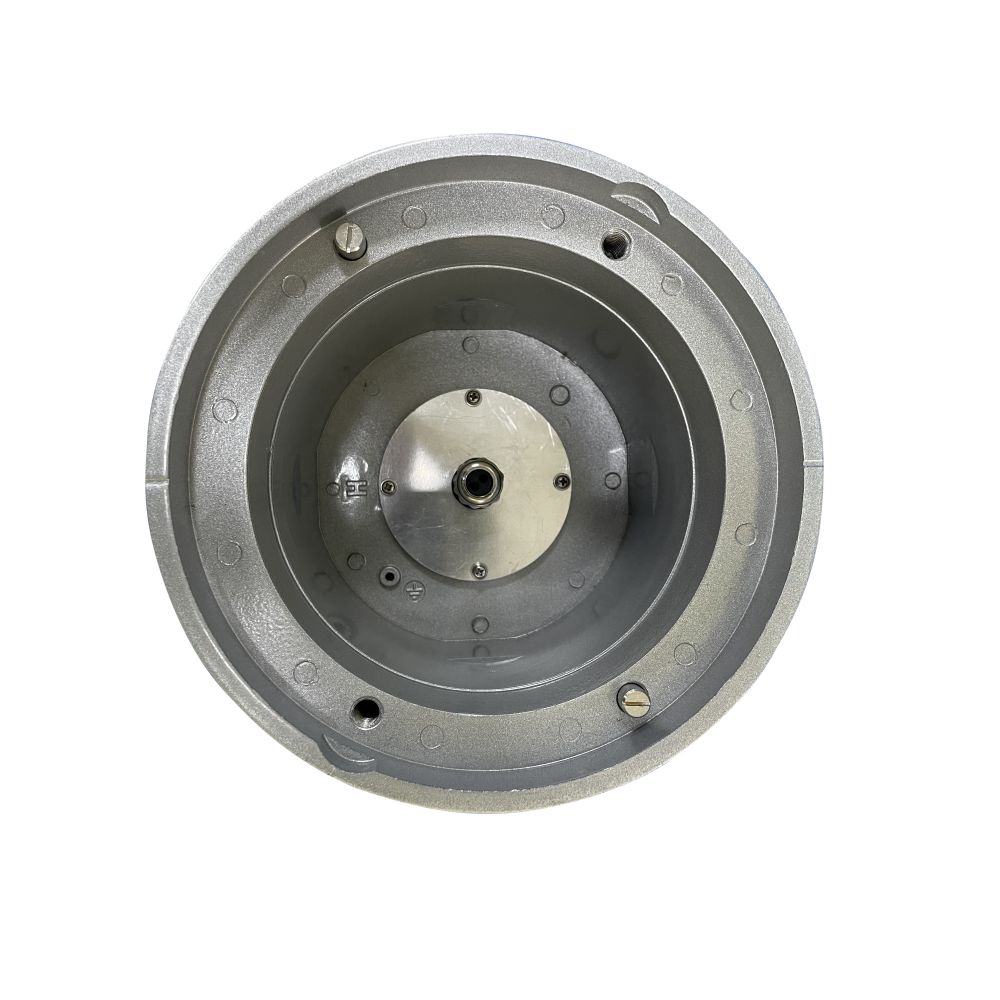

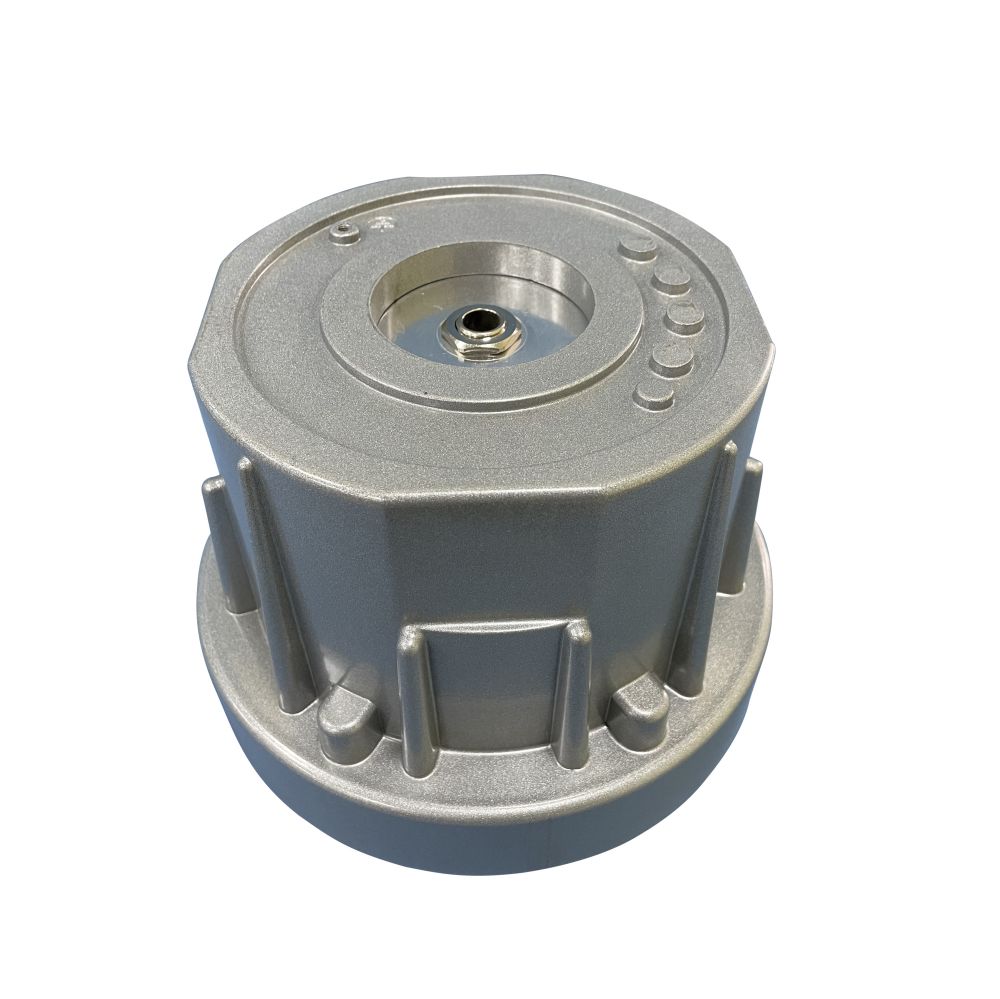

| 1 - Shallow base | Waterproof connector |
| 2 - O Sealing ring | Support plate |
| 3 - Shallow base cover | Screws |
| 4 - Joggle | Lower base |
| 5 - Waterproof connector | Joint porcelain |
| 6 - Screws | O Sealing ring |
Typically specified for Inset Taxiway Lighting, Taxiway Lighting Series projects.
Common use cases include halogen icao stop bar inset lights, halogen inset light for taxiway stop bar, halogen inset taxiway stop bar light, halogen stop bar light, halogen taxiway in-pavement stop-bar light, halogen taxiway stopbar inset lights.
