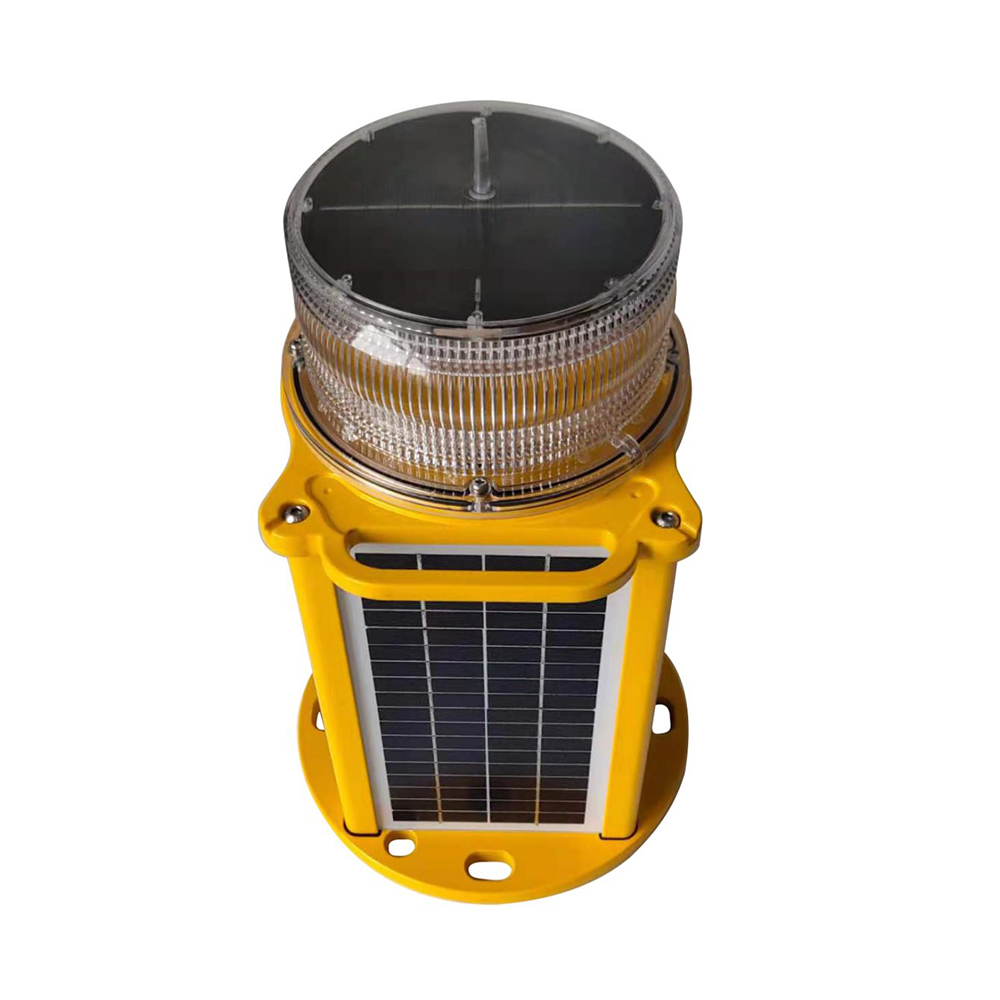

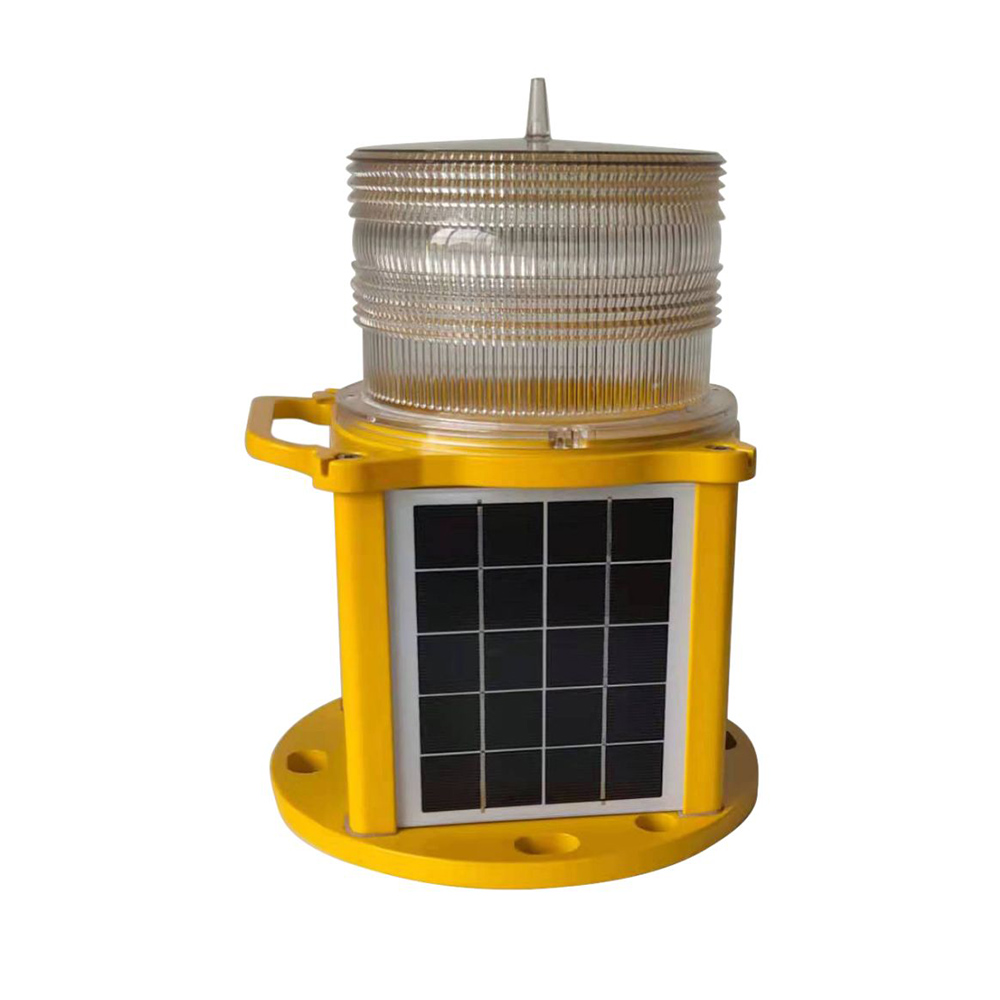

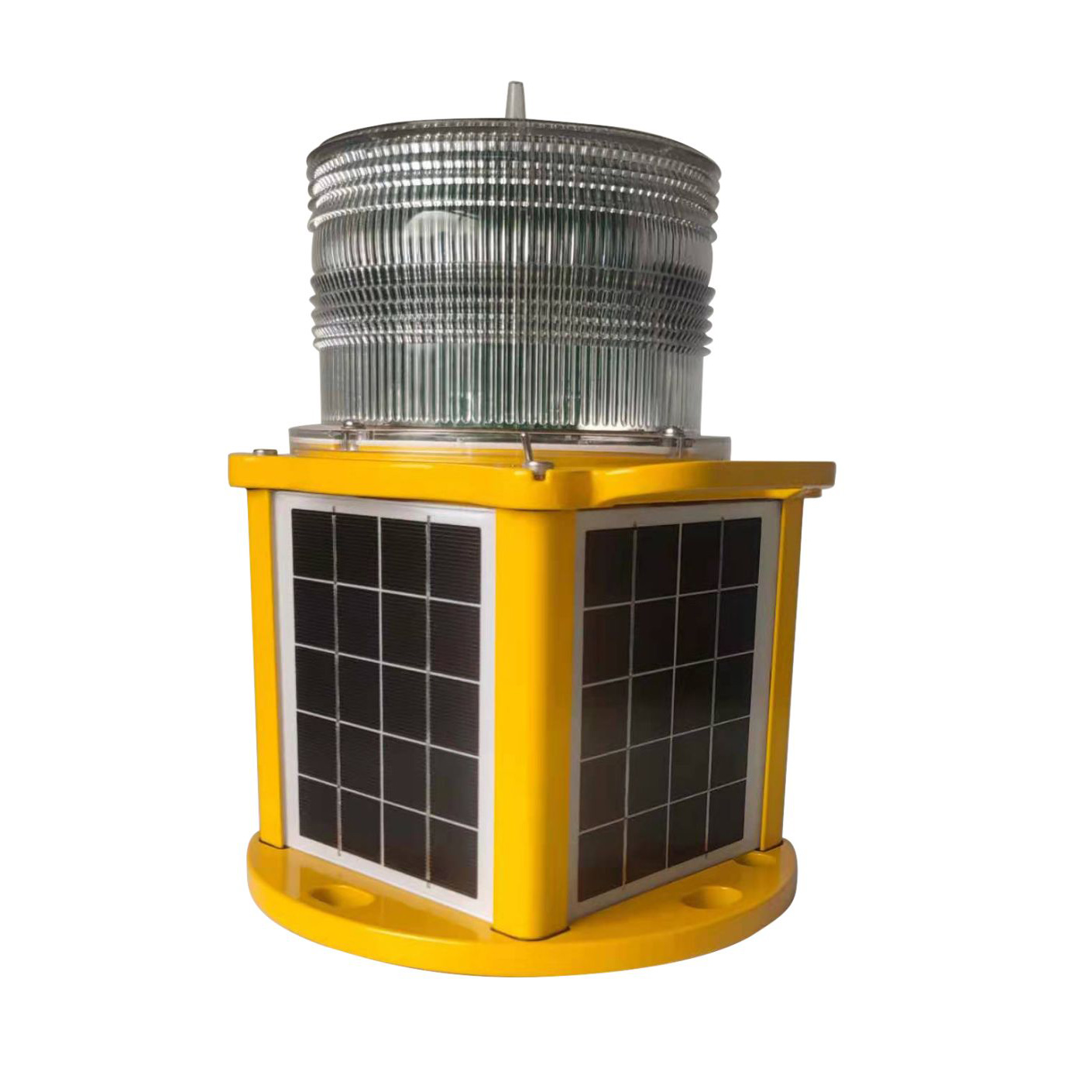

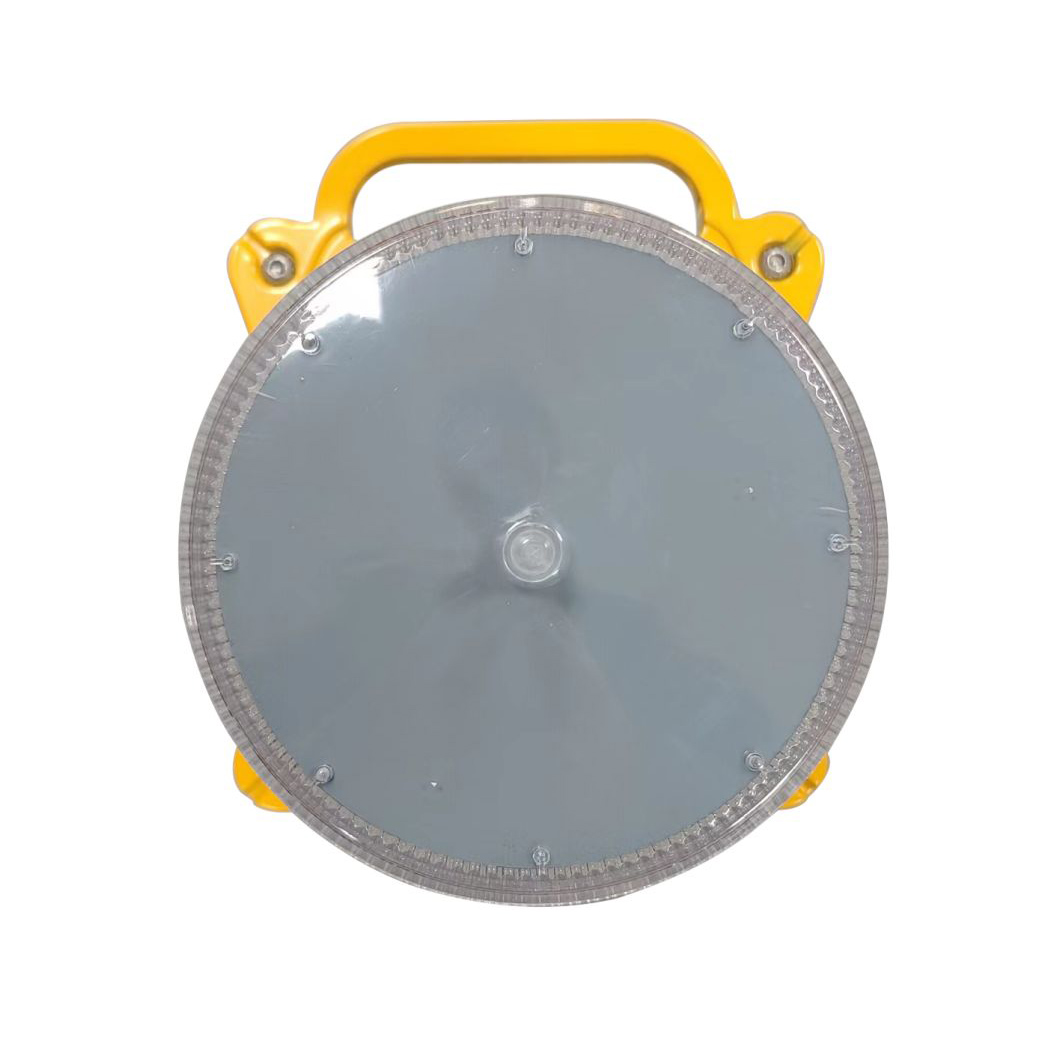

QCL40 LED Portable Solar Taxiway Edge Light

QCL40 LED Portable Solar Taxiway Edge Light - Image 3

QCL40 LED Portable Solar Taxiway Edge Light - Image 4

Short Description:

Altiglo QCL40 LED Portable Solar Taxiway Edge Light offers a dependable,

cost-effective,and environmentally friendly lighting solution for airfields and other

aviation facilities. With its advanced technology and durable construction, this light is

designed to provide reliable performance for years to come.Choose our LED solar powered runway light for superior visibility and safety on your airfield.

Solar panel: High efficient mono-crystalline silicon 18V10 Watts

Battery capacity: 12V10AH rechargeable Lithium battery

Intensity: >32.5cd

Autonomy: 15 days (flashing); 7 days(fixed)

Materials: Lens-PC Body-Aluminum

Item: QCL40

ELECTRICAL CHARACTERISTIC - Effective Intensity: >32.5 Candela

Downloads

Send Enquiry

SKU: QCL40
Category: Portable Solar Airfield Lighting, Standard Solar Lighting

Item	QCL40
ELECTRICAL CHARACTERISTIC - Effective Intensity	>32.5 Candela
Vertical Divergence	0-90 Degree
Horizontal out-put	360 Degree
LED Color	Omnidirectional Blue
LED Lifespan	100, 000 Hours
OPERATION - Illumination	Ultra-bright LEDs or NVG-compatible infrared (IR) LEDs
Woke mode	Adjustable flashing and fixed mode
Photocell sensitivity	70-100 Lux
Autonomy	15 days(flashing), 7 days(steady burning)
POWER SUPPLY - Solar panel	Solar module, mono-crystalline silicon 18V/10W
Solar Efficiency	14%
Battery capacity	High-efficiency 12V10Ah Lithium battery
Battery replacement	Replaceable
MECHANICAL STRUCTURE - Lens	Polycarbonate, UV Stabilize
Body	Aviation yellow powder-coated extruding aluminum
IP Ingress	IP67
Weight	4.6KG
Operating Temperature	-30℃ ~ +55℃
Storage Temperature	-40℃ ~ +55℃
Suitable areas	PSH≥3
Relative humidity	0-95% RH non-condensing
Wind speed	Up to 150mph(240kph)
OTHERS - Dimensions	314.5mm H, 234mm Diameter
Warranty	2 years
Optional	NVG-compatible infrared (IR) LEDs
