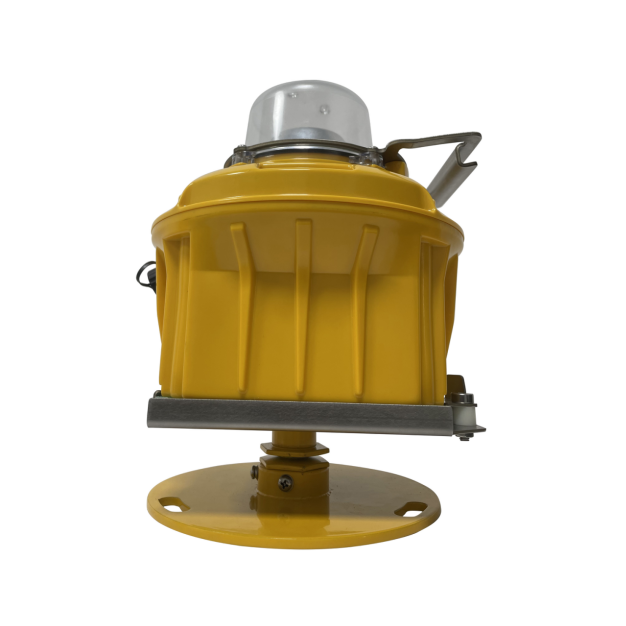

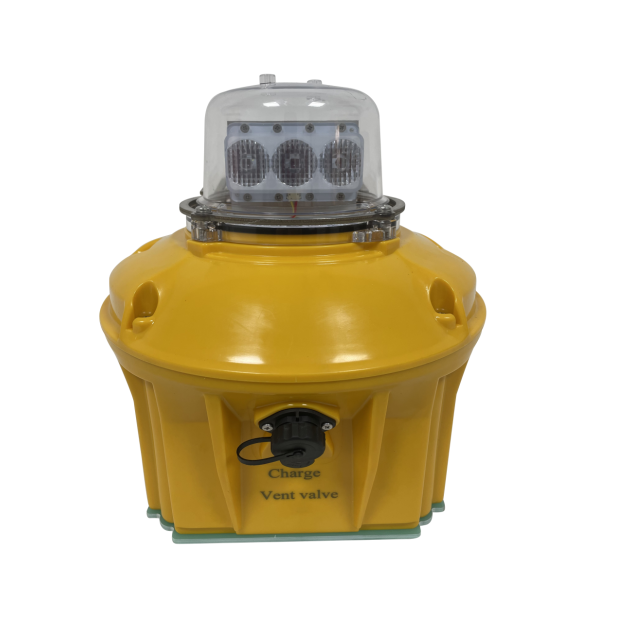

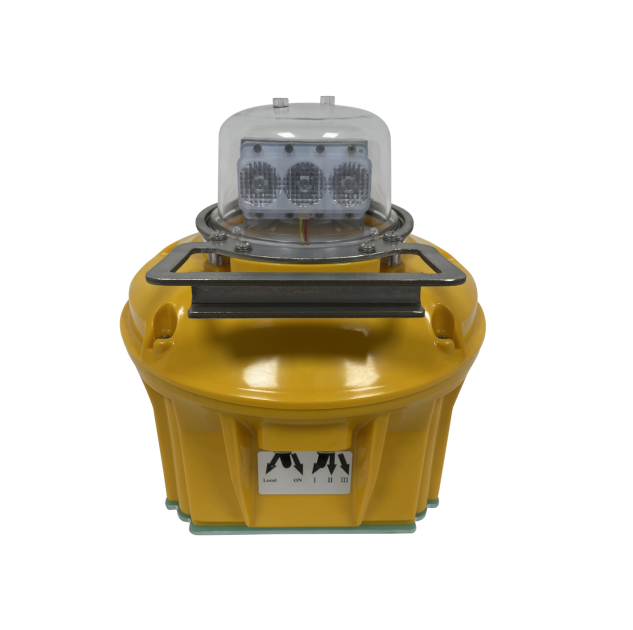

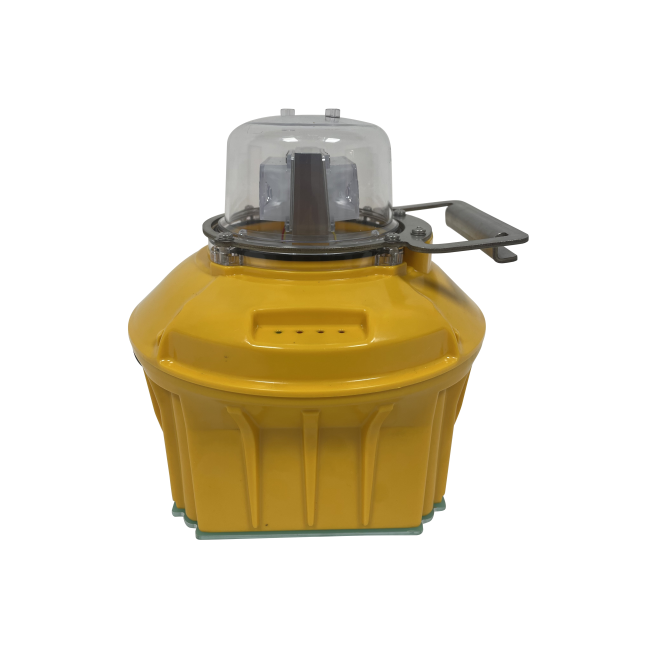

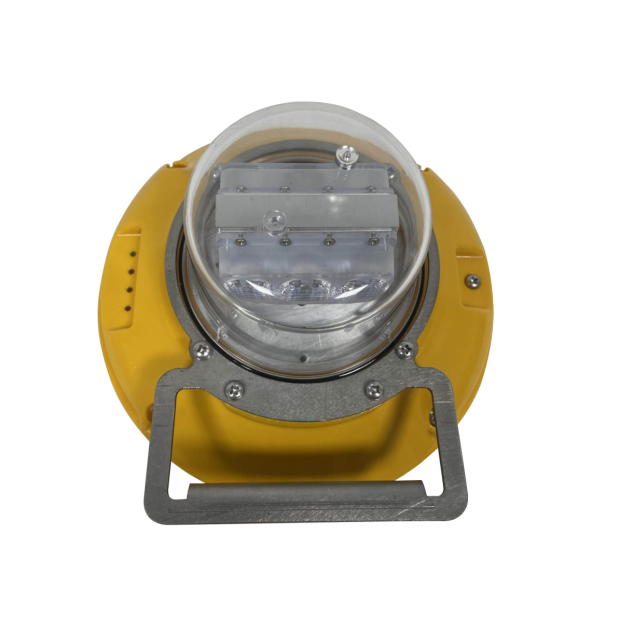

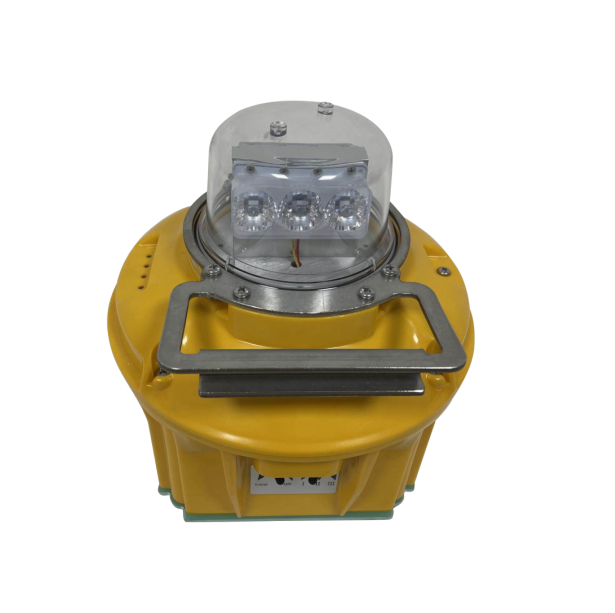

QCL500-C-TAE LED Portable Battery Powered Runway Threshold And End Light
Short Description:
Whether it’s for routine maintenance, temporary runway closures, or emergency situations, Altiglo QCL500-C-TAE LED Portable Battery Powered Runway Threshold And End Light is the ideal choice for ensuring safe and efficient airfield operations. With its advanced technology, portability, and reliability, it sets a new standard for runway lighting, providing peace of mind for airport operators and pilots alike.
Charging power supply：AC110- 240V,50Hz
Battery parameters：VRLA-12V/12Ah
Item: QCL500-C-TAE
E LECTRICAL CHARACTERISTIC - Intensity: Light intensity adjustable from10%, 30% and 100%
Downloads
- SKU
QCL500-C-TAE- Category
- Airport Light Series, Portable Battery Airport, Portable Battery Powered Led Airport Lights
- Item: QCL500-C-TAE
- E LECTRICAL CHARACTERISTIC - Intensity: Light intensity adjustable from10%, 30% and 100%
- Vertical Divergence: 0~90 Degree
- Horizontal out-put: 360 Degree
- LED Color: Green & Red
- LED Lifespan: 100, 000 Hours
- Light source: Ultra High Intensity LED
- OPERATION - Woke mode: Steady burning
| Item | QCL500-C-TAE |
|---|---|
| E LECTRICAL CHARACTERISTIC - Intensity | Light intensity adjustable from10%, 30% and 100% |
| Vertical Divergence | 0~90 Degree |
| Horizontal out-put | 360 Degree |
| LED Color | Green & Red |
| LED Lifespan | 100, 000 Hours |
| Light source | Ultra High Intensity LED |
| OPERATION - Woke mode | Steady burning |
| POWER SUPPLY - Battery parameters | VRLA-12V/12Ah |
| Battery status indicator | 4 led indications |
| Power consumption | 8W(Uni-);12W(Bi-) |
| Charging system(optional) | Drop in Charging – in the battery box |
| Charging power supply | AC110- 240V, 50Hz |
| MECHANICAL STRUCTURE - Lens | Polycarbonate |
| Body | High strength color impregnated polycarbonate |
| Paint color | Yellow or Green(Optional) |
| Dimensions | Ø220 ＊ 230MM |
| IP Ingress | IP66 |
| Light Weight | 5.35KG |
| Operating Temperature | -40℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ +55℃ |
| Wire Connection mode | Prewired |
| Relative humidity | 0-95% RH non-condensing |
| Wind speed | Up to 150mph(240kph) |
| OTHERS - Warranty | 2 years |
Typically specified for Airport Light Series, Portable Battery Airport, Portable Battery Powered Led Airport Lights projects.
Common use cases include battery powered lighting, portable battery powered, portable solar airfield lighting, products.
