Portable Solar Airfield Lighting
Short Description:

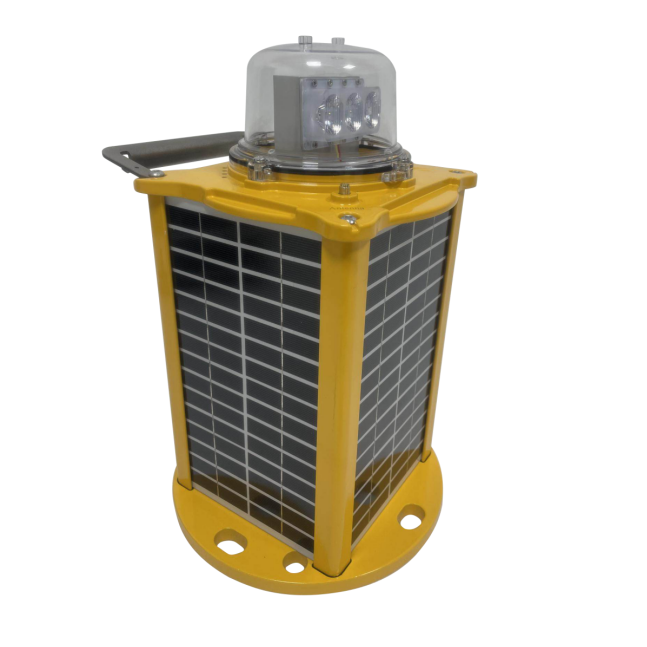

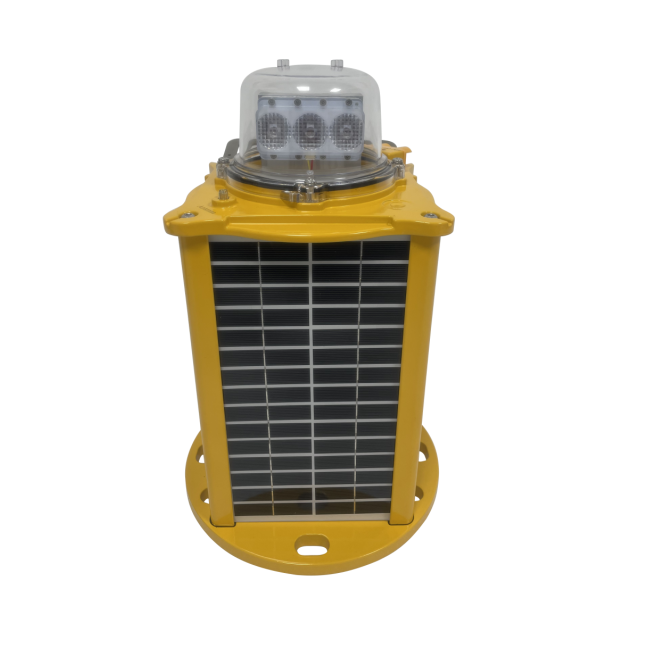

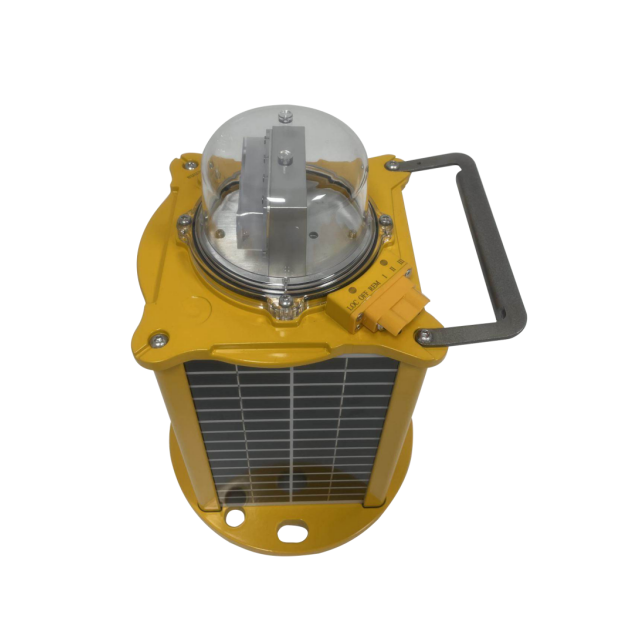

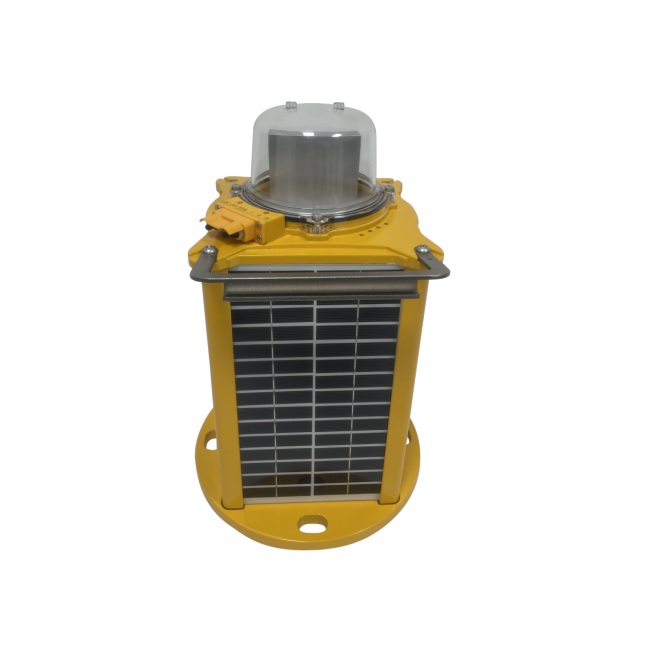

Altiglo QCL540-L-S-END LED portable solar powered runway end light – the ultimate solution for enhancing safety and visibility at airfields, especially in remote locations where traditional power sources are unavailable. This innovative lighting system is designed to provide reliable illumination for runway ends, taxiways, and other critical areas, ensuring that pilots can navigate with confidence, day or night.Upgrade your airfield lighting with our LED portable solar powered runway end Light – where innovation meets reliability. Experience peace of mind knowing that your runway is well-lit and safe, no matter the circumstances. Illuminate your airspace today!
Solar panel: Solar module, mono-crystalline silicon 12V/4*5W
LED Life Time:100,000Hours
Color: Red
IP grade: IP68
Item: QCL540-L-S-END
E LECTRICAL CHARACTERISTIC - Illumination: Ultra-bright LEDs and NVG-compatible infrared (IR) LEDs(optional)
Downloads
QCL540-L-S-END| Item | QCL540-L-S-END |
|---|---|
| E LECTRICAL CHARACTERISTIC - Illumination | Ultra-bright LEDs and NVG-compatible infrared (IR) LEDs(optional) |
| Light intensity | ≥ 20cd |
| Horizontal Divergence | Uni-directional |
| LED Color | Red |
| LED Lifespan | 100, 000 Hours |
| OPERATION - Woke mode | Fixed mode |
| Autonomy | 100 hrs (at max intensity ， authomony can be changed accroding to the light intensity) |
| POWER SUPPLY - Solar panel | Solar module, mono-crystalline silicon 12V/4*5W |
| Solar Efficiency | 21% |
| Battery capacity | High-efficiency 12V20Ah Lithium battery |
| Frequency | Lora 433MHZ |
| B attery replacement | Replaceable |
| MECHANICAL STRUCTURE - Lens | Polycarbonate, UV Stabilize |
| Body | Aviation yellow powder-coated extruding aluminum |
| IP Ingress | IP6 8 |
| Weight | 6 KG |
| Operating Temperature | -40℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ + 55 ℃ |
| Relative humidity | 0-95% RH non-condensing |
| Wind speed | Up to 150mph (240kph) |
| Dimensions | 354mm H, 234mm Diameter |
| Reserved bolt mounting dimensions | Φ200*M14(4 mounting holes) |
| OTHERS - Warranty | 2 years for light 1 year for battery |
| Optional | GPS Synchronization function |
Typically specified for Portable Solar Airfield Lighting projects.
Common use cases include airport lighting, portable solar airfield lighting, products, standard solar lighting.
Need Product Guidance?
Request pricing, lead times, technical compatibility guidance, and project support for this model.
