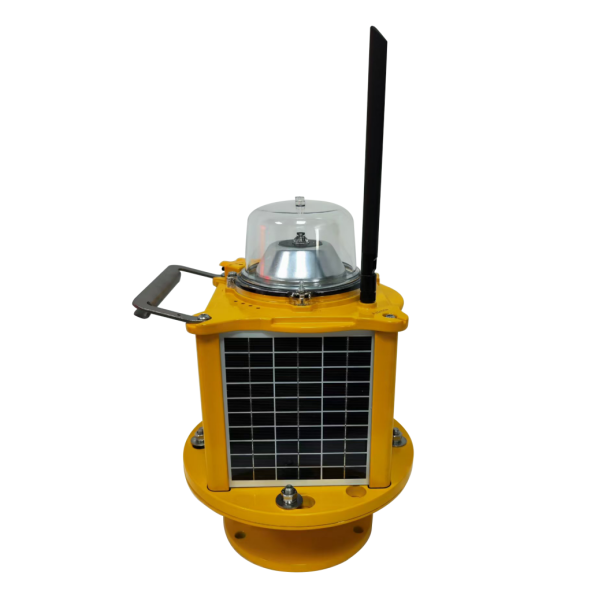

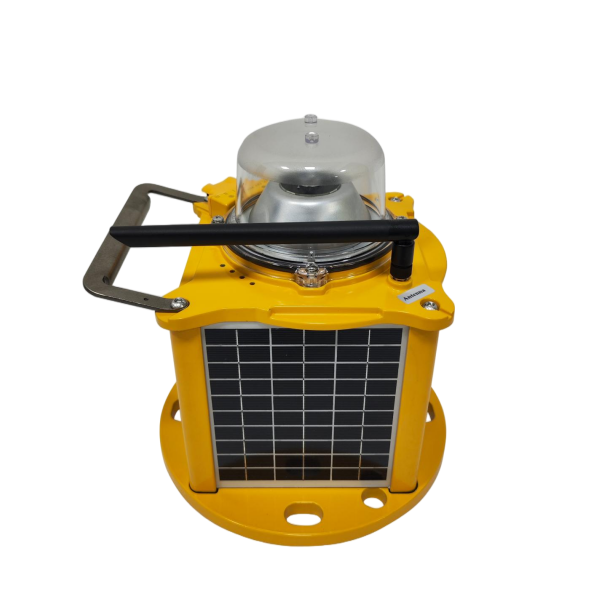

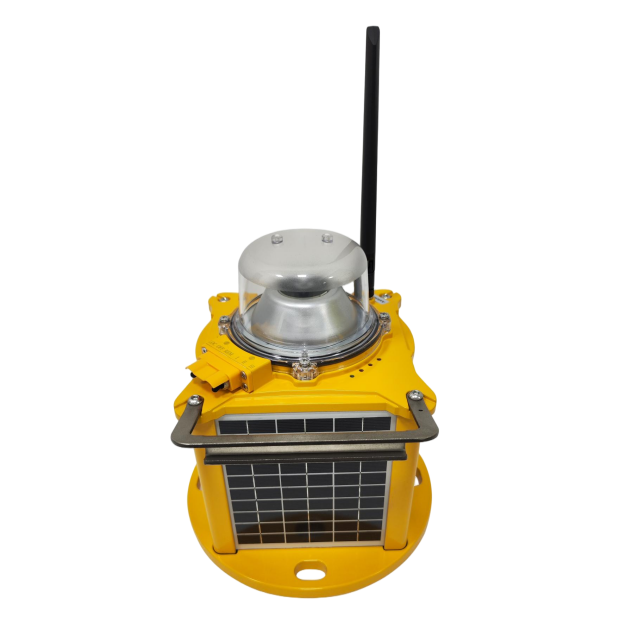

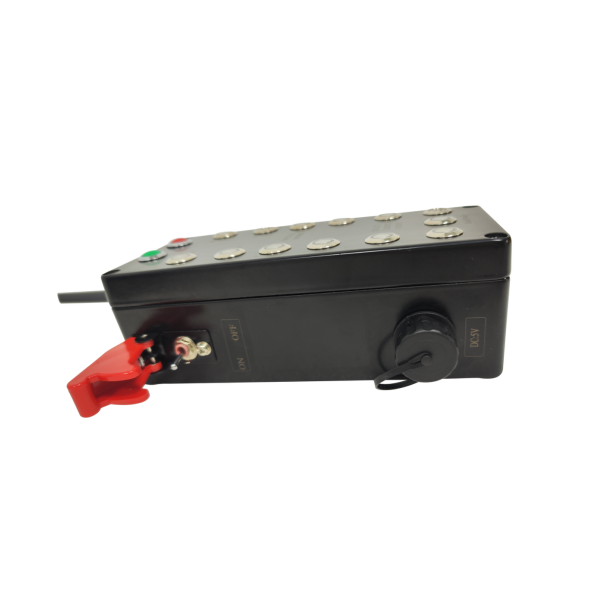

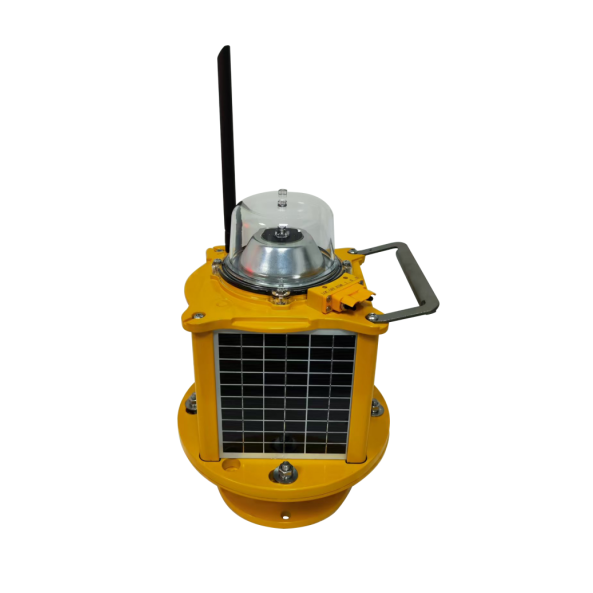

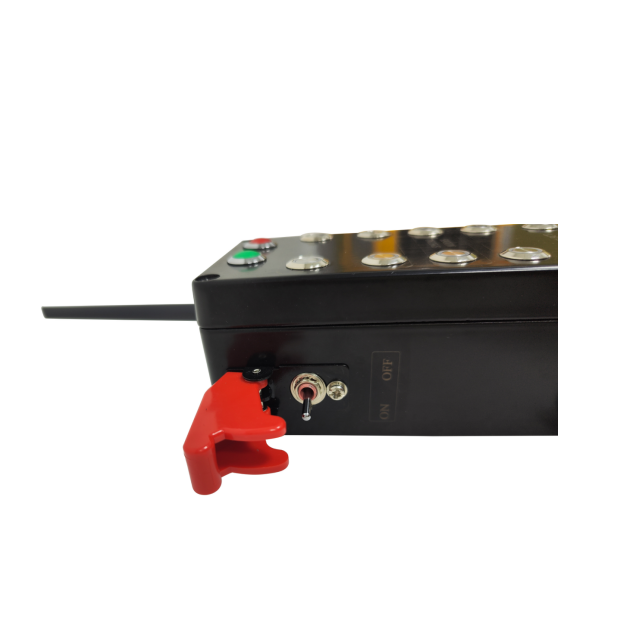

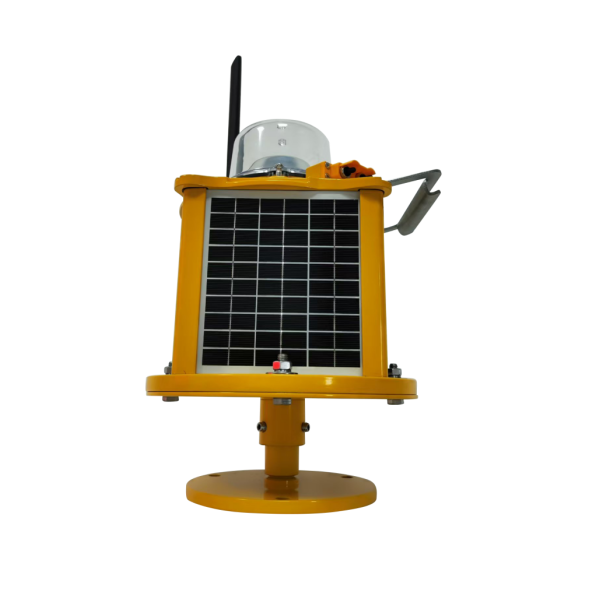

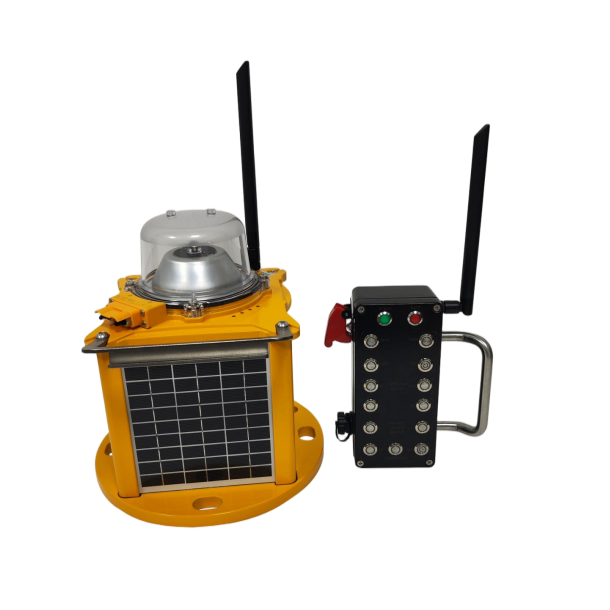

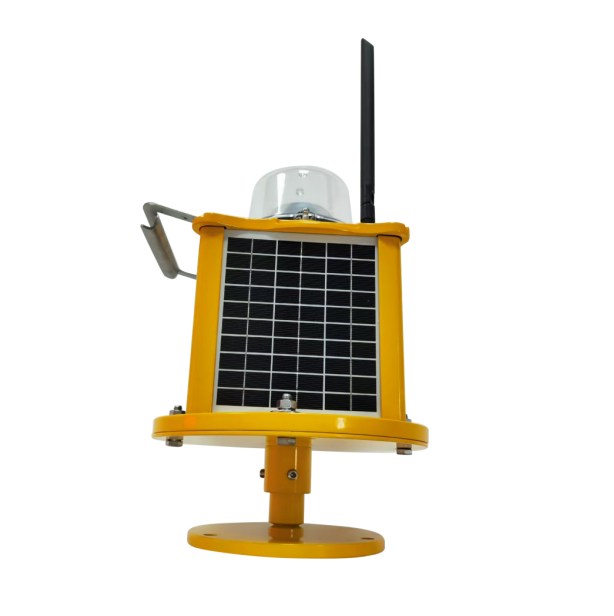

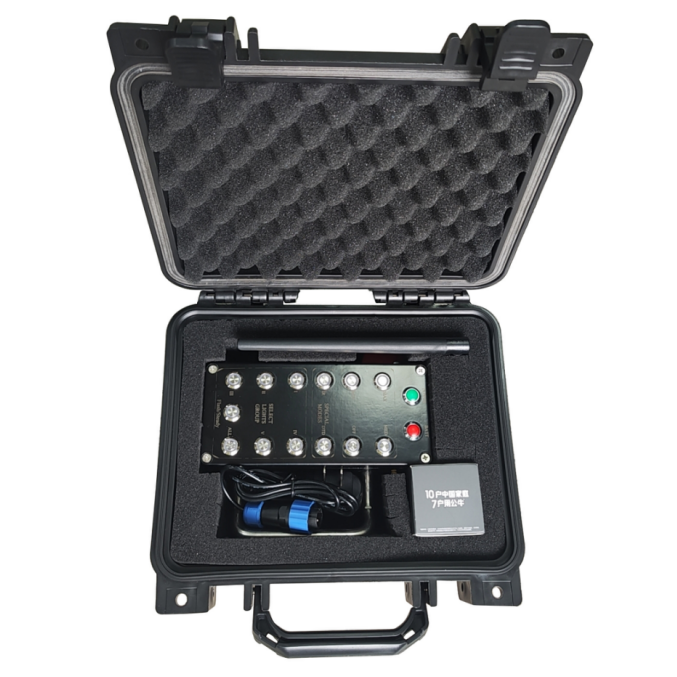

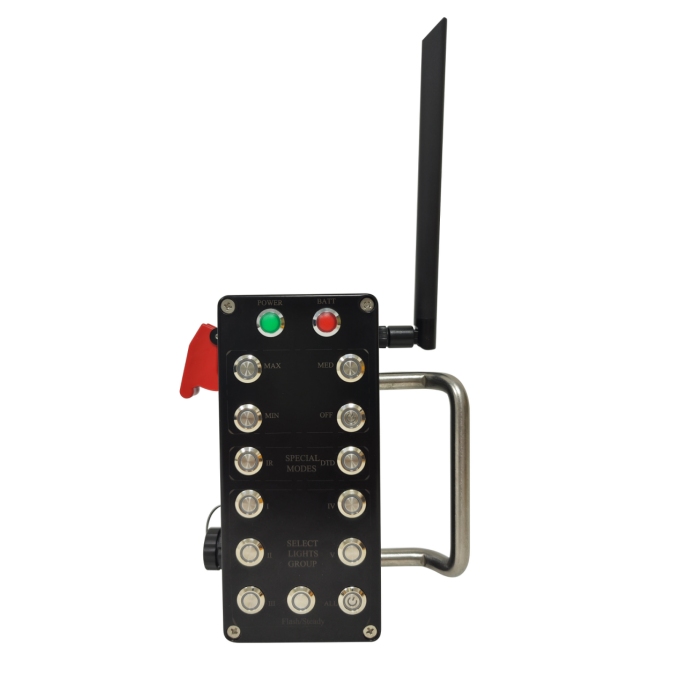

Portable Solar Airfield Lighting, Standard Solar Lighting With Radio Controller
Short Description:
Overall, the LED Portable Solar Taxiway Edge Light is a versatile and reliable lighting solution that enhances safety and efficiency at airports. Its advanced technology, portability, and sustainable operation make it an ideal choice for modernizing runway and taxiway lighting systems. With this innovative product, airports can improve visibility, reduce operational costs, and enhance the overall safety of airfield operations.
Solar panel: 12V/2.5W(Single side)
LED Life Time:100,000Hours
Color: Bule
IP grade: IP68
Item: QCL570-S-TE-B-XX
E LECTRICAL CHARACTERISTIC - Illumination: Ultra-bright LEDs and NVG-compatible infrared (IR) LEDs(optional)
Downloads
QCL570-S-TE-B-XX| Item | QCL570-S-TE-B-XX |
|---|---|
| E LECTRICAL CHARACTERISTIC - Illumination | Ultra-bright LEDs and NVG-compatible infrared (IR) LEDs(optional) |
| Light intensity | 2-18cd |
| Beam angle | (Omni-directional) |
| LED Color | Bule |
| LED Lifespan | 100, 000 Hours |
| OPERATION - Woke mode | Adjustable flashing and fixed mode |
| Autonomy | 80 hrs(at max intensity ， authomony can be changed accroding to the light intensity) |
| POWER SUPPLY - Solar panel | 12V/2.5W(Single side) |
| Solar Efficiency | 21% |
| Battery parameters | High-efficiency 12V24Ah Lithium battery |
| Frequency | Lora 433MHZ |
| B attery replacement | Replaceable |
| MECHANICAL STRUCTURE - Lens | Polycarbonate, UV Stabilize |
| Body | Aviation yellow powder-coated extruding aluminum |
| IP Ingress | IP6 8 |
| Weight | 4.8 KG |
| Operating Temperature | -40℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ + 55 ℃ |
| Relative humidity | 0-95% RH non-condensing |
| Wind speed | Up to 150mph (240kph) |
| Dimensions | 254mm H, 234mm Diameter |
| OTHERS - Warranty | 2 years for light 1 year for battery |
| Optional | GPS Synchronization function |
Typically specified for Portable Solar Airfield Lighting, Standard Solar Lighting With Radio Controller projects.
Common use cases include airport lighting, portable solar airfield lighting, products, standard solar lighting with radio controller.
