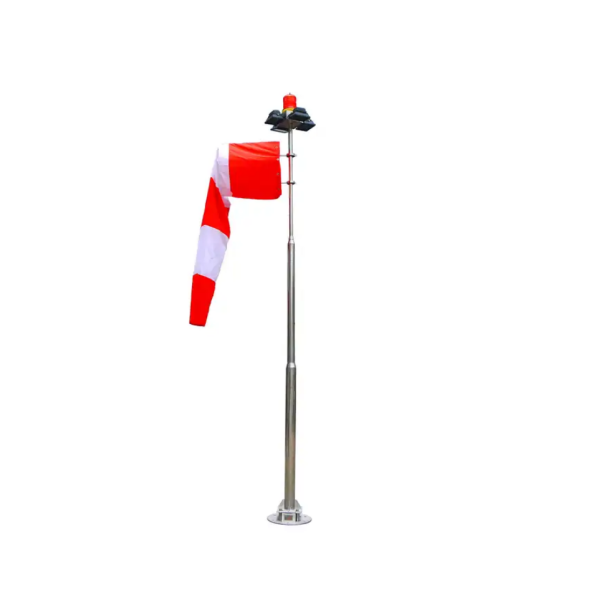

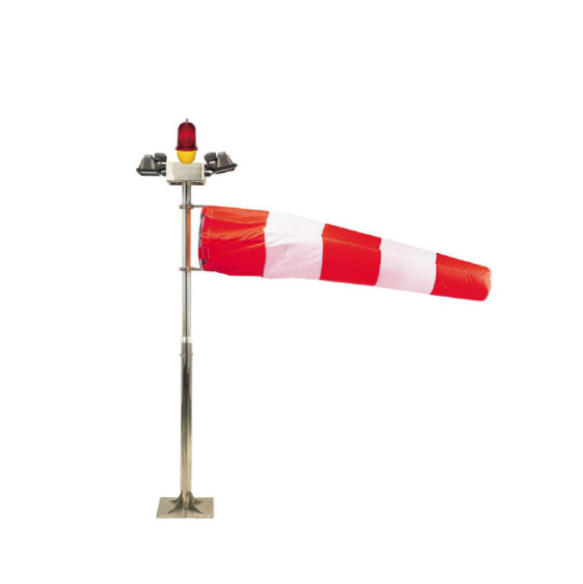

QCL980 Wind Cone
Short Description:
Obstruction light:Low Intensity 32 cd Light
Color:Red/White
Input Voltage:AC220V,50/60Hz (Option voltage,eg:AC120V,DC48V)
Tested Ambient Temp:-20°C to + 60°C
Item: QCL980
Application - Application: Airport
Downloads
- SKU
QCL980- Category
- Wind Cone
- Item: QCL980
- Application - Application: Airport
- Suitable For: Safe Area
- Zone: Safe Area
- E LECTRICAL CHARACTERISTIC - Internal light source: LED, steady burning, colour white.
- Obstruction Light Source: LED, steady burning, colour Red
- Obstruction light: Low Intensity 32 cd
- Light Color: Red/White
| Item | QCL980 |
|---|---|
| Application - Application | Airport |
| Suitable For | Safe Area |
| Zone | Safe Area |
| E LECTRICAL CHARACTERISTIC - Internal light source | LED, steady burning, colour white. |
| Obstruction Light Source | LED, steady burning, colour Red |
| Obstruction light | Low Intensity 32 cd |
| Light Color | Red/White |
| Light Source | L-810 LED Obstruction Light on top |
| Life expectancy | 100.000+ hours |
| POWER SUPPLY - Input Voltage | AC220V, 50/60Hz (Option voltage, eg:AC120V, DC48V) |
| Consumption | 20 Watt |
| MECHANICAL STRUCTURE - Tested Ambient Temp | -20°C to + 60°C |
| Cable | H07RN-F 3x1mm² |
| Cable glands included | 1 x M20x1.5 |
| Assembly | Internally or external lighted + obstruction light |
| Mounting | Tiltable foot |
| Mast material | Stainless Steel (SS304) |
| Windsock Frame | SS304, Rotating Frame and Hoop |
| Altitude | ≤4500m |
| Ingress Protection | IP65 |
| Mast length | Up to 7m |
| Chassis Installation Size | 350mm×M20×6PCS |
| Windsock material | PVC |
| Windsock colour | Red/White striped or Orange |
| Ambient temp | -40°C to + 85°C |
| Windspeed | 260 km/hr |
| OTHERS - Incompliance with | ICAO annex 14, CAP437, FAA L-807 |
Typically specified for Wind Cone projects.
Common use cases include airport lighting, products, wind cone.
Need Product Guidance?
Request pricing, lead times, technical compatibility guidance, and project support for this model.
