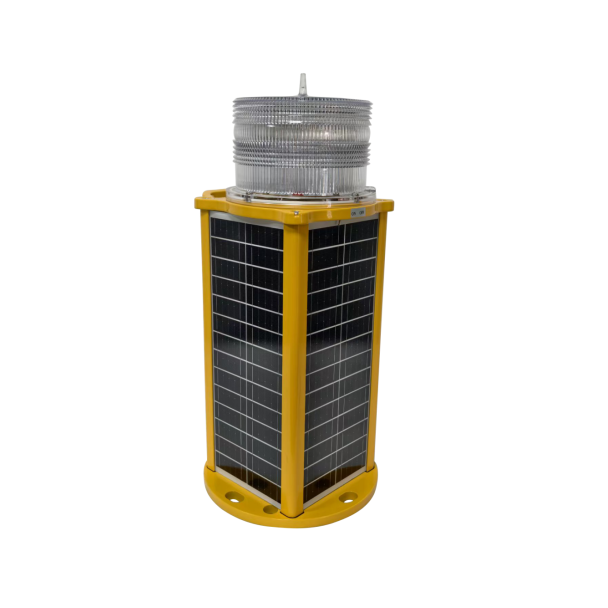

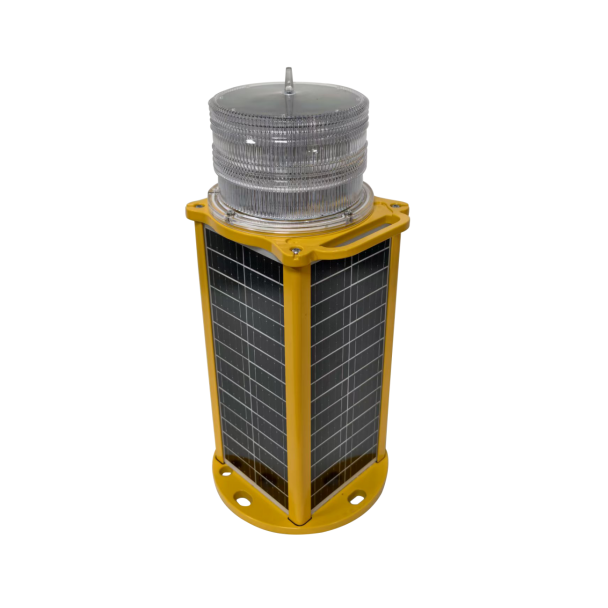

SB20 Solar Powered Marine Light (7-10nm)

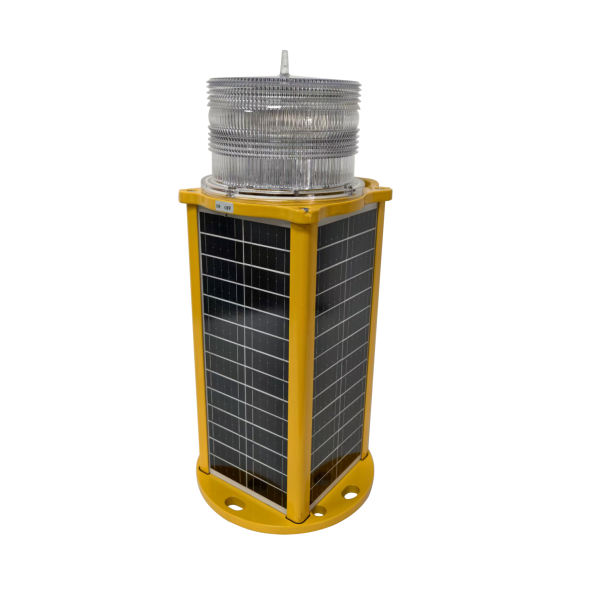

SB20 Solar Powered Marine Light (7-10nm) - Image 3

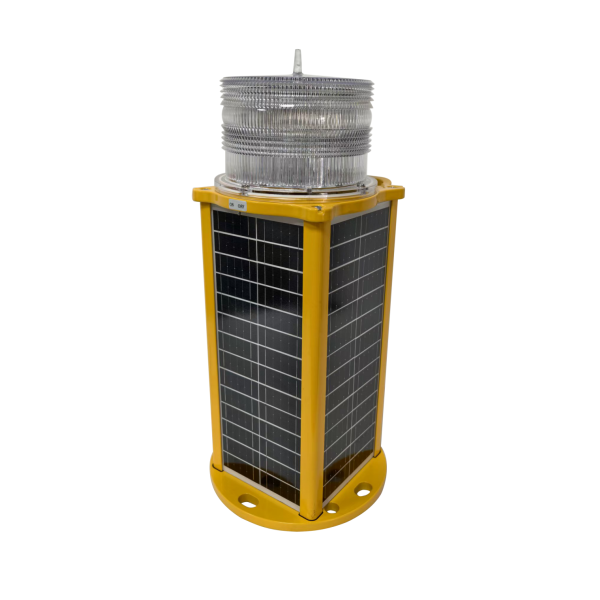

SB20 Solar Powered Marine Light (7-10nm) - Image 4

Short Description:

Whether you’re a professional sailor, recreational boater, or commercial fisherman, our SB20 Solar Marine Navigation Light is an essential safety accessory for your boat. By investing in this advanced lighting solution, you can ensure that your vessel is equipped with the latest technology to enhance safety and navigation efficiency on the water.Don’t compromise on safety – choose our Solar Marine Navigation Light and enjoy peace of mind knowing that your boat is equipped with the best lighting solution for safe and reliable navigation.

Solar panel: High efficient mono-crystalline silicon 18V/4*6 Watts

Battery capacity: 12V14AH rechargeable Lithium battery

Nominal Night Range: 7-10nm

Autonomy: 25 days (flashing)； 8 days(fixed)

Materials: Lens-PC Body-Aluminum

Item: SB20

ELECTRICAL CHARACTERISTIC - Visible distance: 7-10NM

Downloads

Send Enquiry

SKU: SB20
Category: Regular Type, Solar Powered Marine Lanterns

Item	SB20
ELECTRICAL CHARACTERISTIC - Visible distance	7-10NM
Vertical Divergence	10 Degree
Horizontal out-put	360 Degree
LED Color	Red (for obstruction). White, yellow, green and blue are available for other applications
LED Lifespan	100, 000 Hours
OPERATION - Woke mode	Flashing or steady burning
Flash Pattern(optional)	Flashing: 20/30/40/60FPM; Default: 40FPM;
Flash duration	670ms
Photocell sensitivity	70-100 Lux
Autonomy	25 days(flashing), 8 days(steady burning)
Alarm type	NO & NC, dry contact relay(optional)
POWER SUPPLY - Solar panel	Solar module, mono-crystalline silicon 18V/4*6W
Solar Efficiency	21%
Battery capacity	High-efficiency 12V14Ah Lithium battery
Battery replacement	Replaceable
MECHANICAL STRUCTURE - Lens	Polycarbonate, UV Stabilize
Body	Aviation yellow powder-coated extruding aluminum
IP Ingress	IP68
Weight	9.8KG
Operating Temperature	-30℃ ~ +55℃
Storage Temperature	-40℃ ~ +55℃
Suitable areas	PSH≥3
Relative humidity	0-95% RH non-condensing
Wind speed	Up to 150mph(240kph)
Atmospheric Transparency Coefficient	0.85
OTHERS - Warranty	2 years for light
