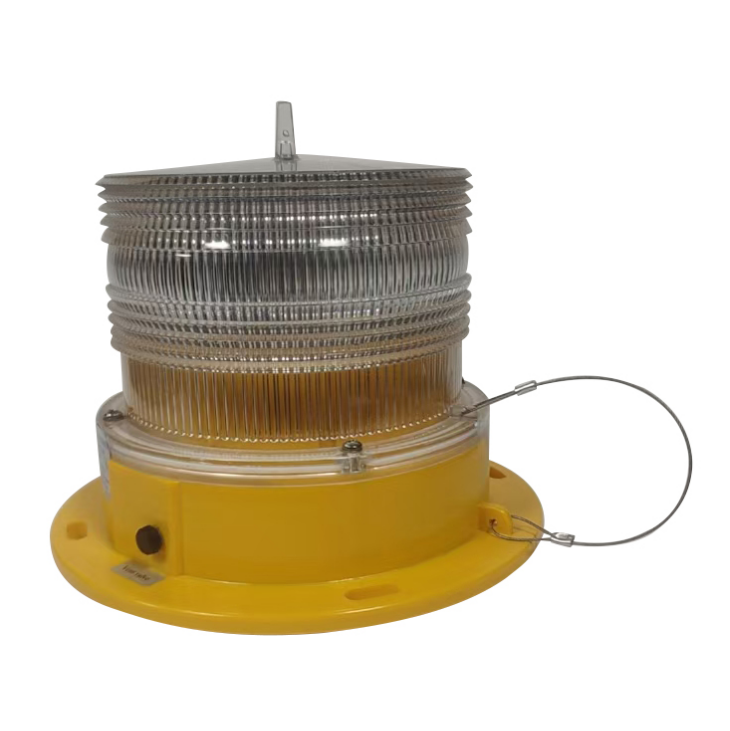

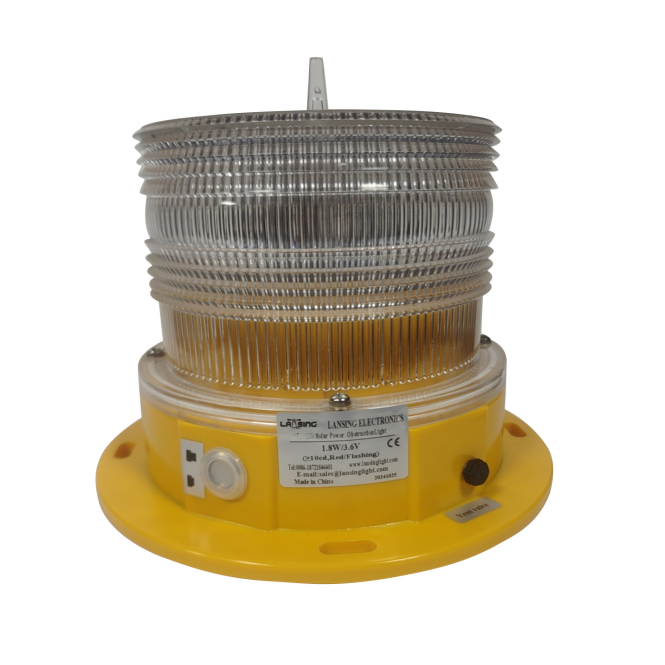

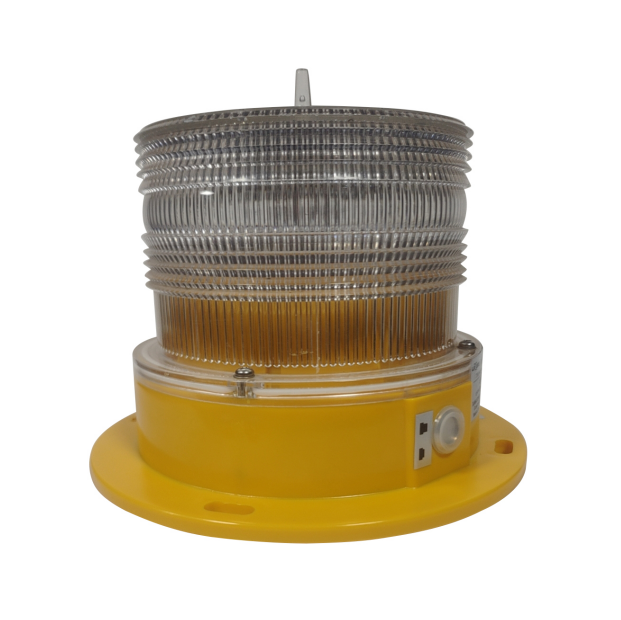

SB70-F LED Solar Powered Side Light (112.5 Degree)

Short Description:

With its reliable performance, energy-efficient operation, and durable construction,

our SB70-F solar powered side light for boats is the ideal choice for any boater

looking to enhance the safety and visibility of their vessel. Say goodbye to the

hassle of changing batteries or worrying about power

Solar panel: High efficient mono-crystalline silicon 5V1.8 Watts

Battery capacity: 3.6V8AH rechargeable NiMH battery

Nominal Night Range: >2.5nm

Autonomy: 7 days(steady burning)

Materials: Polycarbonate, UV Stabilize

Item: SB70-F

ELECTRICAL CHARACTERISTIC - Visible distance: >2.5nm

Downloads

Send Enquiry

Item	SB70-F
ELECTRICAL CHARACTERISTIC - Visible distance	>2.5nm
Vertical Divergence	±7.5 Degree
Horizontal out-put	112 .5degree
LED Color	Red or green
LED Lifespan	100, 000 Hours
OPERATION - Woke mode	steady burning
Photocell sensitivity	70-100 Lux
Autonomy	7 days(steady burning)
POWER SUPPLY - Solar panel	Solar module, mono-crystalline silicon 5V 1.8W
Solar Efficiency	21%
Battery capacity	NIMH, 3.6V/8Ah
Battery replacement	Replaceable
MECHANICAL STRUCTURE - Lens	Polycarbonate, UV Stabilize
Body	Aviation yellow powder-coated extruding aluminum
IP Ingress	IP67
Weight	2KG(Polycarbonate base)3KG(Aluminum base)
Operating Temperature	-30℃ ~ +55℃
Storage Temperature	-40℃ ~ +55℃
Suitable areas	PSH≥3
Relative humidity	0-95% RH non-condensing
Wind speed	Up to 150mph(240kph)
Atmospheric Transparency Coefficient	0.85
OTHERS - Warranty	2 years
