Regular Type, Solar Powered Marine Lanterns

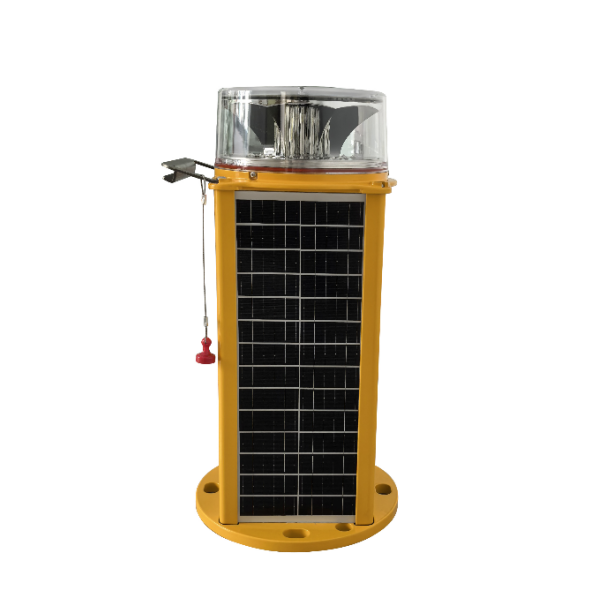

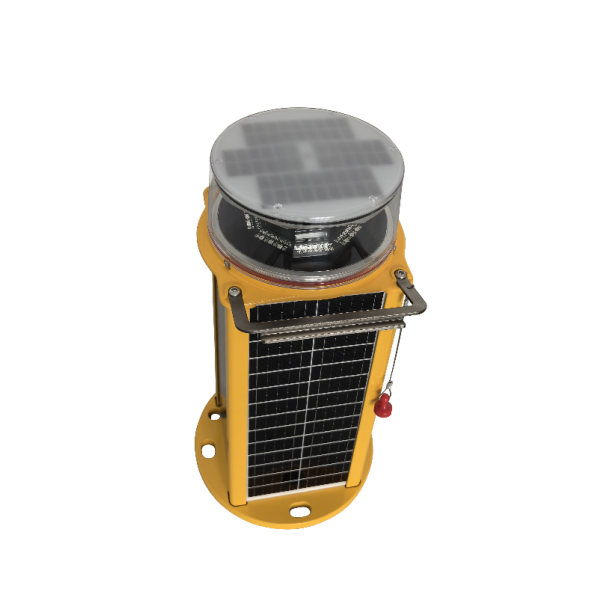

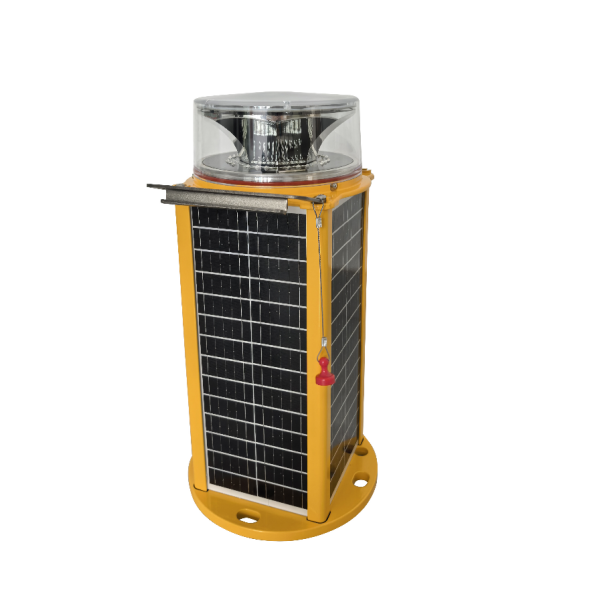

SB980 LED Solar Powered Marine Light (15-20NM)
Short Description:
Solar panel: Solar module, mono-crystalline silicon 12V/20W
Battery capacity: High-efficiency 12V/20AH Lithium battery
Visisble distance: 20nm
Autonomy: 10 days (flashing)； 3days(steady burning)
Materials: Lens-PC Body-Aluminum
Item: SB980
E LECTRICAL CHARACTERISTIC - Light intensity: ≥ 2500cd
Downloads
- SKU
SB980- Category
- Regular Type, Solar Powered Marine Lanterns
- Item: SB980
- E LECTRICAL CHARACTERISTIC - Light intensity: ≥ 2500cd
- Visible distance: 20nm
- Vertical Divergence: ± 7.5 Degree
- Horizontal Divergence: 360 Degree
- Light source type: LED
- LED Color: Red, w hite, yellow, green or blue
- LED Lifespan: 100, 000 Hours
| Item | SB980 |
|---|---|
| E LECTRICAL CHARACTERISTIC - Light intensity | ≥ 2500cd |
| Visible distance | 20nm |
| Vertical Divergence | ± 7.5 Degree |
| Horizontal Divergence | 360 Degree |
| Light source type | LED |
| LED Color | Red, w hite, yellow, green or blue |
| LED Lifespan | 100, 000 Hours |
| OPERATION - Woke mode | Flashing or steady burning |
| Flash Pattern (optional) | Flashing: 20/30/40/60FPM; Default: 40FPM; |
| Flash duration | 670ms |
| Photocell sensitivity | 7 0 -100 Lux |
| Autonomy | 10 days(flashing), 3 days(steady burning) |
| POWER SUPPLY - Power consumption | 30W |
| Solar panel | Solar module, mono-crystalline silicon 12V/20W |
| Solar Efficiency | 21 % |
| Battery capacity | High-efficiency 12V/20AH Lithium battery |
| B attery replacement | R eplaceable |
| MECHANICAL STRUCTURE - Lens Material | PC |
| Housing Material | A luminum alloy |
| IP Ingress | IP66 |
| Weight | 9.8 KG |
| Dimensions | Φ 234*360mm |
| Reserved bolt mounting dimensions | Φ 200*M14(4 mounting holes) |
| Operating Temperature | -30℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ + 55 ℃ |
| Suitable areas: | PSH≥ 3 |
| Ambient humidity | ≤ 95%(No condensation) |
| Wind resistance level | 240km/h |
| Atmospheric Transparency Coefficient | 0.85 |
Typically specified for Regular Type, Solar Powered Marine Lanterns projects.
Common use cases include led marine lanterns, products, regular type, solar powered marine lanterns.
