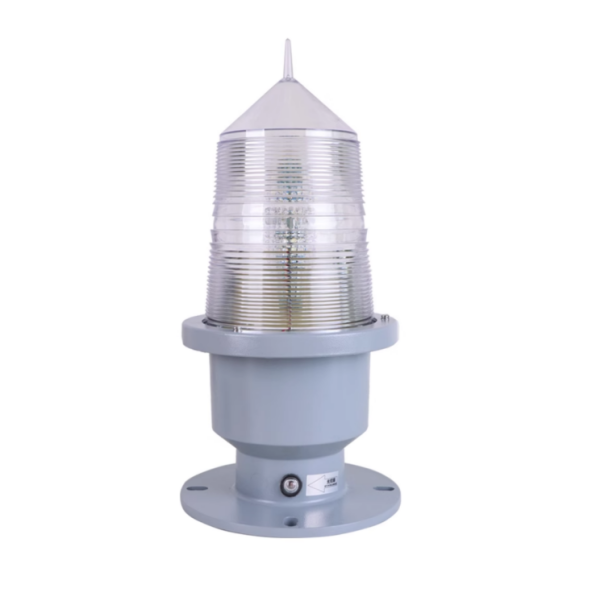

TL9000 LED Marine Light(10-13nm)

Short Description:

Altiglo TL9000 LED Marine Lantern for Ships – the ultimate solution for maritime safety and visibility. Designed with the modern mariner in mind, this state-of-the-art lantern combines advanced LED technology with rugged durability, ensuring that your vessel remains visible in even the most challenging conditions.Elevate your maritime experience with our TL9000 LED Marine Lantern for Ships – where safety meets innovation. Illuminate your journey and navigate with confidence, knowing that you have the best in marine lighting technology by your side.

Item: G L 1000

E LECTRICAL CHARACTERISTIC - Effective intensity: Red:1600cd Range(T=0.74)

Downloads

Send Enquiry

SKU: T
Category: Electrical Marine Lantern

Item	G L 1000
E LECTRICAL CHARACTERISTIC - Effective intensity	Red:1600cd Range(T=0.74)
Visible distance	>12-15nm
Vertical Divergence	10 Degree
Horizontal out-put	360 Degree
LED Color	Red, yellow, white, green or blue
LED Lifespan	100, 000 Hours
Light source	Ultra-bright LED combination
OPERATION - Woke mode	Flashing
Flash Pattern	Flashing: 20/30/40/60FPM; Default: 40FPM; Steady burning
Flash duration	670ms
Flash rate	20-60(Adjustable)
Flash life	80, 000-100, 000 hours
Photocell sensitivity	50-300 Lux(Adjustable)
POWER SUPPLY - Input voltage	220VAC, 12VDC
Power consumption	20W
MECHANICAL STRUCTURE - Lens	Polycarbonate, UV Stabilize
Body	Die-casting Aluminum
IP Ingress	IP65
Weight	2.5KG
Operating Temperature	-40℃ ~ +60℃
Storage Temperature	-40℃ ~ +70℃
Installation Size	4-10mm holes evenly distributed on the chassis 150mm pitch circle 130mm
Wire Connection mode	Pre wired
Relative humidity	0-95% RH non-condensing
Wind speed	Up to 150mph(240kph)
Atmospheric Transparency Coefficient	0.85
OTHERS - Warranty	1 year
Optional	Flashing pattern(20–60FPM) Built-in photocell
