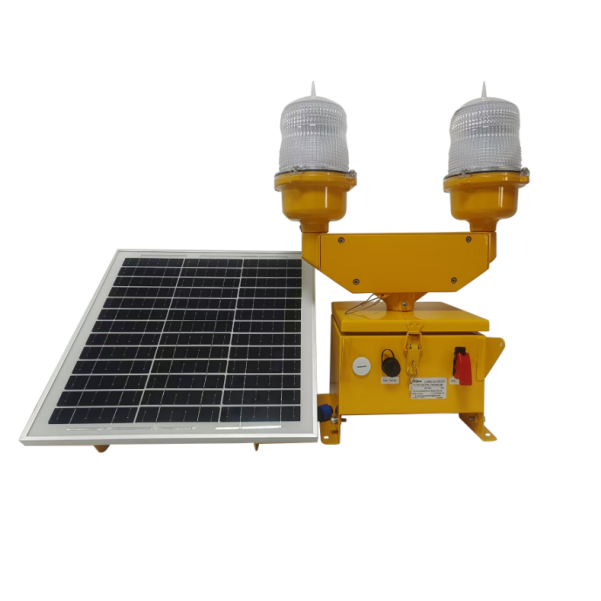

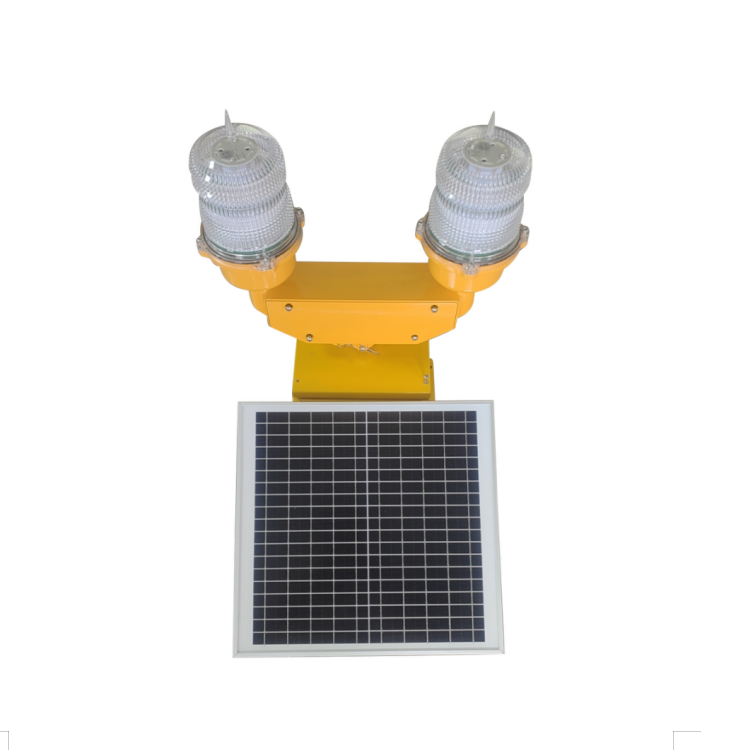

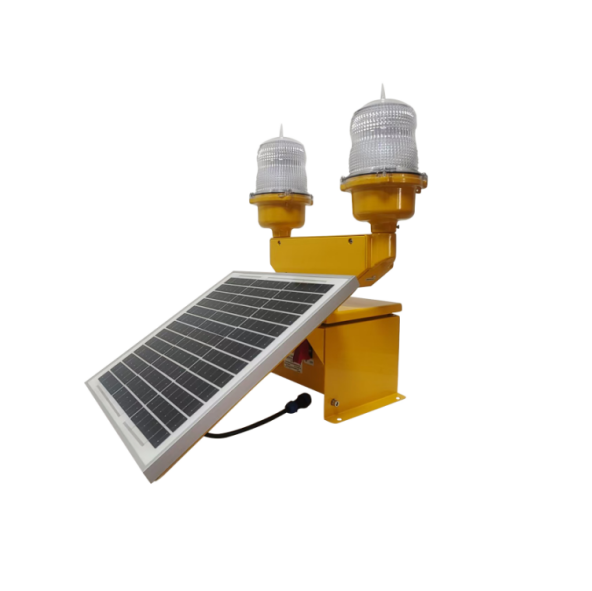

WLT78D LED Dual Low Intensity Solar Powered Obstruction Light

WLT78D LED Dual Low Intensity Solar Powered Obstruction Light - Image 3

Short Description:

With its advanced technology, reliable performance, and sleek design, Altiglo WLT78D Dual LED Solar Powered obstruction light is the ideal choice for architects, building managers, communication towers and safety professionals looking to enhance the visibility and safety of tall structures. Invest in the future of building safety with this cutting-edge lighting solution.

Solar panel: High efficient mono-crystalline silicon 18V 20Watts

Battery capacity: 12V 12AH rechargeable valve regulated lead acid battery

Intensity: >32.5cd

Autonomy: 7 days (flashing); 3-4 days(fixed)

Suitable areas: PSH=4

Materials: Lens-PC Body-Aluminum

Item - WLT78DSS: WLT78DST

ELECTRICAL CHARACTERISTIC - Effective Intensity: >32.5Candela

Downloads

Send Enquiry

SKU: WLT78D-LED-DUAL-LOW-INTENSITY-SOLAR-POWERED-OBSTRUCTION-LIGHT

Item - WLT78DSS	WLT78DST
ELECTRICAL CHARACTERISTIC - Effective Intensity	>32.5Candela
Vertical Divergence	10 Degree
Horizontal out-put	360 Degree
LED Color	Red (for obstruction). White, yellow, green and blue are available for other applications
LED Lifespan	100, 000 Hours
OPERATION - Woke mode	Flashing
Operation mode - Service+Service	Service+Standby
Flash Pattern	Flashing: 20/30/40/60FPM; Default: 40FPM;
Flash duration	670ms
Photocell sensitivity	70-100 Lux
Autonomy	7 days(flashing)
Alarm type	NO & NC, dry contact relay(optional)
POWER SUPPLY - Solar panel	Solar module, mono-crystalline silicon 18V 20W
Solar Efficiency	21%
Battery capacity	VRLA, 12V/12Ah
Battery replacement	Replaceable
MECHANICAL STRUCTURE - Lens	Polycarbonate, UV Stabilize
Body	Aviation yellow powder-coated extruding aluminum
IP Ingress	IP65
Weight	13KG
Operating Temperature	-30℃ ~ +55℃
Storage Temperature	-40℃ ~ +70℃
Suitable areas	PSH=4
Relative humidity	0-95% RH non-condensing
Wind speed	Up to 150mph(240kph)
OTHERS - Warranty	2 years
Optional	Flashing pattern(20–60FPM) Built-in photocell NO dry contact relay
