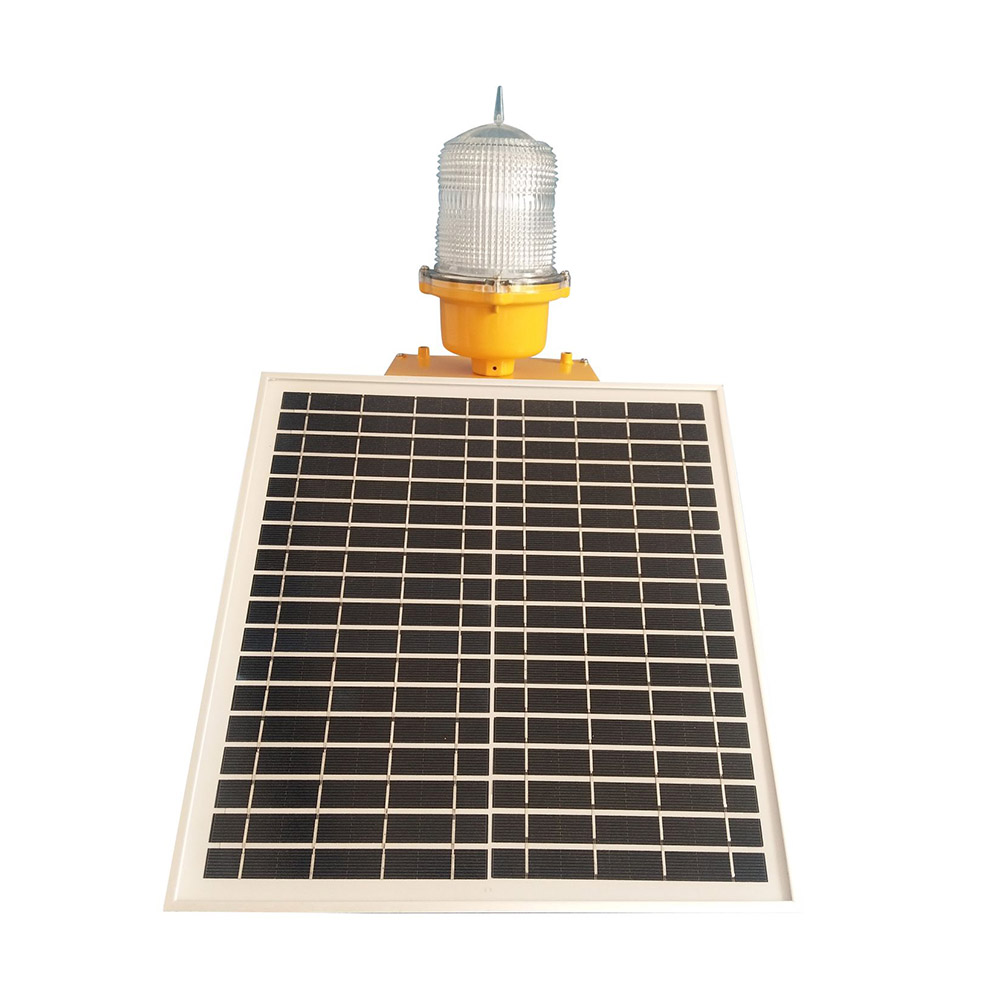

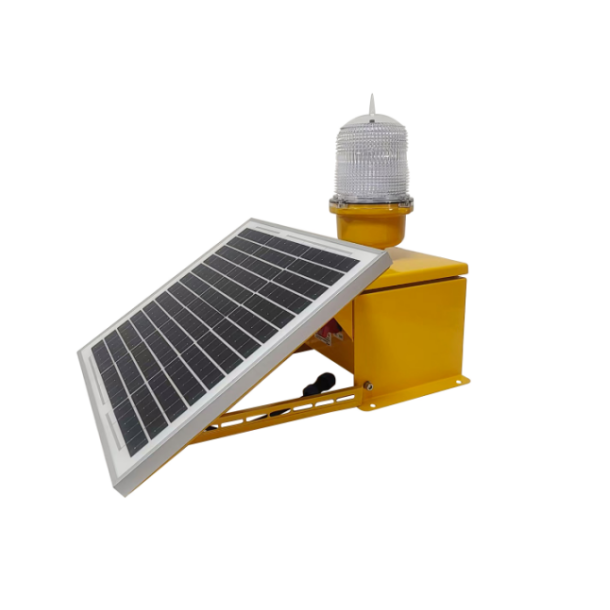

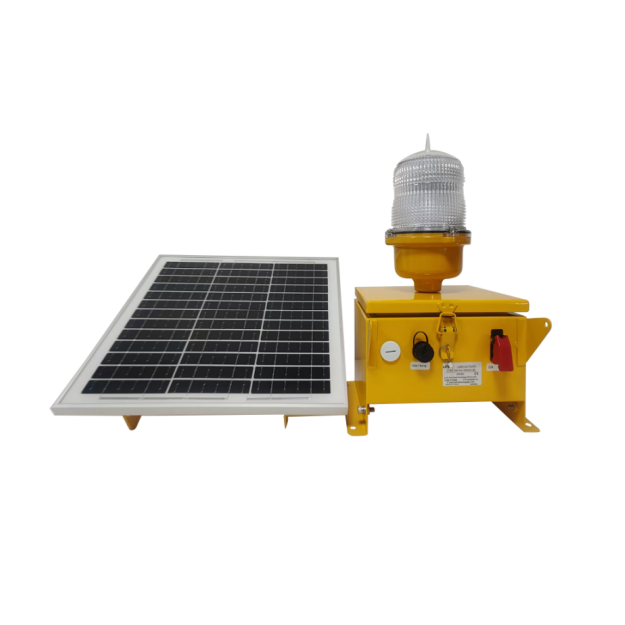

WLT90S LED Low intensity Solar Powered Obstruction Light(Type A)

WLT90S LED Low intensity Solar Powered Obstruction Light(Type A) - Image 3

Short Description:

Altiglo are dedicated to providing innovative and reliable products for aviation safety.Our WLT90S Solar powered obstruction light is an essential tool for ensuring the safety and visibility of high-rise structures, particularly in areas with high air traffic. Its reliable performance and energy-efficient design make it a cost-effective and sustainable solution for aviation safety needs.It is a testament to our commitment to developing cutting-edge technology that meets the evolving needs of the industry. Trust our products to elevate safety and efficiency in aviation operations.

Solar panel: High efficient mono-crystalline silicon 15V 6Watts

Battery capacity: 12V 8AH rechargeable valve regulated lead acid battery

Intensity: >10cd

Autonomy: 16 days (flashing); 7 days(fixed)

Suitable areas: PSH=4

Materials: Lens-PC Body-Aluminum

Item: WLT90S

ELECTRICAL CHARACTERISTIC - Effective Intensity: >10 Candela

Downloads

Send Enquiry

SKU: WLT90S
Category: Low Intensity Series Solar Powered Series, Solar-Powered Series

Item	WLT90S
ELECTRICAL CHARACTERISTIC - Effective Intensity	>10 Candela
Vertical Divergence	10 Degree
Horizontal out-put	360 Degree
LED Color	Red (for obstruction). White, yellow, green and blue are available for other applications
LED Lifespan	100, 000 Hours
OPERATION - Woke mode	Flashing or steady burning
Flash Pattern	Flashing: 20/30/40/60FPM; Default: 40FPM;
Flash duration	670ms
Photocell sensitivity	70-100 Lux
Autonomy	16 days(flashing), 7 days(steady burning)
Alarm type	NO & NC, dry contact relay(optional)
POWER SUPPLY - Solar panel	Solar module, mono-crystalline silicon 18V 20W
Solar Efficiency	21%
Battery capacity	VRLA, 12V/7Ah
Battery replacement	Replaceable
MECHANICAL STRUCTURE - Lens	Polycarbonate, UV Stabilize
Body	Aviation yellow powder-coated extruding aluminum
IP Ingress	IP65
Weight	12KG
Operating Temperature	-30℃ ~ +55℃
Storage Temperature	-40℃ ~ +70℃
Suitable areas	PSH=4
Relative humidity	0-95% RH non-condensing
Wind speed	Up to 150mph(240kph)
OTHERS - Warranty	2 years
Optional	Flashing pattern(20–60FPM) Built-in photocell NO & NC, dry contact relay
