Short Description:

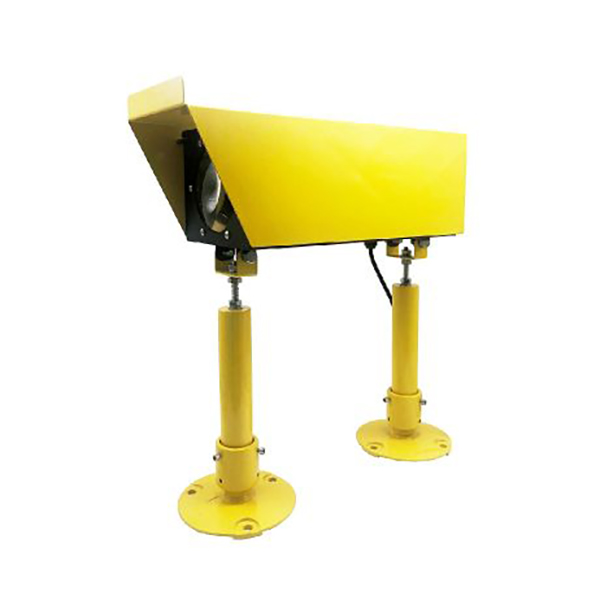

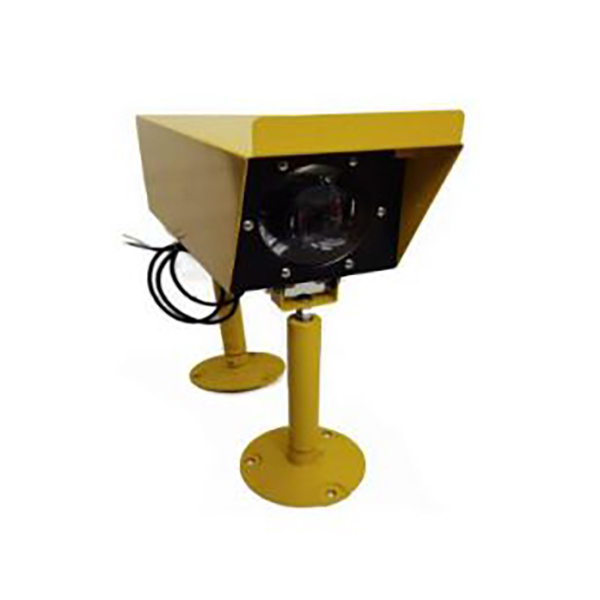

Product name: LED Visual Approach Slope Indicator
Power voltage: 110VAC, 220VAC, 48VDC, 24VDC or others
Power Consumption:50W
Working mode: Steady Burning
Light source life：100,000h
Materials: Yellow powered coated aluminum
LED Color:White,Green or Red
IP rate:IP65
Item: AS500
Light Characteristics - Light Source: Ultra high intensity LED
Downloads
AS500| Item | AS500 |
|---|---|
| Light Characteristics - Light Source | Ultra high intensity LED |
| Available Colors | White;Green or Red |
| Working mode | Steady burning |
| Operation Mode | 24 hours operation |
| LED Life Experience(hours) | >100, 000 hours |
| Electrical Characteristics - Operating Voltage | 110VAC, 220VAC, 48VDC, 24VDC or others |
| Power(W) | 50W |
| Physical Characteristics - Body Material | Powder coated Die-casting Aluminum |
| Leg Material | Die casting aluminum |
| Installation size(mm) | 140x M10 |
| Dimension(mm) | 520x184x455 |
| Weight(kg) | 10 |
| Product Life Expectancy | ≥10years |
| Environmental Factors - Ambient Temperature | -35℃~80℃ |
| Humidity | 0~95% |
| Wind Speed | 80m/s |
| Waterproof | IP65 |
| Compliance - ICAO | ICAO, Annex 14th, Volume I, 6th Edition dated 2013, AO Annex 14 Volume II –Figure 5-11 2013, clauses 5.3.5.28 – 5.3.5.40, Figure A2-23 Appendix 1, 2.1.1 |
| Options Available | Marine Treated VHF pilot to ground remote control Infrared LED compatible for NVG (Night Vision Goggles) |
Common use cases include elevated type, heliport lighting, products.
Need Product Guidance?
Request pricing, lead times, technical compatibility guidance, and project support for this model.
Low Intensity Series
Product name:Low Intensity LED Steady Type or Flashing Type(E27 type) Input voltage:85-265VAC, 50/60 Hz;12VDC; 24VDC;30-60VDC; Effective Intensity: 32 Candela LED Lifespan:100,000 Hours Materials:Lens-PC; Body- Aluminum
SKU WL78DE-E83-TYPE-L-290-LOW-INTENSITY-DUAL-OBSTRUCTION-LIGHT-TYPE-B
Controller & Monitoring

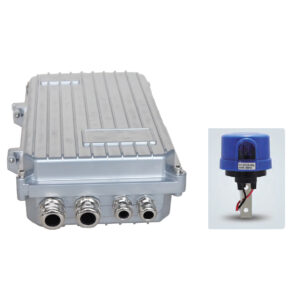

Altiglo XBL06A Obstruction Light Monitoring Control Box represents the next generation of aviation safety…
SKU XBL06A
Low Intensity Series
Altiglo WL78S-F Low intensity single aviation light is a dependable and efficient choice for marking…
SKU WL78S-F
Controller & Monitoring

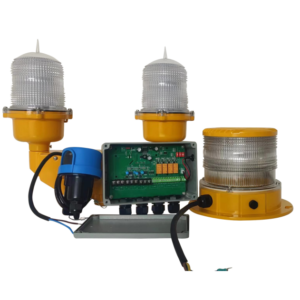

Our latest innovation in aviation safety – the Obstruction Light Monitoring Controller. This state-of-the-art controller is…
SKU XBL07A
Controller & Monitoring

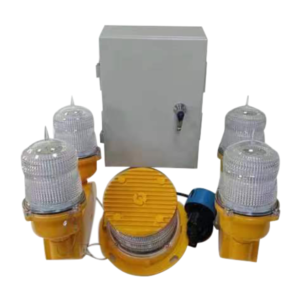

The XBL05A is an obstruction lighting Control box designed for controlling and monitoring Altiglo…
SKU XBL05A

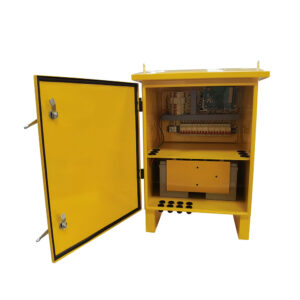

Input voltage: 85-265VDC Output voltage: 24VDC Number of Light output: 9*contact relay for lights, power and photocell…
