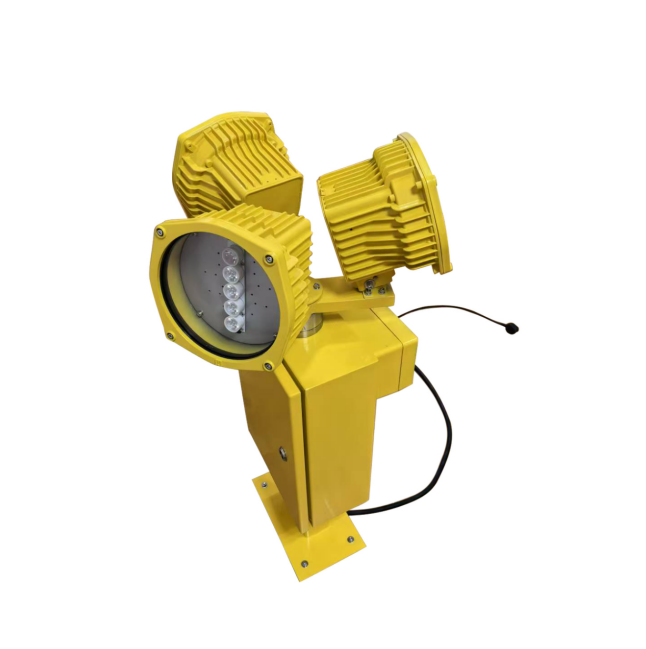

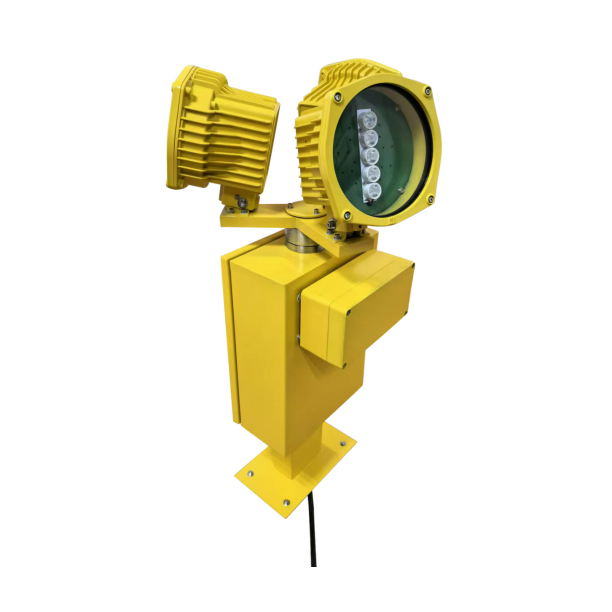

AS740-H L802H High intensity LED Heliport Rotating Beacon

Short Description:

Altiglo AS740-H L802H High intensity LED Heliport Rotating Beacon is a cutting-edge solution for enhancing heliport safety and visibility. Its powerful LED lights, 360-degree rotation capability, durability, and compliance with regulations make it the ideal choice for any heliport looking to improve safety and operational efficiency

Power supply: 200VAC to 240VAC 50/60Hz

Power consumption:280W

LED Life Time:100,000Hours

Color: CY = Clear and Yellow,CG = Clear and Green

IP grade: IP65

Item: AS740-H

Environmental Property - Environmenta l Temperature: - 40 ℃~+55℃

Downloads

Send Enquiry

SKU: AS740-H

Item	AS740-H
Environmental Property - Environmenta l Temperature	– 40 ℃~+55℃
Precipitation	IP6 5
Salt fog	Exposure to a corrosive atmosphere
Temperature shock	Exposure of the hot light fixture to cold water spray
Electrical Property - Power supply	200VAC to 240VAC 50/60Hz
Power consumption	LED 280 W
Lamp	LED
Lamp Life	100, 000Hours
Photometric Property - Light color	White, Yellow, and Green
Flashing rate	25 or 37.5 Times/min
Torque of drive motor	40N.m
Packing Size	550x550x940mm³
Net Weight	25.5kg
Gross Weight	46 Kg
Surface Treatment - Treatment	Anodizing coating
Color	Yellow
Composition - Upper body	Aluminum forging
Lower cover	Aluminum die-casting
Dome lens cover	Aluminum forging
Dome lens	Glass(clear)
Application - V ertical A ngle	Effective Intensity
White light - Yellow light	Green light
L802H - 1and2°	2812.5
3-7° - 37500	5625
8-10° - 18750	2812.5
