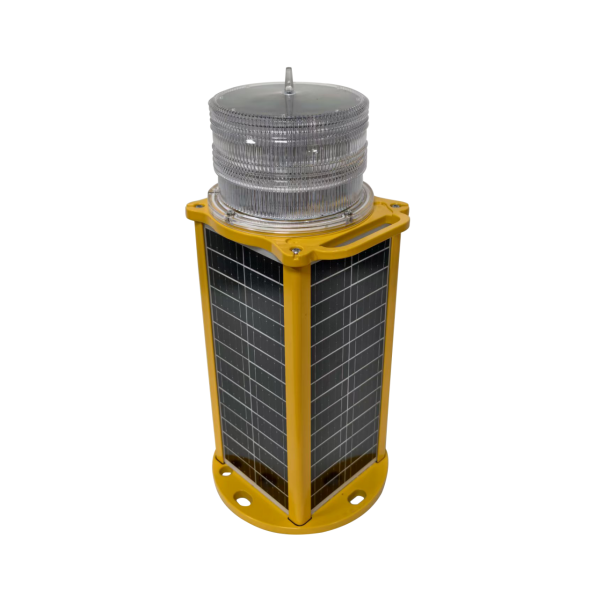

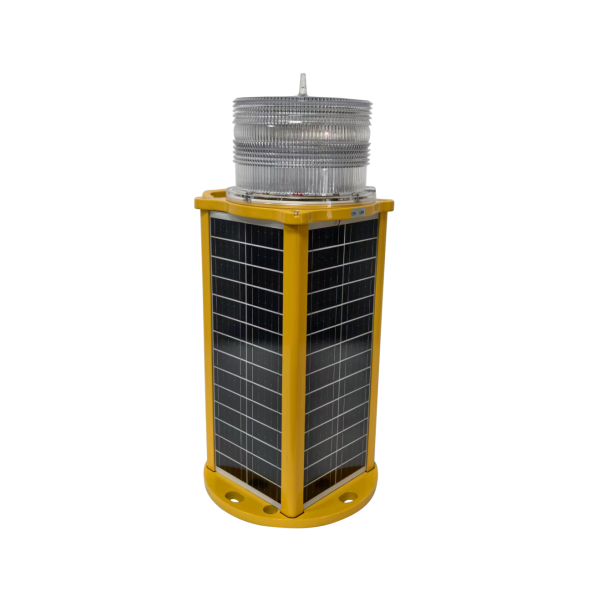

GY20S Medium intensity solar obstruction light

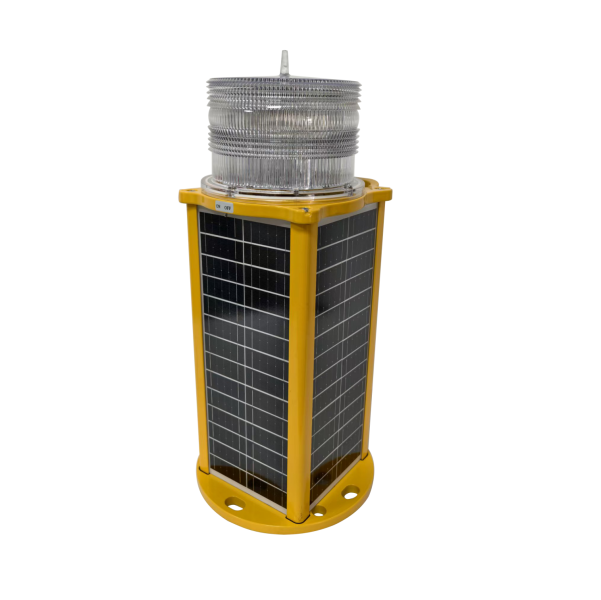

GY20S Medium intensity solar obstruction light - Image 3

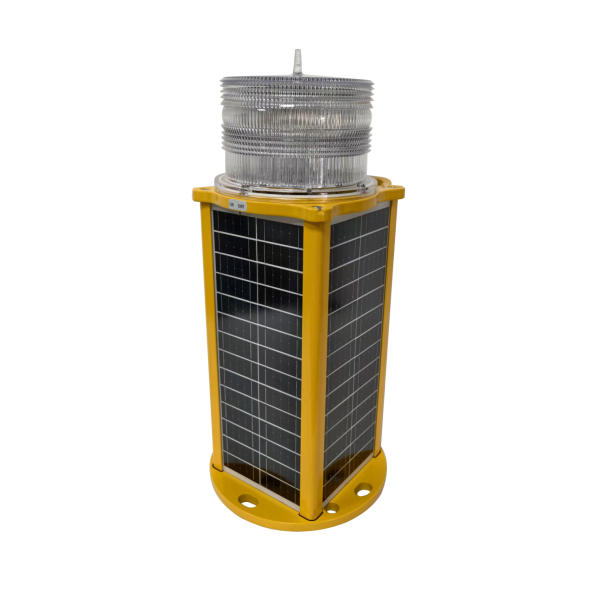

GY20S Medium intensity solar obstruction light - Image 4

Short Description:

Altiglo GY20S medium intensity solar obstruction light, the perfect solution for marking and illuminating obstructions for aviation, telecom, and construction industries. Our solar obstruction light is designed to provide maximum visibility and safety for tall structures such as towers, cranes, and wind turbines during both day and night.

GY20S Medium intensity solar obstruction light

Solar panel: High efficient mono-crystalline silicon 18V/4*7 Watts

Battery capacity: 12V14AH rechargeable Lithium battery

Intensity: >2000cd

Autonomy: 25 days (flashing)； 8 days(fixed)

Suitable areas: PSH=4

Materials: Lens-PC Body-Aluminum

Item: GY20S

ELECTRICAL CHARACTERISTIC - Effective Intensity: >2000 Candela

Downloads

Send Enquiry

SKU: GY20S
Category: Medium Intensity Series Solar Powered Series, Solar-Powered Series

Item	GY20S
ELECTRICAL CHARACTERISTIC - Effective Intensity	>2000 Candela
Vertical Divergence	3 Degree
Horizontal out-put	360 Degree
LED Color	Red (for obstruction). White, yellow, green and blue are available for other applications
LED Lifespan	100, 000 Hours
OPERATION - Woke mode	Flashing or steady burning
Flash Pattern(optional)	Flashing: 20/30/40/60FPM; Default: 40FPM;
Flash duration	670ms
Photocell sensitivity	70-100 Lux
Autonomy	25 days(flashing), 8 days(steady burning)
Alarm type:	NO & NC, dry contact relay(optional)
POWER SUPPLY - Solar panel	Solar module, mono-crystalline silicon 18V/4*7W
Solar Efficiency	21%
Battery capacity	High-efficiency 12V14Ah Lithium battery
Battery replacement	Replaceable
MECHANICAL STRUCTURE - Lens	Polycarbonate, UV Stabilize
Body	Aviation yellow powder-coated extruding aluminum
IP Ingress	IP67
Weight	8.2KG
Operating Temperature	-30℃ ~ +55℃
Storage Temperature	-40℃ ~ +55℃
Suitable areas:	PSH≥3
Relative humidity	0-95% RH non-condensing
Wind speed	Up to 150mph(240kph)
OTHERS - Warranty	2 years
Optional	Flashing pattern(20–60FPM) Built-in photocell NO & NC, dry contact relay GPS Synchronization function
