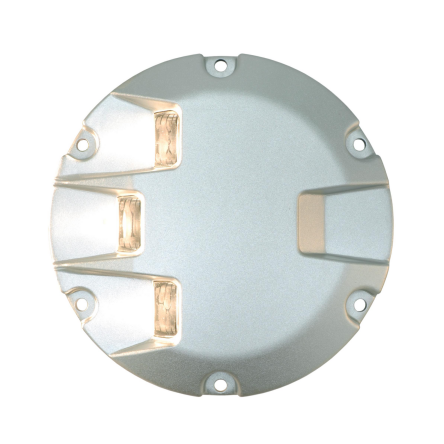

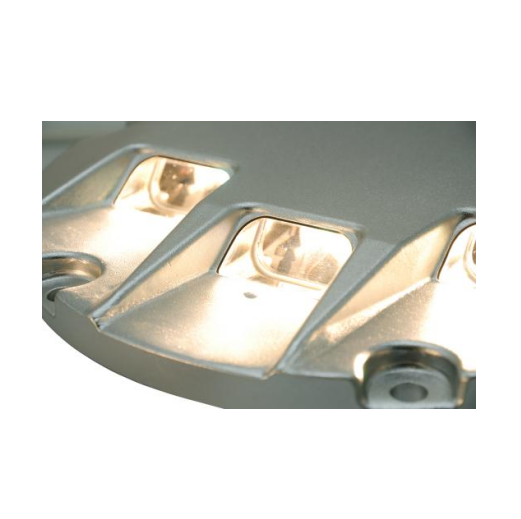

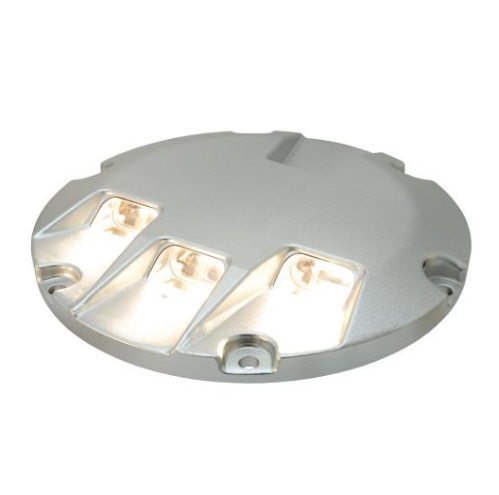

OS-APP-98-S-W(H) Halogen Inset Approach Centerline Light(12’6mm)

OS-APP-98-S-W(H) Halogen Inset Approach Centerline Light(12’6mm) - Image 3

Short Description:

Altiglo OS-APP-98-S-W(H)halogen inset approach centreline light for airports is designed to enhance the safety and efficiency of airport runways by providing bright and visible guidance for pilots during takeoff and landing. We understand the importance of providing airports with high-quality lighting solutions that contribute to the overall safety of air travel. Our commitment to quality and safety is evident in every aspect of our approach centreline light, from its durable construction to its reliable performance.

Power supply: 2.8A-6.6A

Rated power: 3X105W

Halogen Life Time:1,000 Hours

Minimum Average Intensity:20000cd

Color: White

IP grade: IP68

Item: OS-APP-98-S-W(H)

Environmental Property - Operating Temperature: -55℃~+55℃

Downloads

Send Enquiry

SKU: OS-APP-98-S-W(H)
Category: Approach Lighting, Inset Approach Lighting

Item	OS-APP-98-S-W(H)
Environmental Property - Operating Temperature	-55℃~+55℃
Storage Temperature	-40℃~+55℃
Precipitation	IP68
Salt fog	Exposure to a corrosive atmosphere
Temperature shock	Exposure of the hot light fixture to cold water spray
Electrical Property - Power supply	2.8A-6.6A
Rated power	3X105W
Lamp	Halogen Lamp
Lamp Life	1, 000Hours
Photometric Property - Light color	White
Main beam angle	Vertical:0°- 13.5°; Horizontal:± 10°
Min intensity	20, 000cd
Light Size	330×330×150mm³
Weight	7Kg(without shallow base) 12kg(with shallow base)
Surface Treatment - Treatment	Anodizing coating
Color	White
Composition - Upper body	Aluminum forging
Lower cover	Aluminum die-casting
Dome lens cover	Aluminum forging
Dome lens	Glass(clear)
Application - Main beam	Actual avg. cd
H	V
OS-APP-98-S-W(H) - ICAO Figure A2-1	23561
± 10° - 0.5° -11.5°	23687
± 10° - 1.5° -12.5°	23538
± 10° - 2.5° -13.5°	23569
1 - Shallow base	Lower cover
2 - O-ring	Bulb holder plate
3 - M16 waterproof connector	Light bulb card
