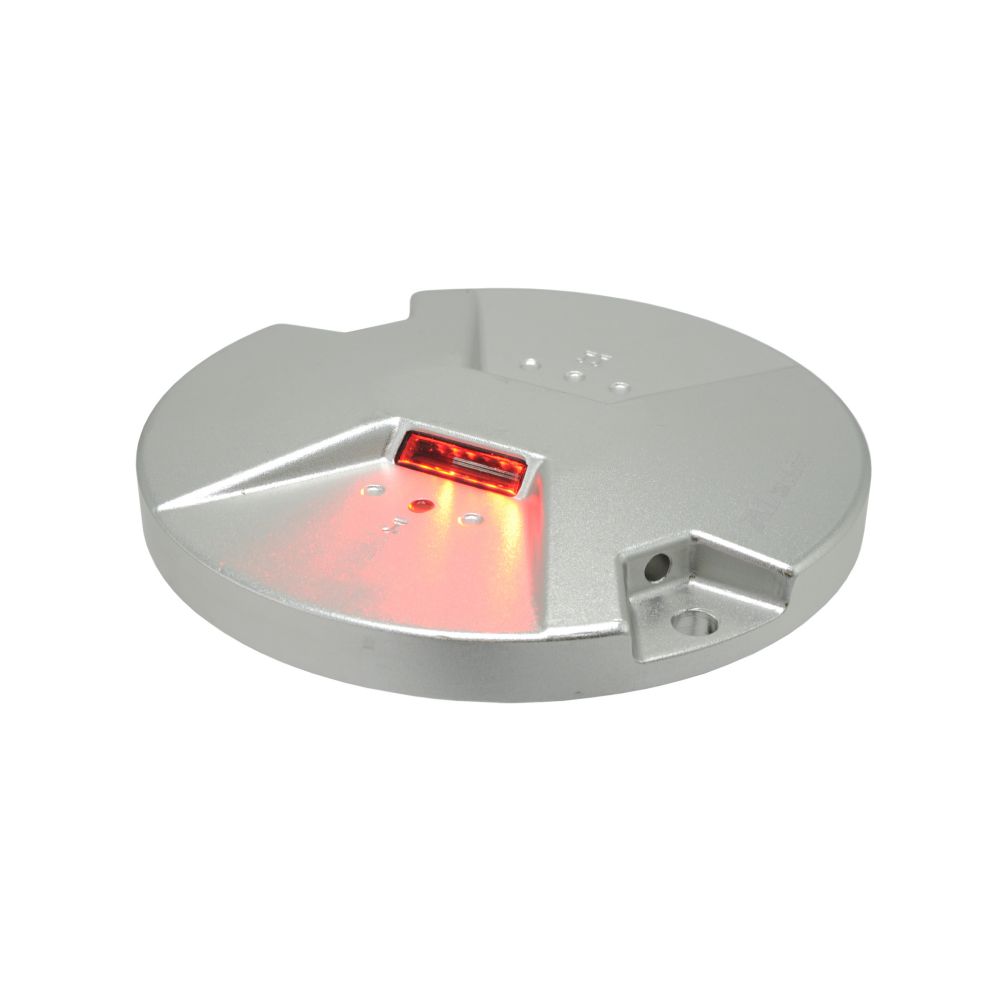

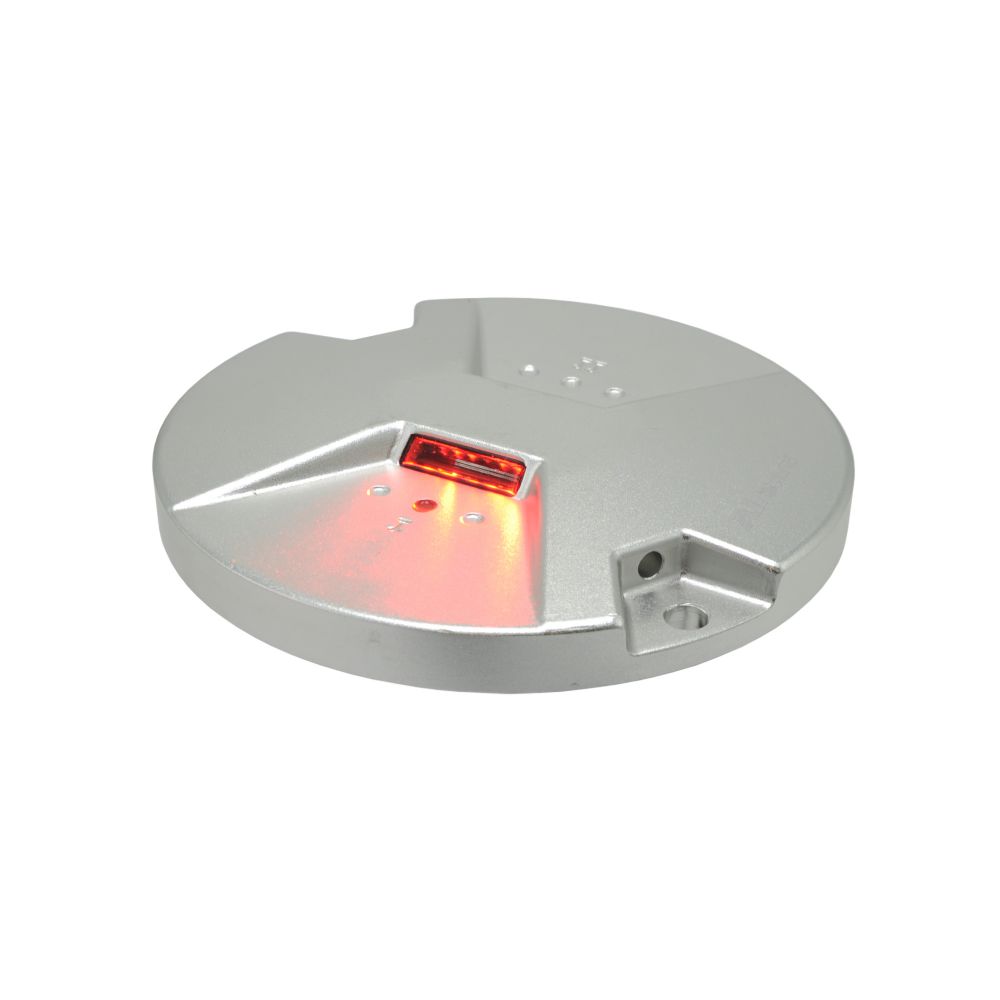

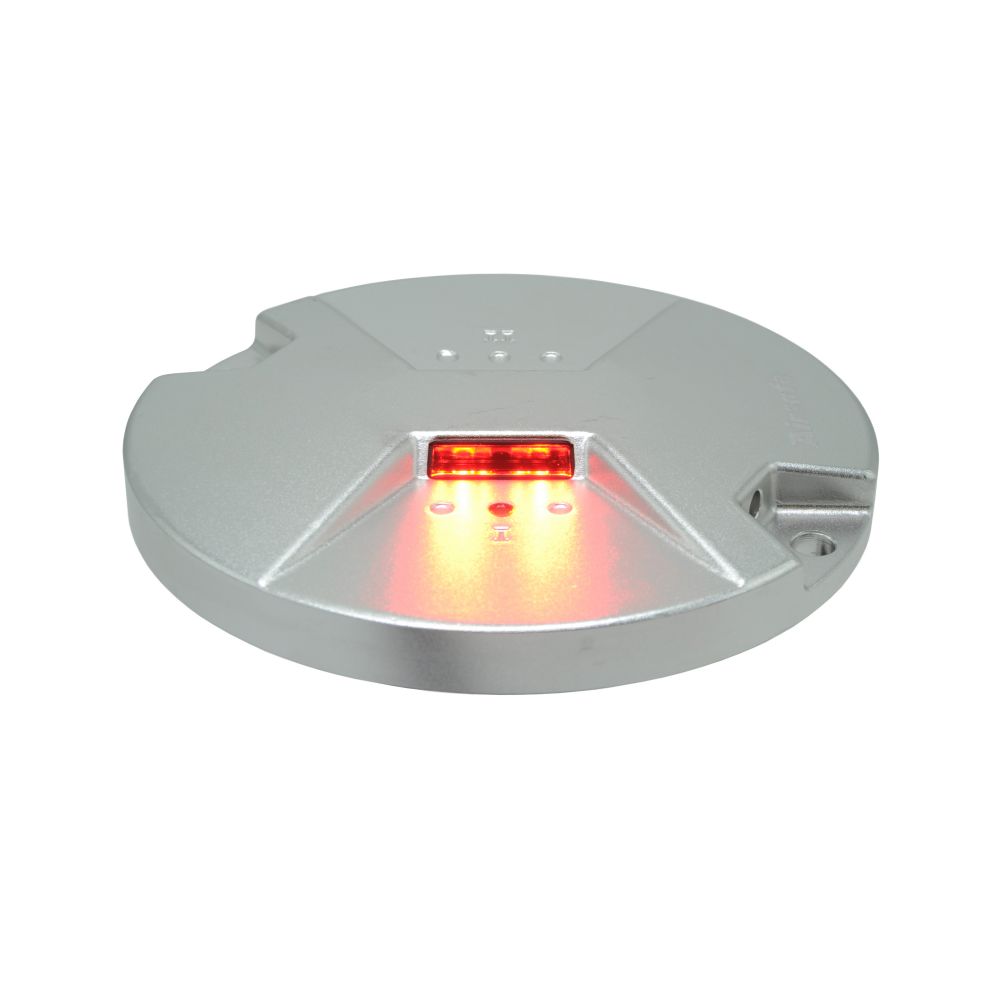

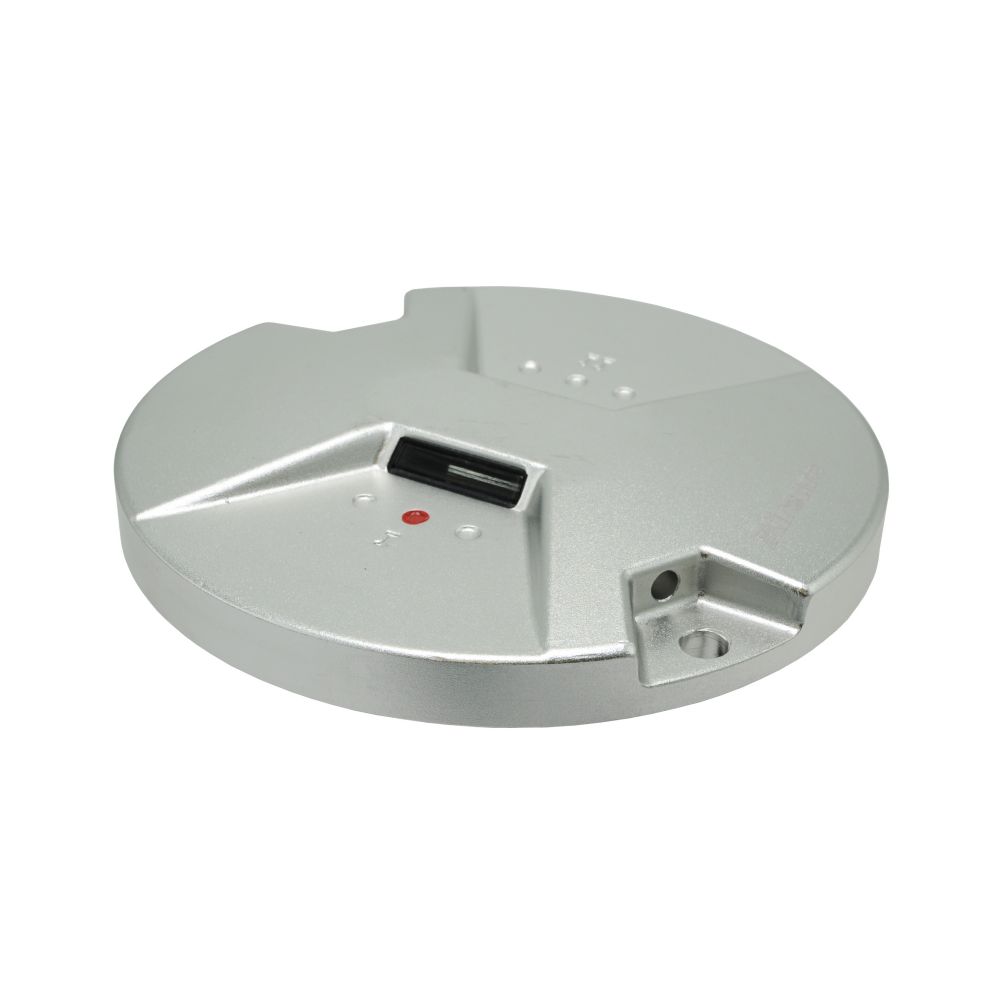

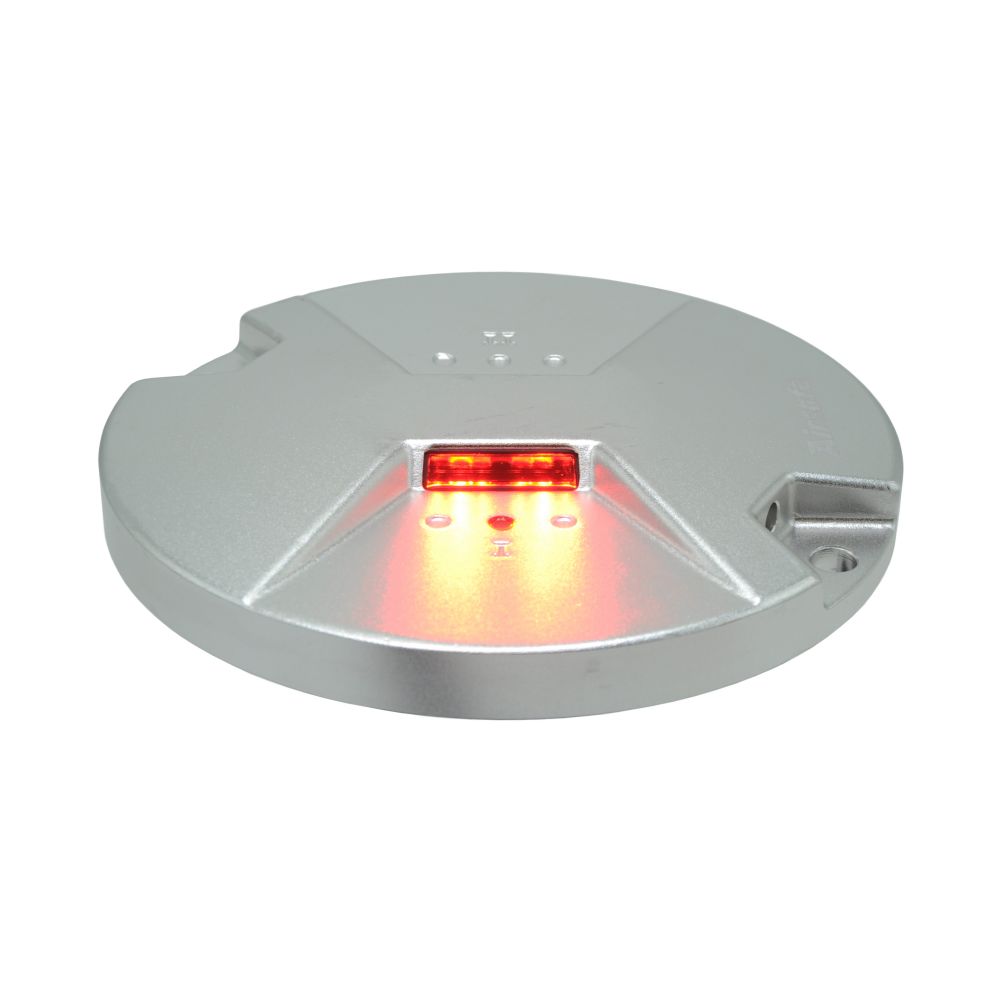

OS-ASMS-02-LED-R led inset aircraft stand manoeuvring guidance stop light

OS-ASMS-02-LED-R led inset aircraft stand manoeuvring guidance stop light - Image 3

OS-ASMS-02-LED-R led inset aircraft stand manoeuvring guidance stop light - Image 4

OS-ASMS-02-LED-R led inset aircraft stand manoeuvring guidance stop light - Image 5

Short Description:

Altiglo OS-ASMS-02-LED-R LED inset aircraft stand manoeuvring guidance stop light is a cutting-edge product that combines advanced LED technology, durability, energy efficiency, and compliance with industry standards. It is the ideal choice for enhancing the safety and efficiency of aircraft operations on the ground. Upgrade your airport or aircraft operation with our LED inset aircraft stand manoeuvring guidance stop light today!

Power supply: 2.8A~6.6A

Power consumption:8W

LED Life Time:100,000 Hours

Minimum Average Intensity:200cd

Color: Red

IP grade: IP68

Item: OS-ASMS-02-LED-R

Environmental Property - Operating Temperature: -55℃~+55℃

Downloads

Send Enquiry

SKU: OS-ASMS-02-LED-R

Item	OS-ASMS-02-LED-R
Environmental Property - Operating Temperature	-55℃~+55℃
Storage Temperature	-40℃~+60℃
IP grade	IP68
Salt fog	Exposure to a corrosive atmosphere
Temperature shock	Exposure of the hot light fixture to cold water spray
Electrical Property - Power supply	2.8A~6.6A
Power consumption	8W
Power Factor	≥ 0.9
Lamp	LED Lamp
Lamp Life	100, 000Hours
Photometric Property - Light color	Red
Main beam angle	Vertical:1°- 8°; Horizontal:±3.5° or ±10°
Min intensity	200cd
Packing Size	240×240×180mm³
Weight	6.5Kg
Surface Treatment - Treatment	Anodizing coating
Color	White
Composition - Upper body	Aluminum forging
Lower cover	Aluminum die-casting
Dome lens cover	Aluminum forging
Dome lens	Glass(clear)
Application - Main Beam	Actual min.cd
H	V
OS-ASMS-02-LED-R - ICAO Figure A2-12	271
ICAO Figure A2-13 - ±3.5°	293
1 - Upper cover	LED lamp assy
2 - Prism gasket sleeve	Cooling plate
3 - Prism	Light body gasket
4 - Prism Gasket	Lighting fixture gasket
